Chrysler Town & Country/Voyager, Dodge Caravan, Plymouth Voyager. Manual - part 124





(2) Remove screws holding applique to under side of

rocker panel.

(3) Lift applique upward to disengage from retaining

channel.

(4) Separate applique from quarter panel.
To install, reverse the preceding operation.

WOOD GRAIN OVERLAY

REMOVAL

(1) Remove exterior trim as necessary to clear cap-

tured edges of wood grain overlay for removal.

(2) Remove wood grain overlay using a suitable heat

gun or sun lamp to soften the adhesive backing. Start
removal in most accessible corner of panel to be ser-
viced.

(3) Clean adhesive residue from body finish using a

suitable adhesive remover.

INSTALLATION

INSTALLATION EQUIPMENT
• Pail filled with mild dish soap solution.

• Lint free applicator cloth or sponge.

• Body putty applicator squeegee.

• Heat gun or sun lamp.

• Razor knife.

The painted surface of the body panel to be covered

by a wood grain overlay must be smooth and com-
pletely cured before overlay can be applied. If painted
surface is not smooth, wet sand with 600 grit wet/dry
sand paper until surface is smooth.

Ripples and feather edging will read through overlay

if surface is not properly prepared.

(1) With backing still in place, position overlay

across panel to receive overlay. Apply masking at top of
overlay to hold it in position.

(2) Mark outside edge of panel on overlay with a

grease pencil.

(3) Trim overlay to within 17 mm (0.750 in.) of

outline marks.

(4) Spread overlay across a smooth flat work surface,

wood grain side down.

(5) Peel paper backing away from overlay exposing

adhesive back of overlay.

(6) Apply soap solution liberally to adhesive back of

overlay.

(7) Apply soap solution liberally to body panel sur-

face.

(8) Place overlay into position on body panel. Smooth

out wrinkles by pulling lightly on edges of overlay until
it lays flat on painted surface.

(9) Push air pockets from under overlay to the pe-

rimeter of the panel from the center of the overlay out.

(10) Squeegee soap solution and air bubbles from

behind overlay from the center of the panel out using a
body putty applicator squeegee.

CAUTION: Do not cut into painted surface of body
panel when trimming overlay to size.

(11) Trim overlay to size using a razor knife. Leave

at least 13 mm (0.5 in.) for edges of doors and openings.

CAUTION: Do not overheat overlay when performing
step 12.

(12) Apply heat to overlay to evaporate residual

moisture from edges of overlay and to allow overlay to
be stretched into concave surfaces.

(13) Edge turn overlay around doors or fenders.
(14) Install exterior trim if necessary.
Small air or water bubbles under overlay can be

pierced with a pin and smoothed out.

RIGHT SIDE GRAB HANDLE

REMOVAL (FIG. 36)

(1) Remove screw covers from grab handle.
(2) Remove screws holding grab handle to roof rail

above right front door.

(3) Separate grab handle from roof rail.
(4) Remove A-pillar/roof rail molding.
(5) Remove bolts holding grab handle reinforcement

to roof rail.

(6) Separate reinforcement from roof rail.

INSTALLATION

Reverse the preceding operation.

COWL TRIM AND SCUFF PLATES

REMOVAL (FIG. 37)

(1) Remove plug and screw holding windshield side

garnish molding to cowl trim cover.

(2) Remove screws holding scuff plate to door sill.
(3) Separate cowl trim/scuff plate from vehicle.

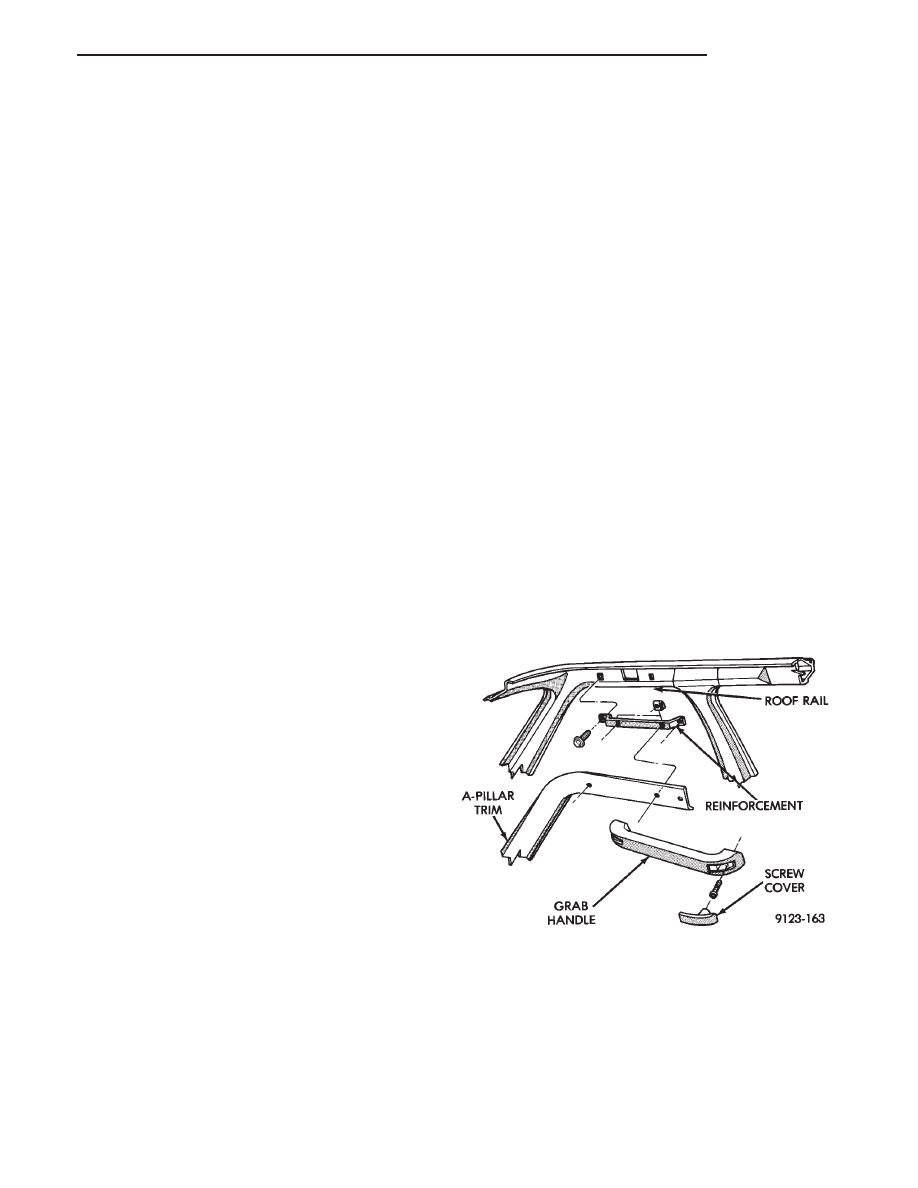

Fig. 36 Grab Handle

.

BODY

23 - 35

COWL TRIM AND SCUFF PLATE INSTALLA-
TION

Reverse the preceding operation.

SLIDING DOOR SCUFF PLATE REMOVAL
(FIG. 37)

(1) Remove screws holding sliding door scuff plate to

sill.

(2) Separate scuff plate from vehicle.

SLIDING DOOR SCUFF PLATE INSTALLATION

Reverse the preceding operation.

A-PILLAR AND ROOF RAIL MOLDINGS

REMOVAL (FIG. 37)

(1) Remove grab handle, if equipped.
(2) Remove windshield side garnish molding.
(3) Remove plug and screw holding A-pillar trim to

roof rail.

(4) Disengage fasteners holding A-pillar trim to

A-pillar.

(5) Separate A-pillar trim from vehicle.

INSTALLATION

Reverse the preceding operation.

RIGHT B-PILLAR TRIM COVER

REMOVAL (FIG. 37)

(1) Remove cover and bolt holding shoulder harness

turning loop to B-pillar.

(2) Remove bolt holding outboard seat belt anchor to

floor.

(3) Remove A-pillar trim as necessary to gain clear-

ance for removal of B-pillar trim.

(4) Remove door sill scuff plates to gain clearance for

removal of B-pillar trim.

(5) Remove screws holding B-pillar trim to B-pillar.
(6) Separate B-pillar trim from vehicle

INSTALLATION

Reverse the preceding operation.

UPPER TRACK COVER

REMOVAL (FIG. 37)

(1) Remove plugs and screws holding upper track

cover to sliding door track.

(2) Separate track cover from vehicle.

INSTALLATION

Reverse the preceding operation.

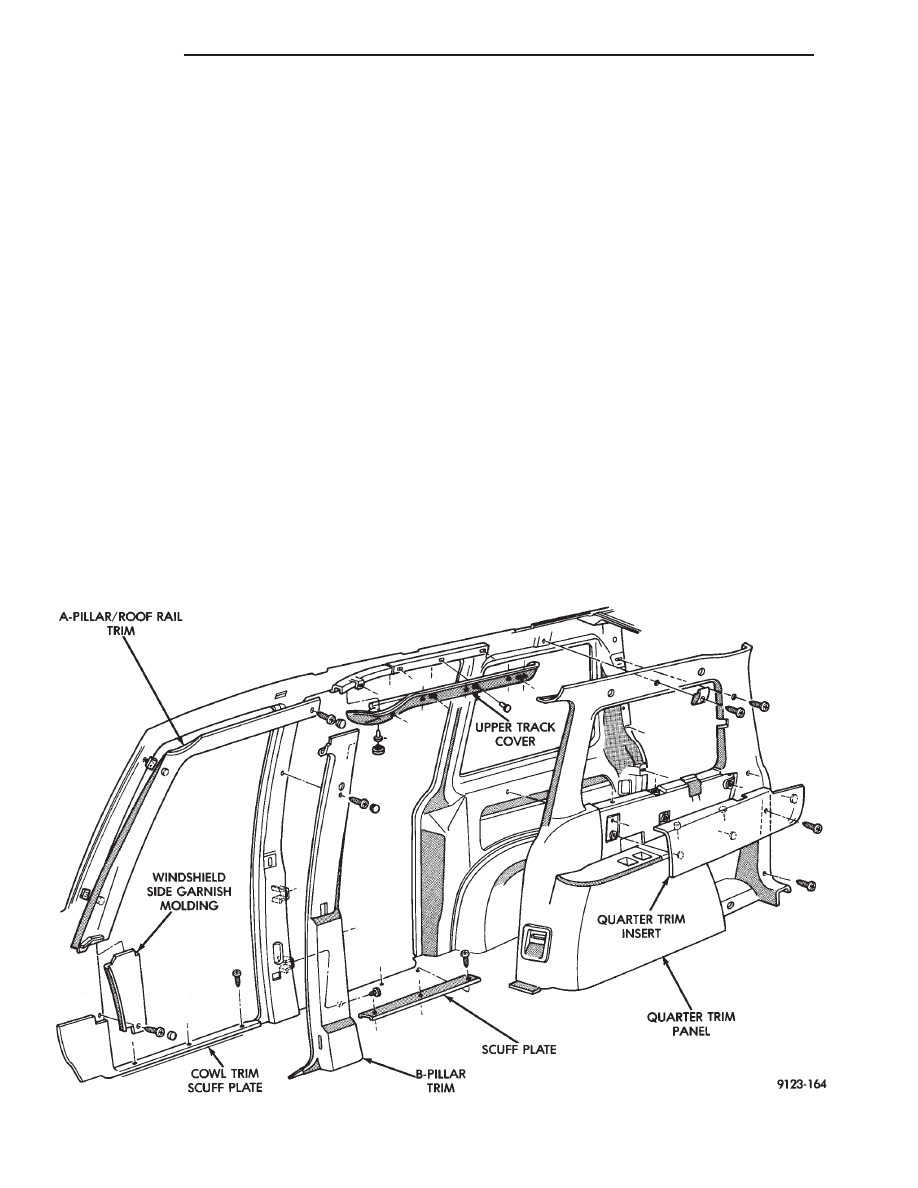

Fig. 37 Interior Trim

23 - 36

BODY

.

RIGHT QUARTER TRIM PANEL

REMOVAL (FIG. 37)

(1) Remove liftgate and sliding door sill scuff plate.
(2) Remove sliding door upper track cover.
(3) Pull outward at bottom of quarter trim insert to

disengage fasteners holding insert to trim panel.

(4) Lift upward on quarter trim insert and separate

insert from quarter trim panel.

(5) Remove screw holding coat hook to roof rail and

separate hook from vehicle.

(6) Remove covers and bolts holding shoulder har-

ness turning lops to roof rail and separate belts from
trim panel.

(7) Remove bolts holding outboard seat belt to floor

and separate belt from floor.

(8) Remove plugs and screws holding quarter trim to

inner quarter panel.

(9) Separate quarter trim panel from vehicle.

INSTALLATION

Reverse the preceding operation.

LEFT QUARTER TRIM PANEL

REMOVAL (FIG. 38)

(1) Remove ash tray.
(2) Remove screw holding quarter trim insert to

quarter trim from inside ash tray opening.

(3) Pull outward at bottom of trim insert to disen-

gage clips holding insert to quarter trim.

(4) Lift insert upward and separate quarter trim

insert from vehicle.

(5) Remove screws holding lower quarter trim panel

to inner quarter panel.

(6) Separate lower quarter trim from vehicle.
(7) Remove covers and bolts holding shoulder har-

ness turning loops to upper quarter panel.

(8) Remove bolts holding outboard seat belt anchor

to floor.

(9) Remove seat belt retractor covers.
(10) Remove screw holding coat hook to quarter

panel.

(11) Remove screws holding upper quarter trim

panel to inner quarter panel.

(12) Separate upper quarter trim panel from vehicle.

INSTALLATION

Reverse the preceding operation.

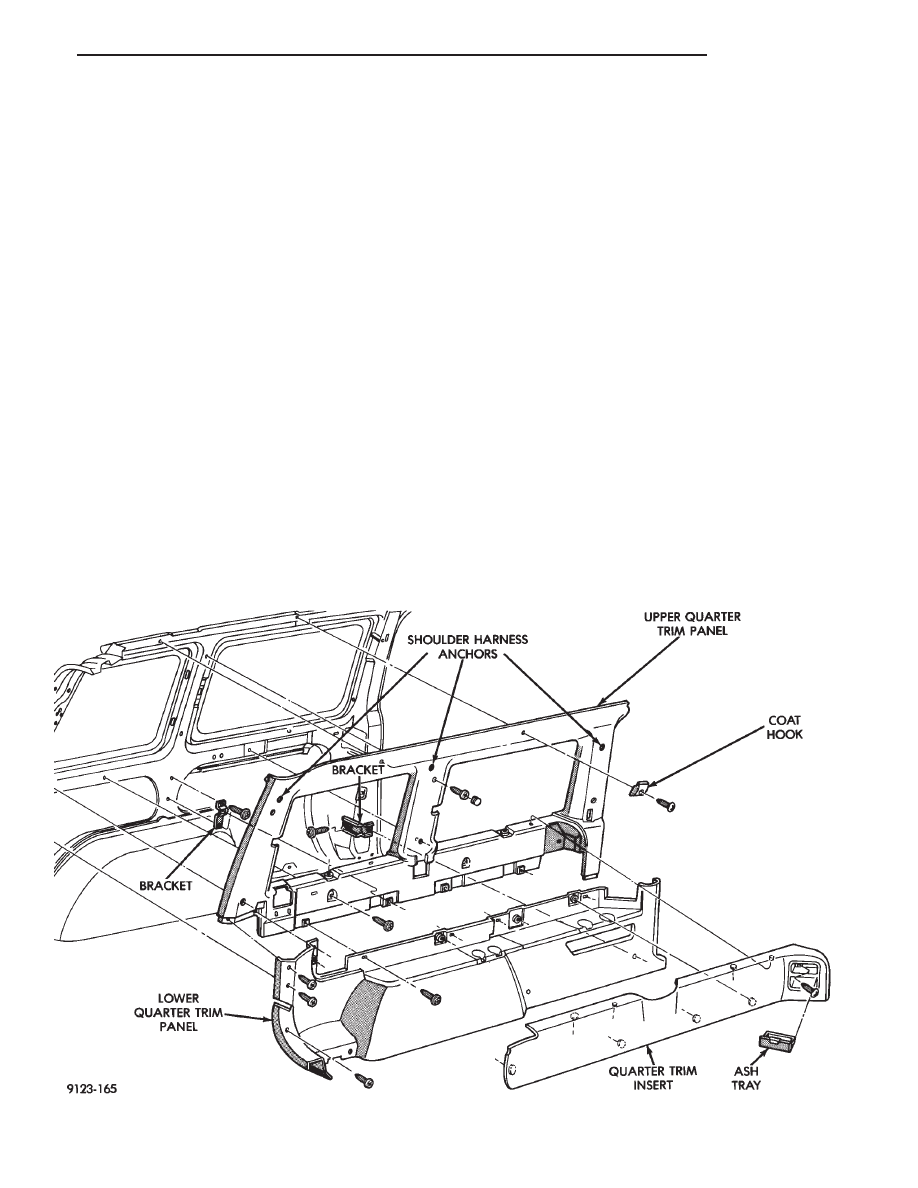

Fig. 38 Quarter Trim Panel

.

BODY

23 - 37

LEFT QUARTER TRIM PANEL—WITH REAR A/C

REMOVAL (FIG. 39)

(1) Remove ash tray.
(2) Remove screw holding quarter trim insert to

quarter trim from inside ash tray opening.

(3) Pull outward at bottom of trim insert to disen-

gage clips holding insert to quarter trim.

(4) Lift insert upward and separate quarter trim

insert from vehicle.

(5) Remove screws holding lower quarter trim panel

to inner quarter panel.

(6) Separate lower quarter trim from vehicle.
(7) Remove covers and bolts holding shoulder har-

ness turning loops to upper quarter panel.

(8) Remove bolts holding outboard seat belt anchor

to floor.

(9) Remove seat belt retractor covers.
(10) Remove screws holding coat hook to quarter

panel.

(11) Remove screws holding upper quarter trim

panel to inner quarter panel.

(12) Separate upper quarter trim panel from vehicle.

INSTALLATION

Reverse the preceding operation.

FRONT SEAT BELTS

OUTBOARD SHOULDER HARNESS/LAP BELT
REMOVAL (FIG. 40 OR 41)

(1) Remove shoulder harness turning loop.
(2) Remove B-pillar or quarter trim panels as neces-

sary to gain access to belt retractor.

(3) Remove bolt holding retractor and lower lap belt

anchor to B-pillar.

(4) Separate belt from vehicle.

OUTBOARD SHOULDER HARNESS/LAP BELT
INSTALLATION

Reverse the preceding operation.

INBOARD BUCKLE REMOVAL (FIG. 42)

(1) Remove bolt holding seat belt buckle t o seat

riser.

(2) separate buckle from seat riser.
(3) Disconnect seat belt sensor wire connector, if

equipped.

INBOARD BUCKLE INSTALLATION

Reverse the preceding operation.

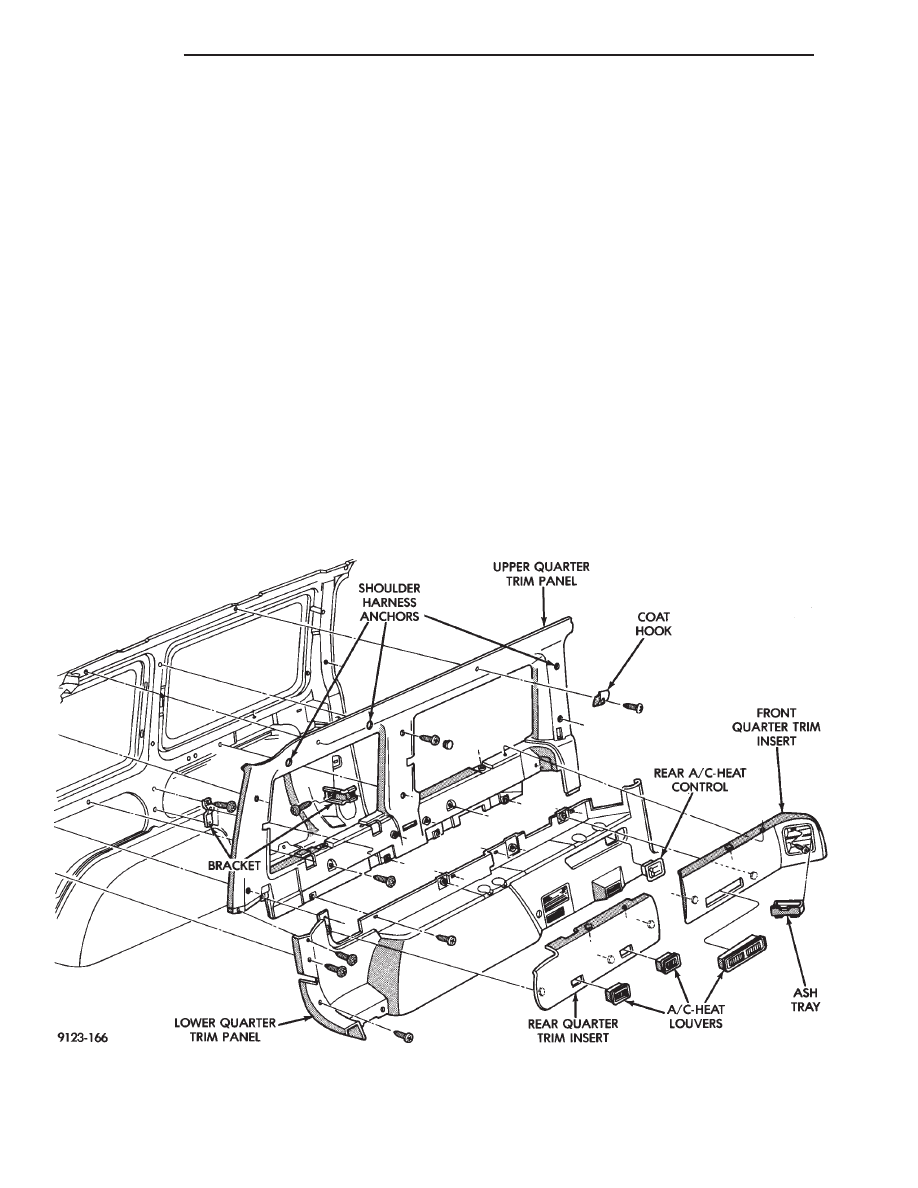

Fig. 39 Quarter Trim Panel—With Rear A/C

23 - 38

BODY

.
