Chevrolet Silverado / GMC Sierra. Manual - part 692
Fig. 66: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
47. Secure and insulate the 3-wire connection to the deployment harness using electrical tape.
48. Connect the deployment harness to the I/P module in-line connector.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

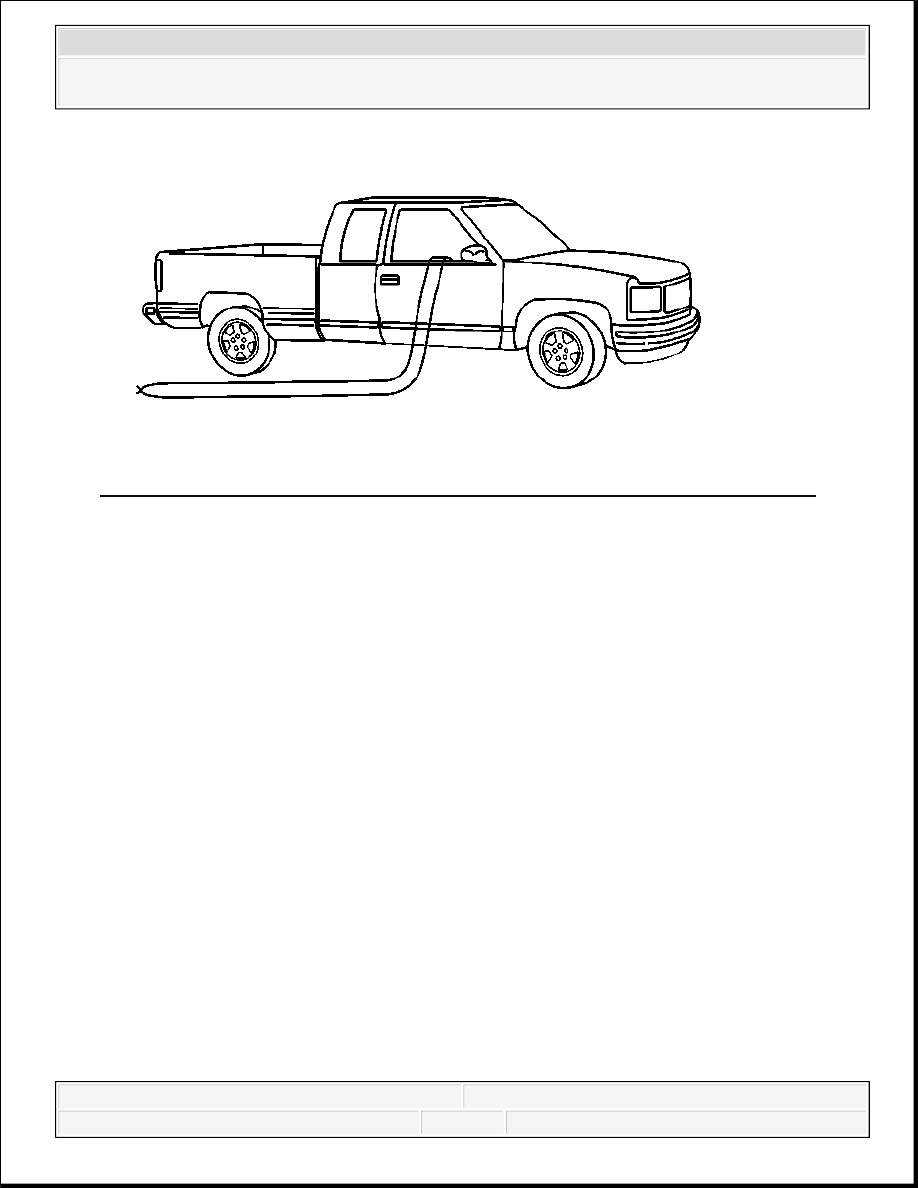

Fig. 67: Routing The Deployment Harness Out Of The Vehicle's Passenger Side
Courtesy of GENERAL MOTORS CORP.
49. Route the deployment harness out of the passenger side of the vehicle.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

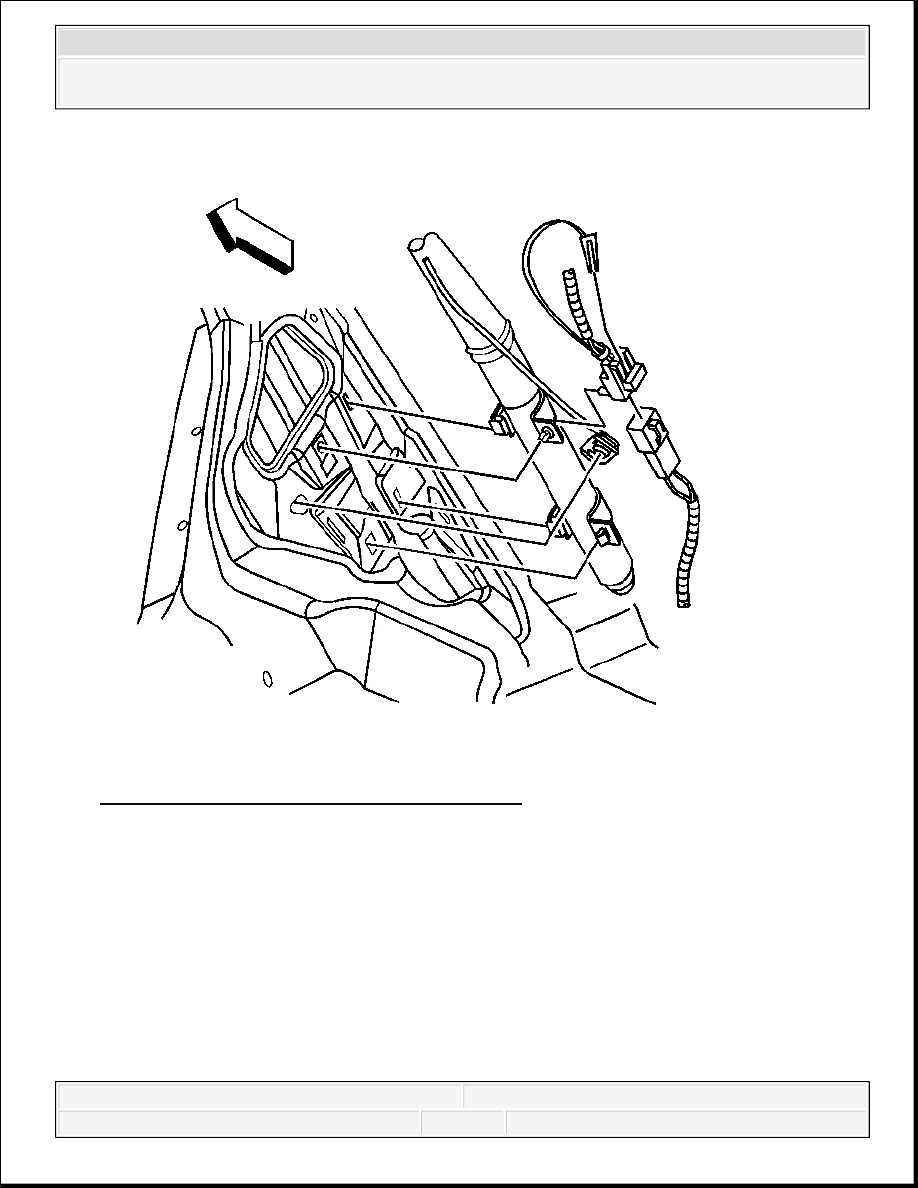

Fig. 68: Locating Roof Rail Module Connector
Courtesy of GENERAL MOTORS CORP.
50. Disconnect the yellow harness connector to the right roof rail air bag from the vehicle
harness connector.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

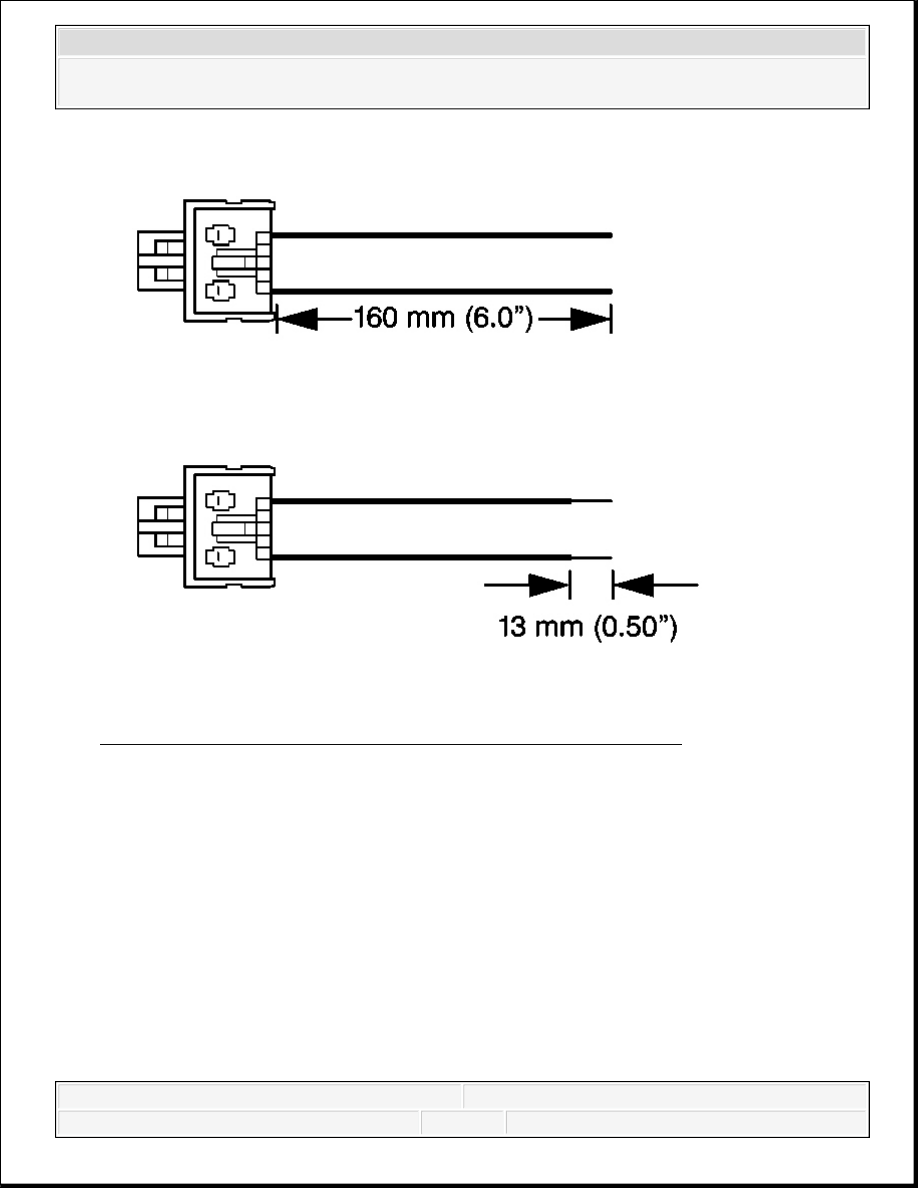

Fig. 69: Identifying Proper Stripping Of Connection Wire Leads
Courtesy of GENERAL MOTORS CORP.
51. Cut the harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the
connector.
52. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
