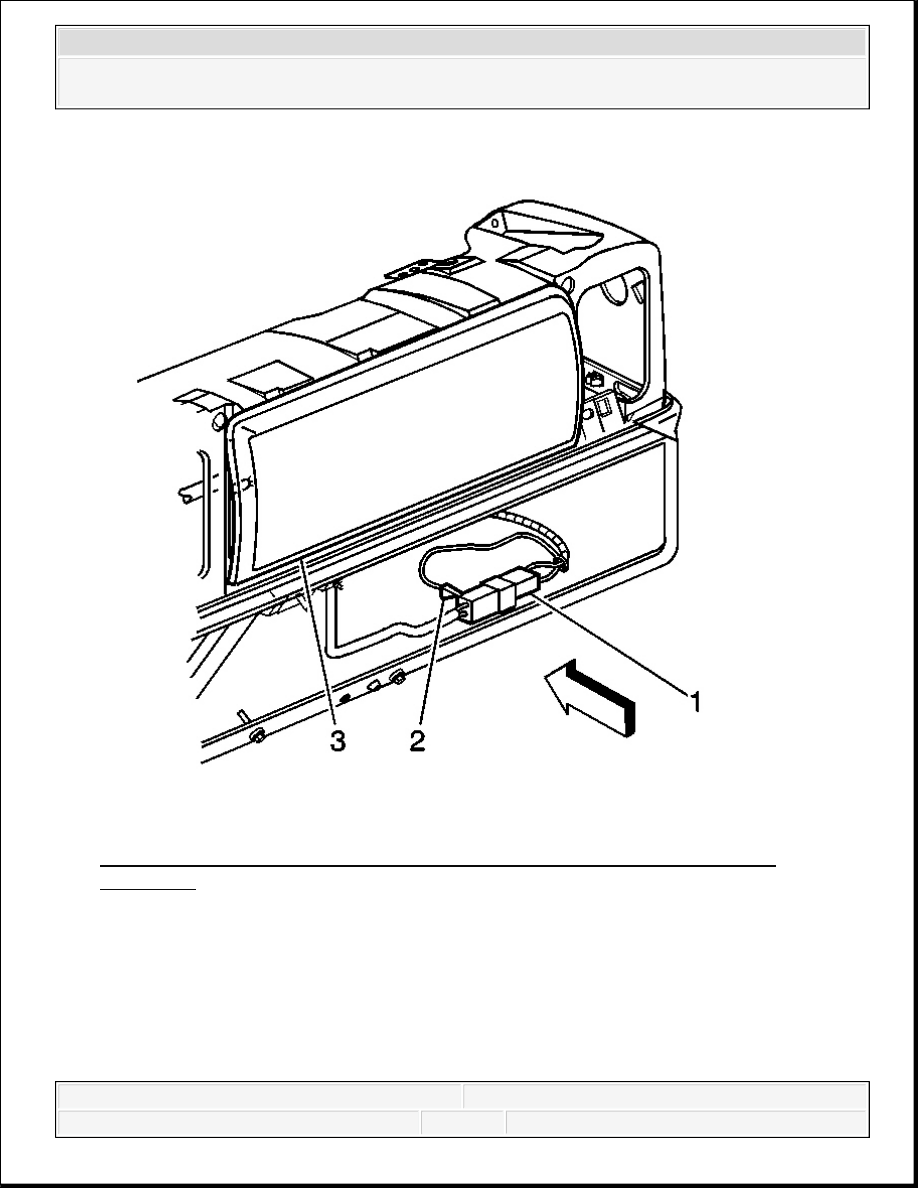

Fig. 58: View Of I/P Module Yellow Harness Connector & Vehicle Harness 34. Disconnect the I/P module yellow harness connector (1) from the vehicle harness connector (2).
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 59: Stripping SIR Wires
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

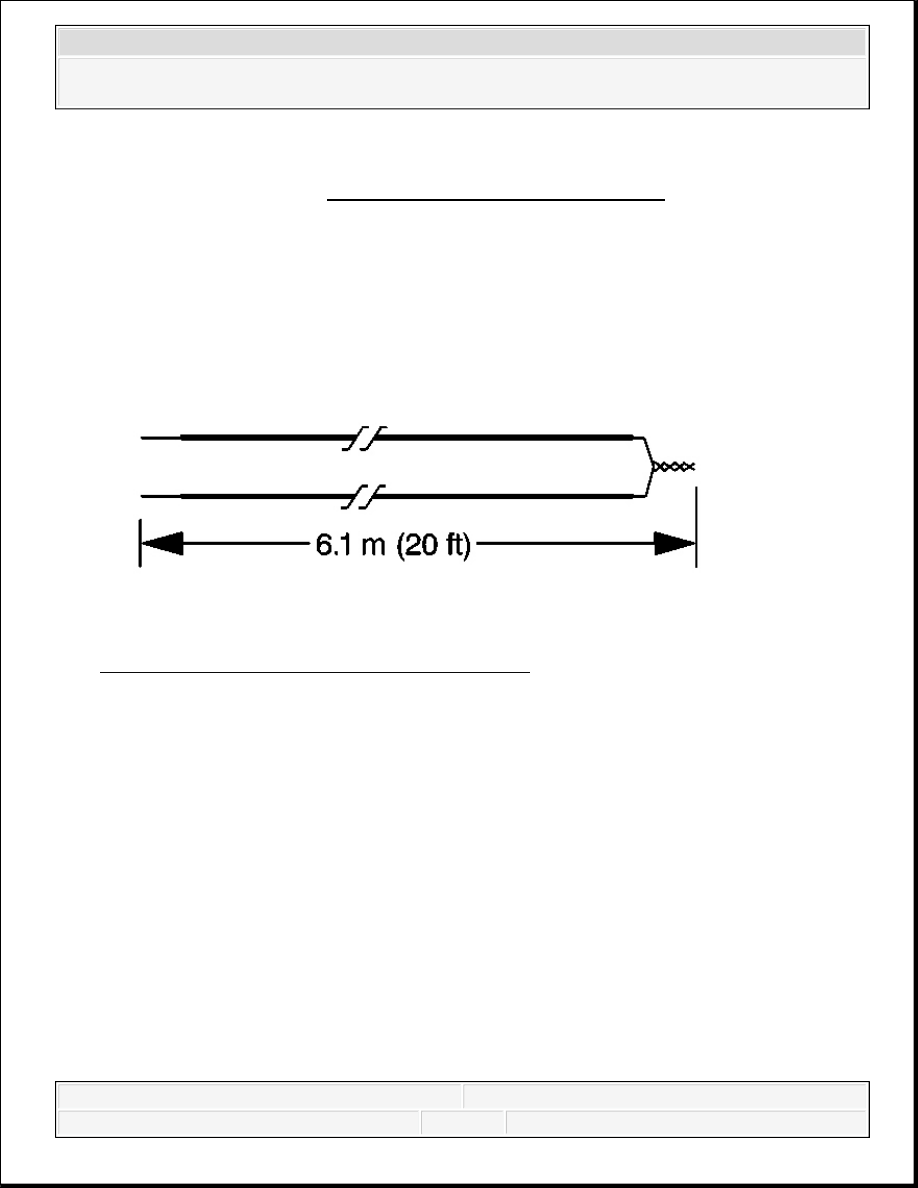

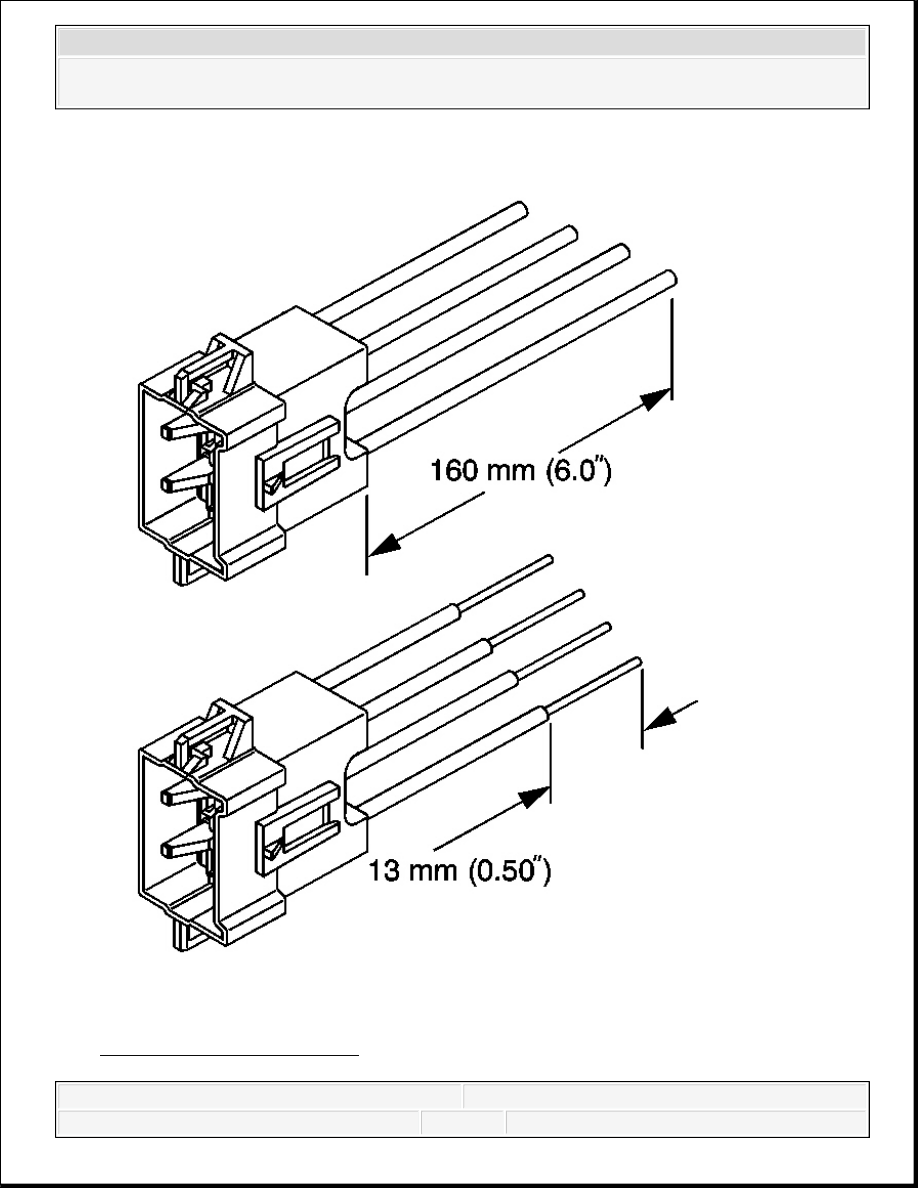

35. Cut the yellow harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the connector. 36. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads. Fig. 60: Fabricating 20 Ft. Deployment Harness 37. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand wire. These wires will be used to fabricate the passenger deployment harness. 38. Strip 13 mm (0.5 in) of insulation from both ends of the wires. 39. Twist together one end from each of the wires in order to short the wires. IMPORTANT: If the vehicle is equipped with dual stage air bags the steering wheel module and I/P module will each have 4 wires.
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

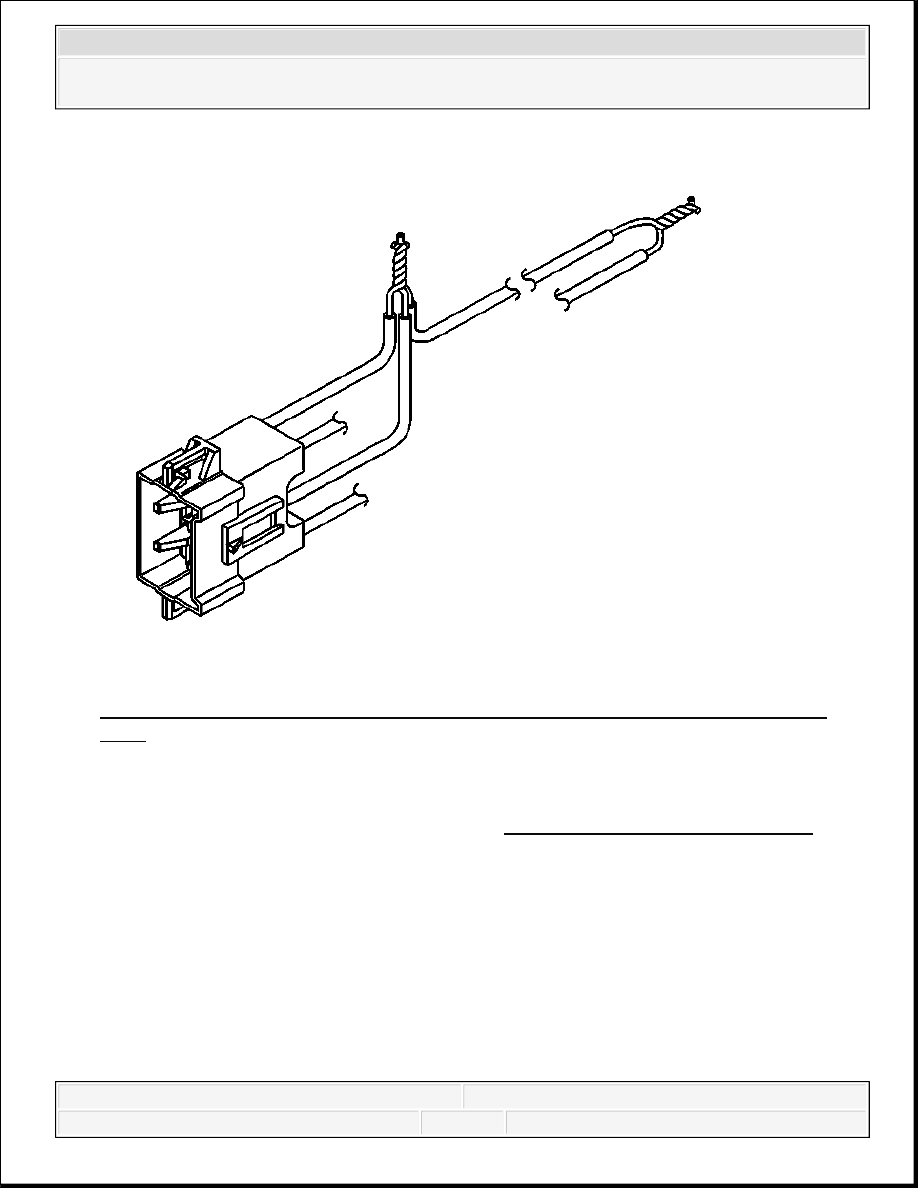

Fig. 61: Twisting Connector Wire Leads (High Circuits) To Deployment Harness 40. Twist together the 2 connector wire leads from the high circuits from both stages of the I/P module to one set of deployment wires. Refer to Component Connector End Views in 41. Inspect that the 3-wire connection is secure.
