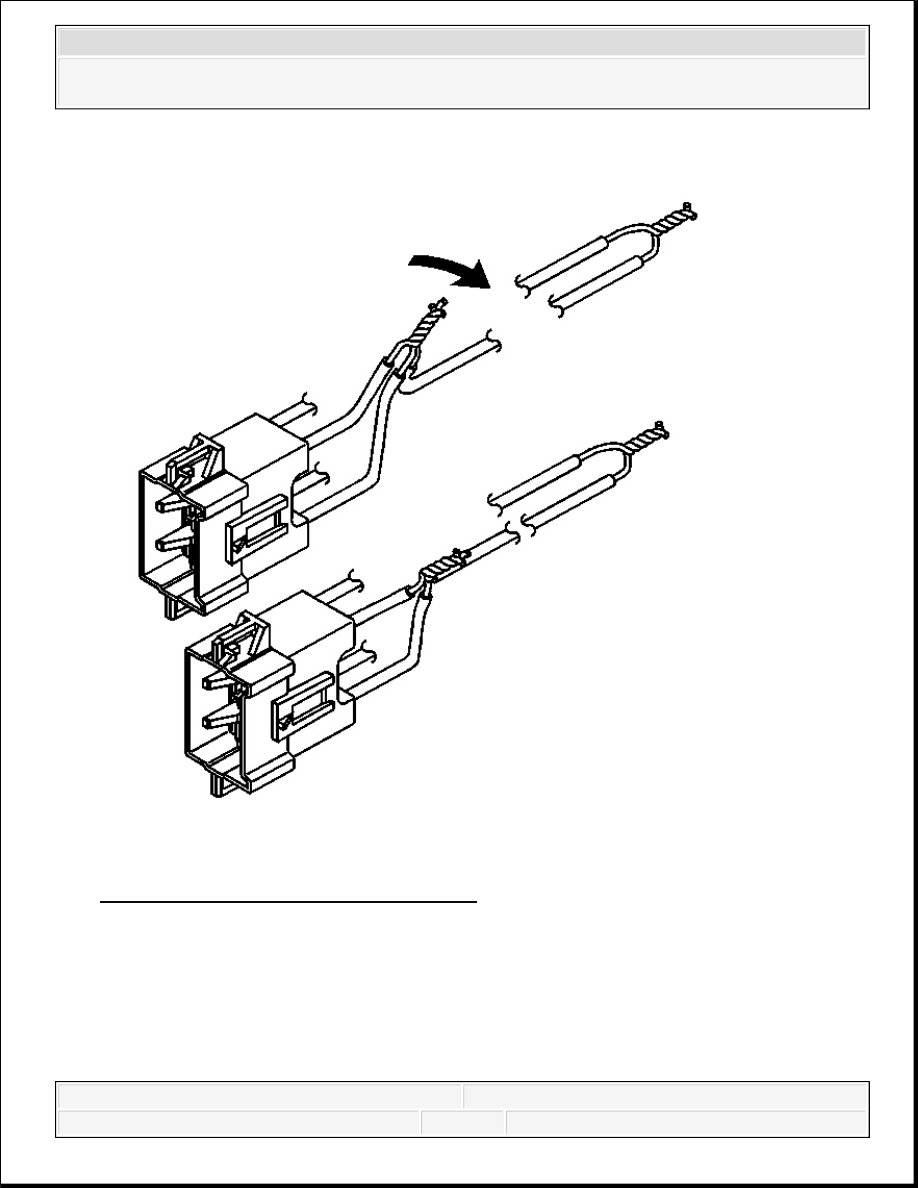

Fig. 48: Bending Twisted Connection Flat 18. Bend flat the twisted connection.
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

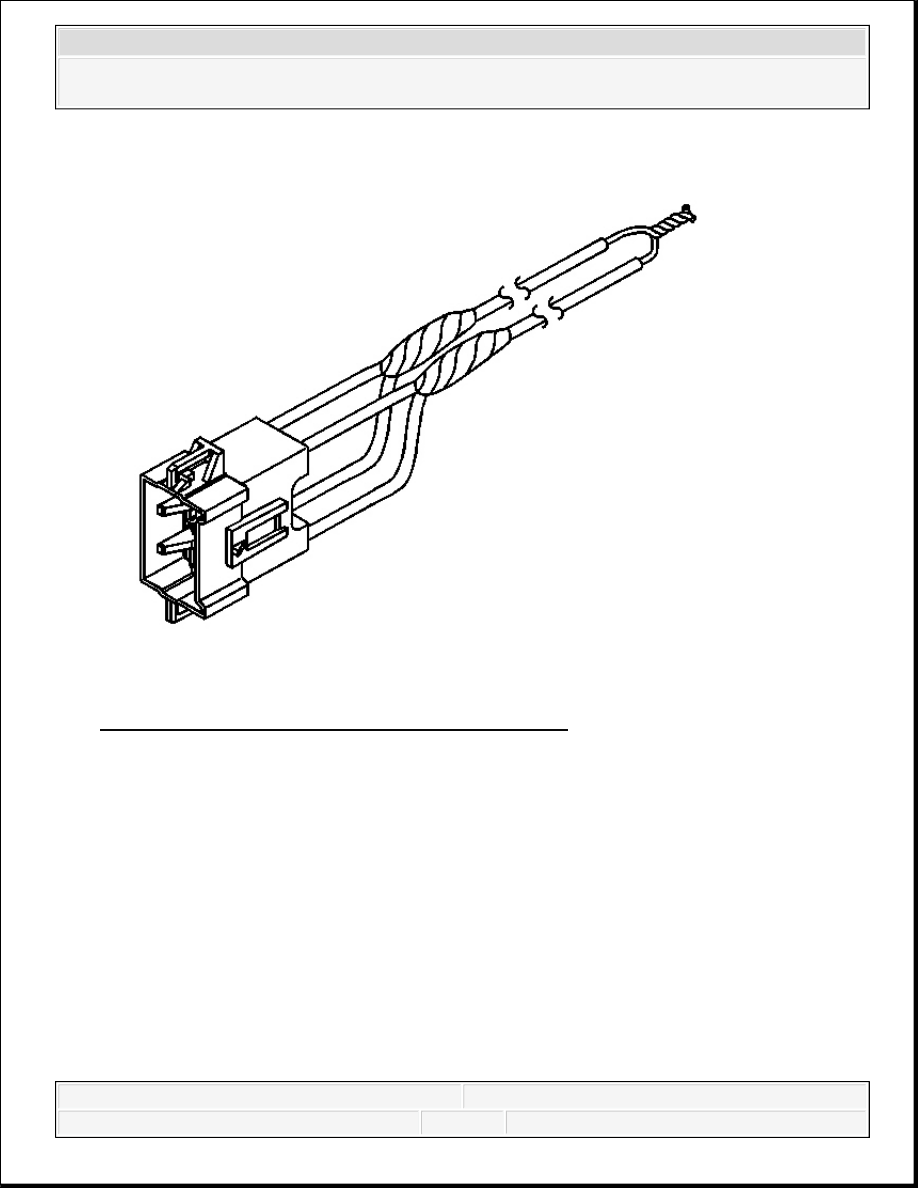

Fig. 49: Insulating Connection With Electrical Tape 19. Secure and insulate the 3-wire connection to the deployment harness using electrical tape. 20. Connect the deployment harness to the connector on the steering wheel module.
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

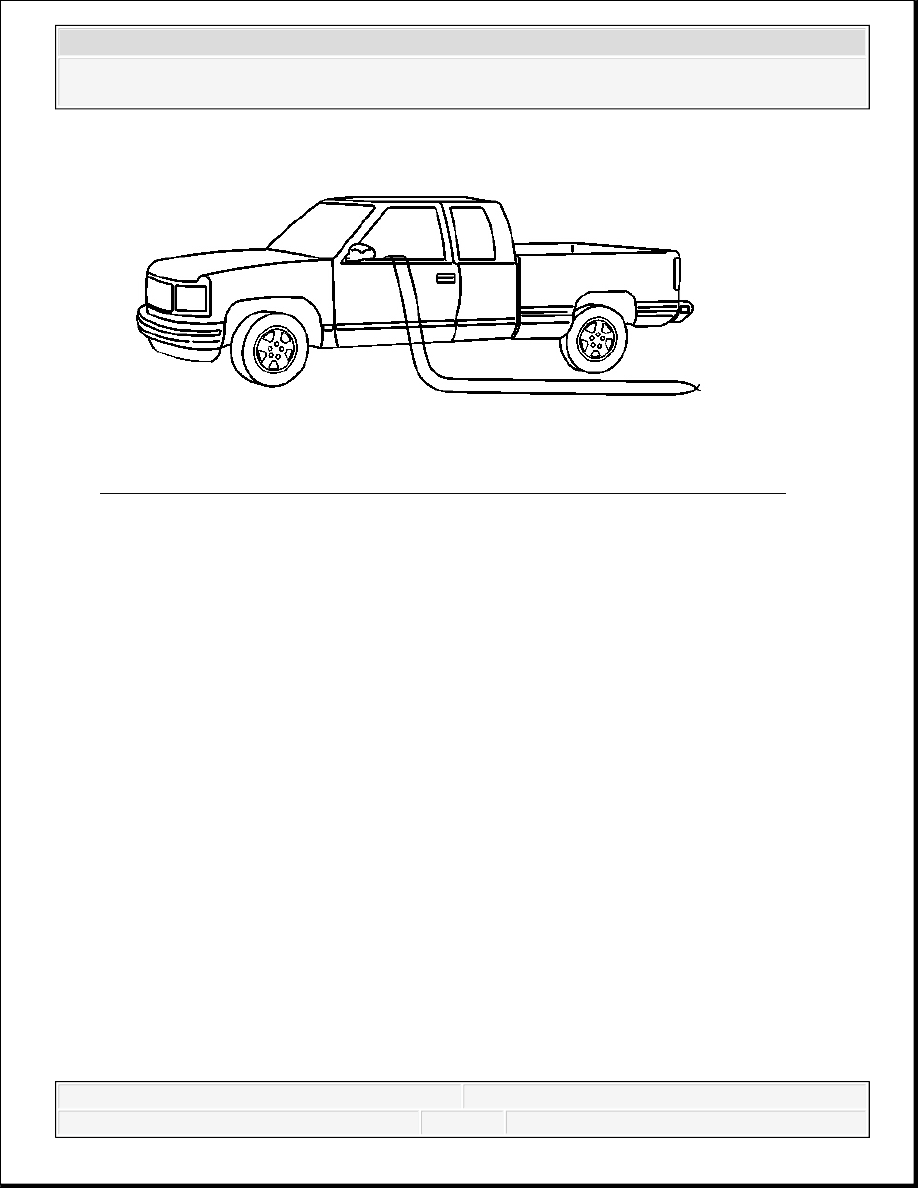

Fig. 50: Routing The Deployment Harness Out Of The Vehicle's Driver Side 21. Route the deployment harness out of the driver side of the vehicle.
2008 Chevrolet Silverado 1500 2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

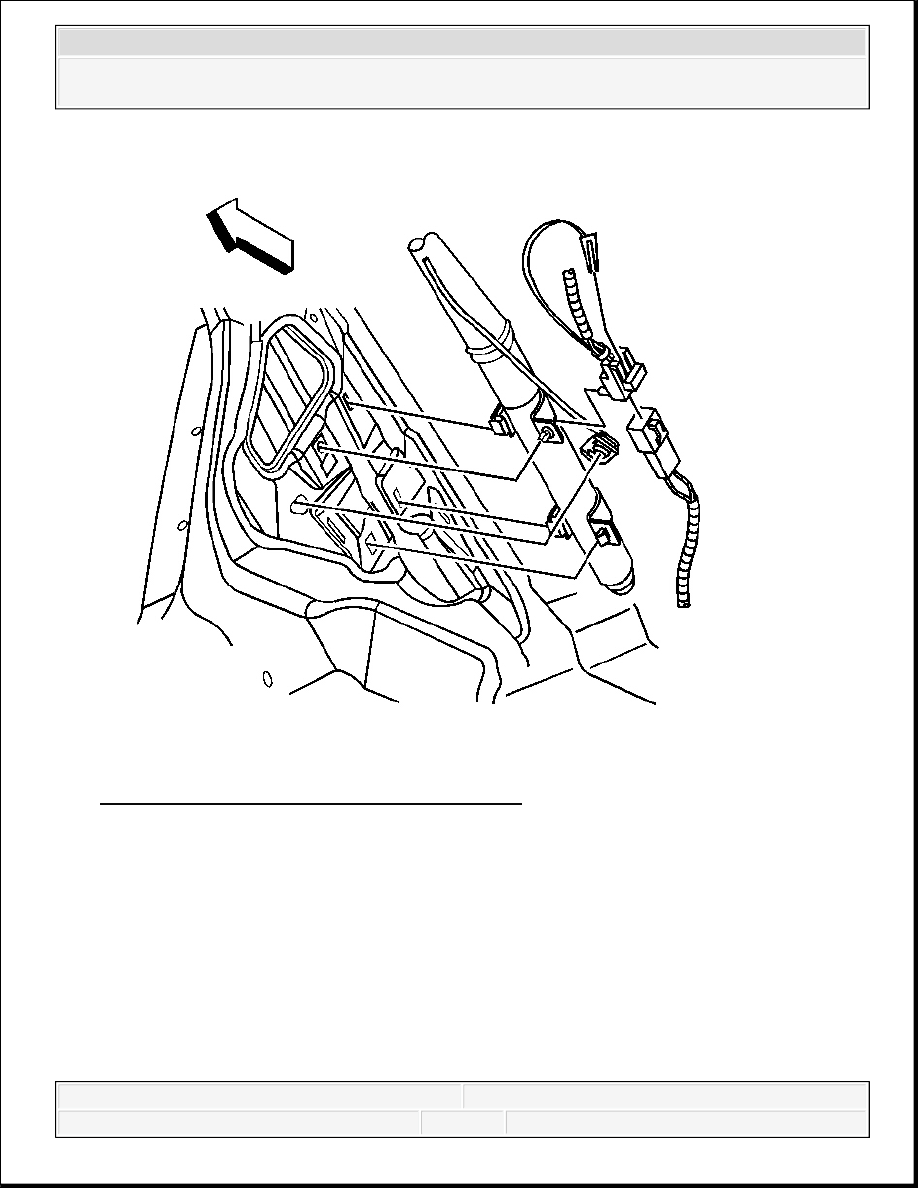

Fig. 51: Locating Roof Rail Module Connector 22. Disconnect the yellow left roof rail harness connector from the vehicle harness connector.
