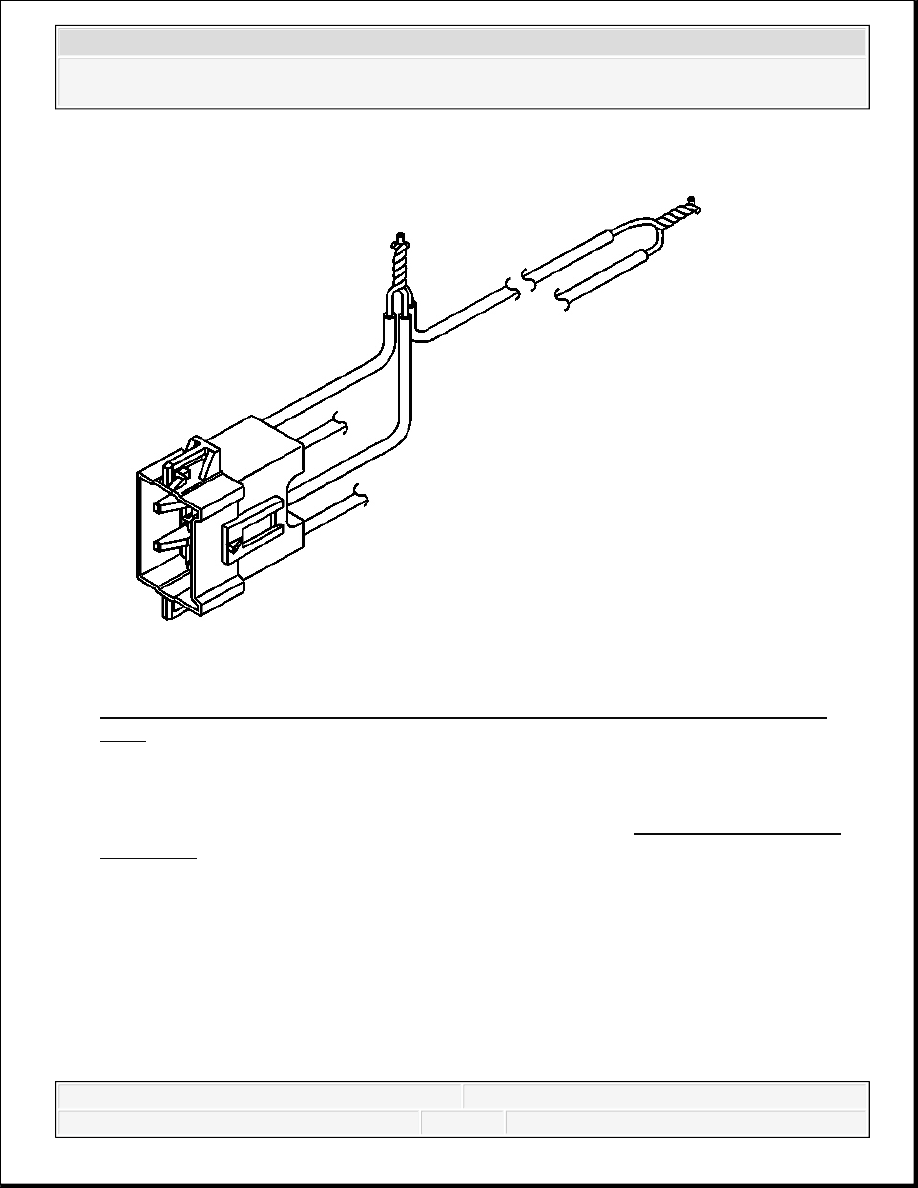

Fig. 44: Twisting Connector Wire Leads (High Circuits) To Deployment Harness
Wire
Courtesy of GENERAL MOTORS CORP.
12. Twist together the 2 connector wire leads from the high circuits from both stages of the
steering wheel module, to one set of deployment wires. Refer to Component Connector
End Views in order to determine the correct circuits.
13. Inspect that the 3-wire connection is secure.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

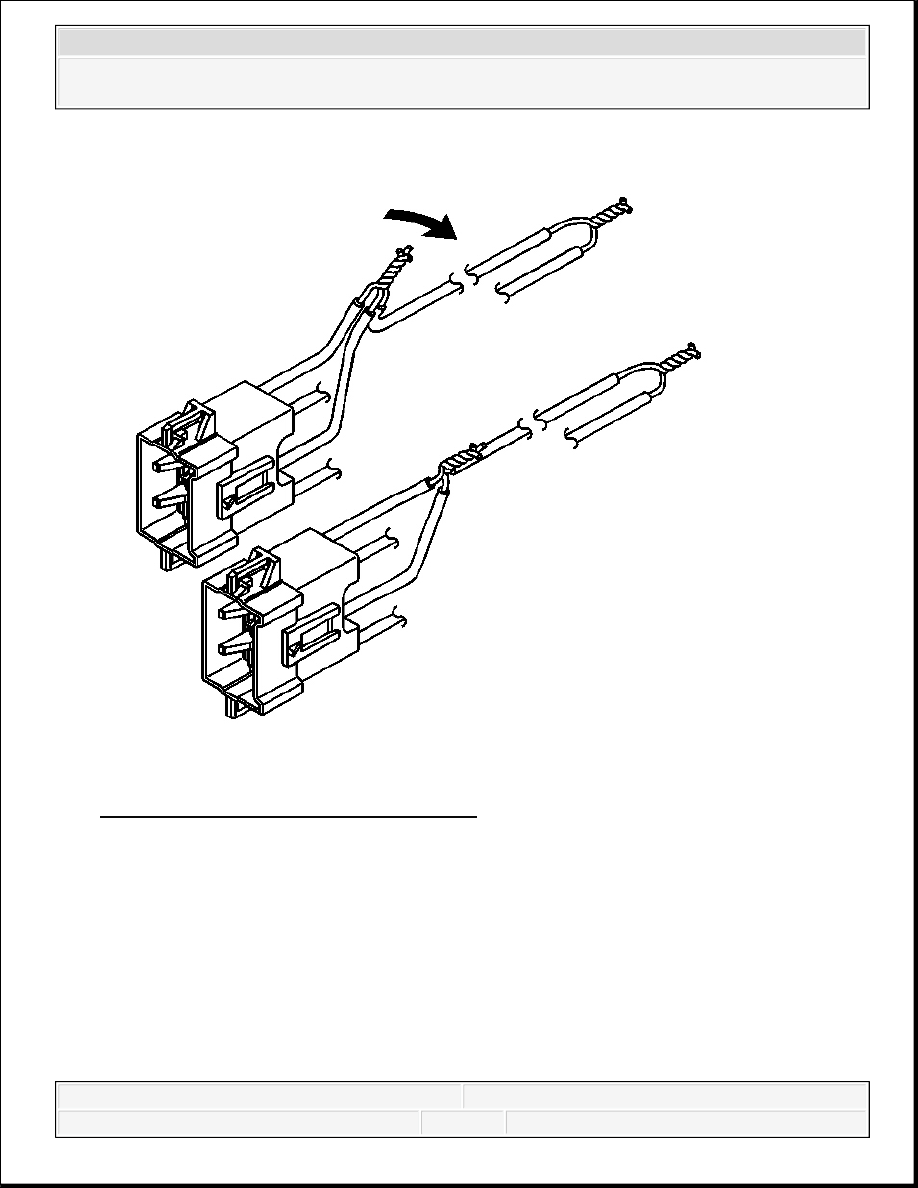

Fig. 45: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
14. Bend flat the twisted connection.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

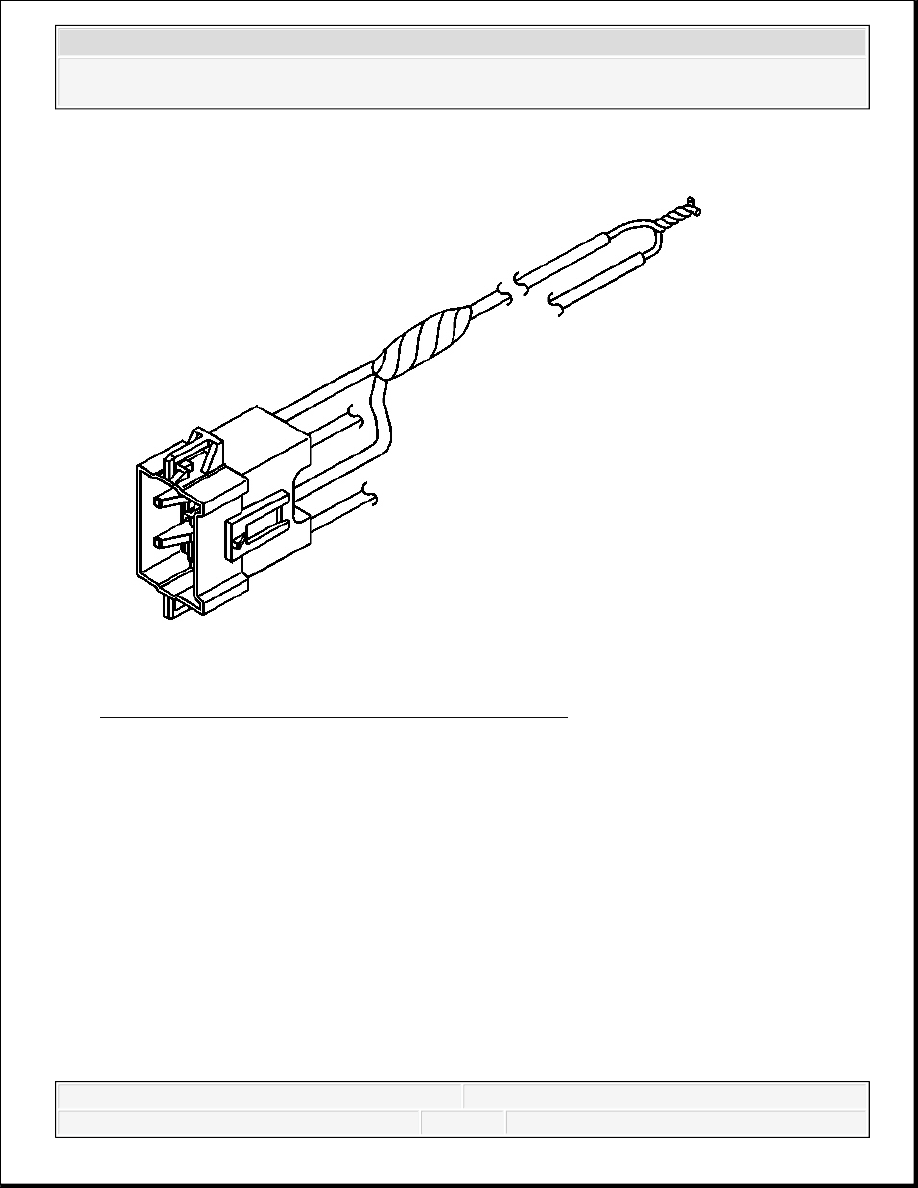

Fig. 46: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
15. Secure and insulate the 3-wire connection to the deployment harness using electrical tape.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

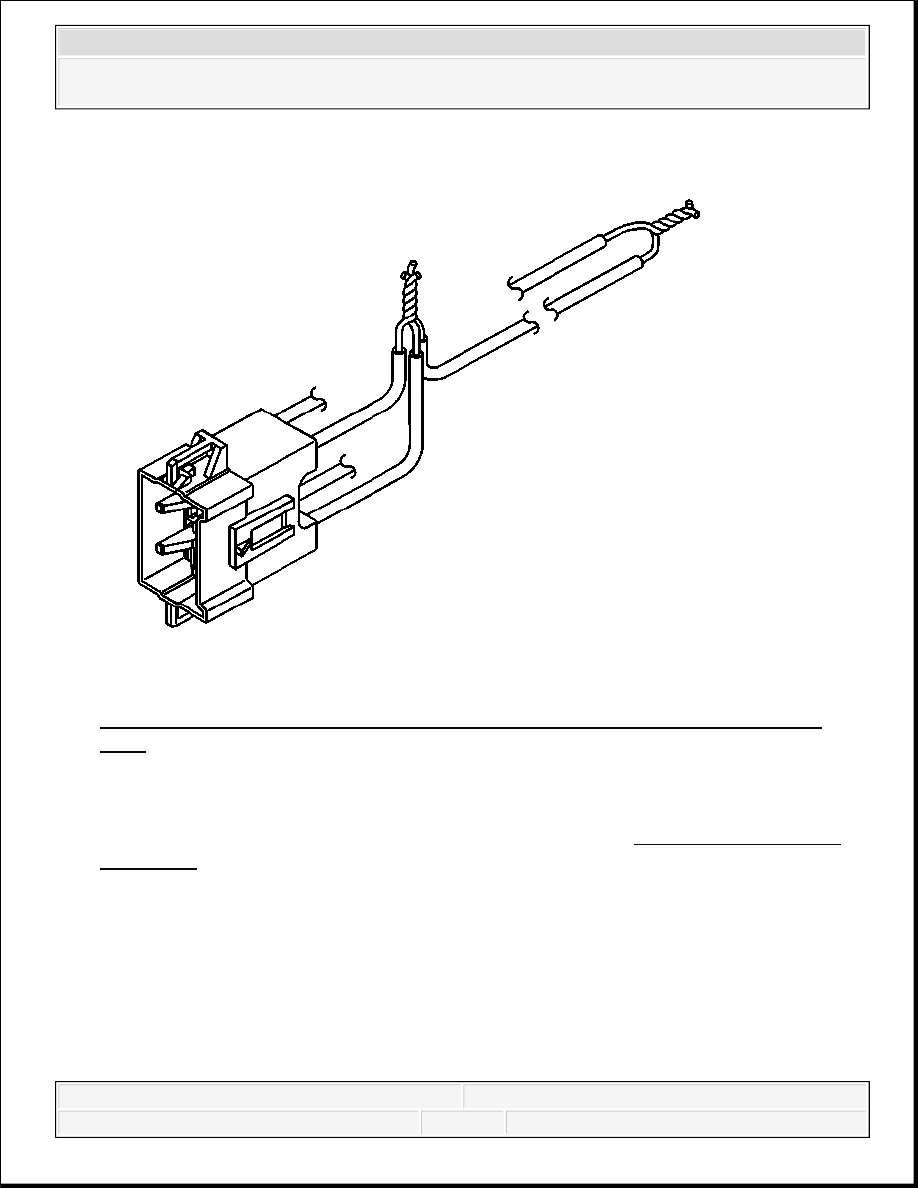

Fig. 47: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness
Wire
Courtesy of GENERAL MOTORS CORP.
16. Twist together the 2 connector wire leads from the low circuits from both stages of the
steering wheel module, to one set of deployment wires. Refer to Component Connector
End Views in order to determine the correct circuits.
17. Inspect that the 3-wire connection is secure.
