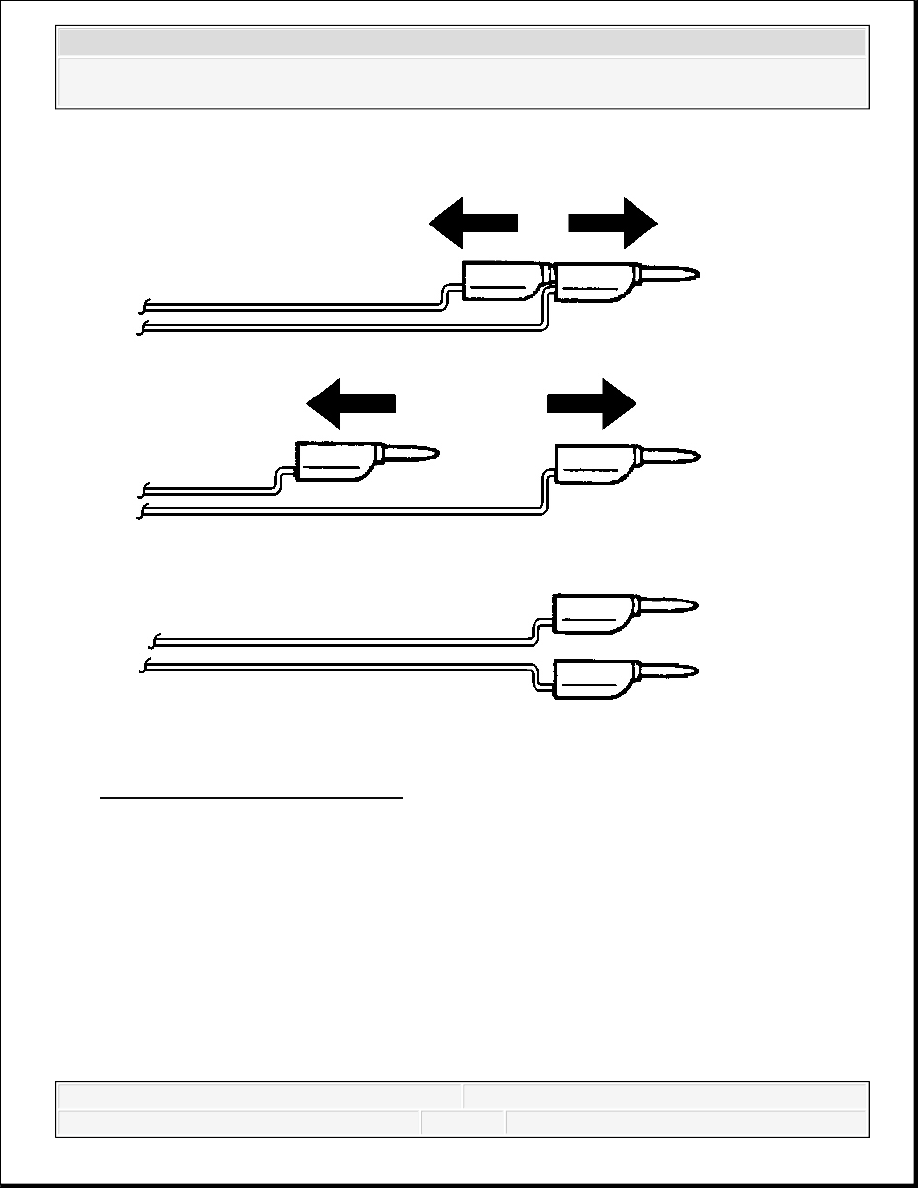

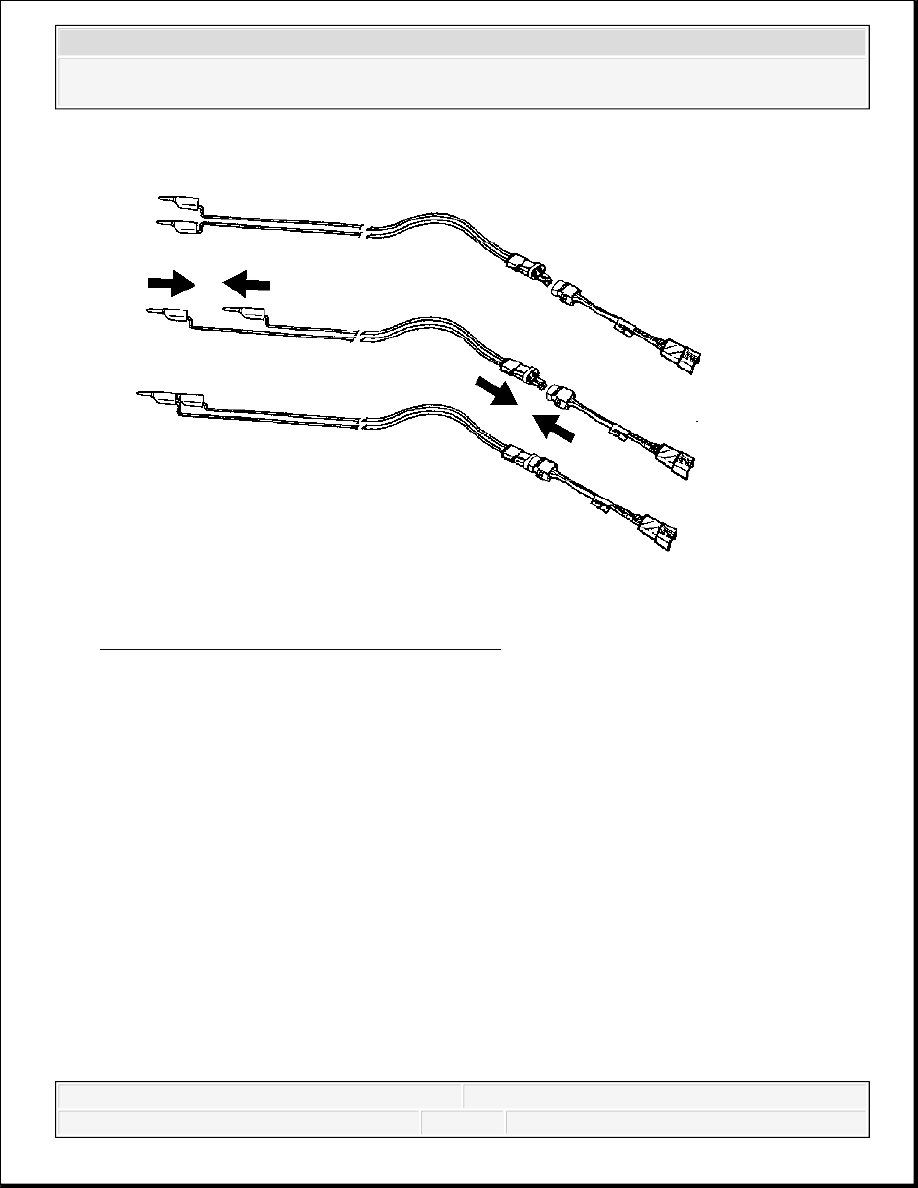

Fig. 37: Separating Banana Plugs
Courtesy of GENERAL MOTORS CORP.
17. Separate the 2 banana plugs on the SIR deployment harness that were shorted together
earlier in the procedure.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

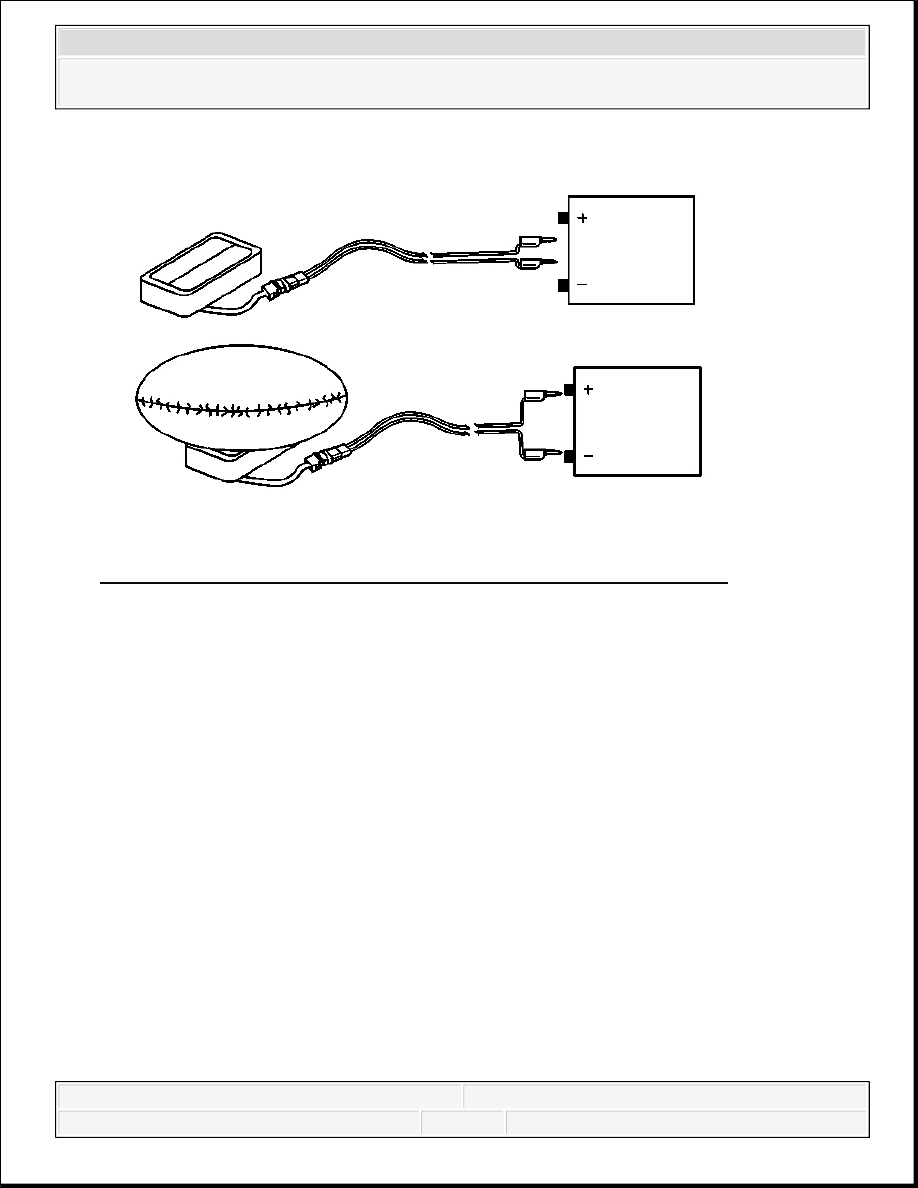

Fig. 38: Connecting SIR Deployment Harness Wires To Power Source
Courtesy of GENERAL MOTORS CORP.
18. Place a 12-volt minimum/2-amp minimum power source, such as a vehicle battery, near the
shorted end of the harness.
19. Connect the SIR deployment harness wires to the power source. Deployment of the inflator
module will occur when contact is made.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 39: View Of Deployment Harness Leads
Courtesy of GENERAL MOTORS CORP.
20. Disconnect the SIR deployment harness from the power source after the inflator module
deploys.
21. If the inflator module did not deploy, disconnect the adapter and discontinue the procedure
and contact the Technical Assistance Group.
If deployment was successful, proceed to the following steps.
CAUTION: After deployment, the metal surfaces of the SIR
component may be very hot. To help avoid a fire or
personal injury:
Allow sufficient time for cooling before touching any
metal surface of the SIR component.
Do not place the deployed SIR component near any
flammable objects.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
22. Seat one banana plug into the other in order to short the deployment harness leads.

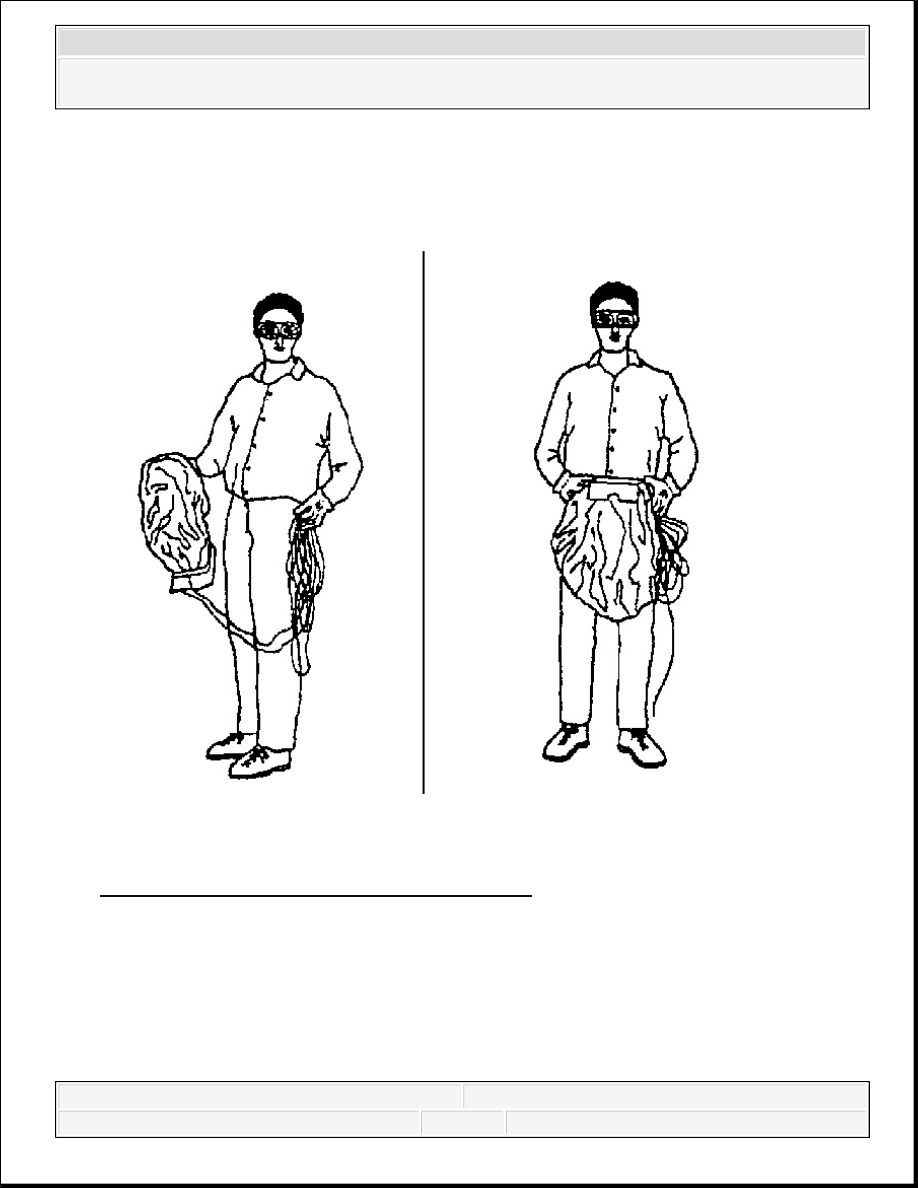

Fig. 40: Disposing Of Deployed Inflator Module
Courtesy of GENERAL MOTORS CORP.
23. Put on a pair of shop gloves.
24. Disconnect the pigtail adapter from the inflator module as soon as possible.
25. Inspect the pigtail adapter and the SIR deployment harness. Replace as needed.
26. Dispose of the deployed inflator module through normal refuse channels.
27. Wash your hands with a mild soap.
