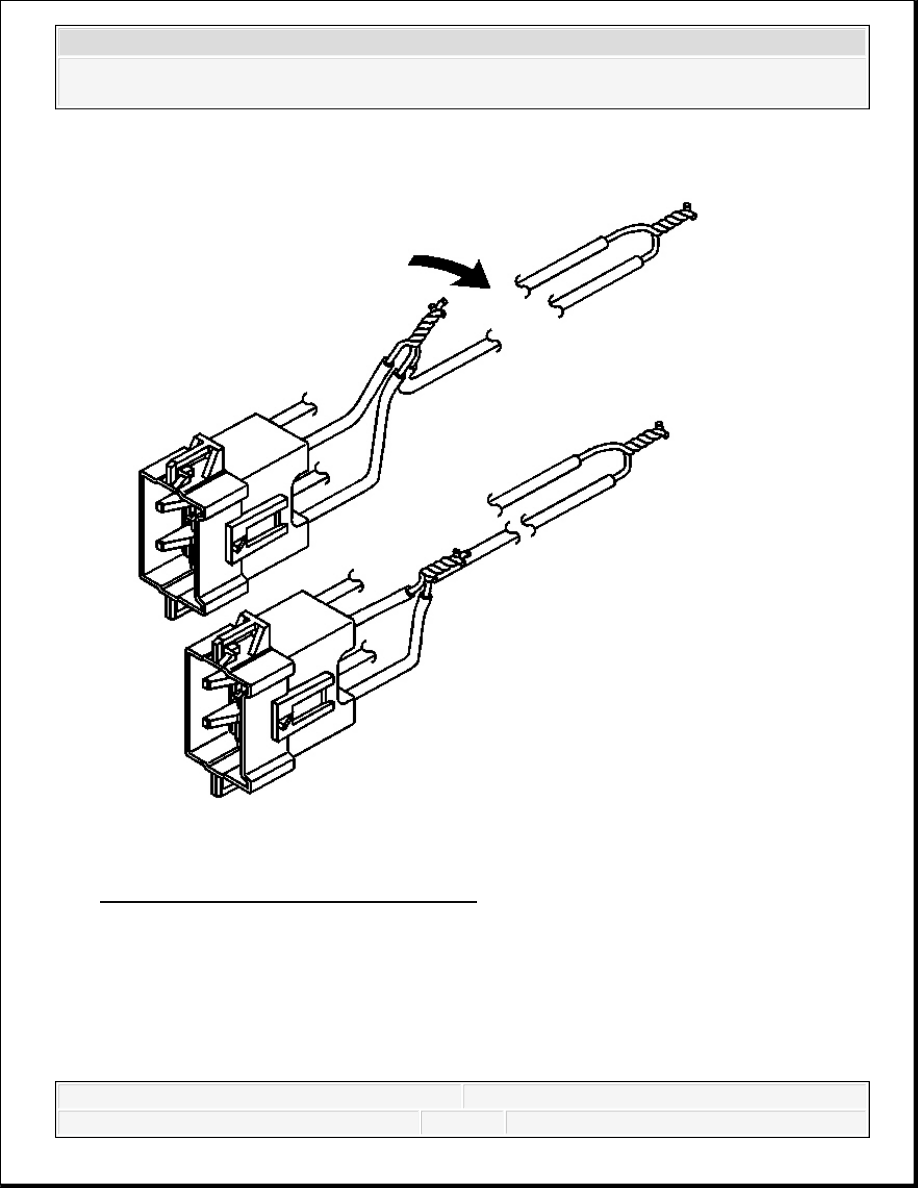

Fig. 62: Bending Twisted Connection Flat
Courtesy of GENERAL MOTORS CORP.
42. Bend flat the twisted connection.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 63: Insulating Connection With Electrical Tape
Courtesy of GENERAL MOTORS CORP.
43. Secure and insulate the 3-wire connection to the deployment harness using electrical tape.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

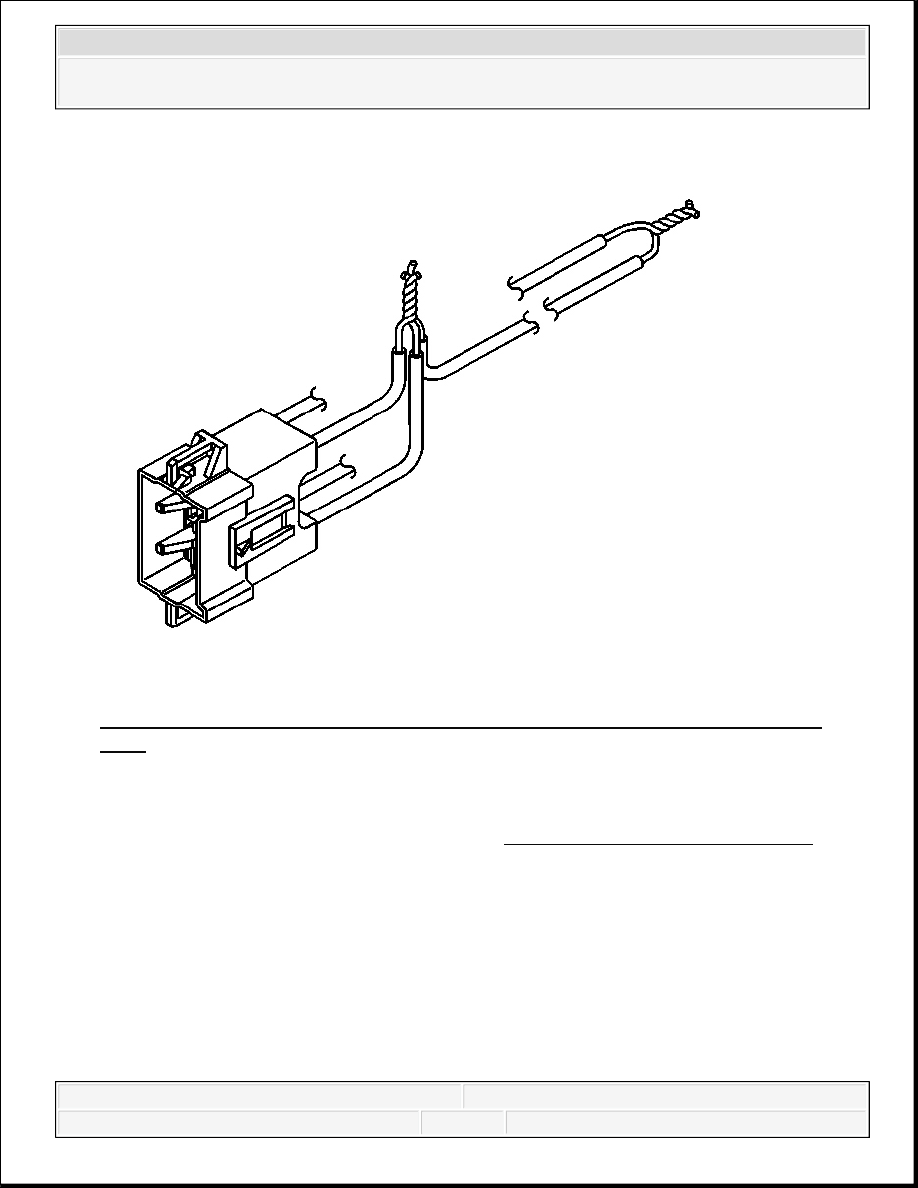

Fig. 64: Twisting Connector Wire Leads (Low Circuits) To Deployment Harness
Wire
Courtesy of GENERAL MOTORS CORP.
44. Twist together the 2 connector wire leads from the low circuits from both stages of the I/P
module to one set of deployment wires. Refer to Component Connector End Views in
order to determine the correct circuits.
45. Inspect that the 3-wire connection is secure.
