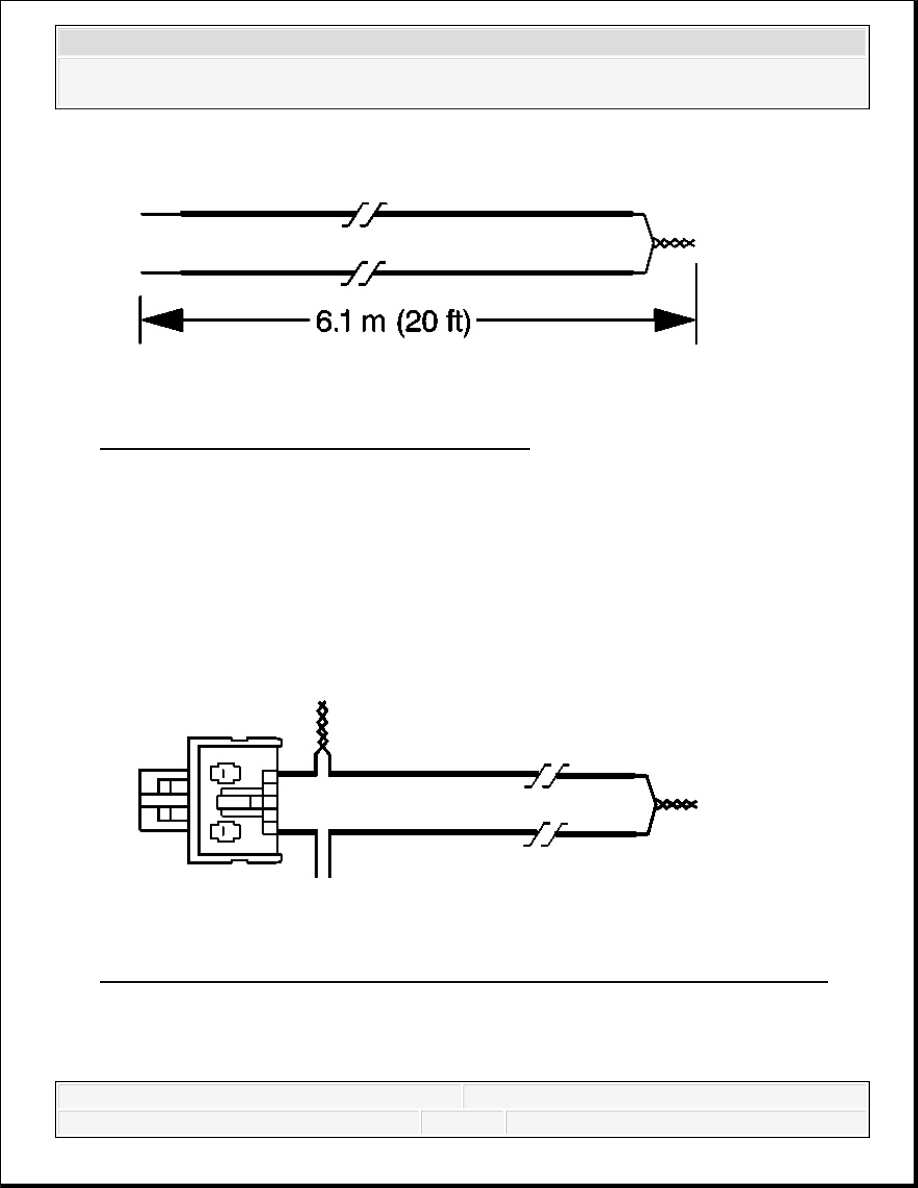

Fig. 70: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.
53. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gage) or thicker multi-strand
wire. These wires will be used to fabricate the roof rail module deployment harness.
54. Strip 13 mm (0.5 in) of insulation from both ends of the wires.
55. Twist together one end from each of the wires in order to short the wires.
Fig. 71: View Of Proper Twisting Of Connector Wire Lead To Deployment Wire
Courtesy of GENERAL MOTORS CORP.
56. Twist together one connector wire lead to one deployment wire.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

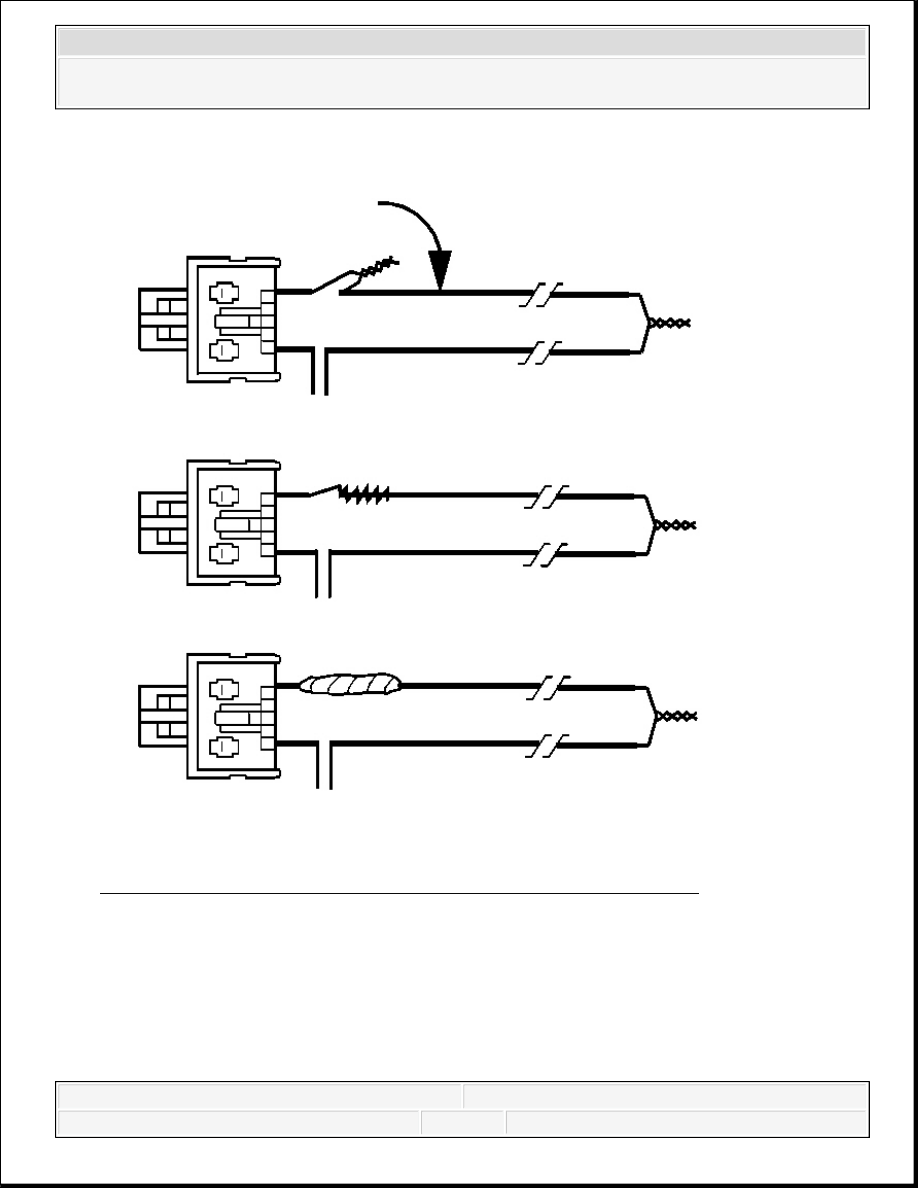

Fig. 72: Bending Twisted Connection Flat & Insulating With Tape
Courtesy of GENERAL MOTORS CORP.
57. Bend flat the twisted connection.
58. Secure and insulate the connection using electrical tape.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

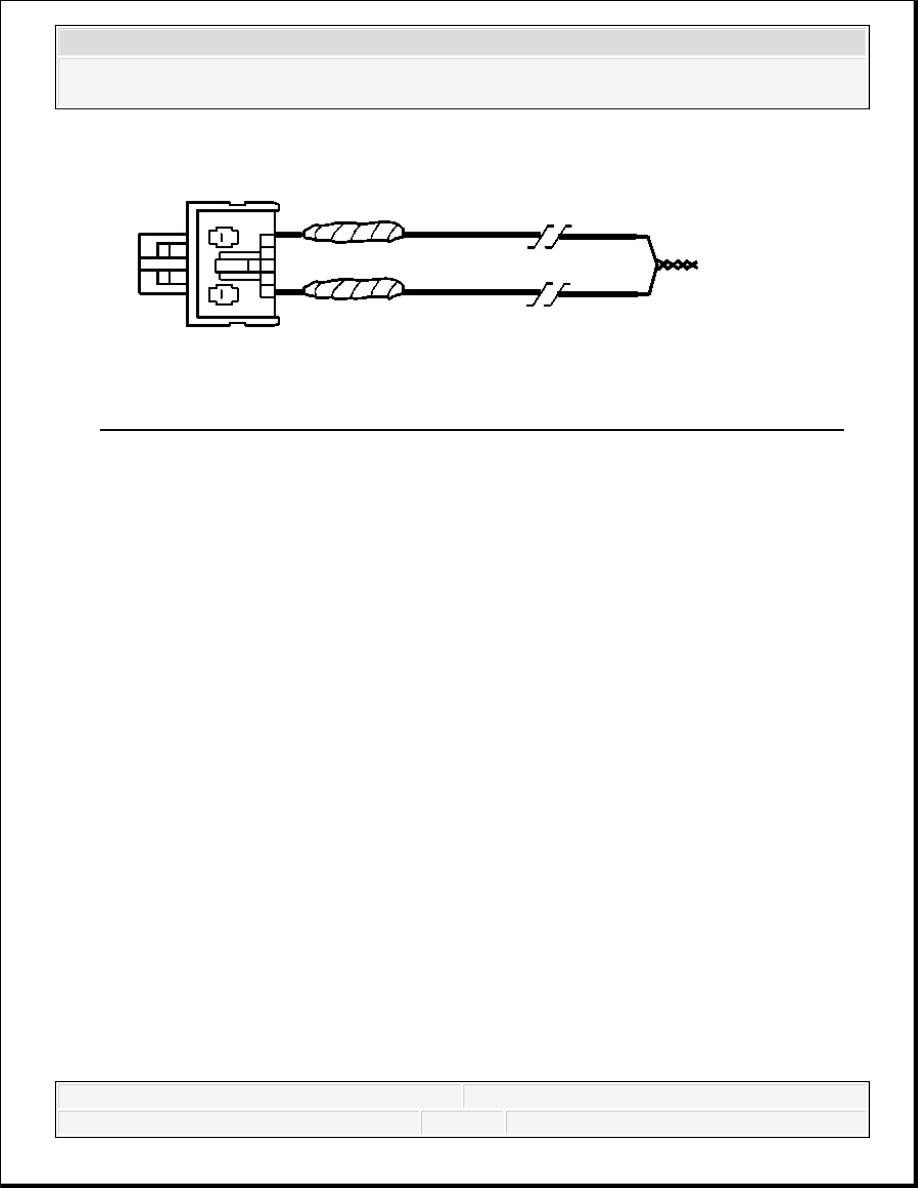

Fig. 73: Taping Remaining Connector Wire Lead To Remaining Deployment Wire
Courtesy of GENERAL MOTORS CORP.
59. Twist together, bend, and tape the remaining connector wire lead to the remaining
deployment wire.
2008 Chevrolet Silverado 1500
2008 RESTRAINTS Supplemental Inflatable Restraints - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

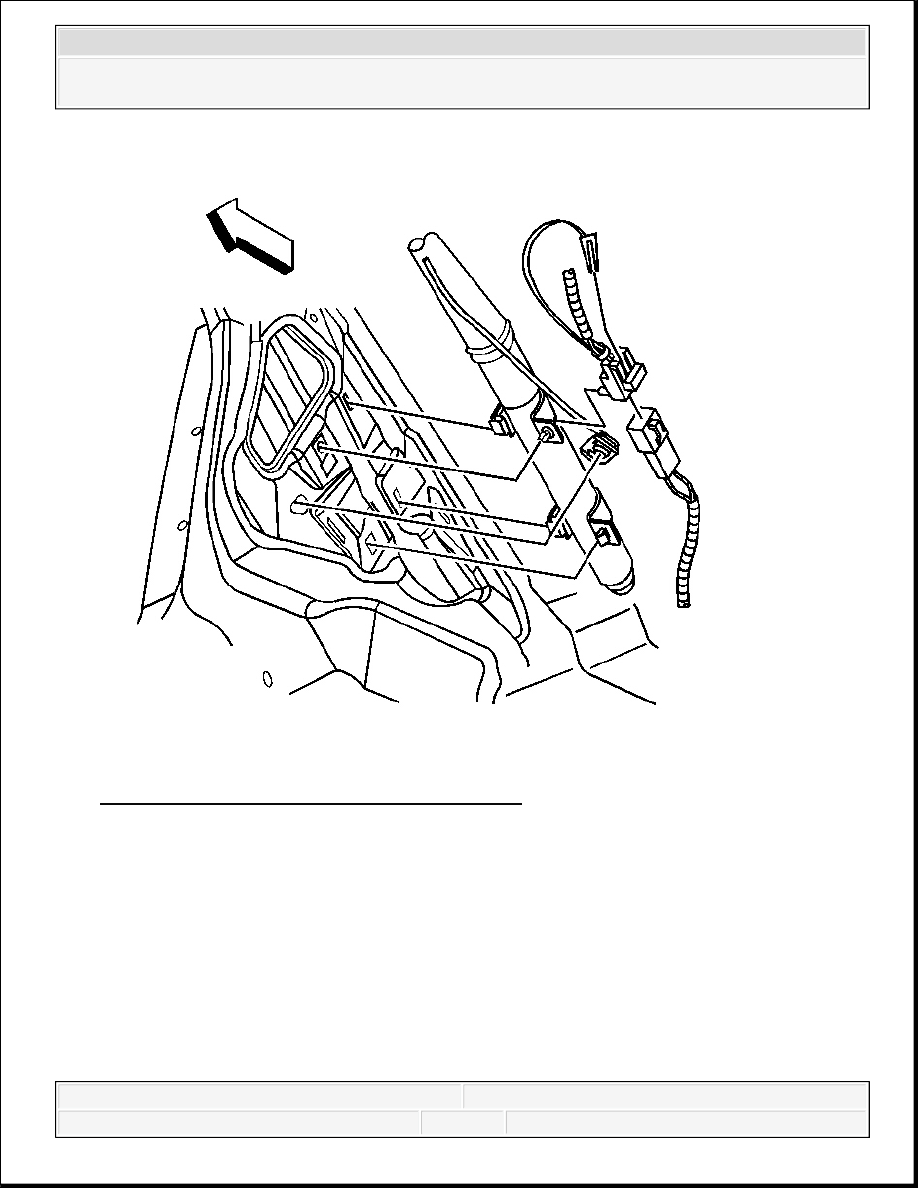

Fig. 74: Locating Roof Rail Module Connector
Courtesy of GENERAL MOTORS CORP.
60. Connect the deployment harness to the roof rail module yellow connector.
