Chevrolet Silverado / GMC Sierra. Manual - part 2816

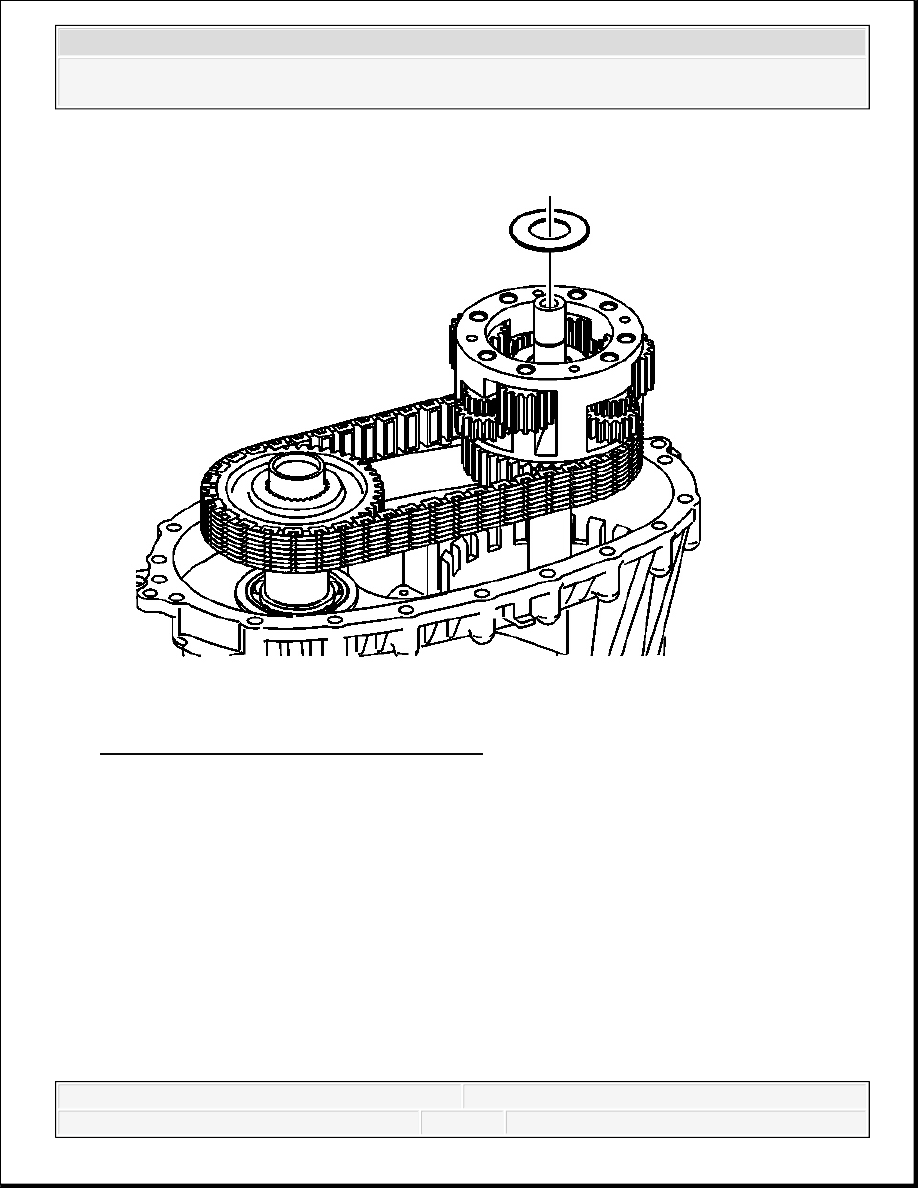

Fig. 38: View Of Sun Gear Thrust Washer
Courtesy of GENERAL MOTORS CORP.
17. Remove the sun gear thrust washer.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

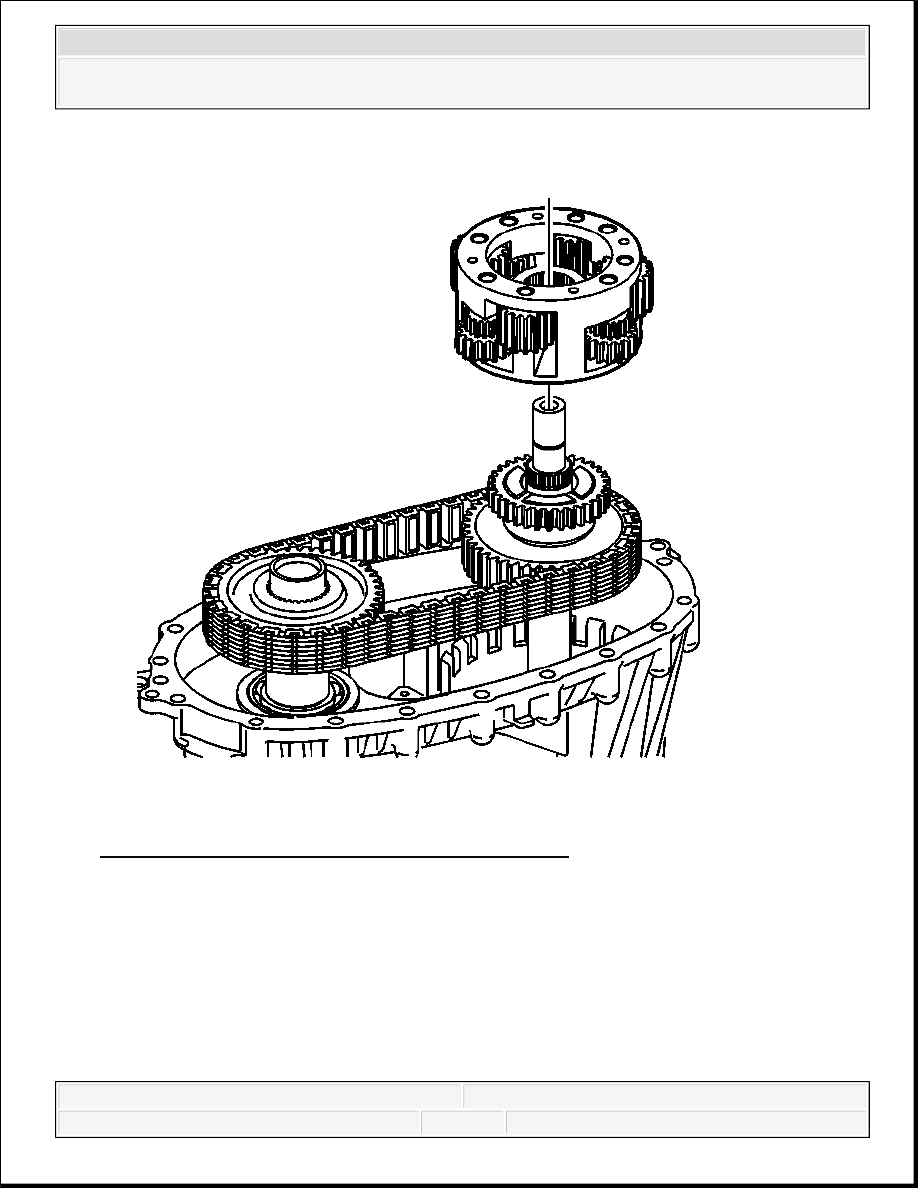

Fig. 39: Identifying Planetary Differential Assembly
Courtesy of GENERAL MOTORS CORP.
18. Remove the planetary differential assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

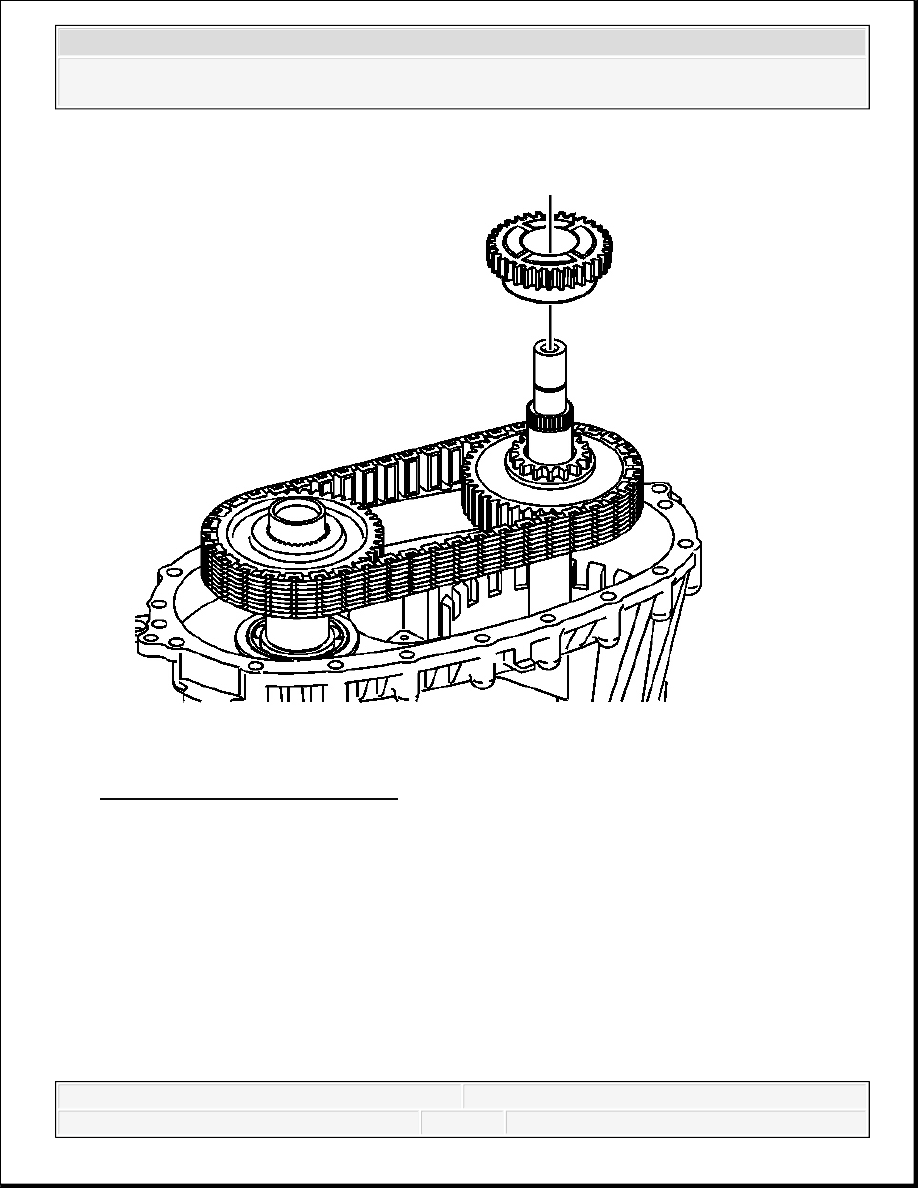

Fig. 40: View Of Front Sun Gear
Courtesy of GENERAL MOTORS CORP.
19. Remove the front sun gear.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

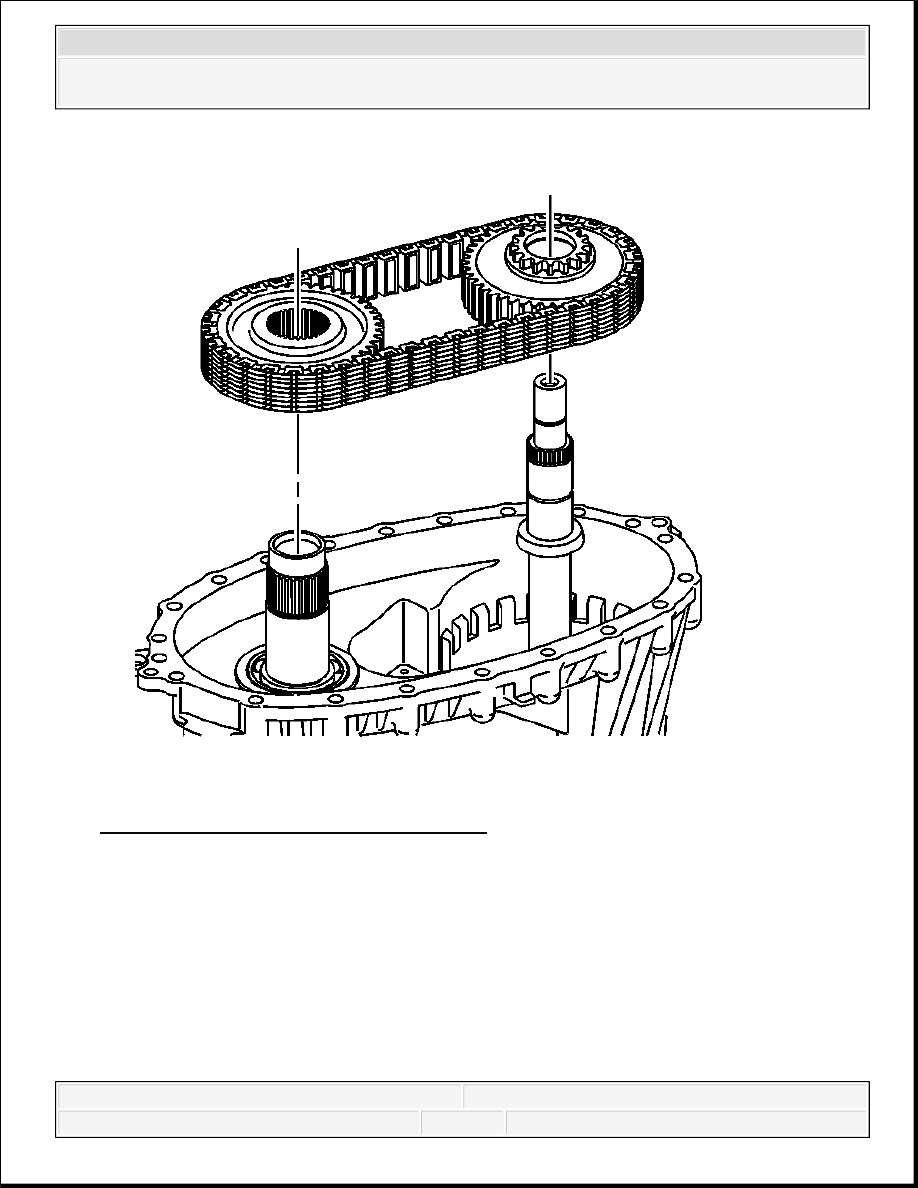

Fig. 41: Locating Drive Chain & Sprockets
Courtesy of GENERAL MOTORS CORP.
20. Remove the chain with the drive sprocket and driven sprocket.
IMPORTANT: If the chain and sprockets are to be used again, mark the
relationship of the chain to the sprockets in order to mark
the wear patterns.
