Fig. 34: View Of Transfer Case Bolts
Courtesy of GENERAL MOTORS CORP.
12. Remove the transfer case retaining bolts and washers.
Mark the location of the brackets.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

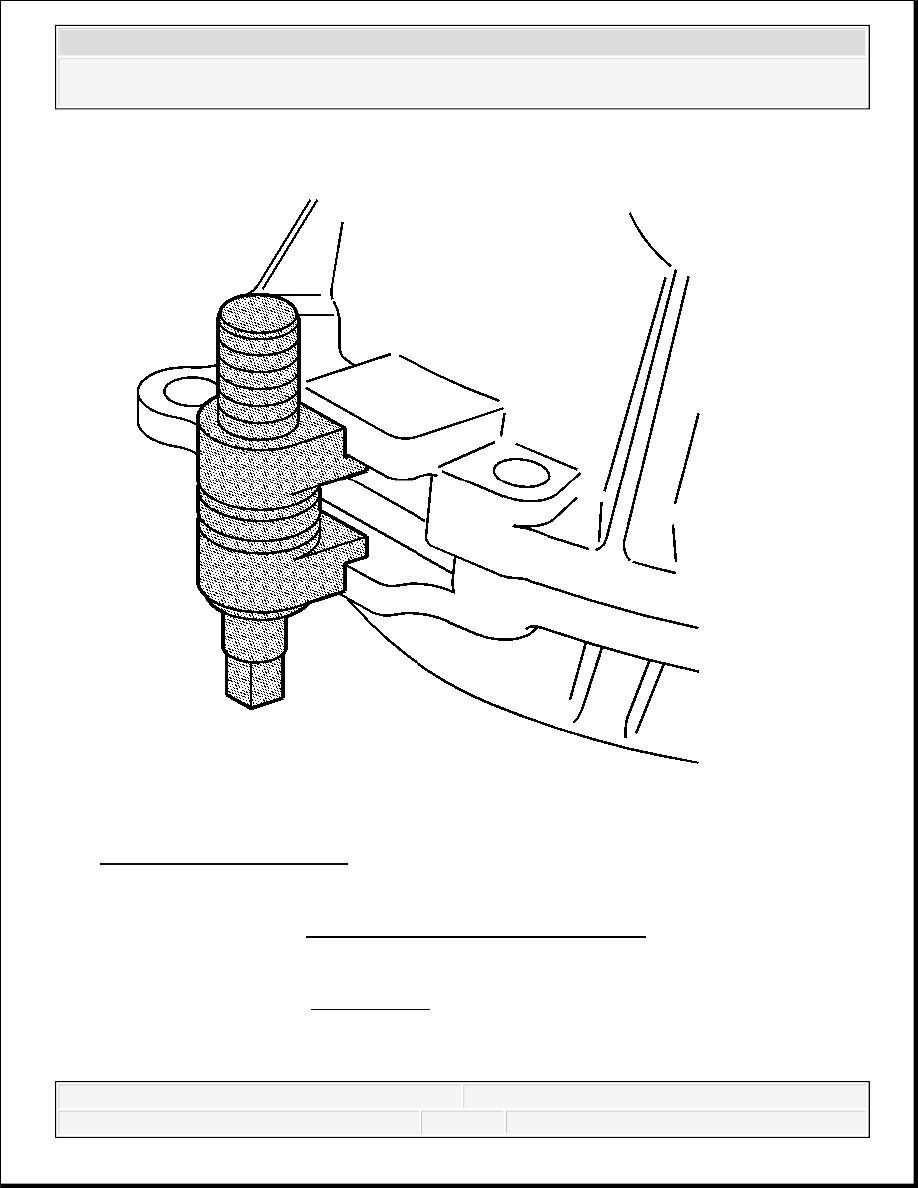

Fig. 35: Identifying J 45358
Courtesy of GENERAL MOTORS CORP.
13. Using the J 45358 between the tabs on the case halves, shear the sealer that is holding the
case halves together. See Special Tools.
14. Using pry bars at each side of the case, remove the case from the locating pins.
NOTE:
Refer to Machined Surface Damage Notice .
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

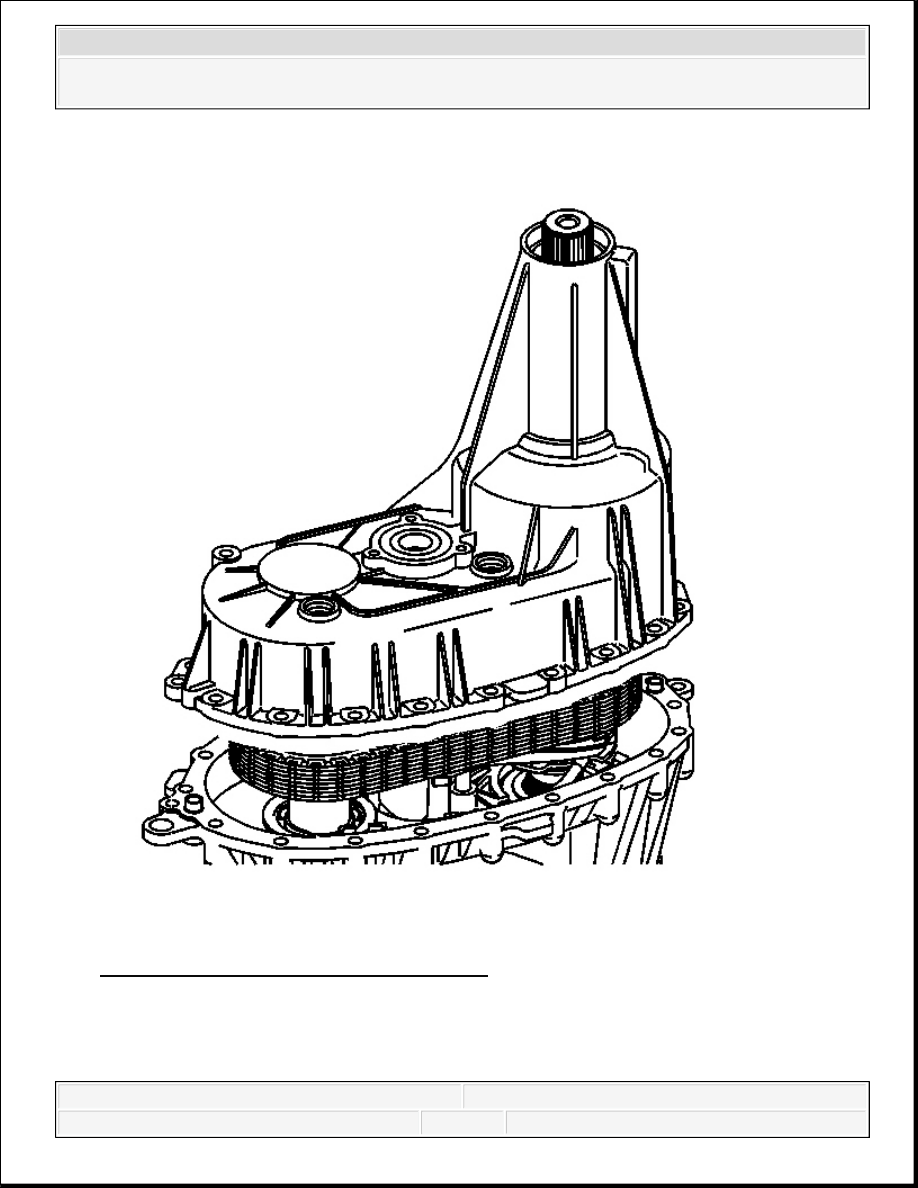

Fig. 36: Rear Case Half & Front Case Half
Courtesy of GENERAL MOTORS CORP.
15. Remove the rear case half from the front case half. The rear output shaft will come with the
rear case half.
