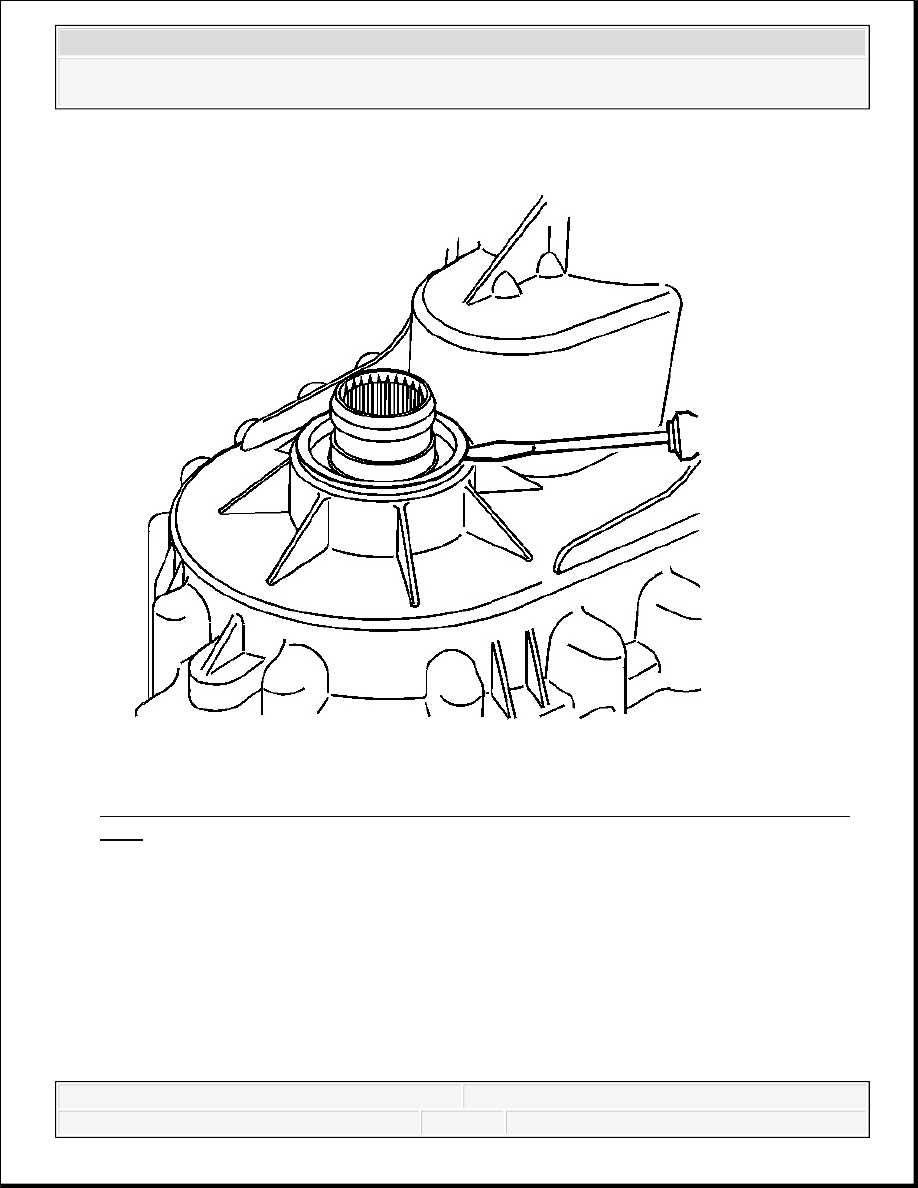

Fig. 30: Inserting Screwdriver Behind Inner Race of Front Output Shaft Seal 5. Remove the front output shaft seal by inserting a flat-tip screwdriver behind the inner race of the seal. 6. Pry the inner seal race forward. NOTE: Refer to Transfer Case Seal Removal Notice . IMPORTANT: The front output shaft seal is a two piece internal seal. The inner seal race is a force fit on the front output shaft.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

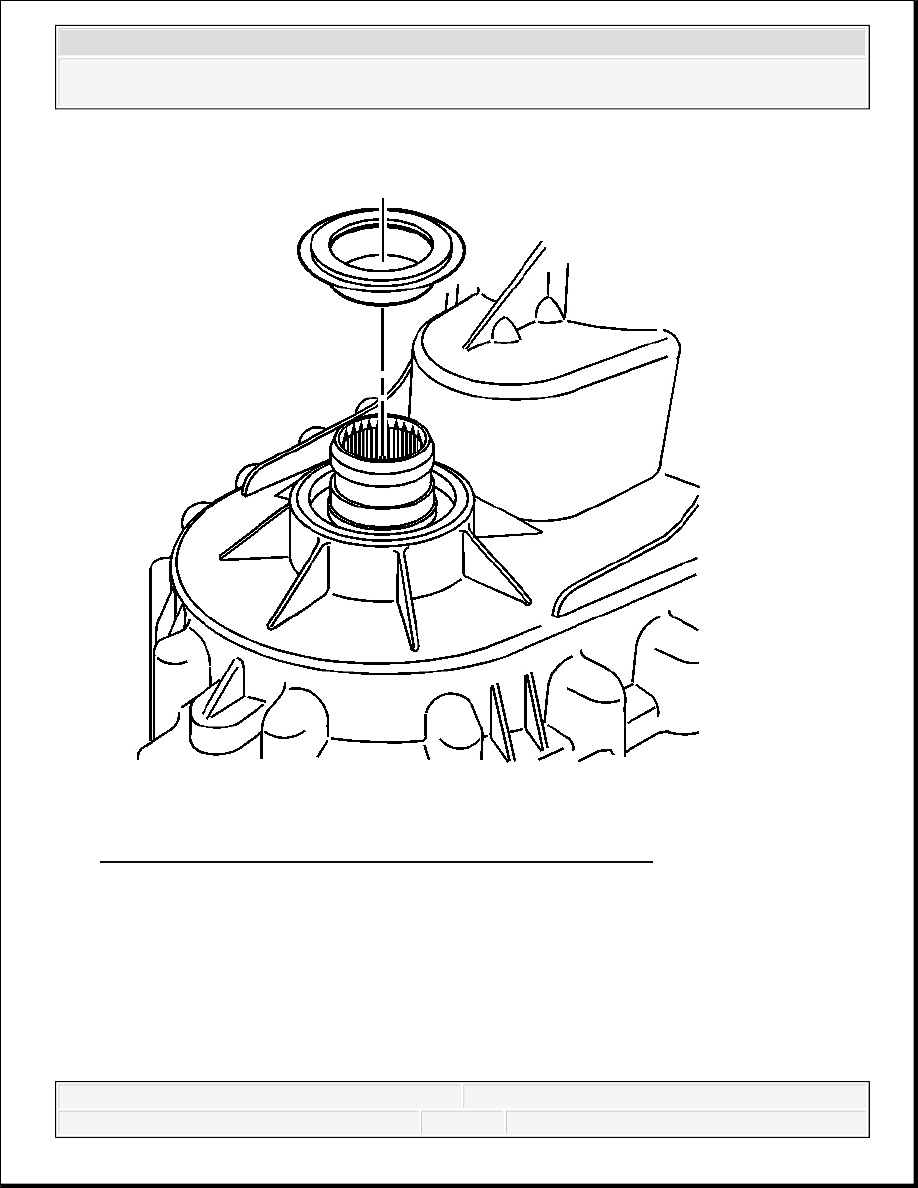

Fig. 31: Removing Inner Seal Race From Front Output Shaft 7. Using a small pry bar, move the inner seal race forward on the front output shaft. 8. Remove the inner seal race from the front output shaft.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

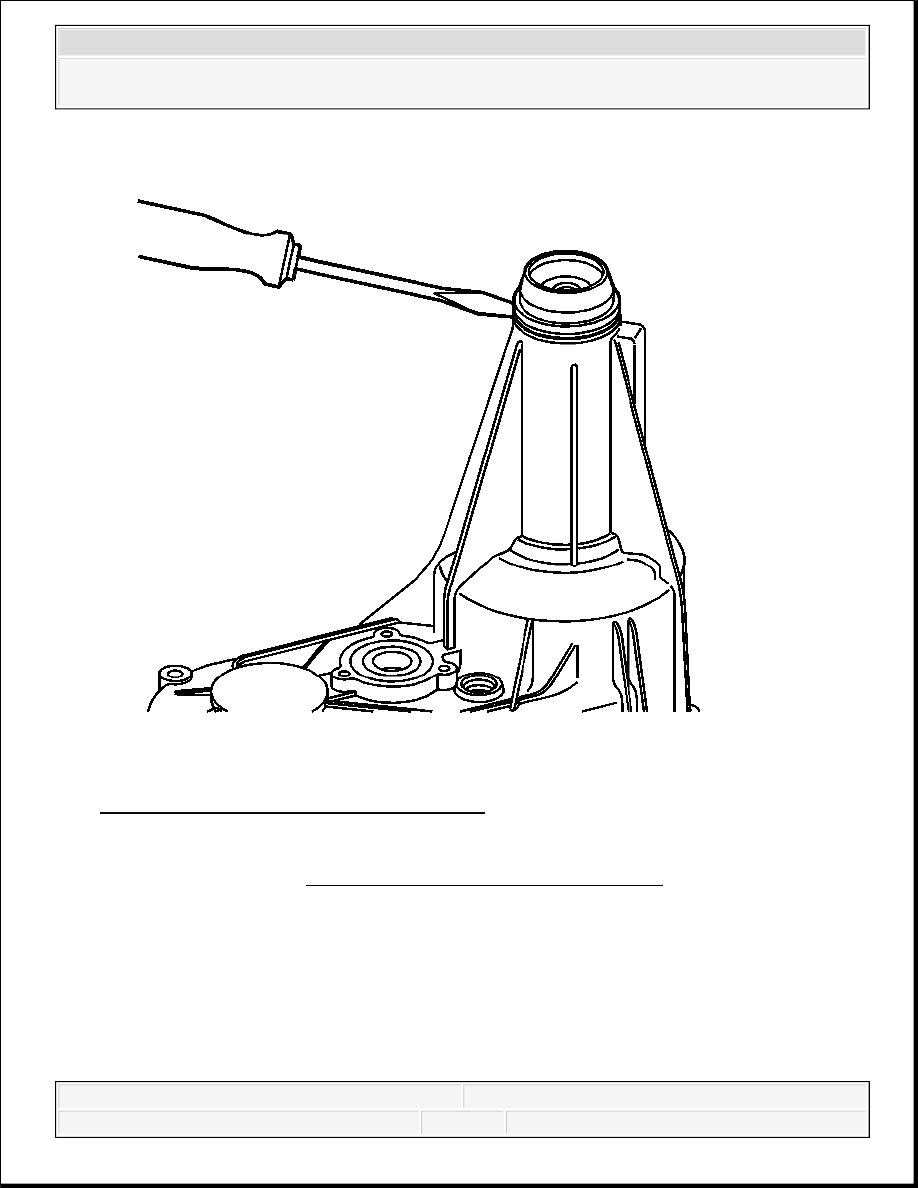

Fig. 32: Inserting Screwdriver Into Space Between Outer Race Seal Lip & Transfer 9. Insert a flat-tip screwdriver or a small pry bar between the outer lip of the front output shaft seal and the transfer case. 10. Remove the remaining part of the front output shaft seal from the transfer case.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

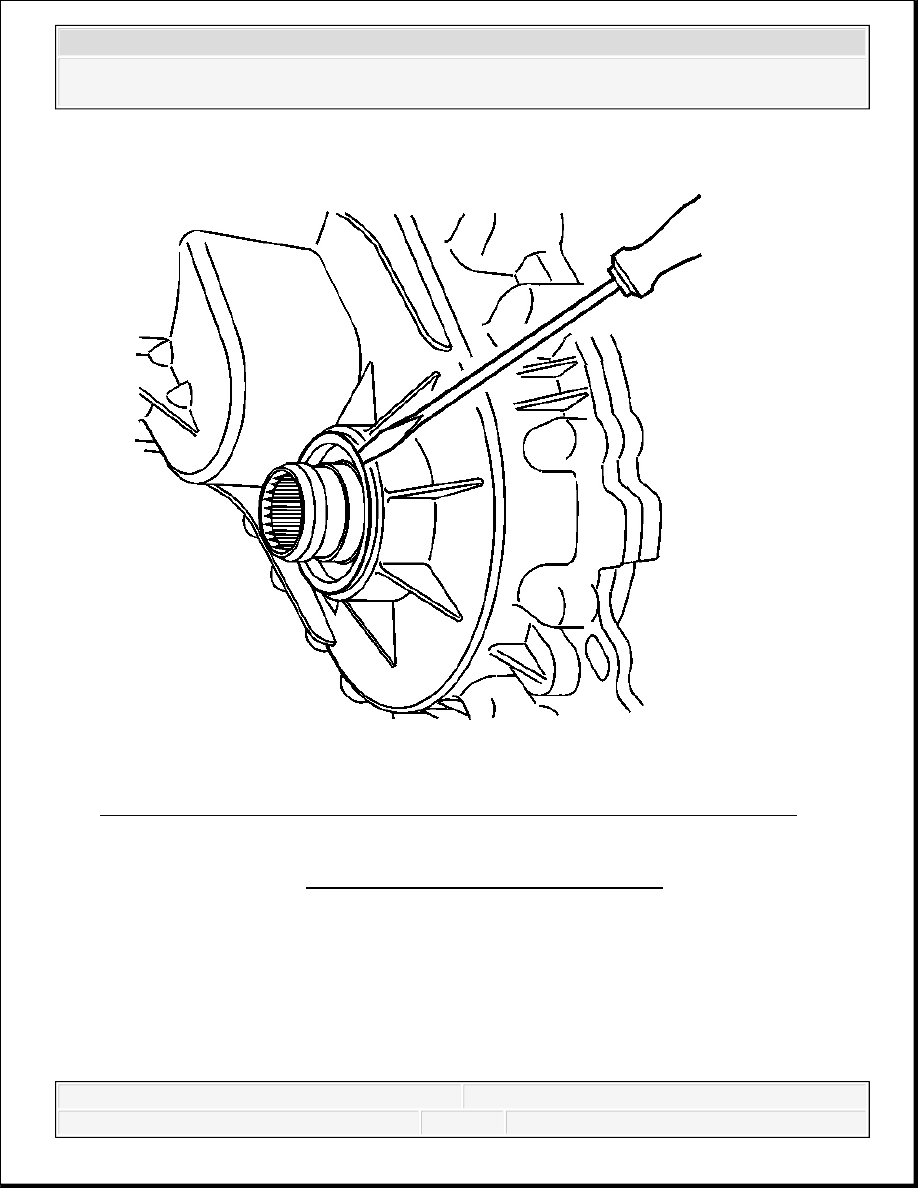

Fig. 33: Removing Rear Output Shaft Seal 11. Remove the rear output shaft seal by prying it out with a flat-blade screwdriver. NOTE: Refer to Transfer Case Seal Removal Notice .
