Chevrolet Silverado / GMC Sierra. Manual - part 2817

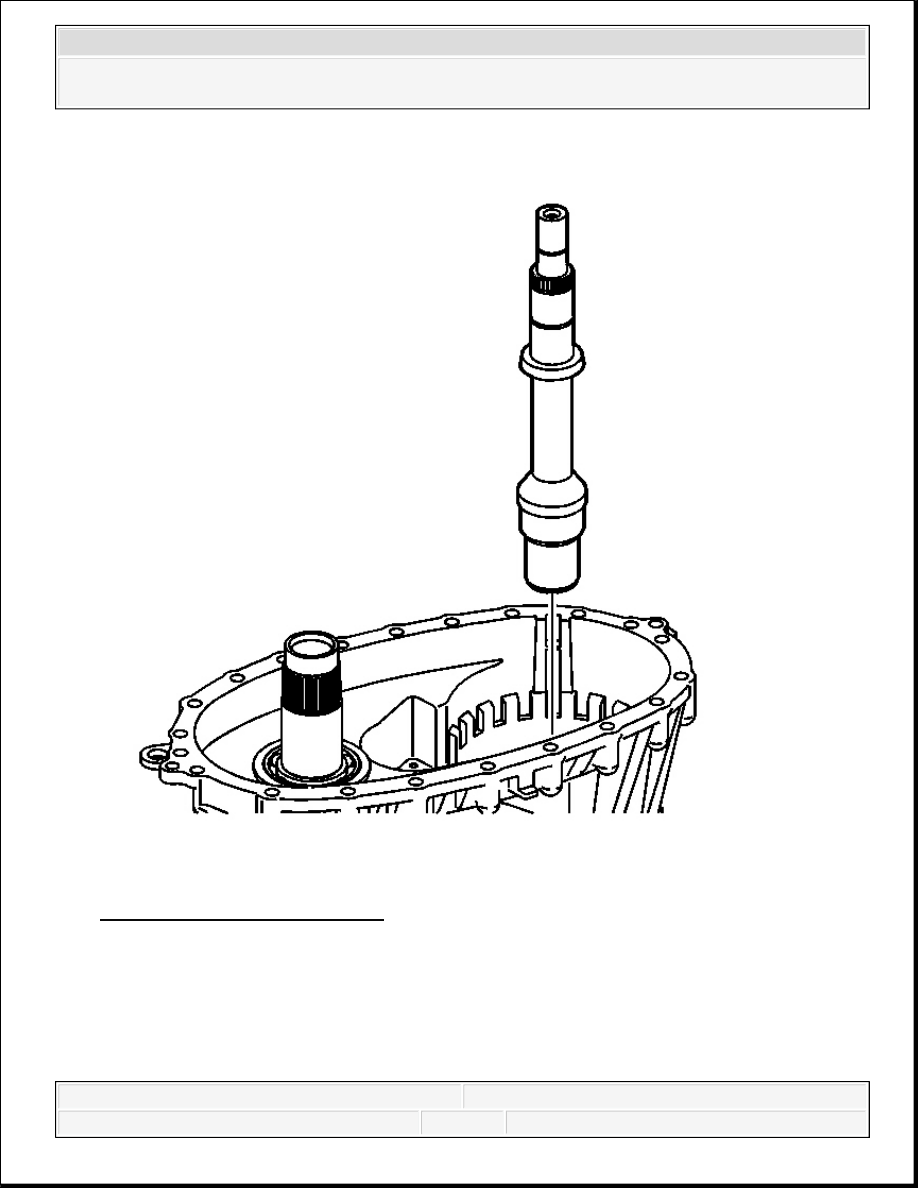

Fig. 42: Identifying Input Shaft
Courtesy of GENERAL MOTORS CORP.
21. Remove the input shaft.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

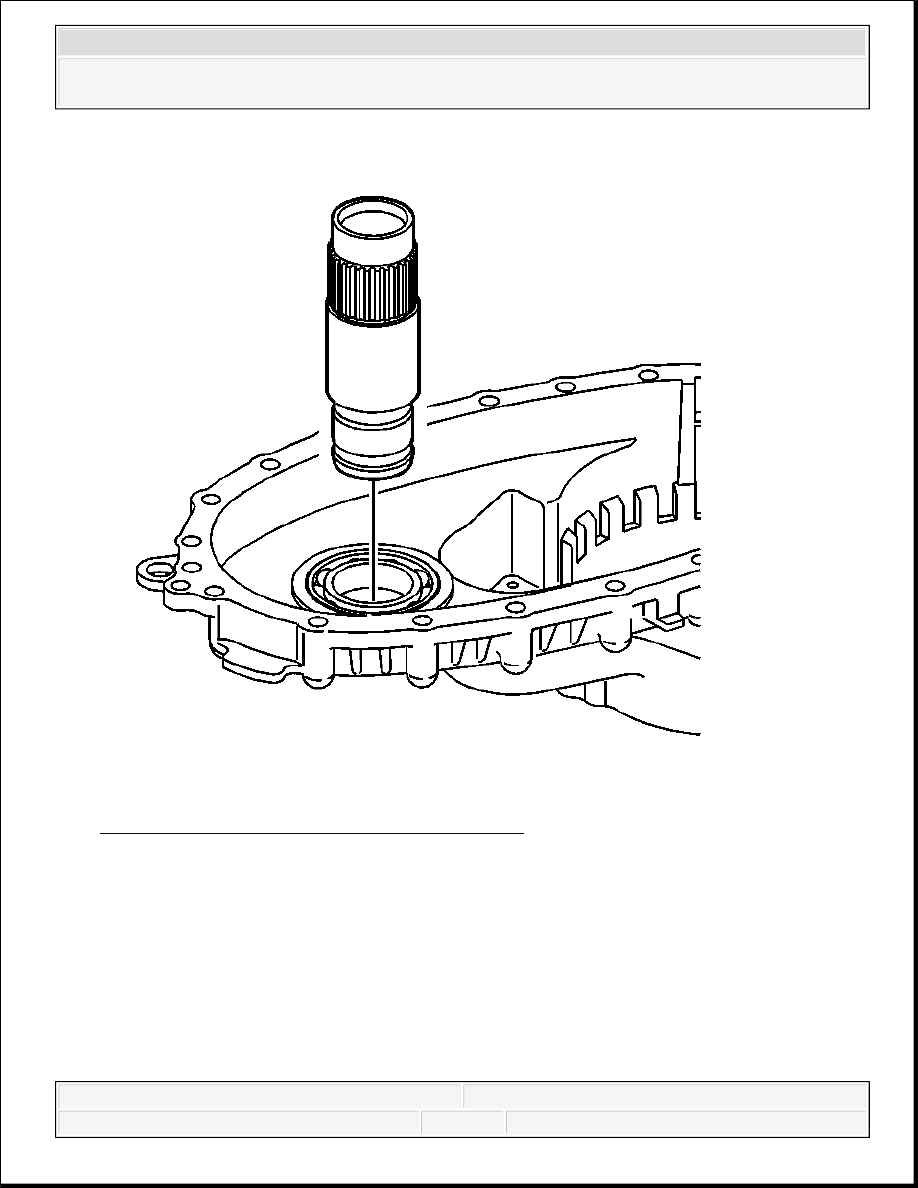

Fig. 43: View Of Front Output Shaft Assembly
Courtesy of GENERAL MOTORS CORP.
22. Remove the front output shaft assembly.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

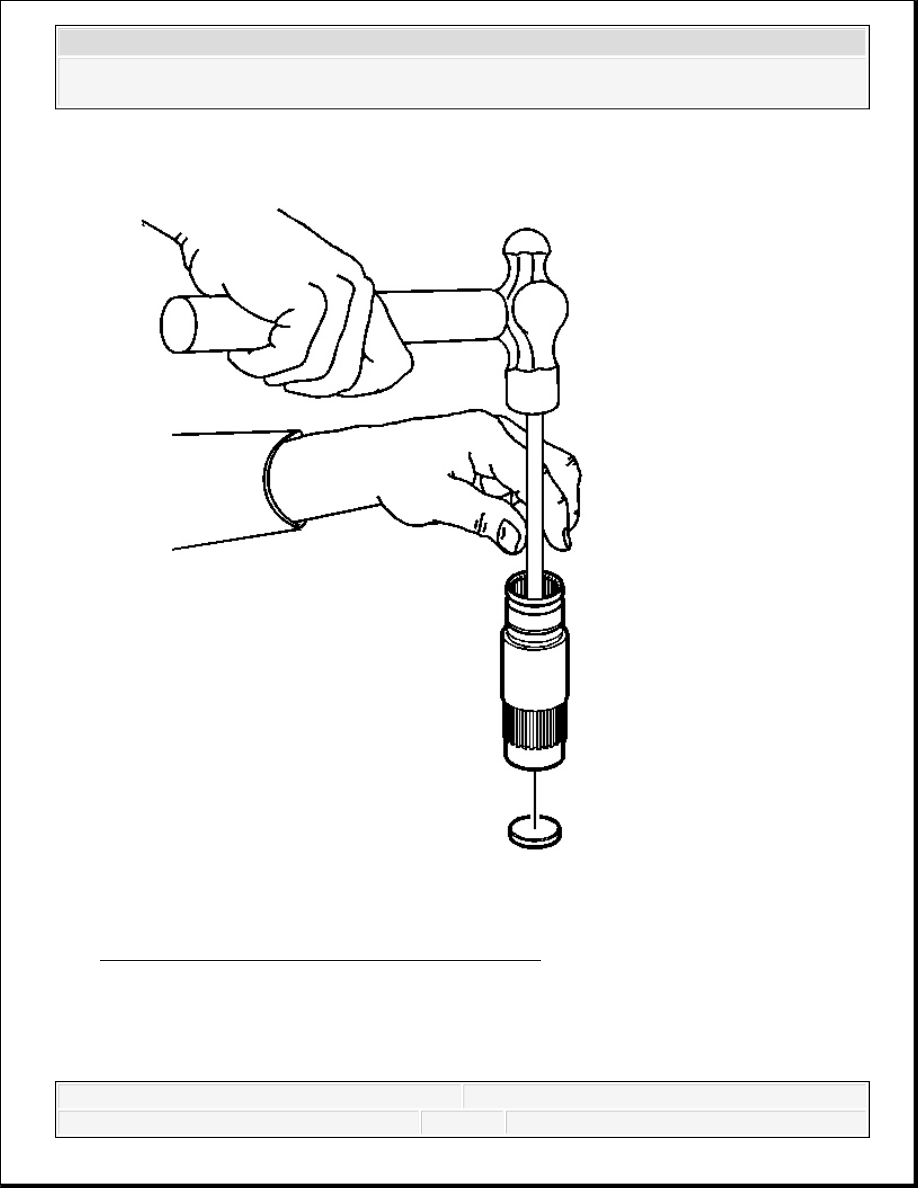

Fig. 44: Removing Front Output Shaft Cup Plug
Courtesy of GENERAL MOTORS CORP.
23. If the cup plug in the front output shaft is leaking, remove the plug using a brass drift.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

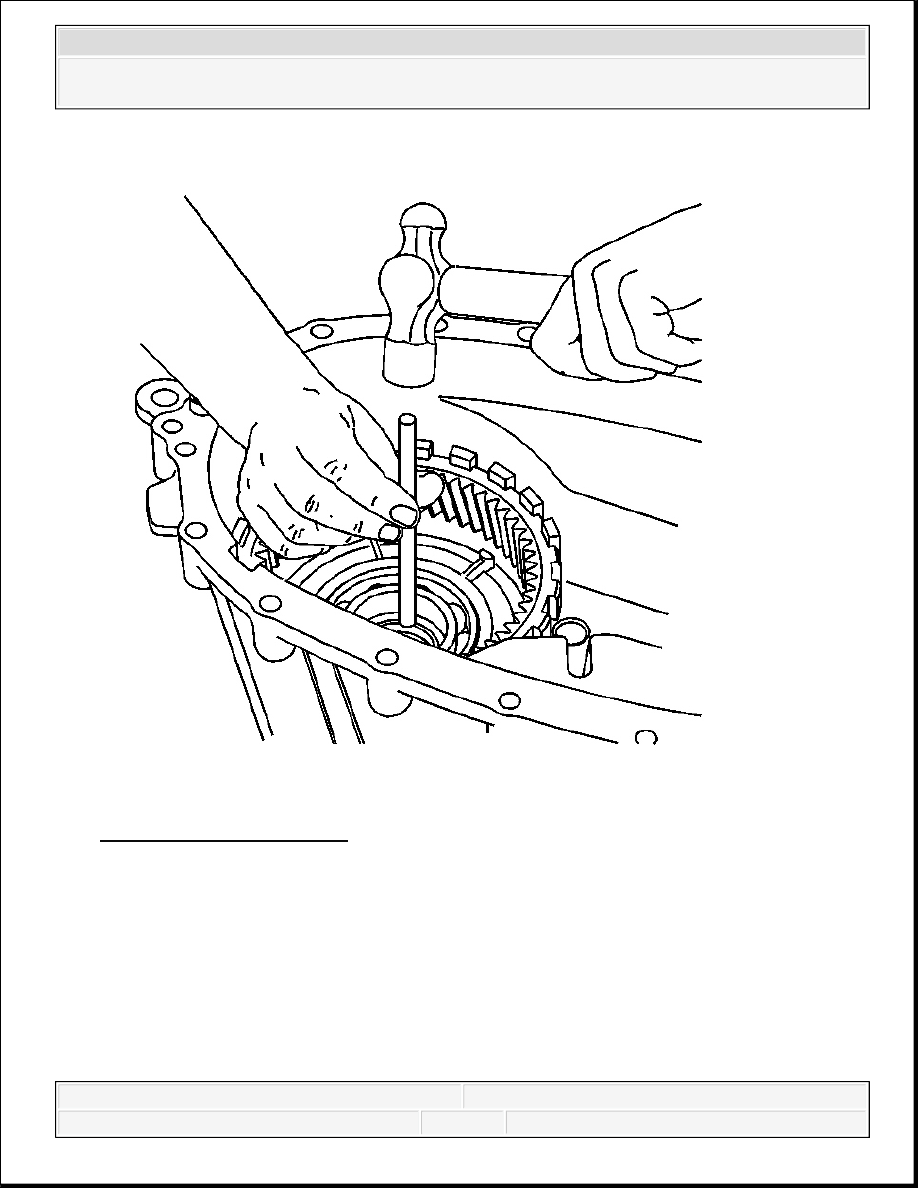

Fig. 45: View Of Input Seal
Courtesy of GENERAL MOTORS CORP.
24. Using a hammer and a suitable punch, remove the input seal.
2008 Chevrolet Silverado 1500
2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
