Chevrolet Silverado / GMC Sierra. Manual - part 2504

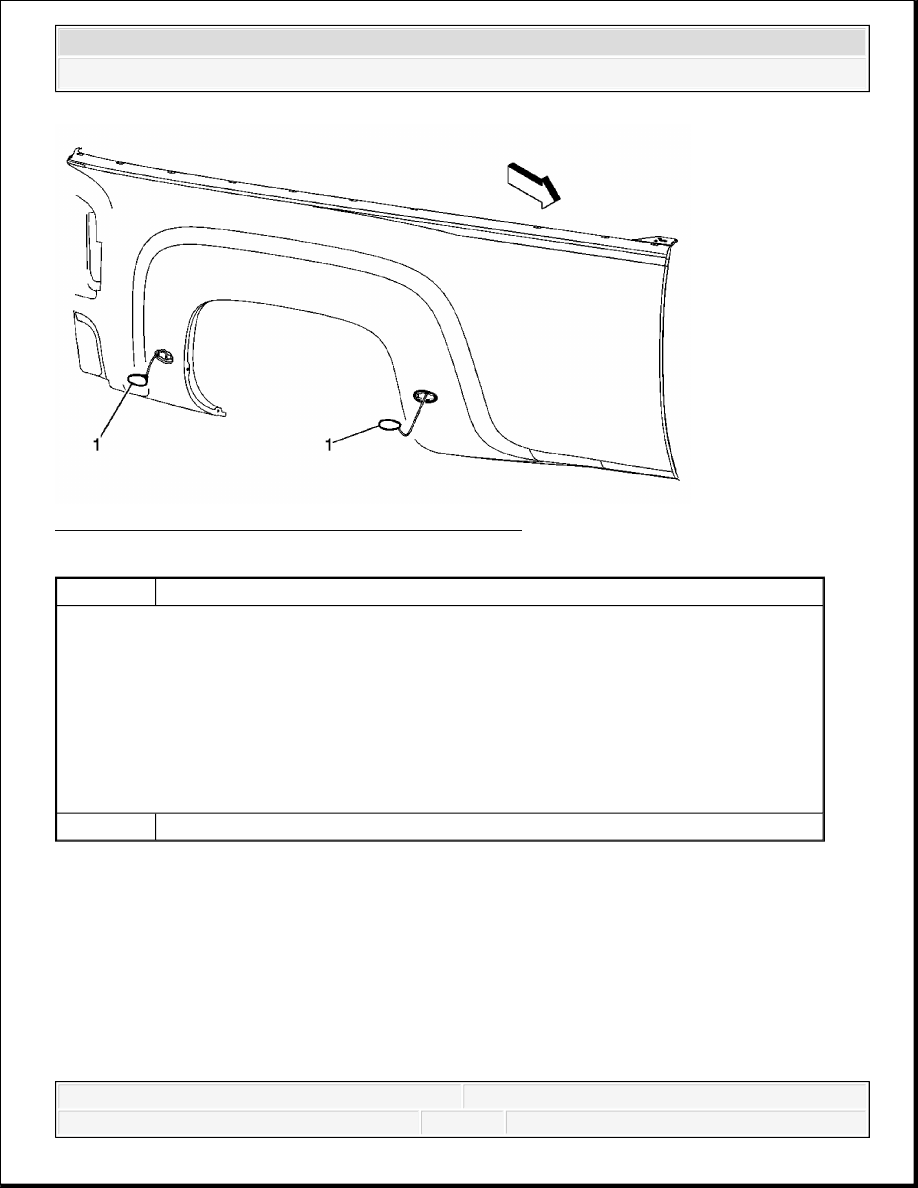

Fig. 49: Rear Fender Clearance Lamp Replacement
Courtesy of GENERAL MOTORS CORP.
HIGH MOUNT STOP LAMP REPLACEMENT (REGULAR CAB)
Callout
Component Name
Preliminary Procedure
1. Reach inside the rear fender and wheelhouse in order to disconnect the electrical
connector for the rear fender lamp from the main chassis harness.
2. Disengage the retainer securing the connector to the pick up box panel brace.
3. From inside the wheelhouse push inward on the locking tab for the lamp assembly and
push the lamp outward from the fender.
4. Remove the lamp and electrical harness.
1
Rear Fender Clearance Lamps
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

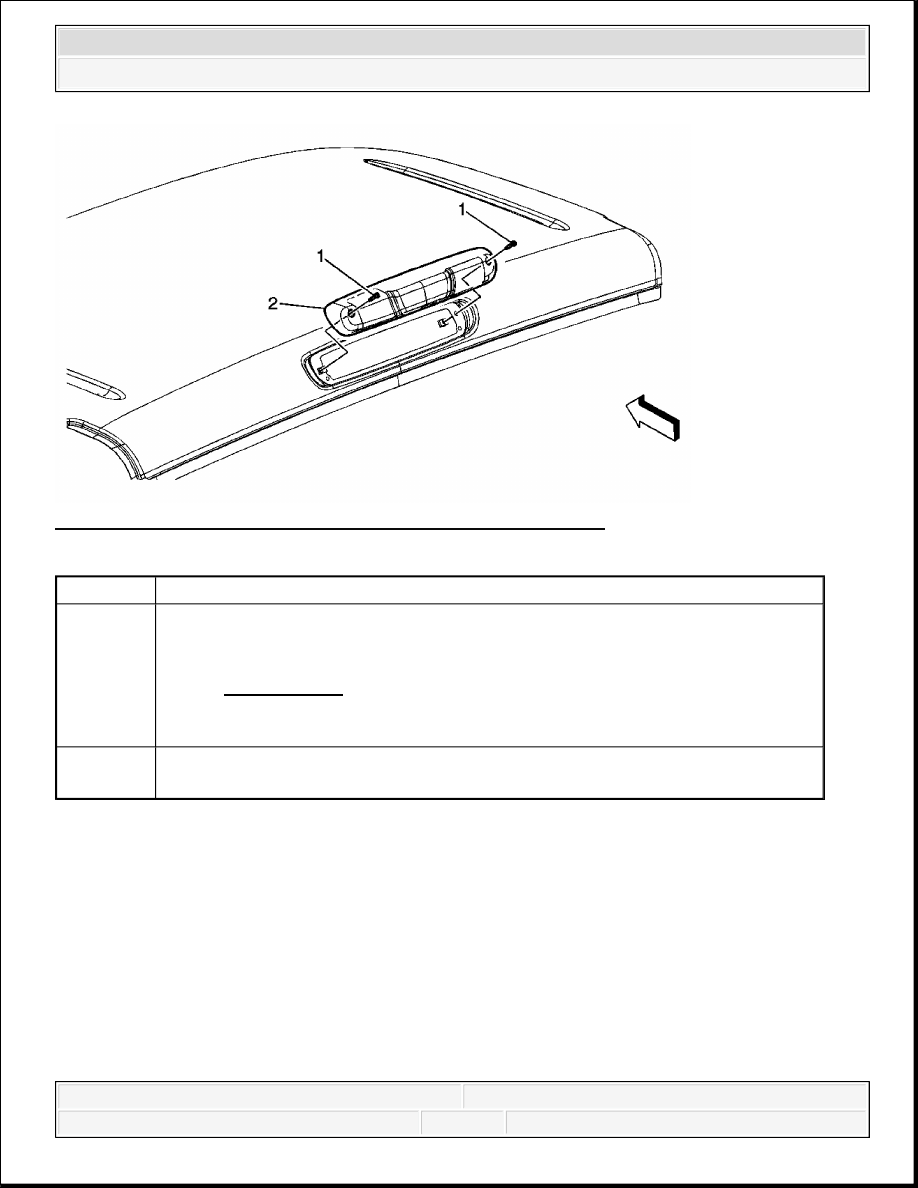

Fig. 50: High Mount Stop Lamp Replacement (Regular Cab)
Courtesy of GENERAL MOTORS CORP.
HIGH MOUNT STOP LAMP REPLACEMENT (EXTENDED AND CREW CAB)
Callout
Component Name
1
High Mounted Stop and Cargo Lamp Opening Cover Screw (Qty: 2)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice .
2
High Mounted Stop and Cargo Lamp Opening Cover
Tip: Pull the lamp rearward in order to access the electrical connector.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 51: High Mount Stop Lamp Replacement (Extended and Crew Cab)
Courtesy of GENERAL MOTORS CORP.
HIGH MOUNT STOP LAMP BULB REPLACEMENT (GMC DENALI)
Callout
Component Name
1
High Mounted Stop and Cargo Lamp Opening Cover Screw (Qty: 2)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice .
2
High Mounted Stop and Cargo Lamp Opening Cover
Tip: Pull the lamp rearward in order to access the electrical connector.
3
Electrical Connector
4
High Mounted Stop and Cargo Lamp Opening Cover Retainer Clip (Qty: 2)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 52: High Mount Stop Lamp Bulb Replacement (GMC Denali)
Courtesy of GENERAL MOTORS CORP.

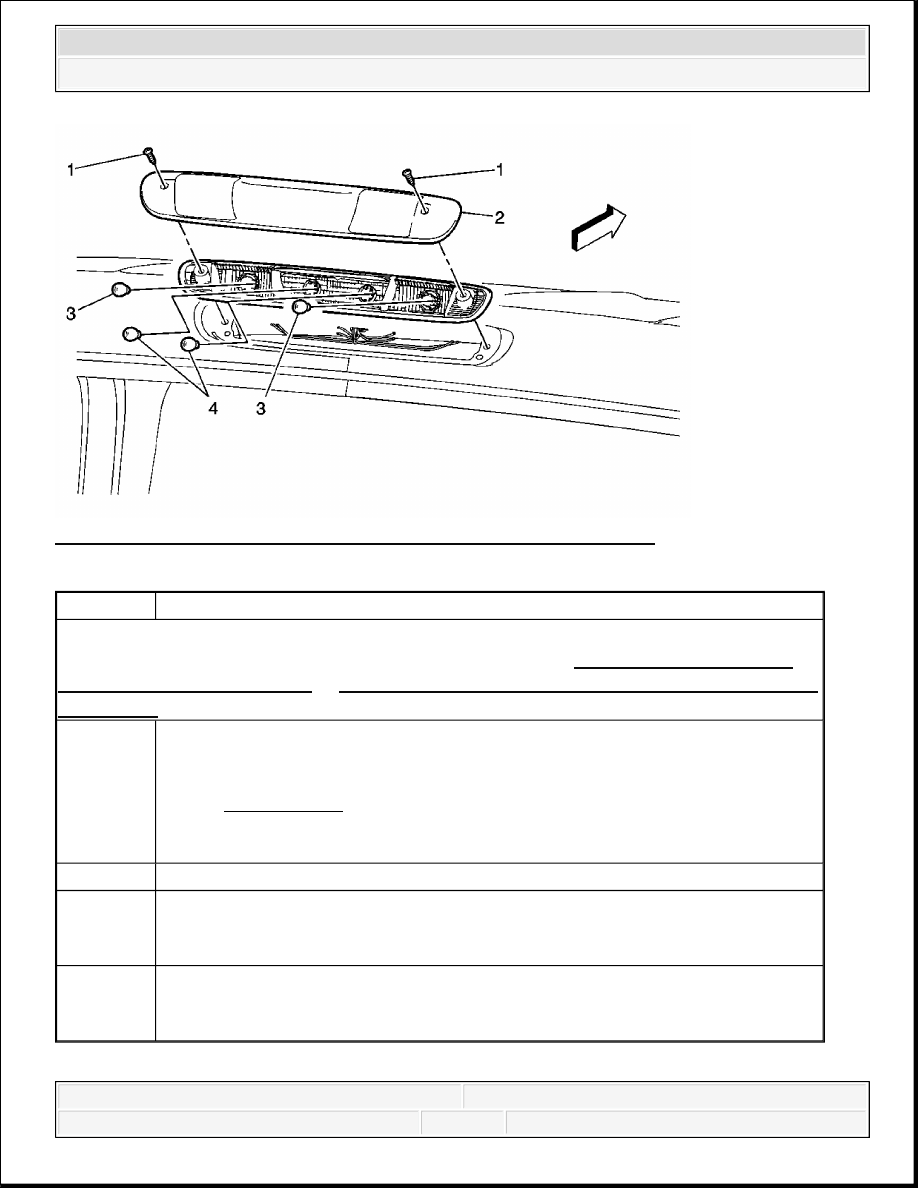

BACKUP LAMP BULB REPLACEMENT (GMC)
Callout
Component Name
Preliminary Procedure:
Remove the high mounted stop lamp cover assembly. Refer to High Mount Stop Lamp
Replacement (Regular Cab) or High Mount Stop Lamp Replacement (Extended and
Crew Cab).
1
High Mounted Stop and Cargo Lamp Opening Cover Screw (Qty: 2)
Tighten: 2.5 N.m (22 lb in)
NOTE:
Refer to Fastener Notice .
2
High Mounted Stop and Cargo Lamp Opening Cover
3
Cargo Lamp Bulb (Qty: 2)
Tip: Rotate the bulb sockets a quarter turn counter-clockwise to unlock in
order to remove the bulbs from the bulb sockets.
4
Brake Lamp Bulb (Qty: 2)
Tip: Rotate the bulb sockets a quarter turn counter-clockwise to unlock in
order to remove the bulbs from the bulb sockets.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
