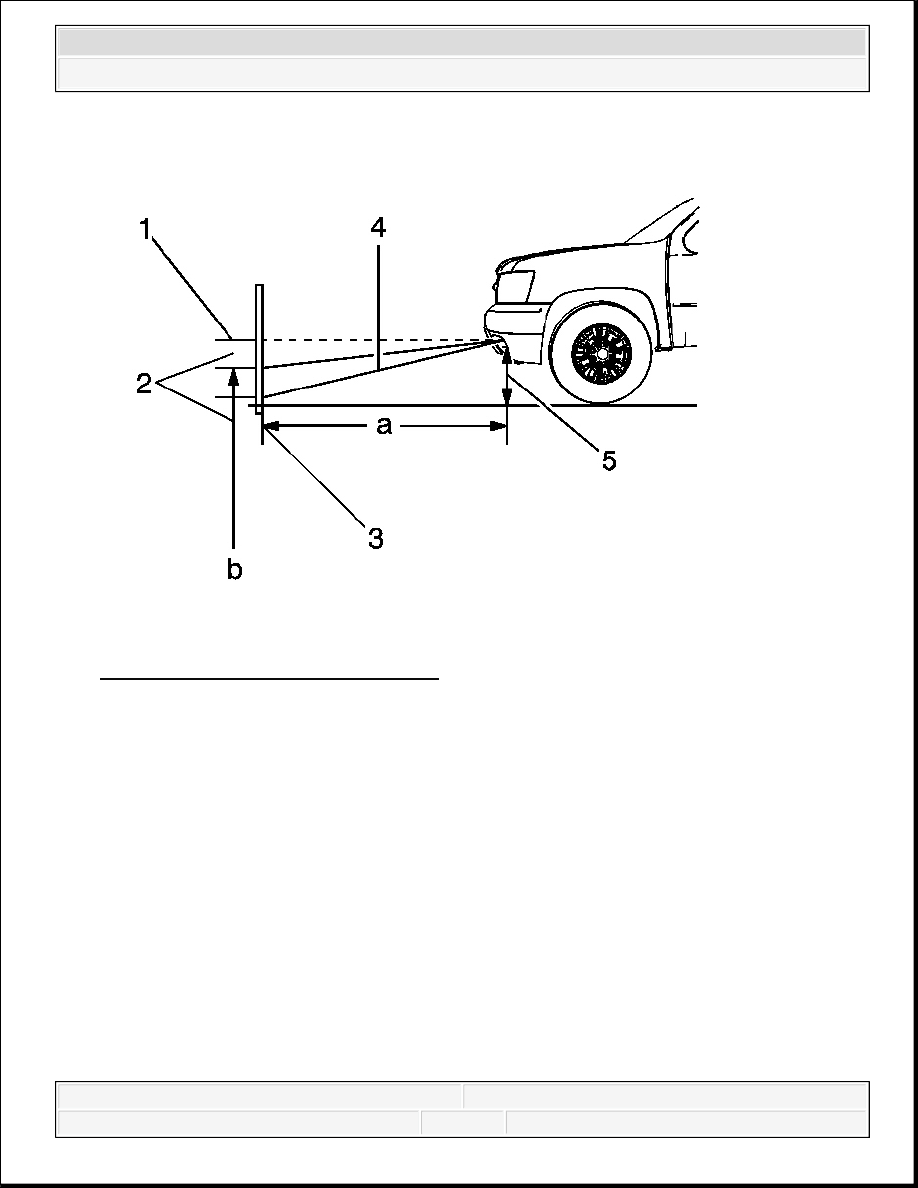

Fig. 41: Fog Lamp Aiming Procedure 1. Park the vehicle on a level surface 7.6 m (25 ft) (3) away from a wall or other flat surface. 2. Measure the distance from the floor to the center of the fog lamp (5). 3. Using this measurement, mark the horizontal centerline of the fog lamp (1) on the flat surface directly in front of the vehicle. 4. Remove the front portion of the front wheel liner in order to access the adjusting screw. 5. Turn ON the fog lamps. 6. Reach inside of the front portion of the fender liner in order to access the fog lamp vertical adjustment screw on the bottom of the fog lamp. 7. Adjust the fog lamp so that the top edge of the fog lamp beam pattern is 100 mm (4 in) below the horizontal centerline (2). 8. Turn OFF the fog lamps. 9. Secure the forward edge of the front fender liner.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

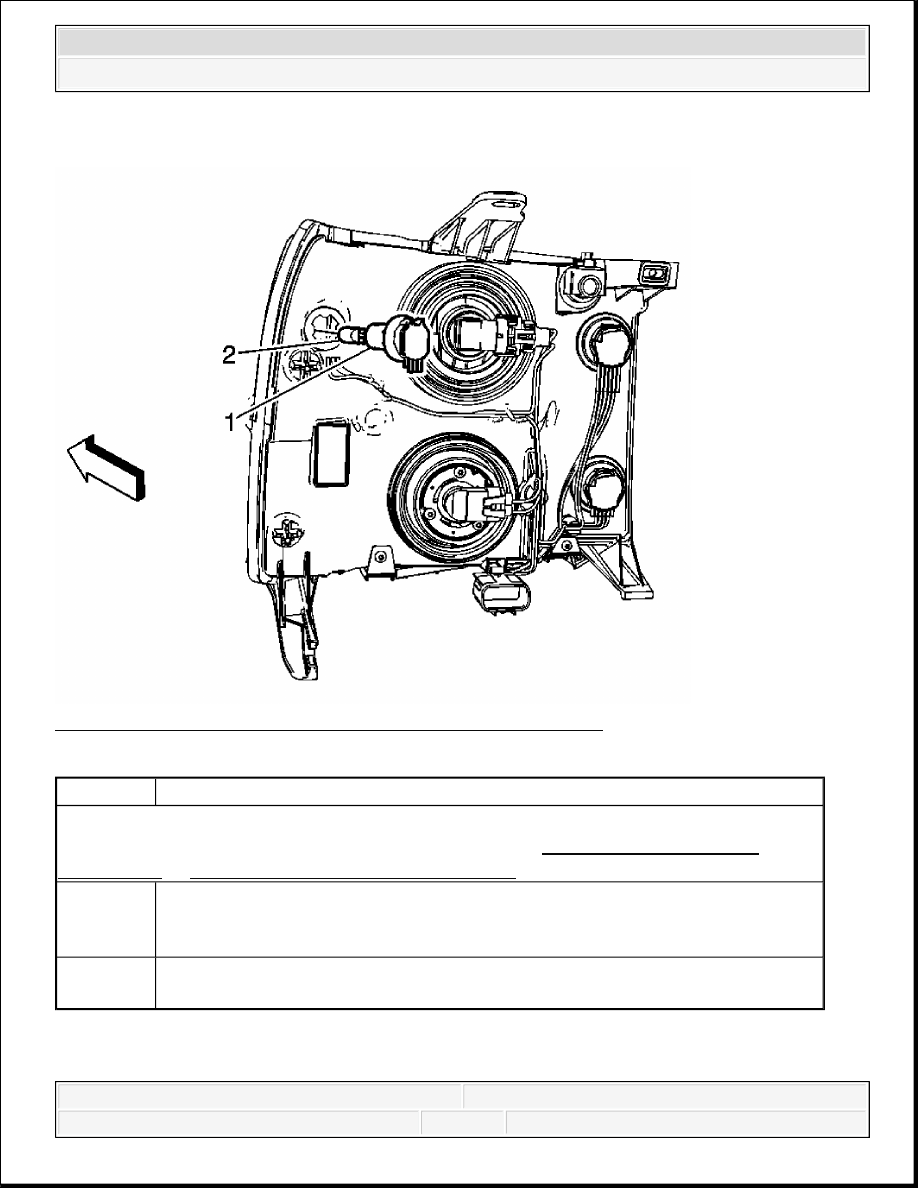

FRONT SIDE MARKER LAMP BULB REPLACEMENT (GMC) Fig. 42: Front Side Marker Lamp Bulb Replacement (GMC) ROOF MARKER LAMP REPLACEMENT (U01) Callout Component Name Preliminary Procedure: 1 Lamp Harness Socket 2 Front Side Marker Lamp Bulb
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

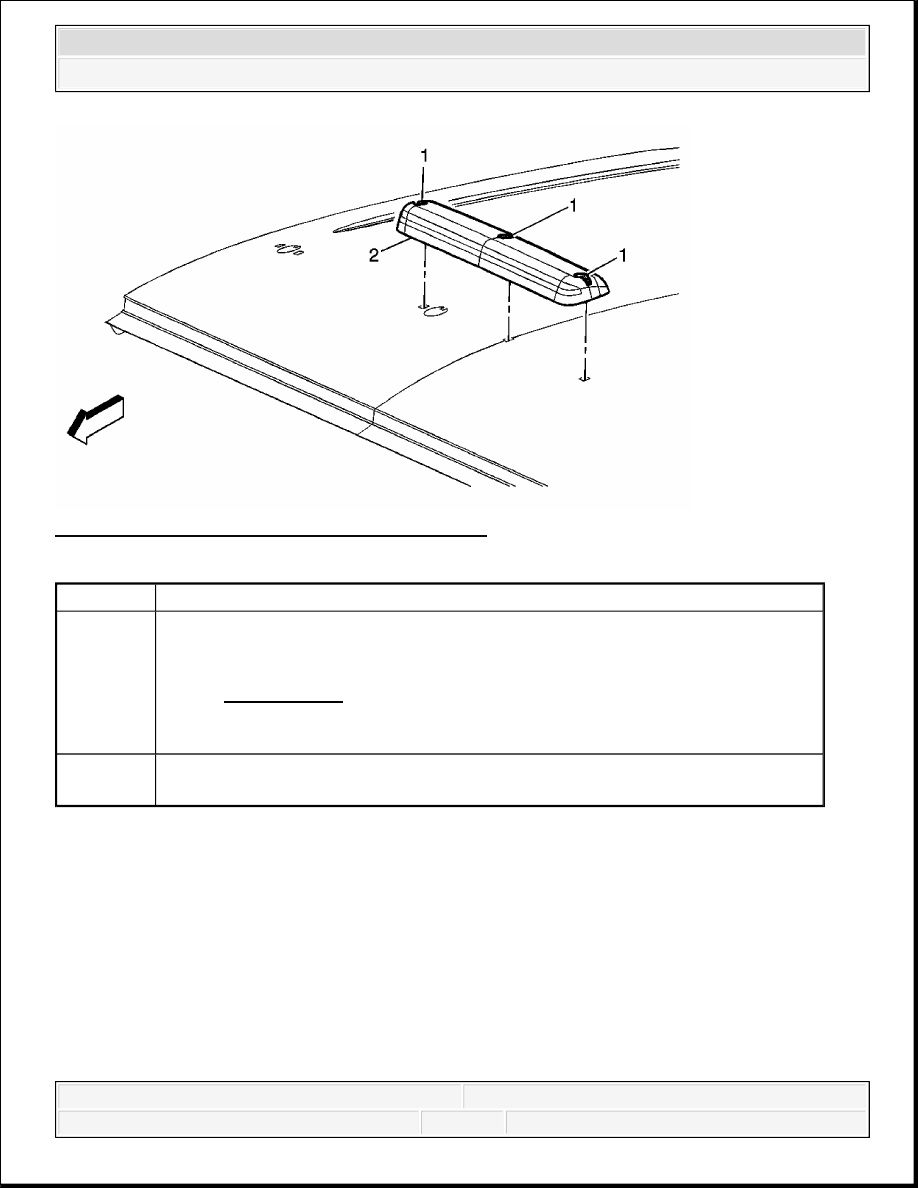

Fig. 43: Roof Marker Lamp Replacement (U01) ROOF MARKER LAMP REPLACEMENT (MINUS SRW) Callout Component Name 1 Screw (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 2 Roof Outer Lamp Assembly
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

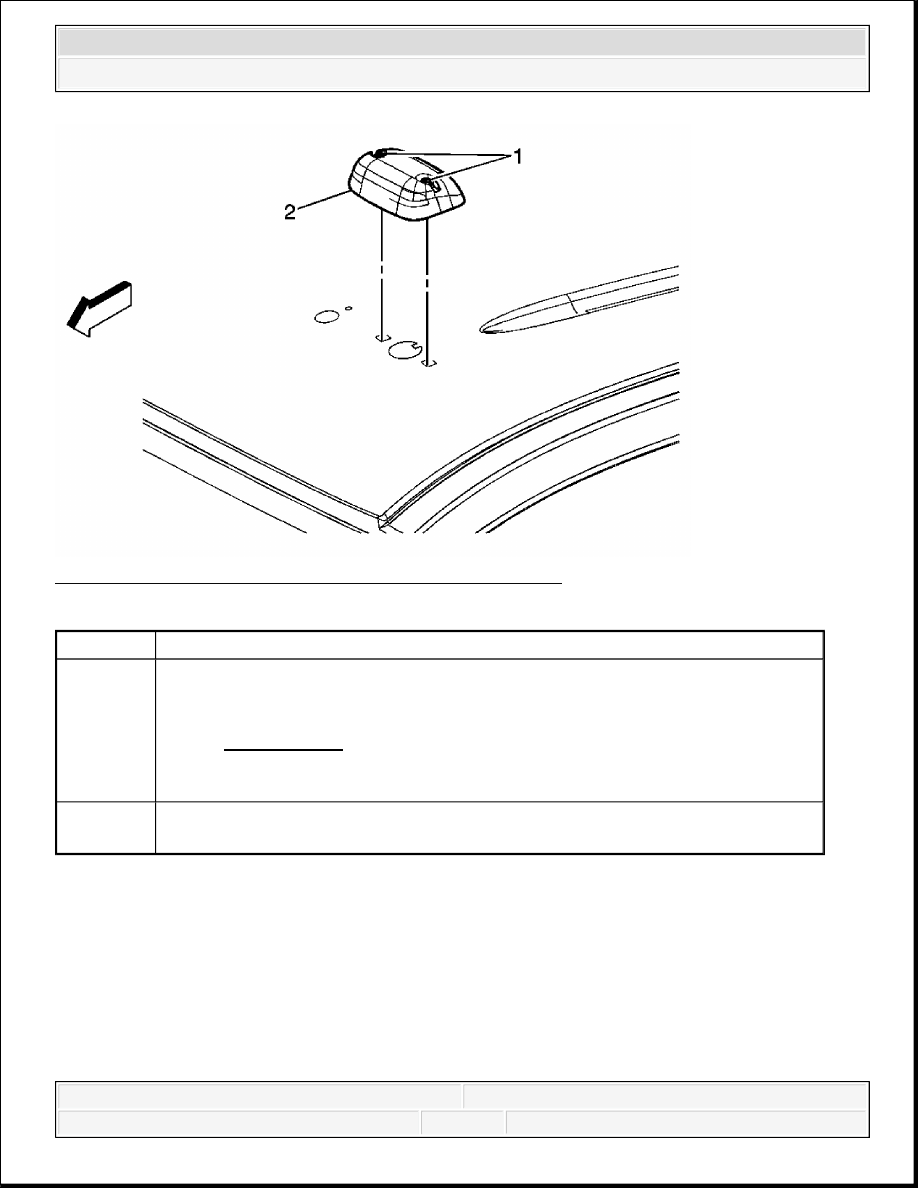

Fig. 44: Roof Marker Lamp Replacement (Minus SRW) PARK/TURN SIGNAL LAMP BULB REPLACEMENT (CHEVROLET) Callout Component Name 1 Screw (Qty: 2) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 2 Roof Outer Lamp Assembly
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Lighting - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
