Chevrolet Silverado / GMC Sierra. Manual - part 247

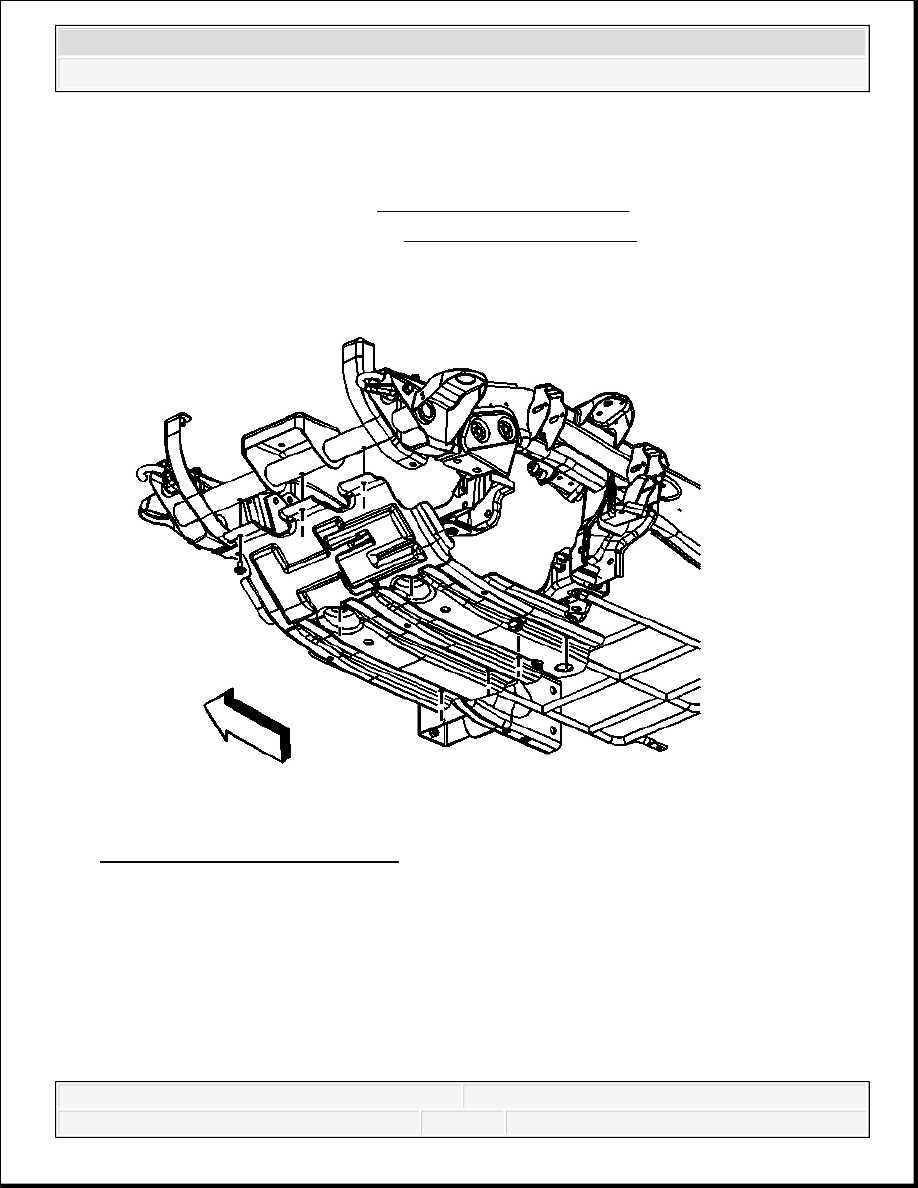

Fig. 42: Engine Protection Shield
Courtesy of GENERAL MOTORS CORP.
3. Remove the engine shield bolts.
4. Remove the engine shield.
5. Remove the air conditioning (A/C) compressor. Refer to Compressor Replacement .
6. Remove the starter motor. Refer to Starter Motor Replacement .
7. Raise and suitably support the engine using adjustable (screw type) jack stands.
IMPORTANT: DO NOT raise and/or support the engine by the crankshaft
balancer, or oil pan.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

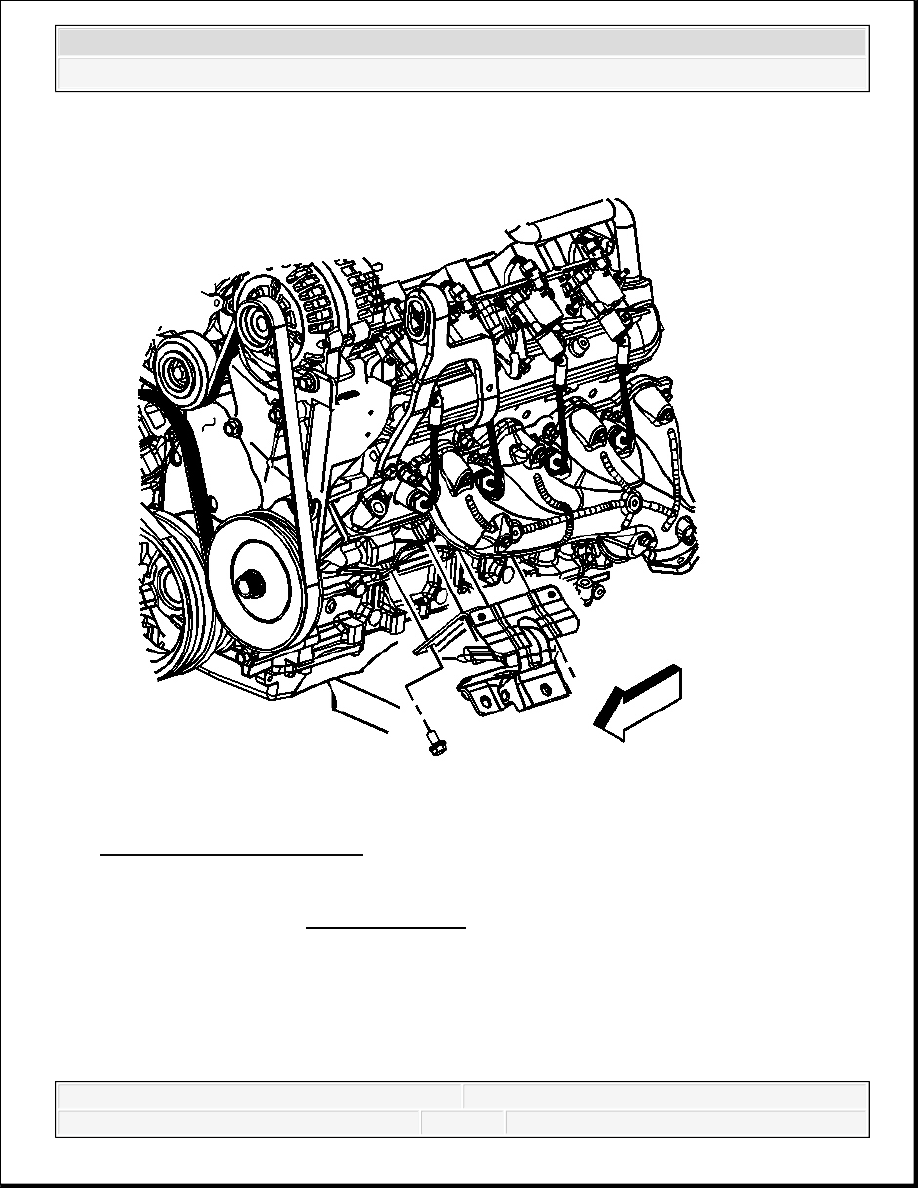

Fig. 43: Engine Mount (Left)
Courtesy of GENERAL MOTORS CORP.
8. Remove the engine mount bolts (left side shown, right side similar).
9. Remove the right engine mount.
Installation Procedure
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

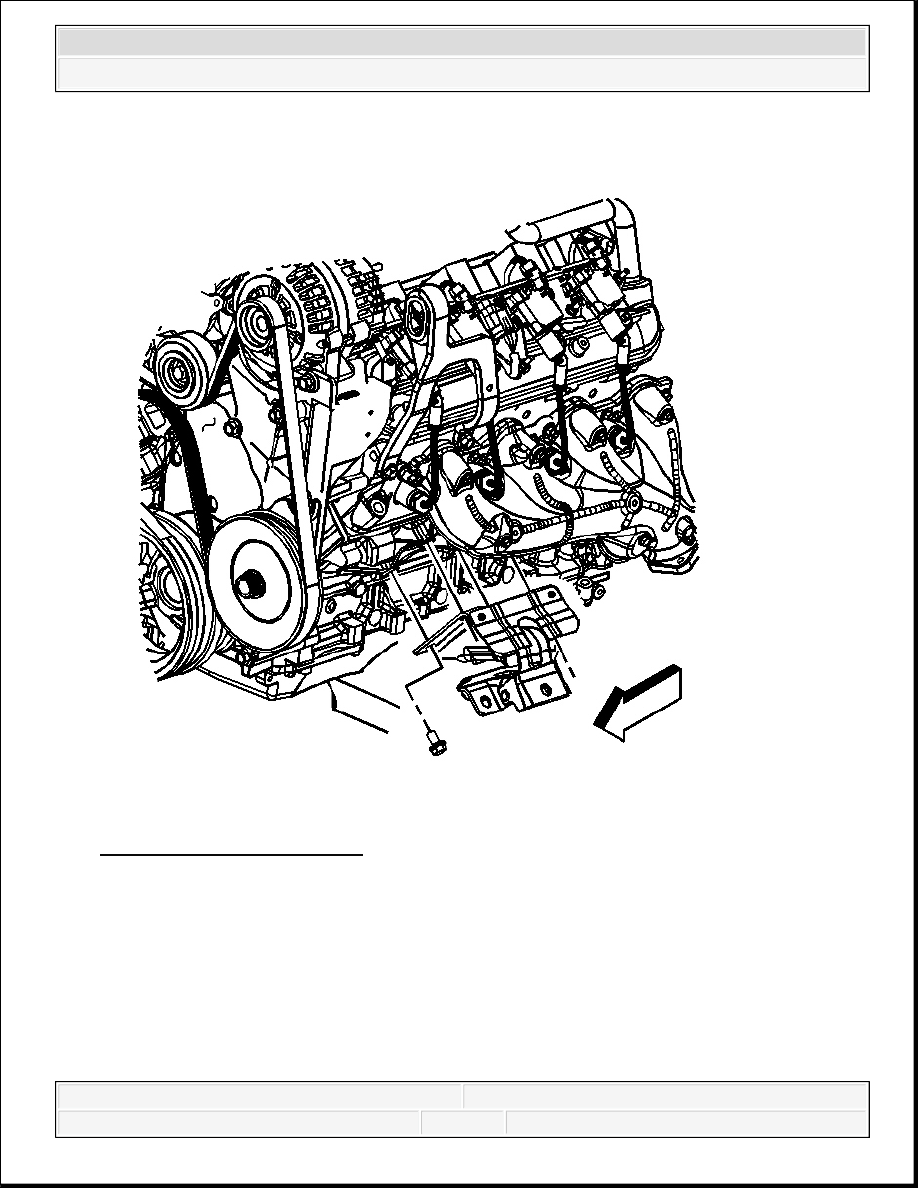

Fig. 44: Engine Mount (Left)
Courtesy of GENERAL MOTORS CORP.
1. Position the right engine mount to the engine (left side shown, right side similar).
2. Install the engine mount bolts.
Tighten: Tighten the engine mount bolts to 50 N.m (37 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
3. Lower the engine.
4. Remove the adjustable jack stands.
5. Install the starter motor. Refer to Starter Motor Replacement .
6. Install the A/C compressor. Refer to Compressor Replacement .

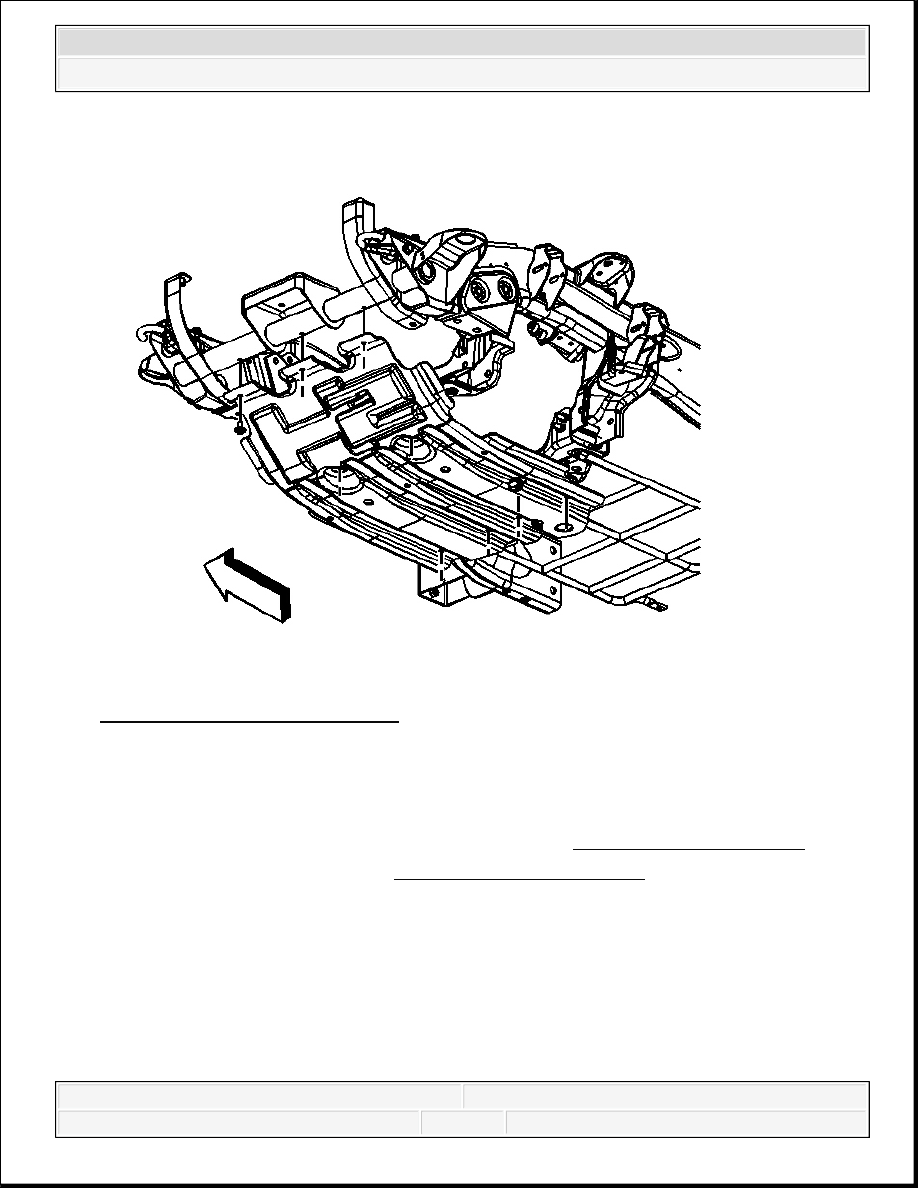

Fig. 45: Engine Protection Shield
Courtesy of GENERAL MOTORS CORP.
7. Position the engine shield to the vehicle.
8. Install the engine shield bolts.
Tighten: Tighten the engine shield bolts to 30 N.m (22 lb ft).
9. Lower the vehicle.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
