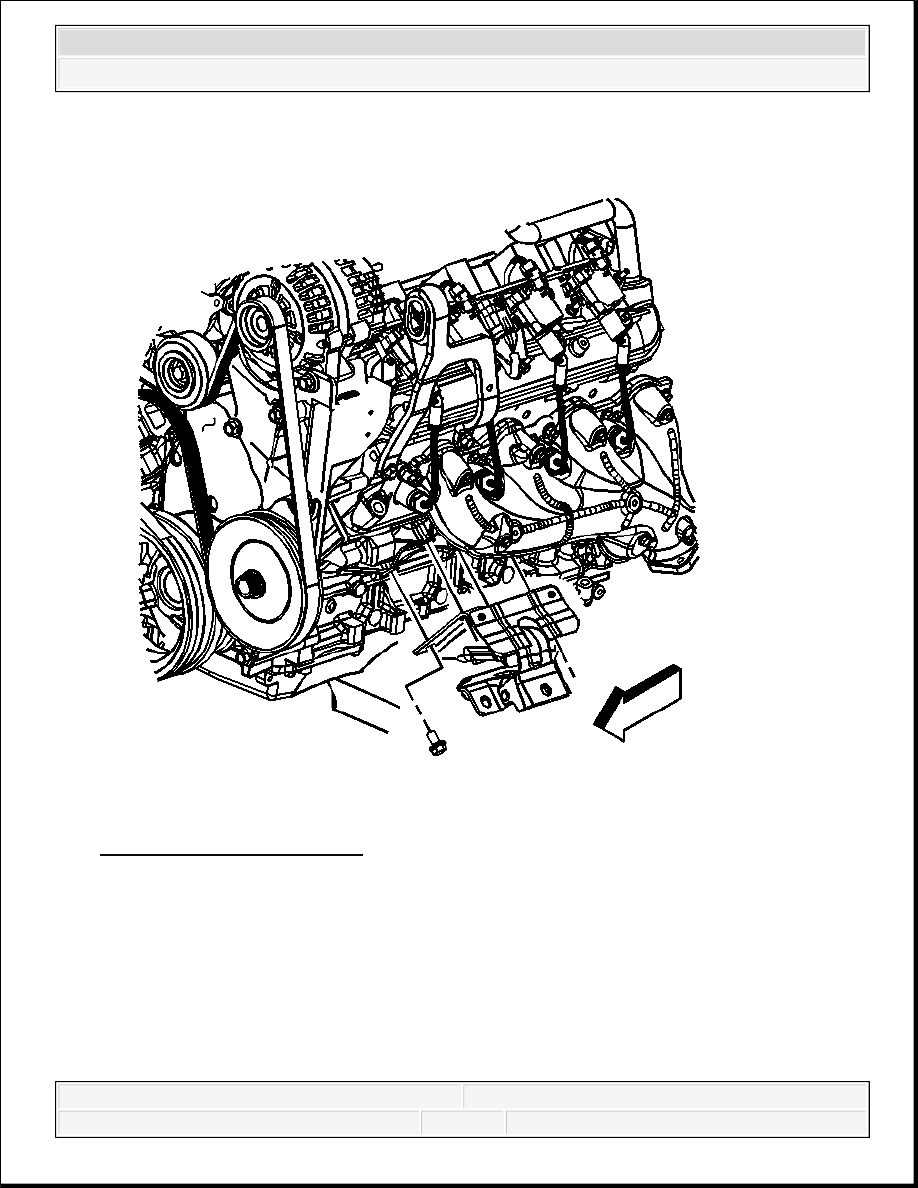

Fig. 35: Engine Mount (Left)
Courtesy of GENERAL MOTORS CORP.
6. Remove the engine mount bolts.
7. Remove the engine mount.
Installation Procedure
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

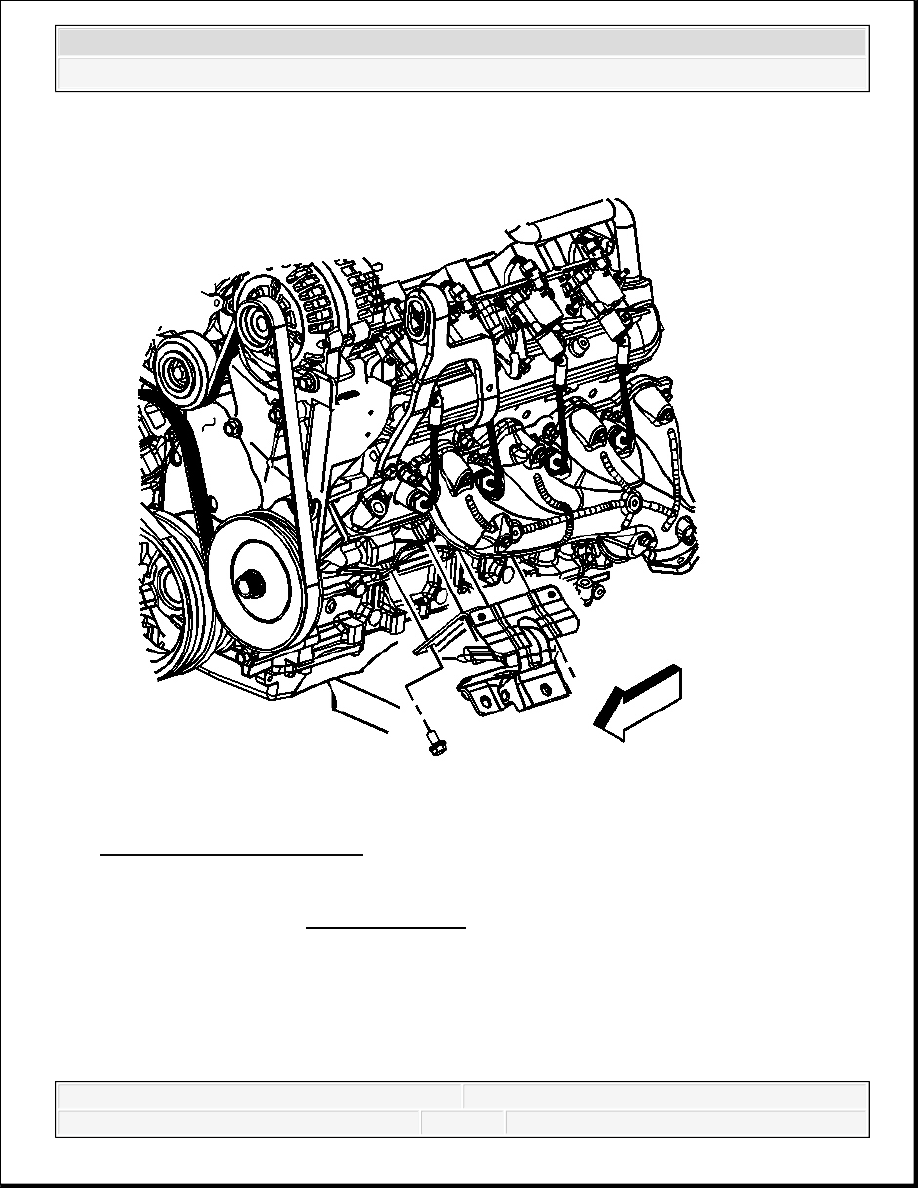

Fig. 36: Engine Mount (Left)
Courtesy of GENERAL MOTORS CORP.
1. Position the engine mount to the engine.
2. Install the engine mount bolts.
Tighten: Tighten the engine mount bolts to 50 N.m (37 lb ft).
NOTE:
Refer to Fastener Notice .
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2
3. Lower the engine.
4. Remove the adjustable jack stands.

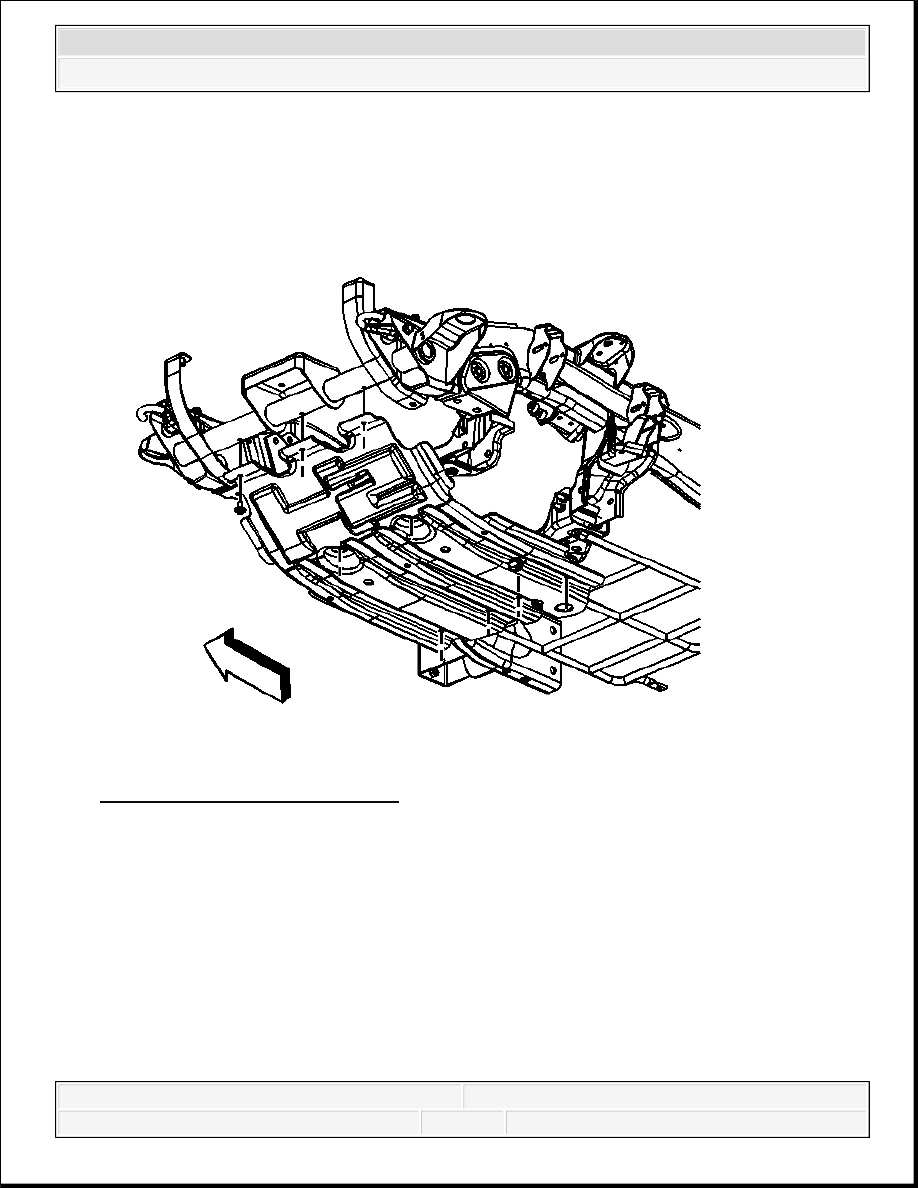

Fig. 37: Engine Protection Shield
Courtesy of GENERAL MOTORS CORP.
5. Position the engine shield to the vehicle.
6. Install the engine shield bolts.
Tighten: Tighten the engine shield bolts to 30 N.m (22 lb ft).
7. Lower the vehicle.
2008 Hummer H2
2008 ENGINE Engine Mechanical - 6.2L - H2

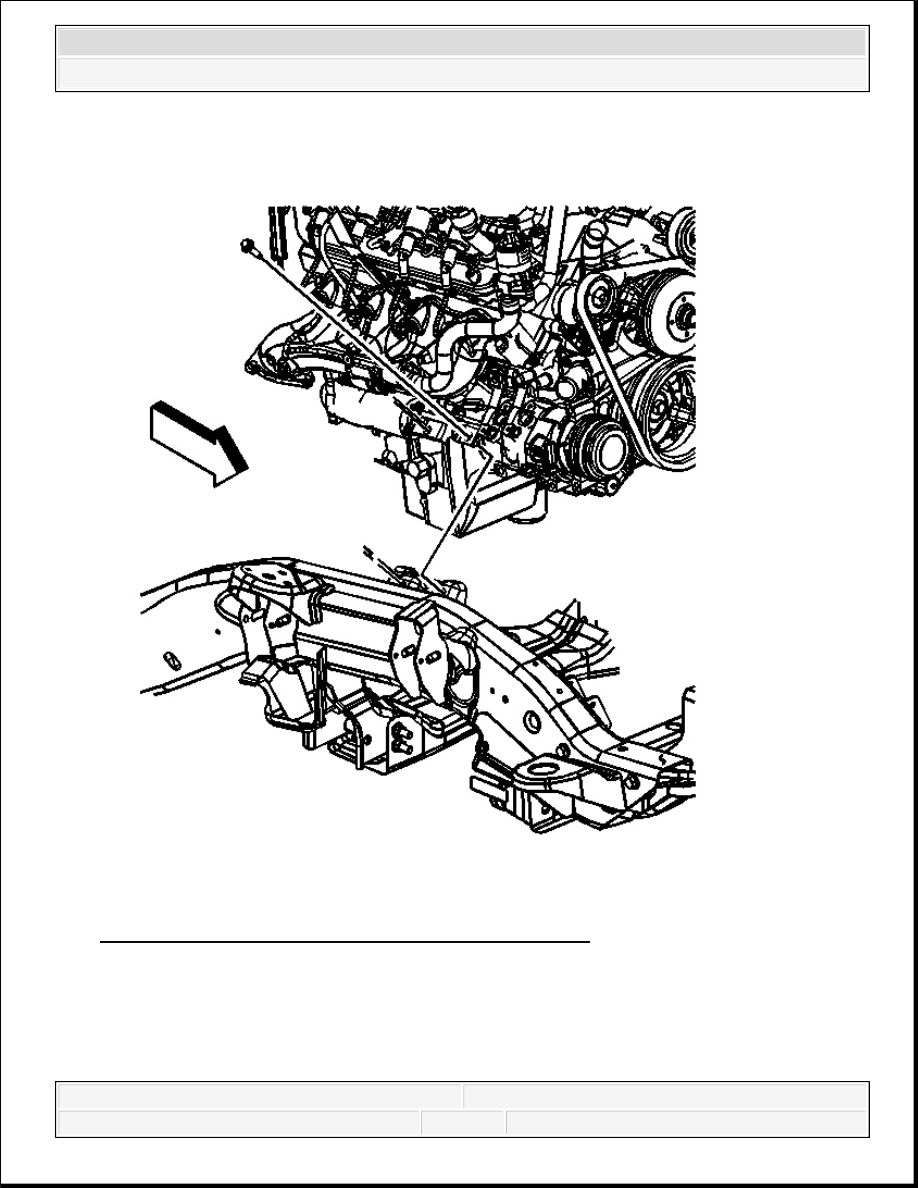

Fig. 38: Engine Mount-To-Frame Bracket Bolts (Left)
Courtesy of GENERAL MOTORS CORP.
8. Install the engine mount-to-frame bracket bolts (right side shown, left side similar).
Tighten: Tighten the engine mount-to-frame bracket bolts to 65 N.m (48 lb ft).
