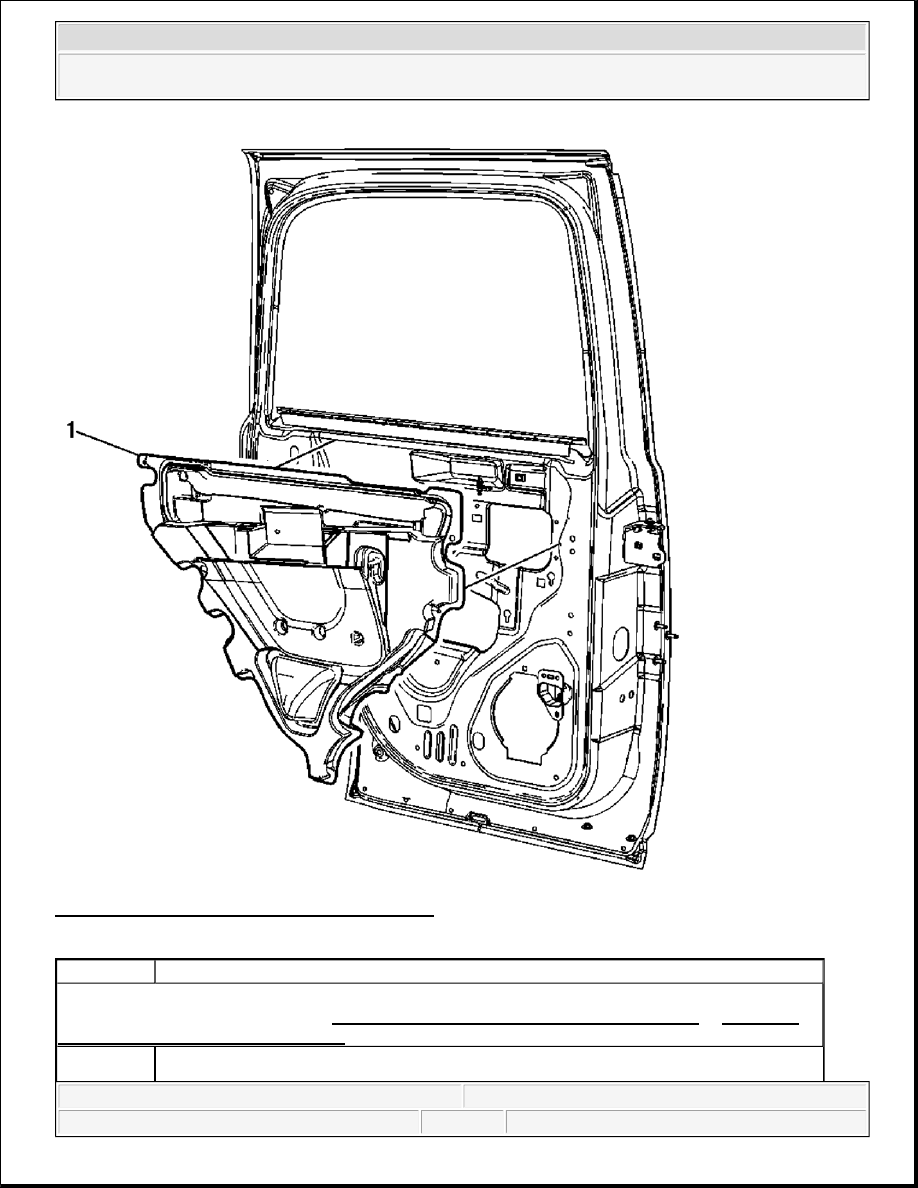

Fig. 10: View Of Rear Side Door Water Deflector
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the door trim panel. Refer to Rear Side Door Trim Panel Replacement (YE9) or Rear Side
Door Trim Panel Replacement (SLT).

Rear Side Door Water Deflector



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 17

© 2005 Mitchell Repair Information Company, LLC.

FRONT SIDE DOOR SILL PLATE REPLACEMENT (REGULAR CAB/CREW CAB)

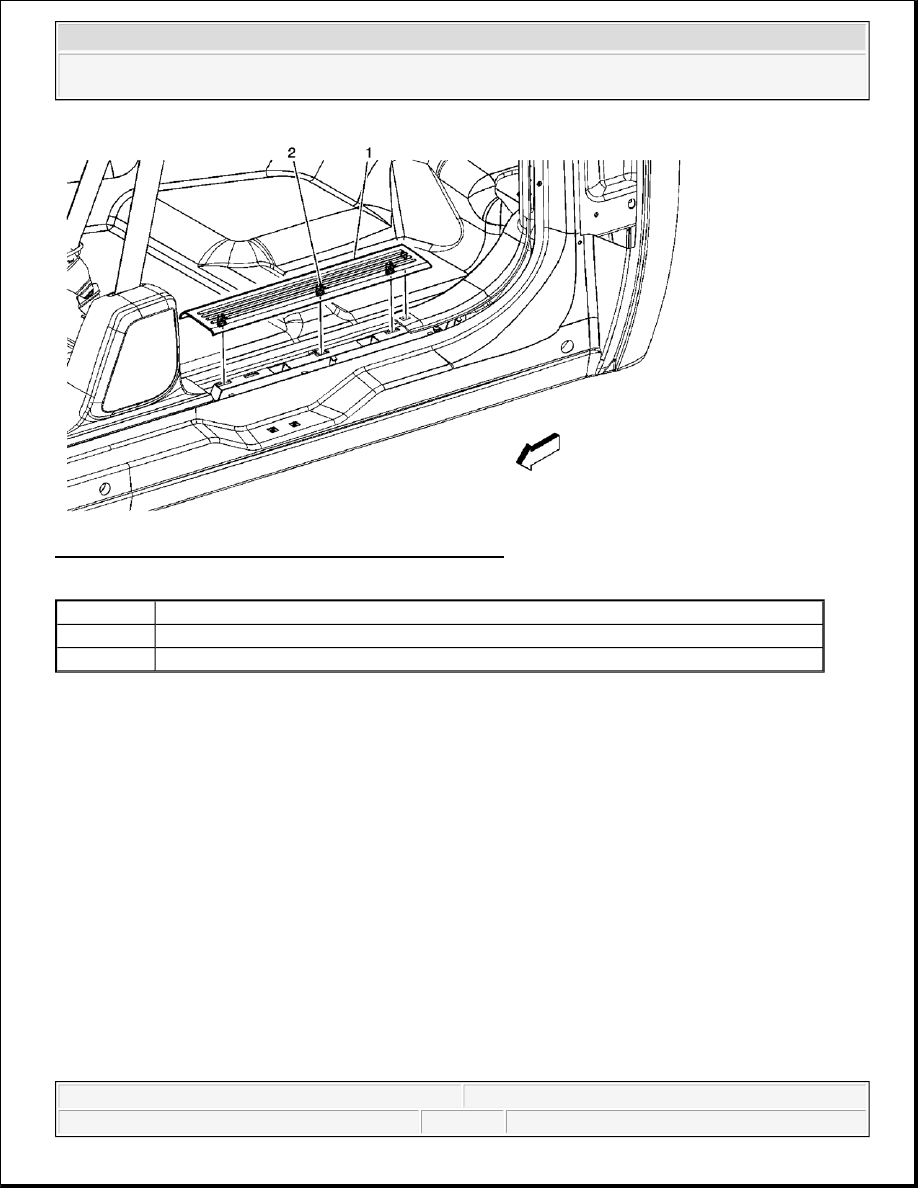

Fig. 11: View Of Front Side Door Sill Plate (Regular Cab/Crew Cab)
Courtesy of GENERAL MOTORS CORP.

FRONT SIDE DOOR SILL PLATE REPLACEMENT (EXTENDED CAB)

1

Tip:

1. Use a flat-bladed tool to separate the bond between the sealer and the door.

2. Use waterproof tape or equivalent, if the water deflector is damaged.

3. It will be necessary to replace trim panel retaining clips, if broken.

4. Before replacing the water deflector, clean the door adhesive area using a 50/50 mix

of isopropyl alcohol or equivalent.

Callout

Component Name

1

Front Side Door Sill Trim Plate Assembly

2

Front Side Door Trim Plate Retainer (Qty: 6)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

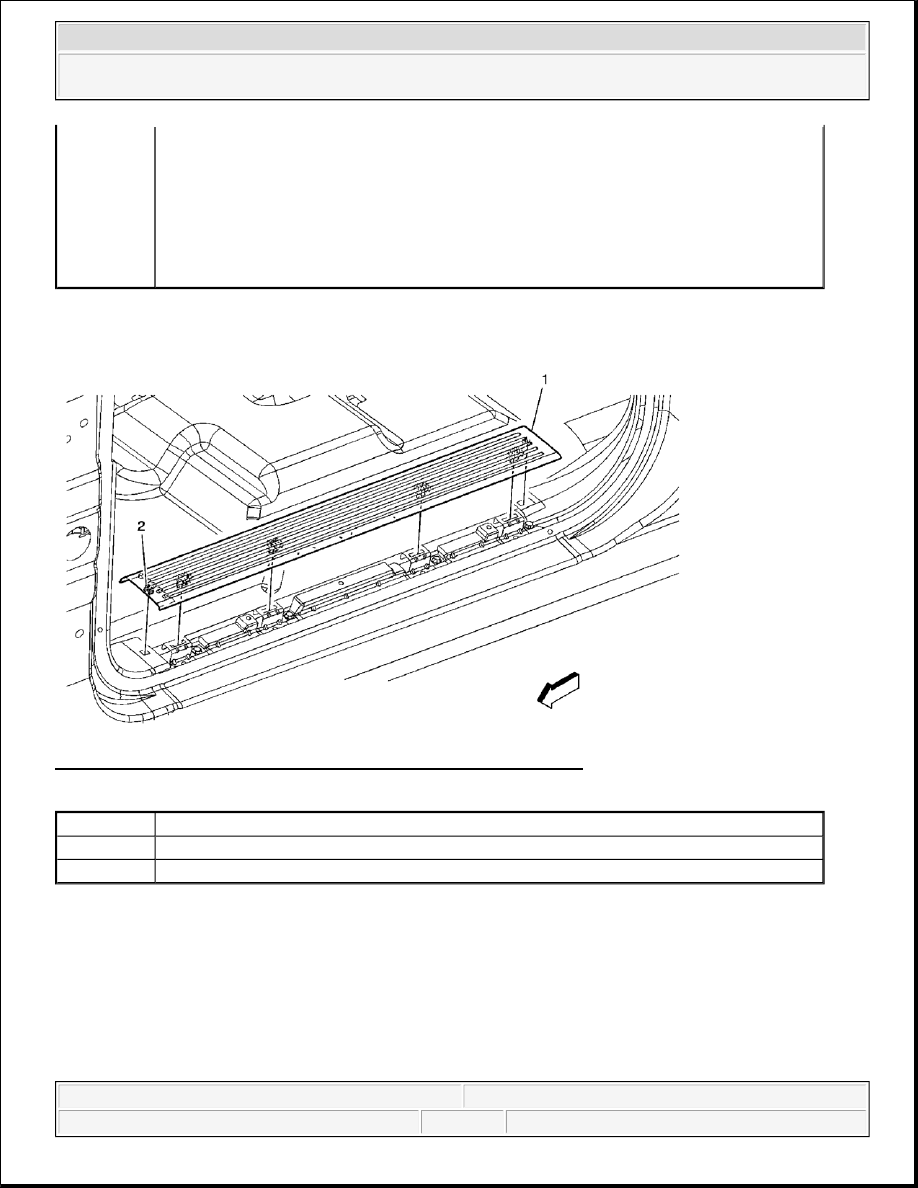

Fig. 12: View Of Front Side Door Sill Plate (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

REAR SIDE DOOR SILL PLATE REPLACEMENT (EXTENDED CAB)

Callout

Component Name

1

Front Side Door Sill Trim Plate Assembly

2

Front Side Door Trim Plate Retainer (Qty: 5)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

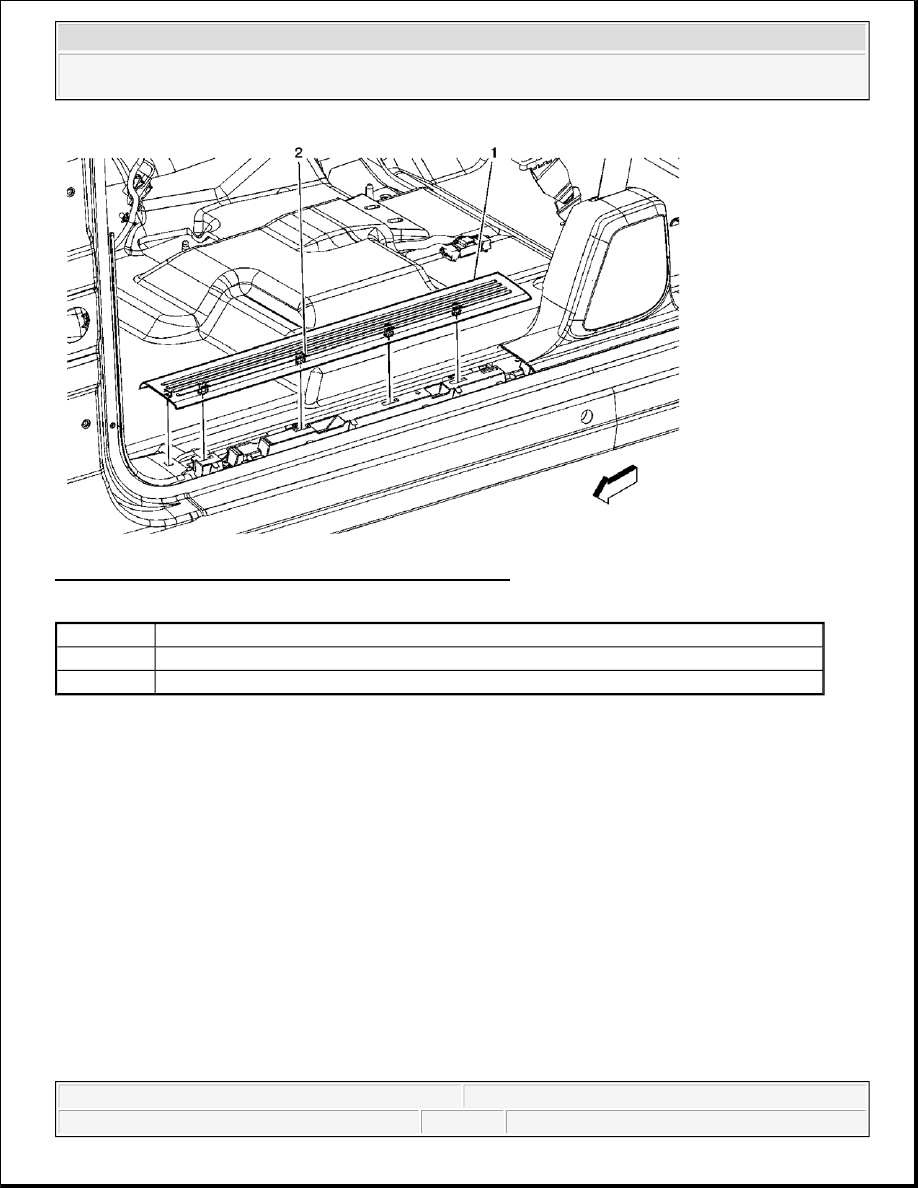

Fig. 13: View Of Rear Side Door Sill Plate (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

REAR SIDE DOOR SILL PLATE REPLACEMENT (CREW CAB)

Callout

Component Name

1

Rear Side Door Sill Trim Plate Assembly

2

Rear Side Door Trim Plate Retainer (Qty: 4)
