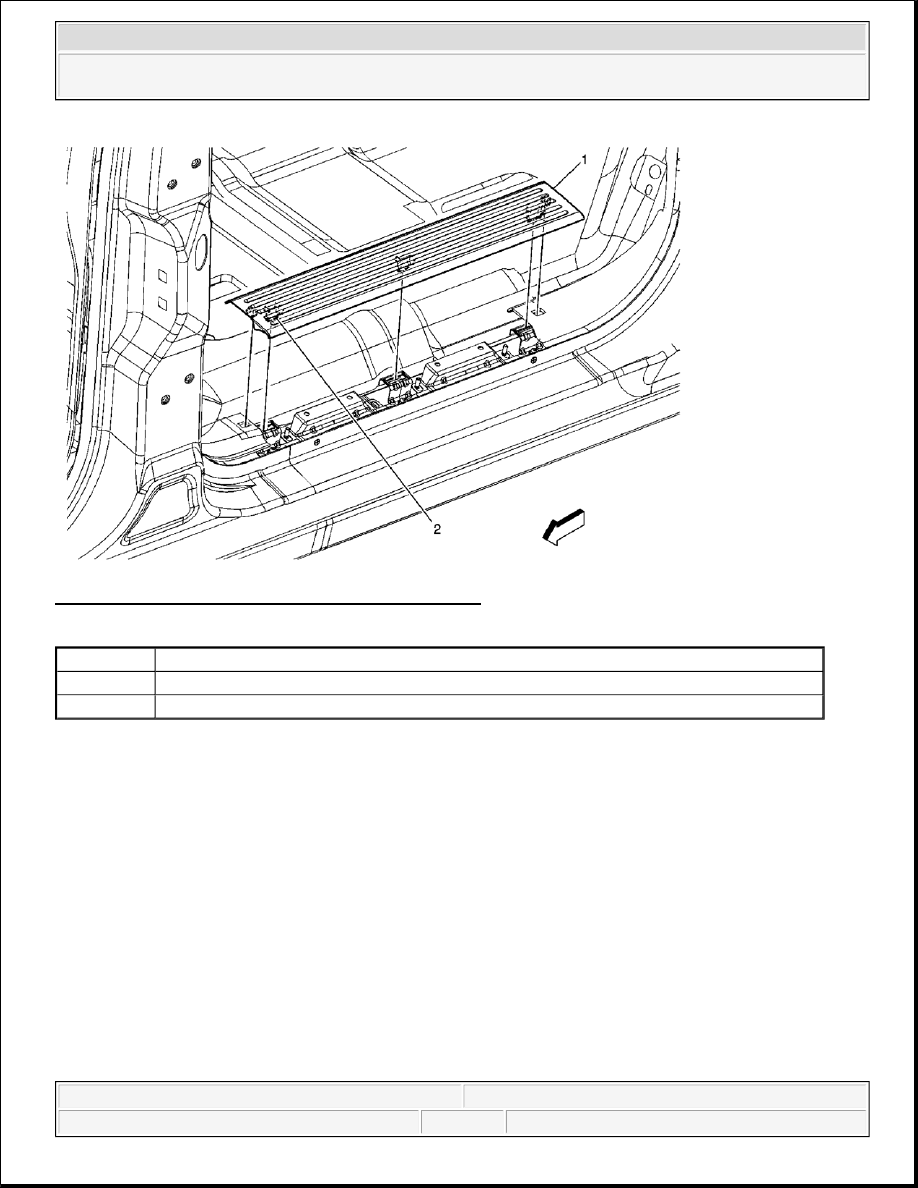

Fig. 14: Vierw Of Rear Side Door Sill Plate (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

FRONT ASSIST HANDLE REPLACEMENT

Callout

Component Name

1

Rear Side Door Sill Trim Plate Assembly

2

Rear Side Door Trim Plate Retainer (Qty: 5)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

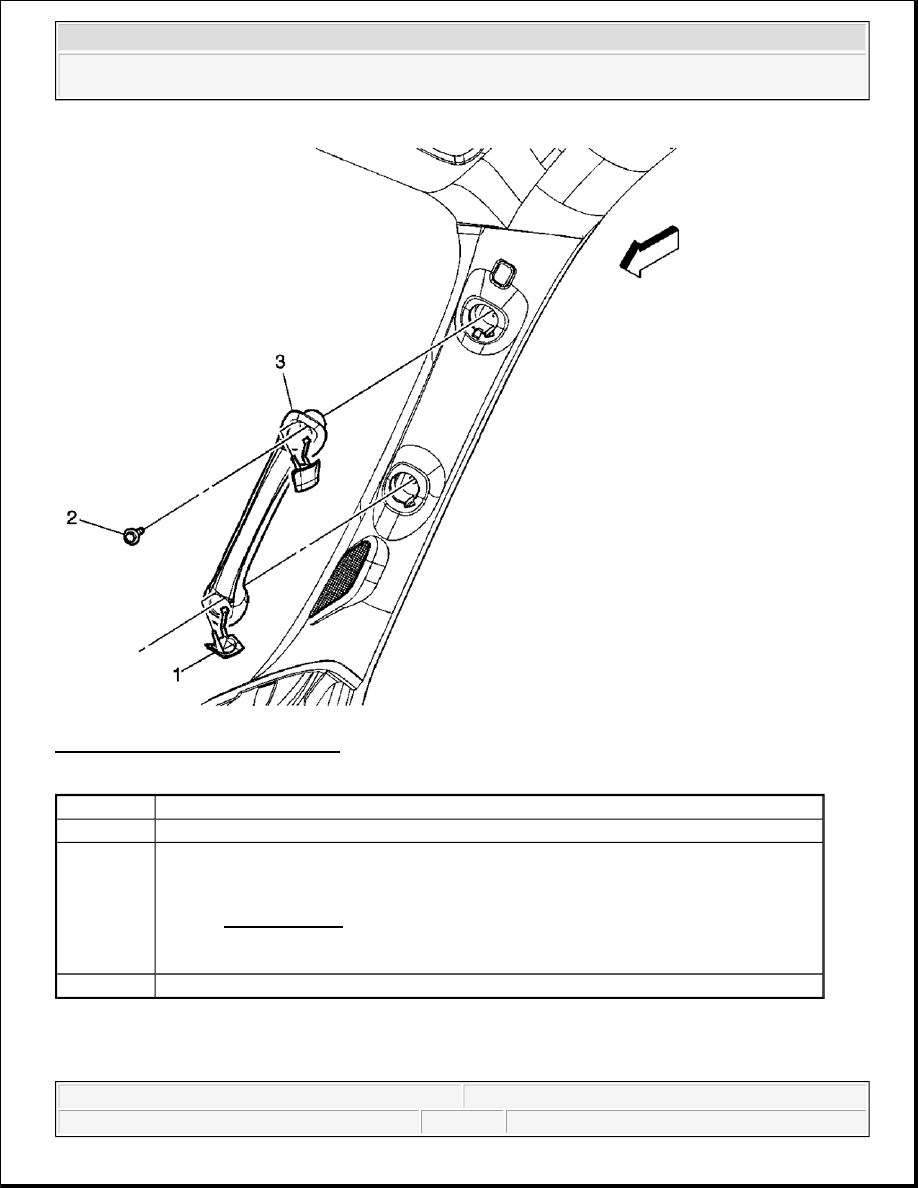

Fig. 15: View Of Front Assist Handle
Courtesy of GENERAL MOTORS CORP.

CENTER PILLAR ASSIST HANDLE REPLACEMENT

Callout

Component Name

1

Windshield Pillar Assist Handle Cover (Qty: 2)

2

Windshield Pillar Assist Handle Cover Screw (Qty: 2)

Tighten: 6 N.m (53 lb in)

NOTE:

Refer to Fastener Notice .

3

Windshield Pillar Assist Handle Cover Assembly



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

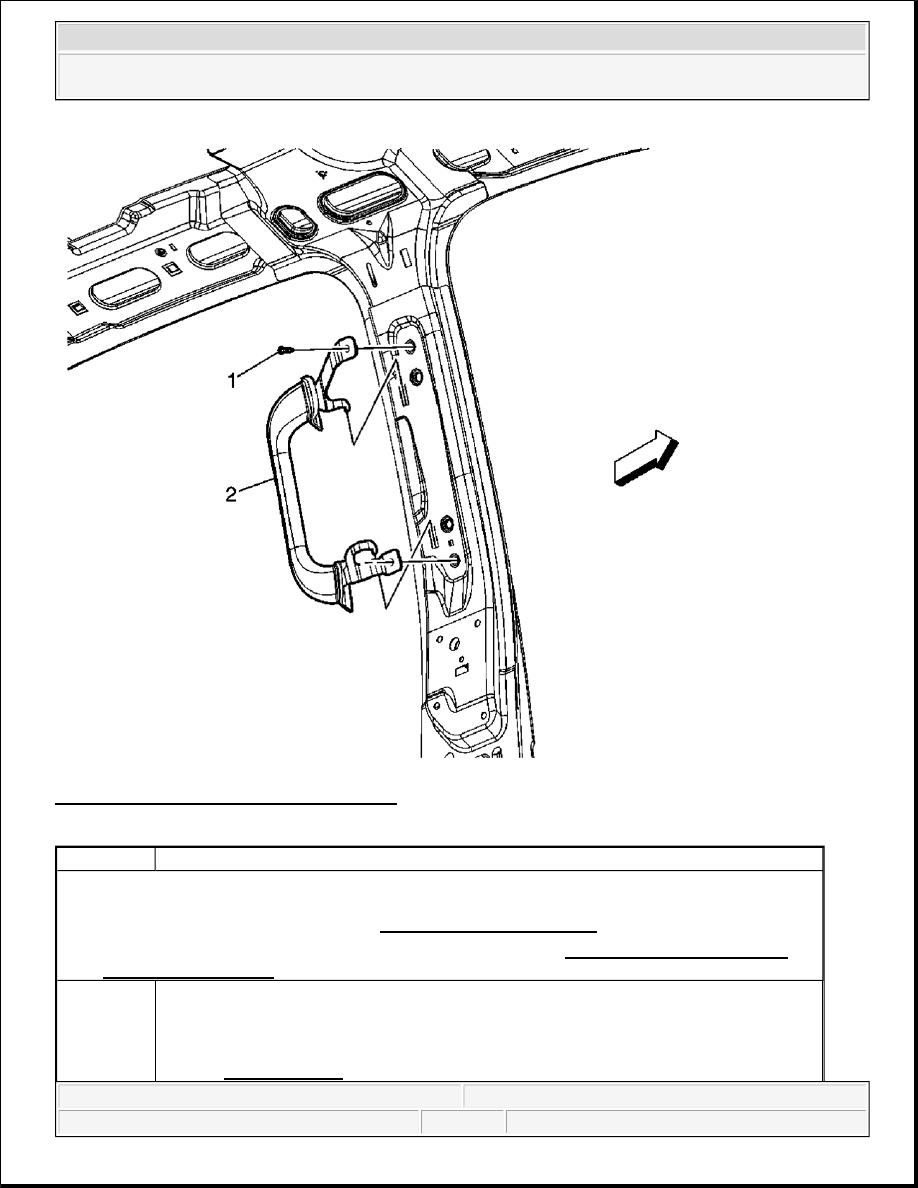

Fig. 16: View Of Center Pillar Assist Handle
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

1. Disable roof rail SIR system. Refer to SIR Disabling and Enabling .

2. Remove center pillar upper garnish molding assembly. Refer to Center Pillar Upper Garnish

Molding Replacement.

1

Assist Handle Screw (Qty: 2)

NOTE:

Refer to Fastener Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 23

© 2005 Mitchell Repair Information Company, LLC.

ROOF RAIL REAR ASSIST HANDLE REPLACEMENT

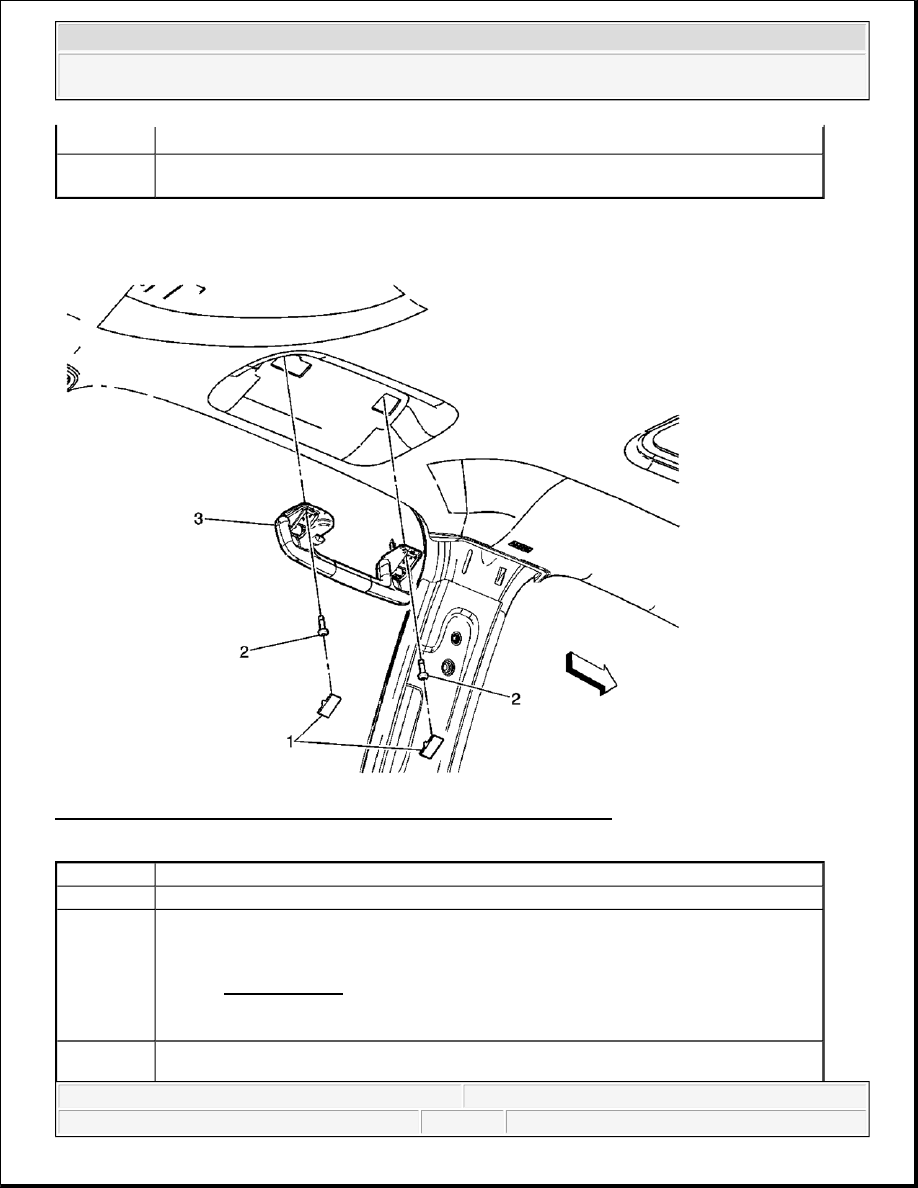

Fig. 17: View Of Roof Rail Rear Assist Handle Assembly & Components
Courtesy of GENERAL MOTORS CORP.

Tighten: 1.2 N.m (10 lb in)

2

Assist Handle Assembly
Tip: Push up to disengage the intergral hooks.

Callout

Component Name

1

Roof Rail Rear Assist Handle Cover (Qty: 2)

2

Roof Rail Rear Assist Handle Screw (Qty: 2)

Tighten: 6 N.m (53 lb in)

NOTE:

Refer to Fastener Notice .

3

Roof Rail Rear Assist Handle Assembly
Tip: Pull assist handle downward to access covers and fasteners.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.
