Chevrolet Silverado / GMC Sierra. Manual - part 2458

REAR SIDE ACCESS DOOR TRIM PANEL REPLACEMENT

Callout

Component Name

Preliminary Procedure:
Remove rear door window control switch. Refer to Rear Side Door Window Switch Replacement
(Crew Cab) or Rear Side Door Window Switch Replacement (Extended Cab) .

1

Rear Side Door Locking Rod Knob Assembly

Procedure

1. Lower the window.

2. Ensure the locking rod is in the unlocked position.

3. Use a flat-bladed tool to disengage detent tab, then remove knob by pulling upward.

4. When re-installing, push the knob down, until the detent tab touches locking rod

opening cover.

5. Push the detent tab in to lock knob to locking rod.

2

Rear Side Door Trim Panel Cover

3

Rear Side Door Trim Panel Cover Retainer (Qty: 4)

4

Rear Side Door Inside Handle Bezel Cover

5

Rear Side Door Trim Panel Bolt (Qty: 3)

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

6

Rear Side Door Trim Panel Assembly

7

Rear Side Door Cable Retainer
Tip: Pull upward to disengage.

8

Rear Side Door Trim Panel Retainer (Qty: 10)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 13

© 2005 Mitchell Repair Information Company, LLC.

Fig. 8: View Of Rear Side Access Door Trim Panel
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the window control switch, if equipped. Refer to Rear Side Door Window Switch
Replacement (Crew Cab) or Rear Side Door Window Switch Replacement (Extended Cab) .

1

Rear Access Door Upper Trim Panel Assembly
Tip: Start removing or installing at the bottom of the panel.

2

Rear Access Door Upper Rear Trim Panel Assembly
Tip: Start removing or installing at the bottom of the panel.

3

Rear Access Door Upper Trim Panel Clip (Qty: 6)

4

Rear Access Door Release Handle Cover

5

Rear Access Door Armrest Opening Cover

6

Rear Access Door Trim Panel Bolt (Qty: 3)

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

Rear Access Door Trim Panel Assembly
Tip:



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

FRONT SIDE DOOR WATER DEFLECTOR REPLACEMENT

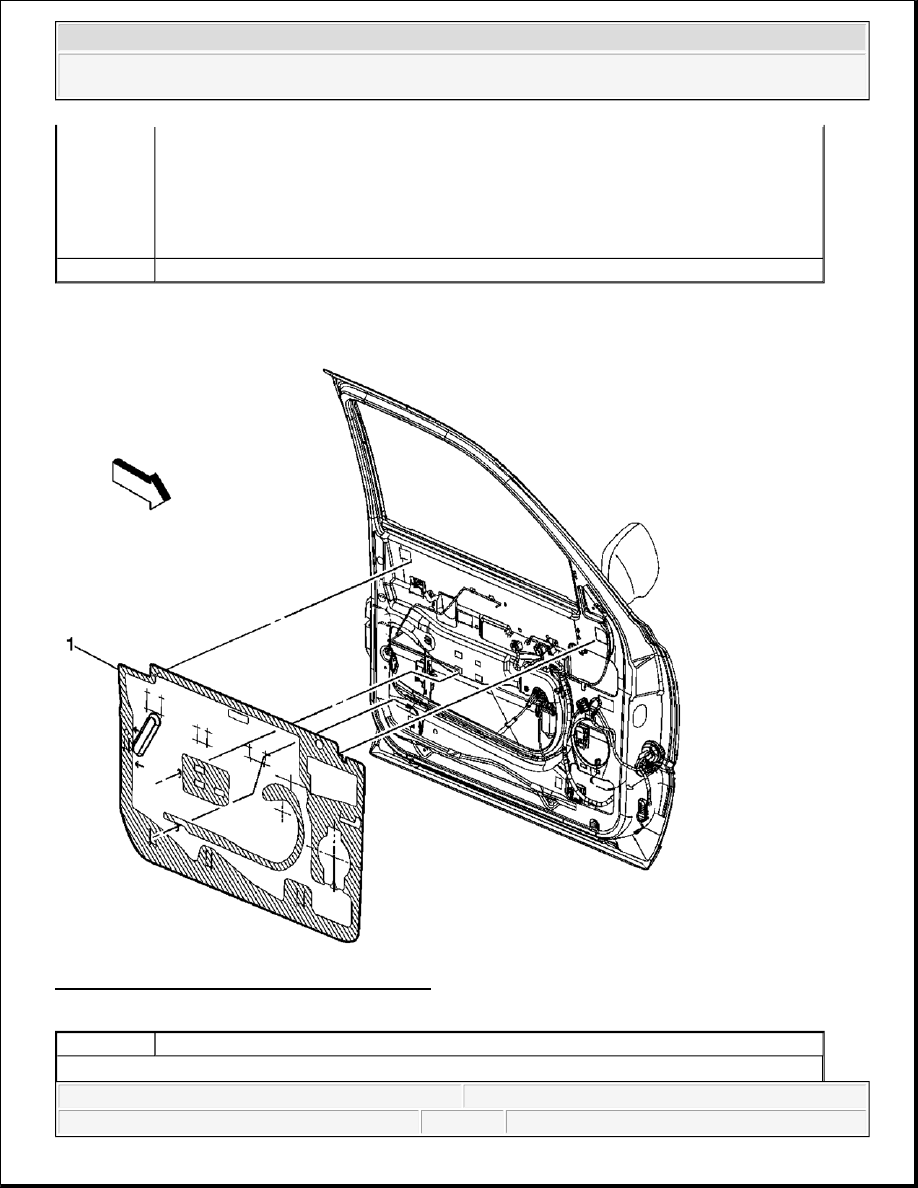

Fig. 9: View Of Front Side Door Water Deflector
Courtesy of GENERAL MOTORS CORP.

7

1. Disengage door lock cable.

2. There are two hooks located on the lower portion of the door trim panel that are being

used for manufacturing installation ONLY.

3. If these hook are damaged during either removal or installation of the door trim

panel, replacement of the panel is not required.

8

Rear Access Door Trim Panel Retainer (Qty: 7)

Callout

Component Name

Preliminary Procedure:



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

REAR SIDE DOOR WATER DEFLECTOR REPLACEMENT

Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement (YE9) or Front Side
Door Trim Panel Replacement (SLT).

1

Front Side Door Water Deflector
Tip:

1. Use a flat-bladed tool to separate the bond between the sealer and the door.

2. Use waterproof tape, or 3M 777 or equivalent, if the water deflector is damaged.

3. It will be necessary to replace trim panel retaining clips, if broken.

4. Before replacing the water deflector clean the door adhesive area, using a 50/50 mix

of isopropyl alcohol or equivalent.
