UPPER EXTENSION TRIM PANEL REPLACEMENT

Callout

Component Name

1

Front Side Door Pull Handle Cover

2

Front Side Door Pull Handle Bolt (Qty: 2)

Tighten: 6 N.m (54 lb in)

NOTE:

Refer to Fastener Notice .

3

Front Side Door Pull Handle Assembly



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

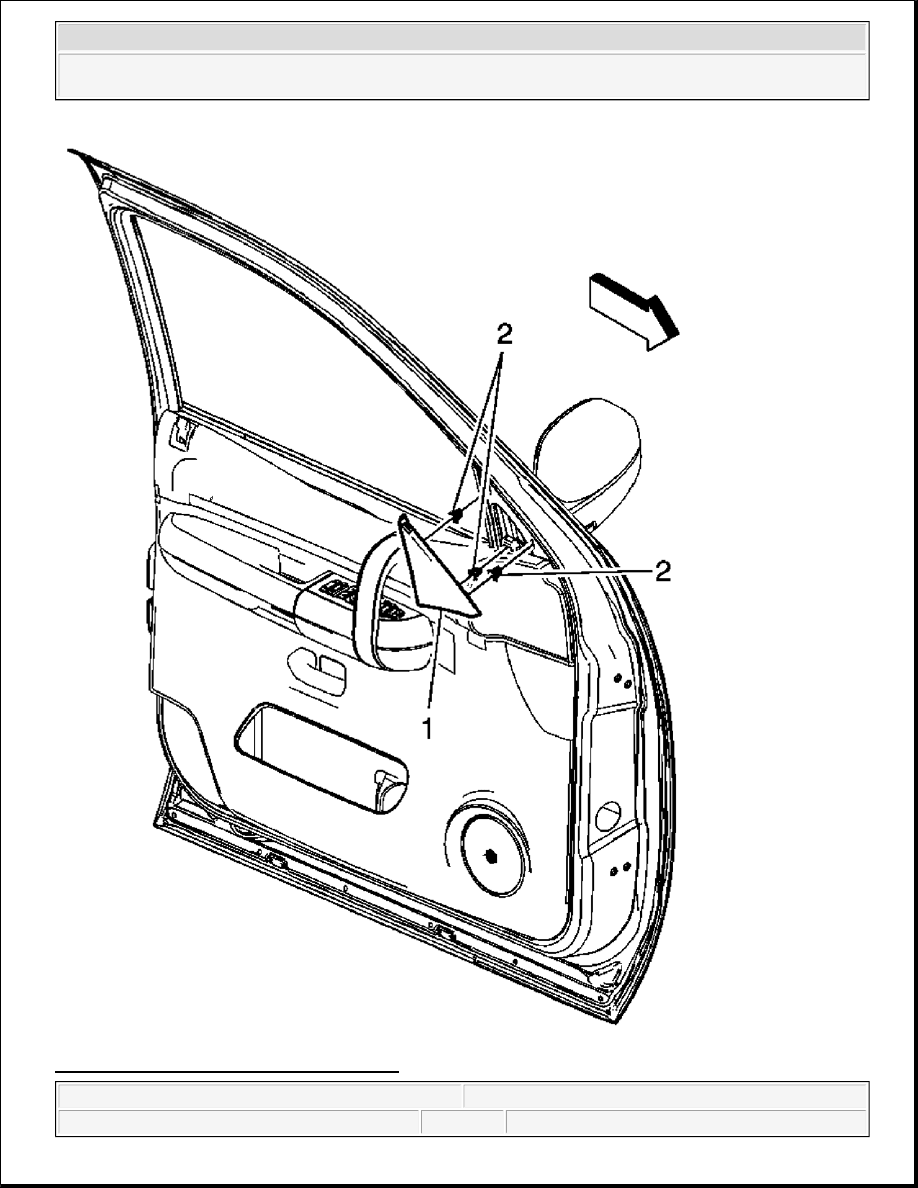

Fig. 3: View Of Upper Extension Trim Panel



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 6

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of GENERAL MOTORS CORP.

FRONT SIDE DOOR TRIM PANEL REPLACEMENT (YE9)

Fig. 4: View Of Front Side Door Trim Panel (YE9)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Front Side Door Upper Trim Panel Assembly

2

Front Side Door Upper Trim Panel Clip (Qty: 3)

Callout

Component Name

Preliminary Procedure

1. Remove upper extension trim panel. Refer to Upper Extension Trim Panel Replacement.

2. Remove door pull handle. Refer to Front Side Door Pull Handle Replacement.

3. Remove door lock and window control switch (if equipped). Refer to Door Lock and Side

Window Switch Replacement - Driver Side and Door Lock and Side Window Switch
Replacement - Passenger Side .

4. Remove the door window regulator handle (if equipped). Refer to Door Window Regulator

Handle Replacement .

Front Side Door Locking Rod Knob Assembly



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 7

© 2005 Mitchell Repair Information Company, LLC.

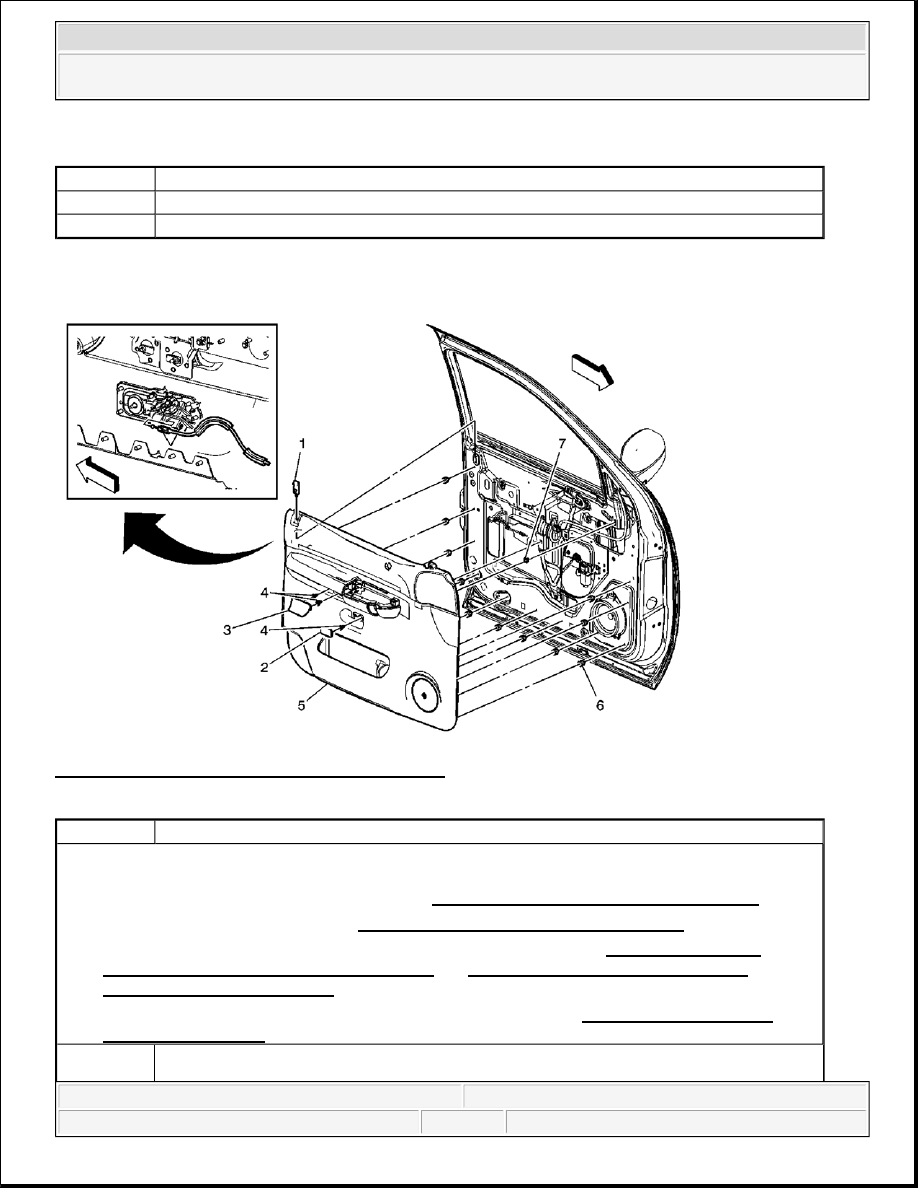

FRONT SIDE DOOR TRIM PANEL REPLACEMENT (SLT)

1

Tip:

1. Lower window.

2. Ensure locking rod is in the unlocked position.

3. Use a flat-bladed tool to disengage detent tab and then remove knob by pulling

upward.

4. When re-installing, push knob down until detent tab touches locking rod opening

cover.

5. Push detent tab in to lock knob to locking rod.

2

Front Side Door Release Handle Cover

3

Front Side Door Armrest Opening Cover

4

Front Side Door Trim Panel Bolt (Qty: 3)

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

5

Front Side Door Trim Panel Assembly
Tip:

1. Disengage door lock cable.

2. There are two hooks located on the lower portion of the door trim panel that are being

used for manufacturing installation ONLY.

3. If these hook are damaged during either removal or installation of the door trim

panel, replacement of the panel is not required.

6

Front Side Door Trim Panel Retainer (Qty: 11)
