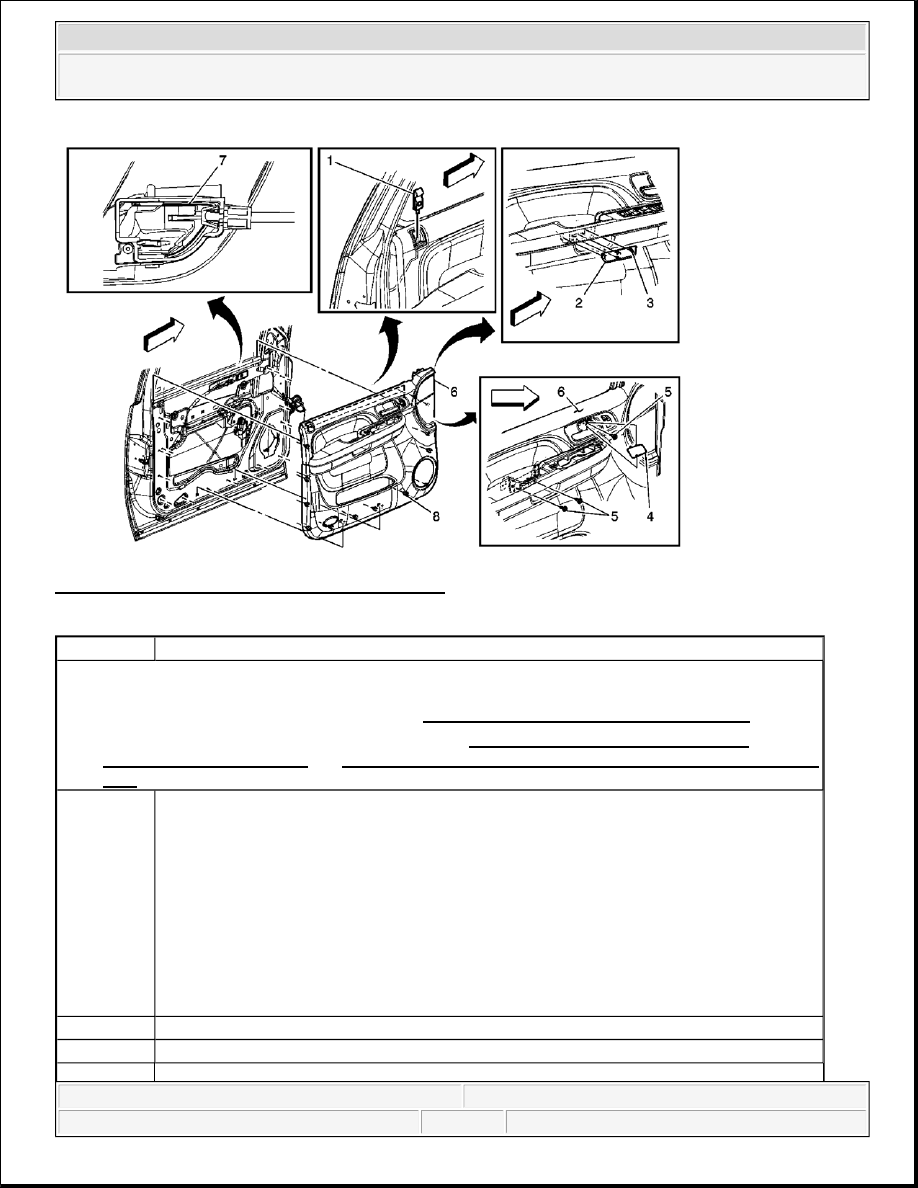

Fig. 5: View Of Front Side Door Trim Panel (SLT)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

1. Remove the door upper trim panel. Refer to Upper Extension Trim Panel Replacement.

2. Remove the door window control switch. Refer to Door Lock and Side Window Switch

Replacement - Driver Side and Door Lock and Side Window Switch Replacement - Passenger
Side .

1

Front Side Door Locking Rod Knob Assembly
Tip:

1. Lower the window.

2. Ensure the locking rod is in the unlocked position.

3. Use a flat-bladed tool to disengage the detent tab and then remove the knob by

pulling upward.

4. When re-installing, push the knob down until the detent tab touches the locking rod

opening cover.

5. Push the detent tab in to lock the knob to the locking rod.

2

Front Side Door Trim Panel Cover

3

Front Side Door Trim Panel Cover Retainer (Qty: 3)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 9

© 2005 Mitchell Repair Information Company, LLC.

REAR SIDE DOOR TRIM PANEL REPLACEMENT (YE9)

4

Front Side Door Inside Handle Bezel Cover

5

Front Side Door Trim Panel Bolt (Qty: 3)

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

6

Front Side Door Trim Panel Assembly
Tip:

1. Disconnect the electrical connectors.

2. There are 2 hooks located on the lower portion of the door trim panel that are being

used for manufacturing installation ONLY.

3. If these hooks are damaged during either removal or installation of the door trim

panel, replacement of the panel is not required.

4. When installing the trim panel start at the lock knob, pushing down and outward

moving toward the upper front.

7

Front Side Door Cable Retainer
Tip: Pull upward to disengage.

8

Front Side Door Trim Panel Retainer (Qty: 12)



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 10

© 2005 Mitchell Repair Information Company, LLC.

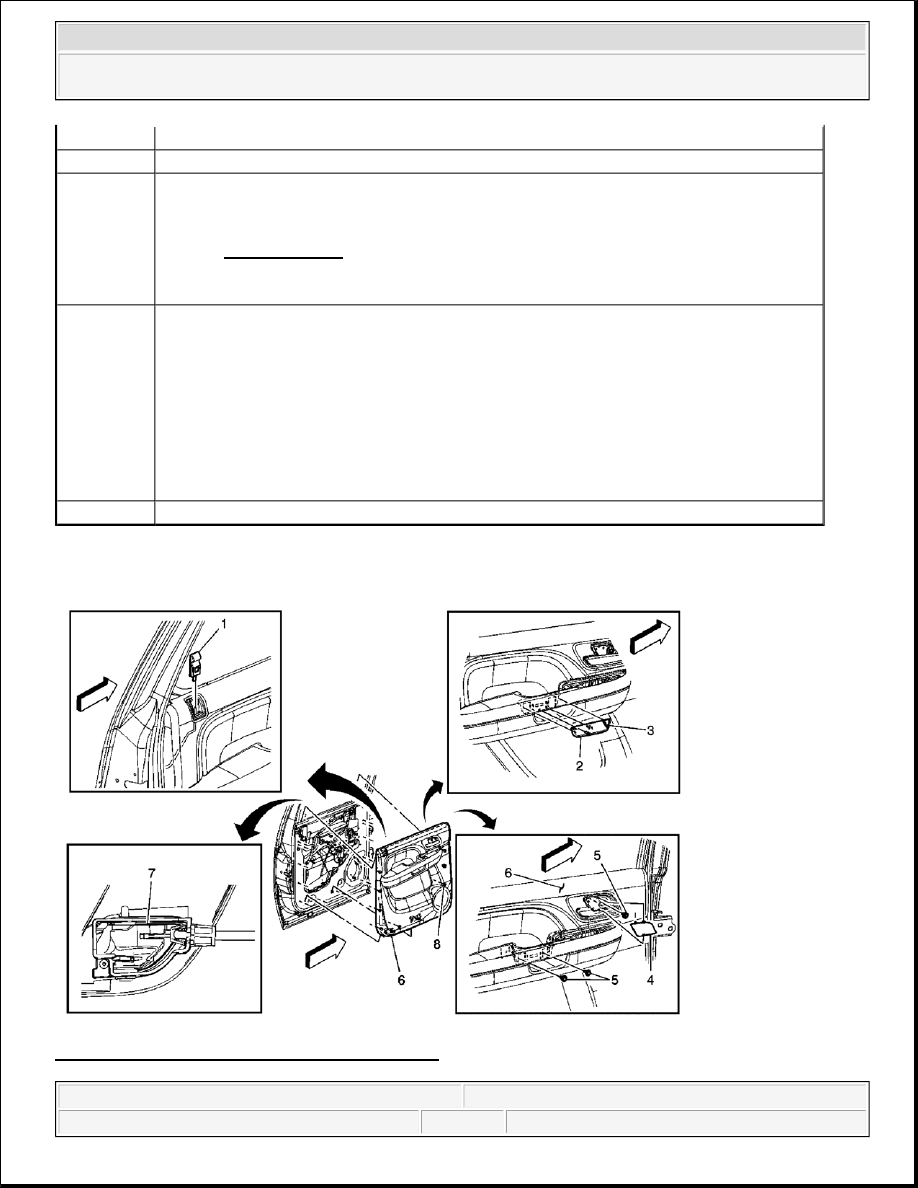

Fig. 6: View Of Rear Side Door Trim Panel (YE9)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

1. Remove the window control switch, if equipped. Refer to Rear Side Door Window Switch

Replacement (Crew Cab) or Rear Side Door Window Switch Replacement (Extended Cab) .

2. Remove the door window regulator handle, if equipped. Refer to Door Window Regulator

Handle Replacement .

1

Rear Side Door Locking Rod Knob Assembly

Procedure

1. Lower window.

2. Ensure locking rod is in the unlocked position.

3. Use a flat-bladed tool to disengage detent tab and then remove knob by pulling

upward.

4. When re-installing, push knob down until detent tab touches locking rod opening

cover.

5. Push detent tab in to lock knob to locking rod.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,

Sierra & Silverado



Microsoft



Friday, August 21, 2009 2:27:42 PM

Page 11

© 2005 Mitchell Repair Information Company, LLC.

REAR SIDE DOOR TRIM PANEL REPLACEMENT (SLT)

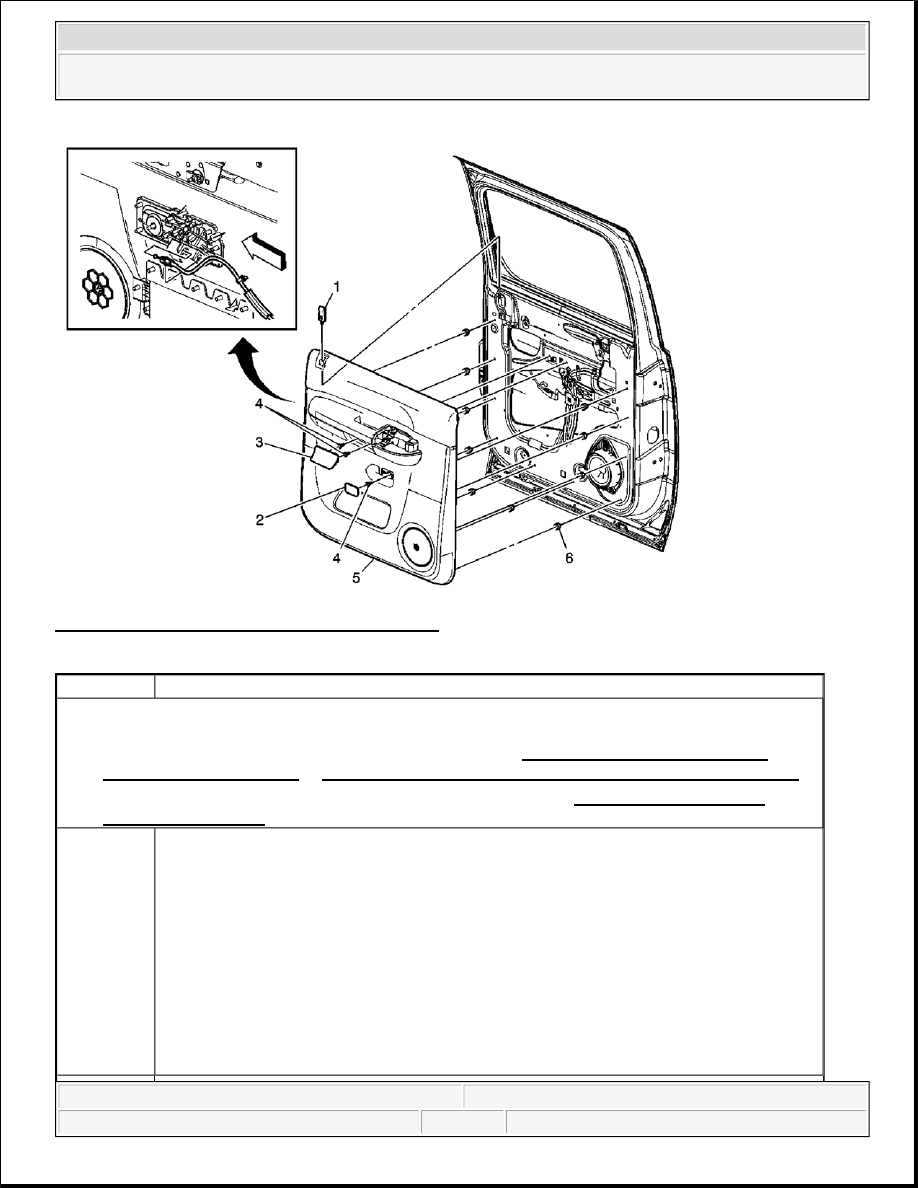

Fig. 7: View Of Rear Side Door Trim Panel (SLT)
Courtesy of GENERAL MOTORS CORP.

2

Rear Side Door Release Handle Cover

3

Rear Side Door Armrest Opening Cover

4

Rear Side Door Trim Panel Bolt (Qty: 3)

Tighten: 2 N.m (18 lb in)

NOTE:

Refer to Fastener Notice .

5

Rear Side Door Trim Panel Assembly

Procedure

1. Disengage door lock cable.

2. There are two hooks located on the lower portion of the door trim panel that are being

used for manufacturing installation ONLY.

3. If these hook are damaged during either removal or installation of the door trim

panel, replacement of the panel is not required.

6

Rear Side Door Trim Panel Retainer (Qty: 10)
