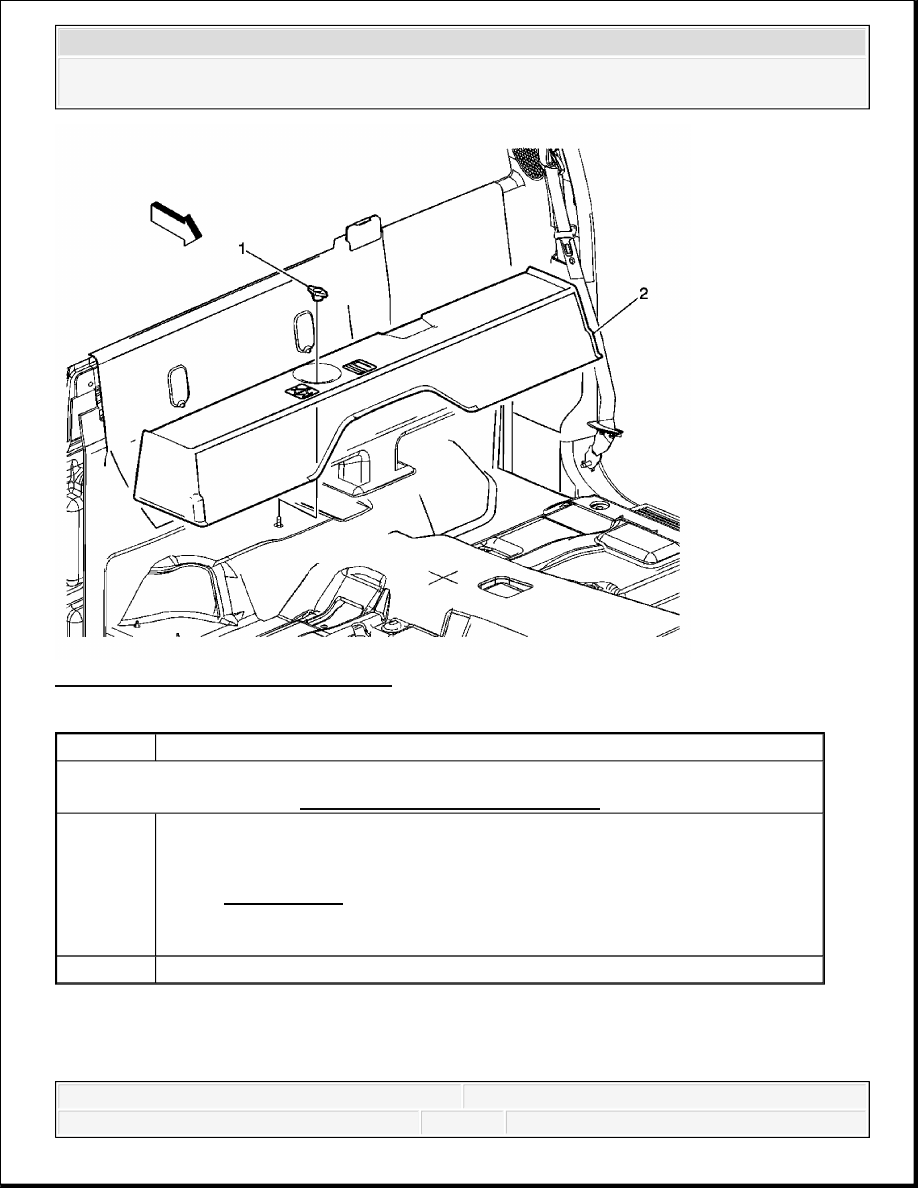

Fig. 28: View Of Jack Stowage Cover
Courtesy of GENERAL MOTORS CORP.
REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (REGULAR CAB)
Callout
Component Name
Preliminary Procedure:
Remove front seats. Refer to Front Seat Replacement - Bucket .
1
Jack Stowage Cover Nut
Tighten: 4 N.m (35 lb in)
NOTE:
Refer to Fastener Notice .
2
Jack Stowage Cover Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

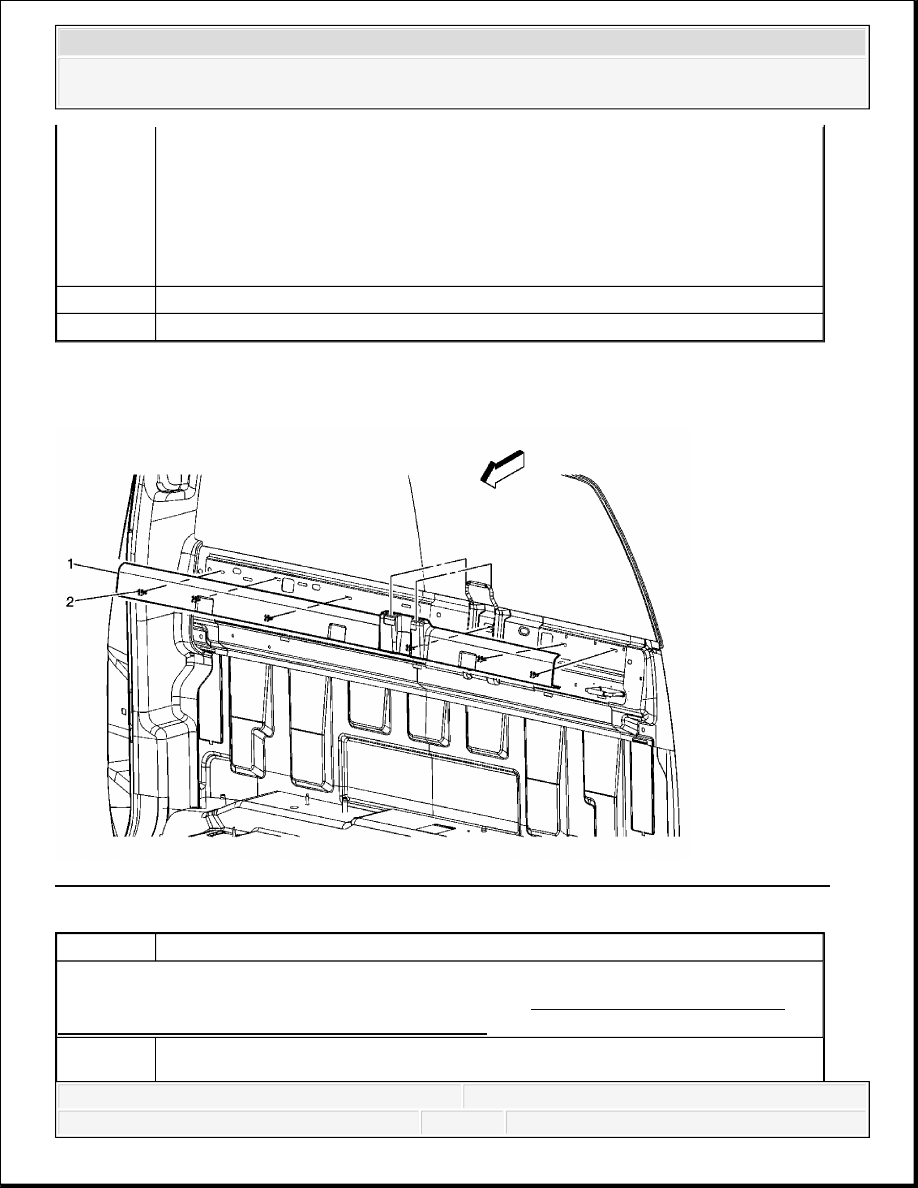

Fig. 29: View Of Rear Window Lower Garnish Molding (Regular Cab)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Rear Window Lower Garnish Molding Assembly
Tip:
1. Remove the front and rear seat belt guide covers.
2. Ensure webbing is routed through guide loop.
3. Route belt webbing through garnish molding.
4. Drop garnish molding over guide loop and then secure.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (EXT CAB/CREW CAB W/A48
W/A48)

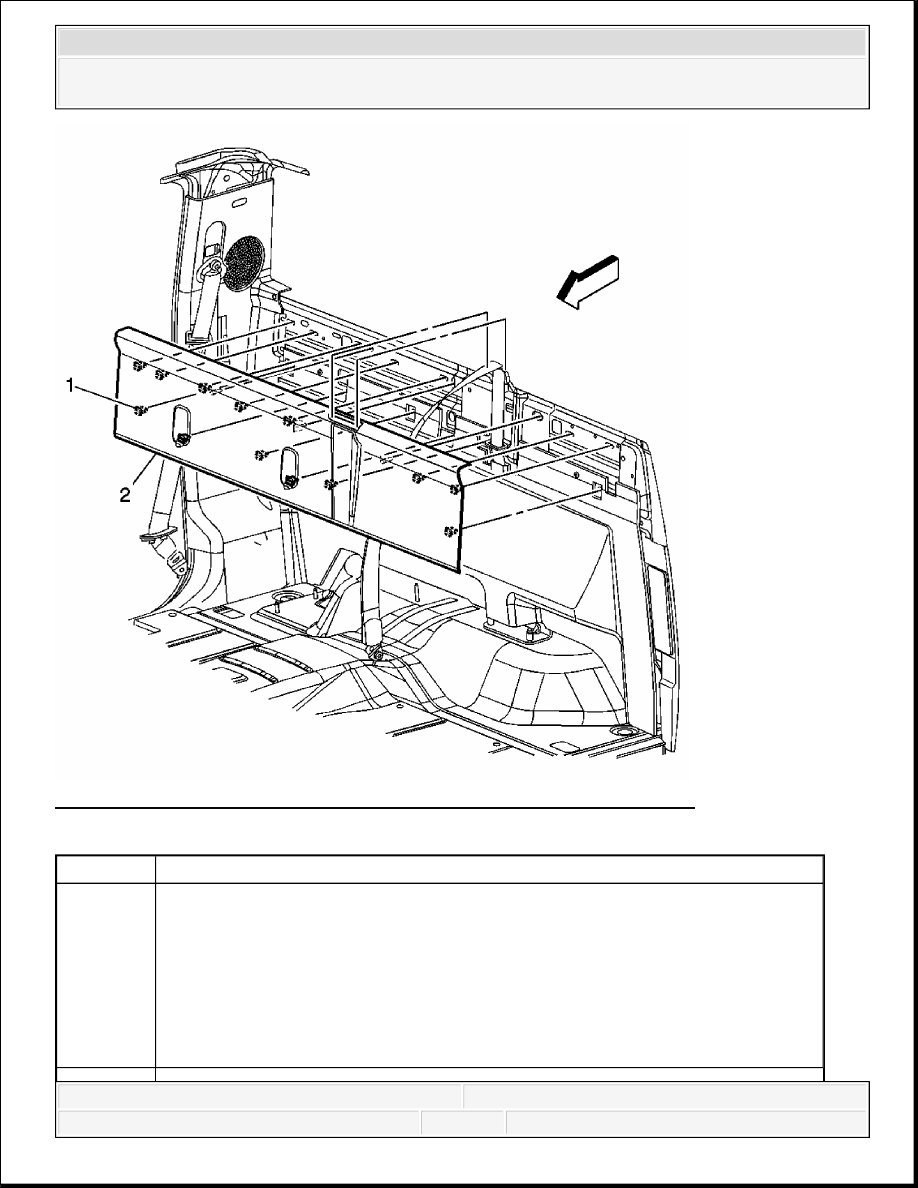

Fig. 30: View Of Rear Window Lower Garnish Molding (Ext Cab/Crew Cab w/A48)
Courtesy of GENERAL MOTORS CORP.
2
Rear Window Lower Garnish Molding Retainer Clip (Qty: 14)
Callout
Component Name
Preliminary Procedure:
Remove child seat restraint system belt bracket. Refer to Child Seat Restraint System
Belt Bracket Replacement (Ext Cab/Crew Cab) .
Rear Window Lower Garnish Molding Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
REAR WINDOW LOWER GARNISH MOLDING REPLACEMENT (EXT CAB/CREW CAB W/O
A48)

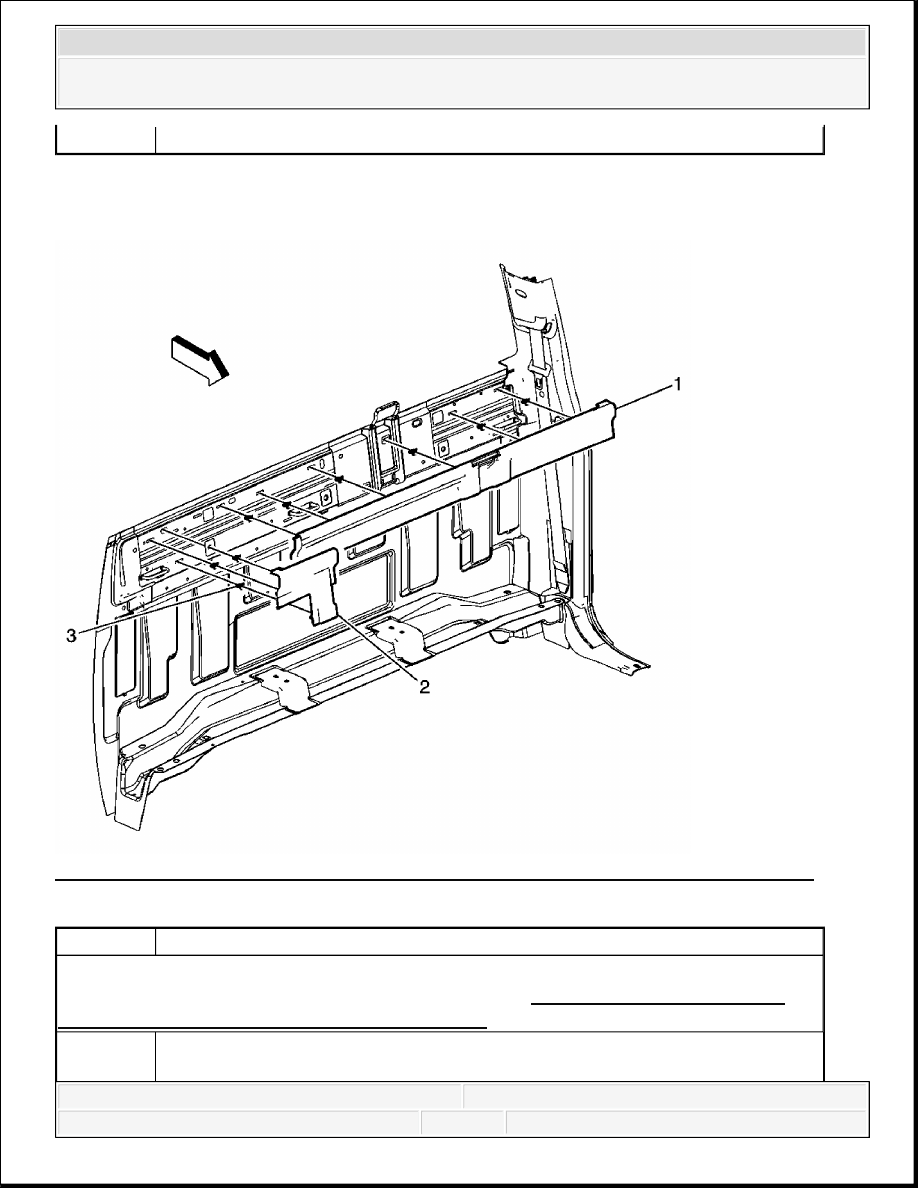

Fig. 31: View Of Rear Window Lower Garnish Molding (Ext Cab/Crew Cab w/o A48)
Courtesy of GENERAL MOTORS CORP.
1
Procedure
1. Remove the front and rear seat belt guide covers.
2. Ensure the webbing is routed through guide loop.
3. Route the belt webbing through the garnish molding.
4. Drop the garnish molding over the guide loop and then secure.
2
Rear Window Lower Garnish Right Molding Assembly
3
Rear Window Lower Garnish Molding Retainer Clip (Qty: 9)
Callout
Component Name
Preliminary Procedure:
Remove child seat restraint system belt bracket. Refer to Child Seat Restraint System
Belt Bracket Replacement (Ext Cab/Crew Cab) .
Rear Window Lower Garnish Molding Assembly
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
