Chevrolet Silverado / GMC Sierra. Manual - part 2452
BODY LOCK PILLAR TRIM REPLACEMENT (EXTENDED CAB)
Callout
Component Name
Preliminary Procedures
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove rear side door sill plate. Refer to Front Side Door Sill Plate Replacement
(Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended
Cab).
3. Remove rear window lower molding. Refer to Rear Window Lower Garnish
Molding Replacement (Regular Cab) or Rear Window Lower Garnish Molding
Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish
Molding Replacement (Ext Cab/Crew Cab w/o A48).
1
Seat Belt Assembly Anchor Bolt
Tighten: 70 N.m (52 lb ft)
NOTE:
Refer to Fastener Notice .
2
Front Seat Shoulder Belt Retractor Assembly
Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Extended
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Crew
Cab) .
3
Body Lock Pillar Garnish Molding Plug
4
Body Lock Pillar Garnish Molding Screw
Tighten: 2 N.m (18 lb in)
5
Front Seat Shoulder Belt Guide Trim Cover
6
Front Seat Shoulder Belt Adjuster Bolt
Tighten: 43 N.m (32 lb ft)
7
Body Lock Pillar Garnish Molding Retainer (Qty: 2)
8
Body Lock Pillar Garnish Molding Assembly
Tip: Route seat belt through garnish molding.
9
Body Lock Pillar Garnish Molding Clip
10
Body Lock Pillar Garnish Molding Retainer (Qty: 3)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

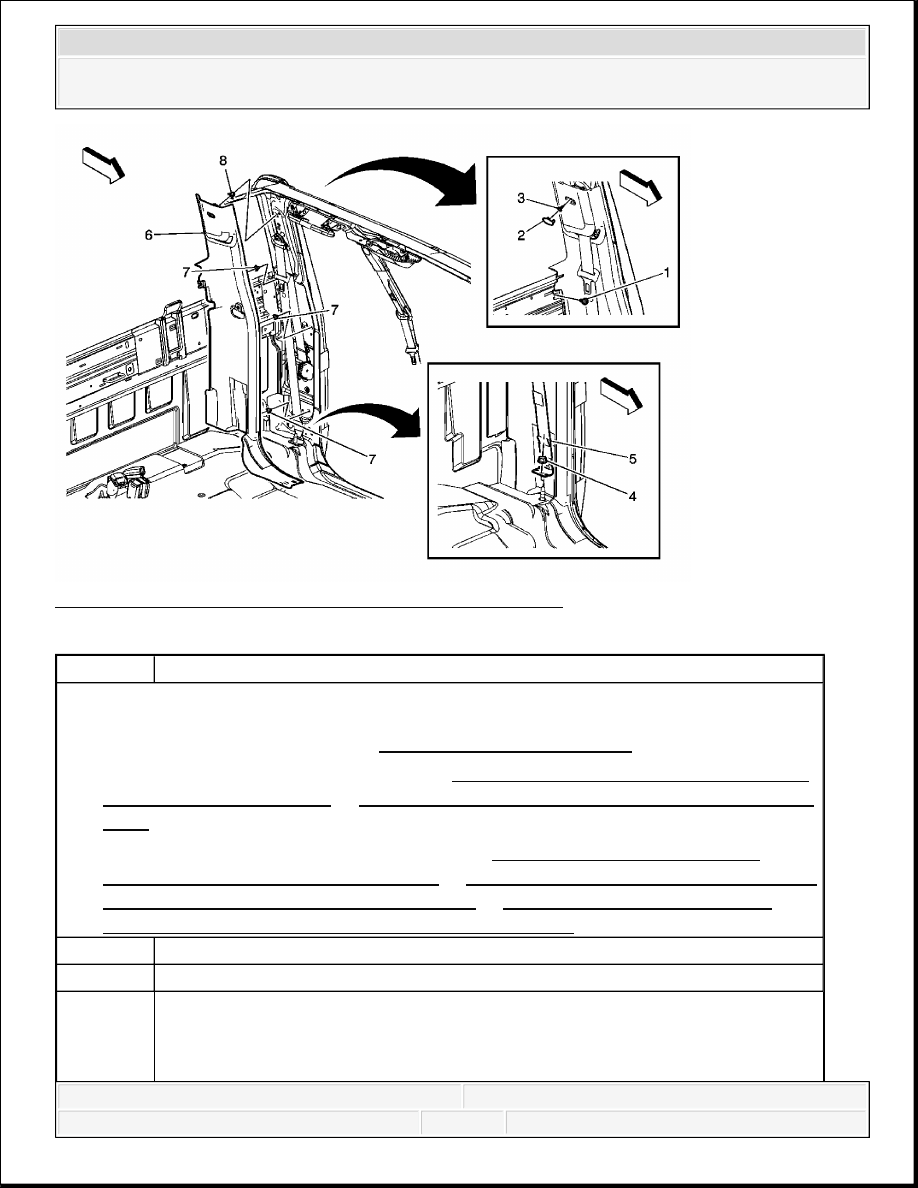

Fig. 26: View Of Body Lock Pillar Trim (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove rear side door sill plate. Refer to Front Side Door Sill Plate Replacement
(Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended
Cab).
3. Remove rear window lower molding. Refer to Rear Window Lower Garnish
Molding Replacement (Regular Cab) or Rear Window Lower Garnish Molding
Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish
Molding Replacement (Ext Cab/Crew Cab w/o A48).
1
Body Lock Pillar Garnish Molding Retainer
2
Body Lock Pillar Garnish Molding Plug
3
Body Lock Pillar Garnish Molding Screw
NOTE:
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
BODY HINGE PILLAR TRIM PANEL REPLACEMENT
Tighten: 2 N.m (18 lb in)
Refer to Fastener Notice .
4
Seat Belt Assembly Anchor Nut
Tighten: 70 N.m (52 lb ft)
5
Front Seat Shoulder Belt Retractor Assembly
Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Extended
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Crew
Cab) .
6
Body Lock Pillar Garnish Molding Assembly
Tip: Route seat belt through garnish molding.
7
Body Lock Pillar Garnish Molding Retainer (Qty: 3)
8
Body Lock Pillar Garnish Molding Clip
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

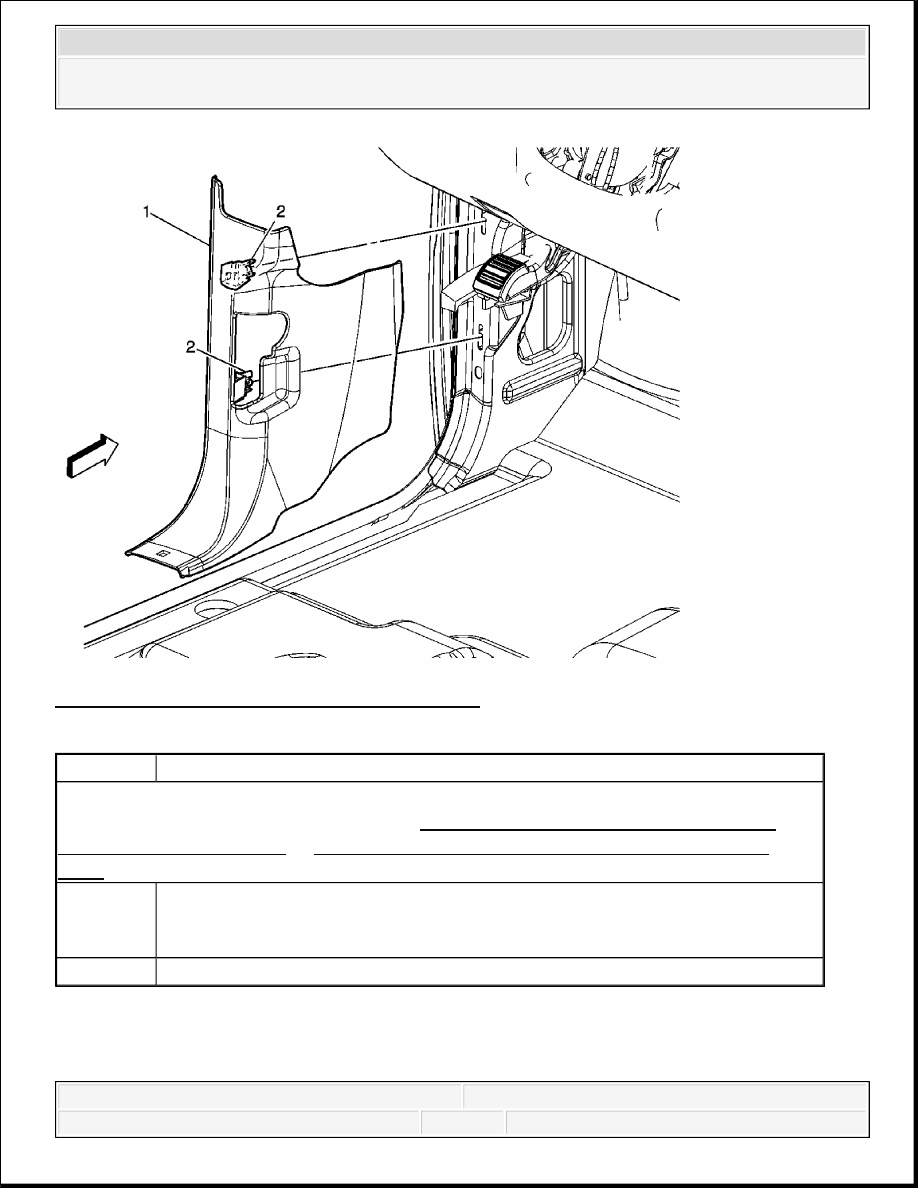

Fig. 27: View Of Body Hinge Pillar Trim Panel
Courtesy of GENERAL MOTORS CORP.
JACK STOWAGE COVER REPLACEMENT
Callout
Component Name
Preliminary Procedures:
Remove front door sill trim panel. Refer to Front Side Door Sill Plate Replacement
(Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended
Cab).
1
Front Hinge Pillar Trim Panel Assembly
Tip: The hood release handle must be in the open position for installation of the
LH hinge pillar panel.
2
Front Hinge Pillar Trim Panel Assembly Retainer (Qty: 2)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
