CENTER PILLAR LOWER GARNISH MOLDING REPLACEMENT
2. Remove center pillar lower garnish molding. Refer to Center Pillar Lower Garnish
Molding Replacement.
1
Center Pillar Upper Garnish Molding Cover
2
Center Pillar Upper Garnish Molding Screw
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
3
Center Pillar Upper Garnish Molding Assembly
Tip:
1. Remove seat belt D-ring from the adjuster assembly.
2. Pull garnish molding toward inside of the vehicle to disengage the
retainers.
3. Align 4-way locator to center pillar before engaging retainers.
Tighten: 35 N.m (25 lb ft)
4
Center Pillar Upper Garnish Molding Retainer (Qty: 4)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

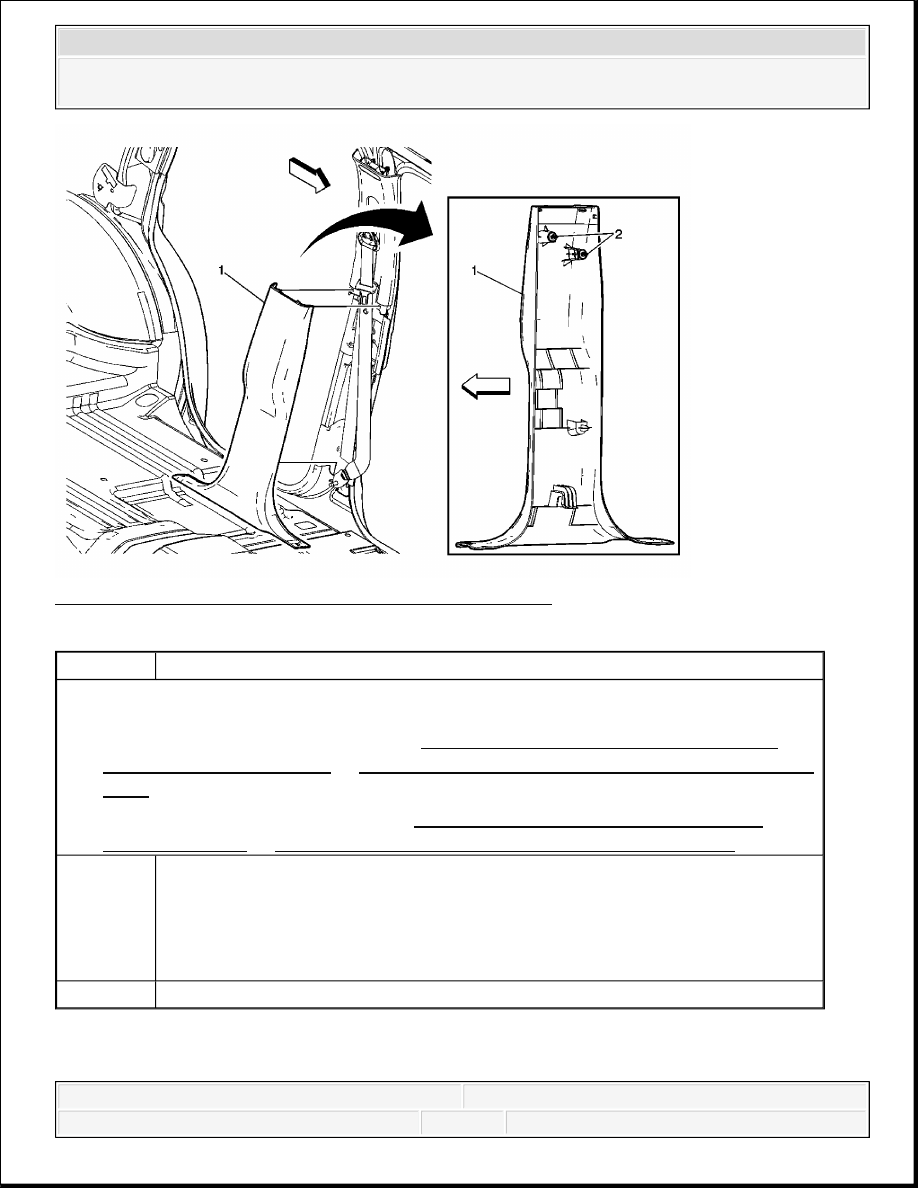

Fig. 23: View Of Center Pillar Lower Garnish Molding
Courtesy of GENERAL MOTORS CORP.
BODY LOCK PILLAR TRIM REPLACEMENT (CREW CAB)
Callout
Component Name
Preliminary Procedures
1. Remove front door sill plate. Refer to Front Side Door Sill Plate Replacement
(Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended
Cab).
2. Remove rear door sill plate. Refer to Rear Side Door Sill Plate Replacement
(Extended Cab) or Rear Side Door Sill Plate Replacement (Crew Cab).
1
Center Pillar Lower Garnish Molding Assembly
Tip:
Ensure seat belt webbing does not become trapped during installation.
Tab to be fully seated and installed prior to retainer.
2
Center Pillar Lower Garnish Molding Retainer (Qty: 2)
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado

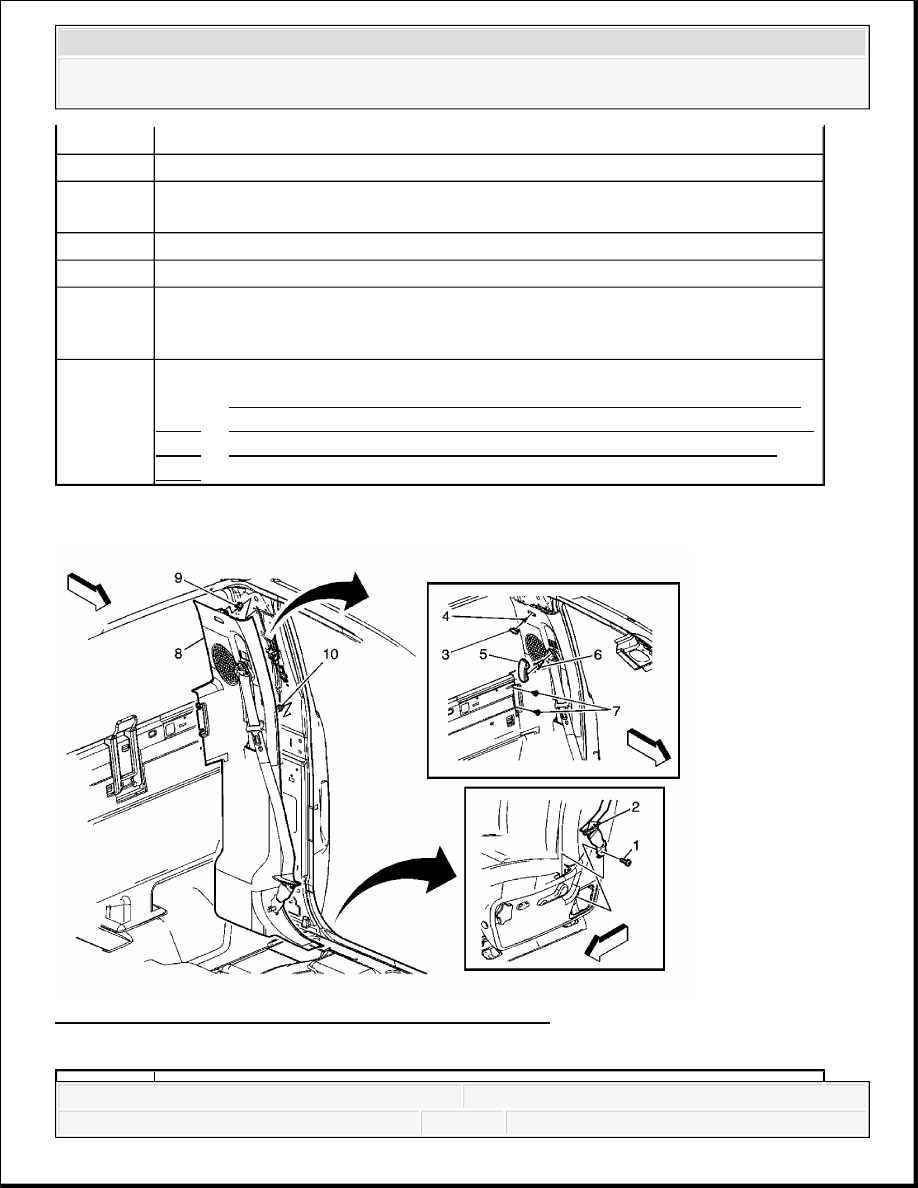

Fig. 24: View Of Body Lock Pillar Trim (Crew Cab)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedures
1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove rear side door sill plate. Refer to Front Side Door Sill Plate Replacement
(Regular Cab/Crew Cab) or Front Side Door Sill Plate Replacement (Extended
Cab).
3. Remove rear window lower molding. Refer to Rear Window Lower Garnish
Molding Replacement (Regular Cab) or Rear Window Lower Garnish Molding
Replacement (Ext Cab/Crew Cab w/A48) or Rear Window Lower Garnish
Molding Replacement (Ext Cab/Crew Cab w/o A48).
1
Body Lock Pillar Garnish Molding Plug
2
Body Lock Pillar Garnish Molding Screw
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
BODY LOCK PILLAR TRIM REPLACEMENT (REGULAR CAB)

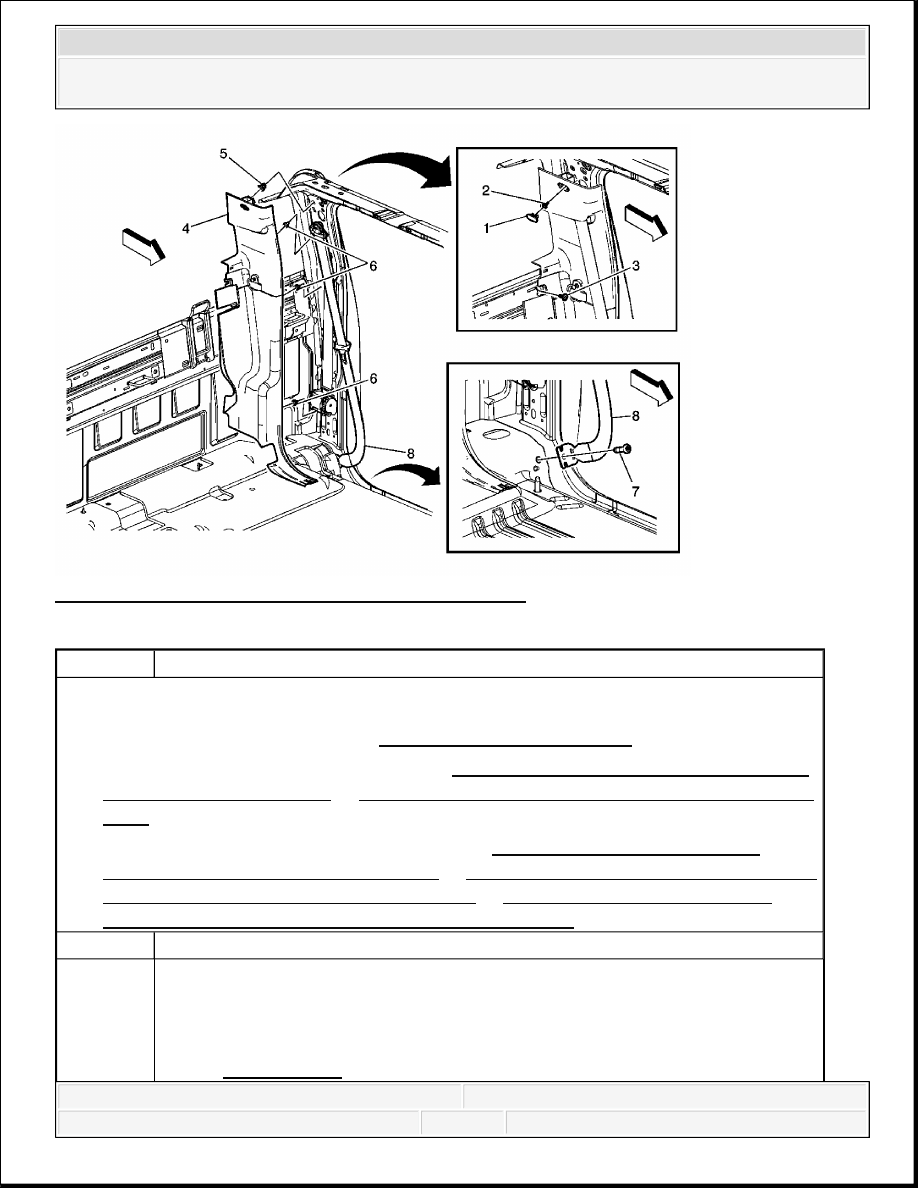

Fig. 25: View Of Body Lock Pillar Trim (Regular Cab)
Courtesy of GENERAL MOTORS CORP.
Tighten: 2 N.m (18 lb in)
3
Body Lock Pillar Garnish Molding Retainer
4
Body Lock Pillar Garnish Molding Assembly
Tip: Route seat belt through garnish molding.
5
Body Lock Pillar Garnish Molding Clip
6
Body Lock Pillar Garnish Molding Retainer (Qty: 3)
7
Seat Belt Assembly Anchor Nut
Tighten: 70 N.m (52 lb ft)
8
Front Seat Shoulder Belt Retractor Assembly
Refer to Seat Belt Retractor Pretensioner Replacement - Front (Regular
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Extended
Cab) or Seat Belt Retractor Pretensioner Replacement - Front (Crew
Cab) .
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Interior Trim and Paneling - Cab & Chassis Sierra, Cab & Chassis Silverado,
Sierra & Silverado
