Chevrolet Silverado / GMC Sierra. Manual - part 2419
ROOF REAR CONSOLE REPLACEMENT (WITH DVD)

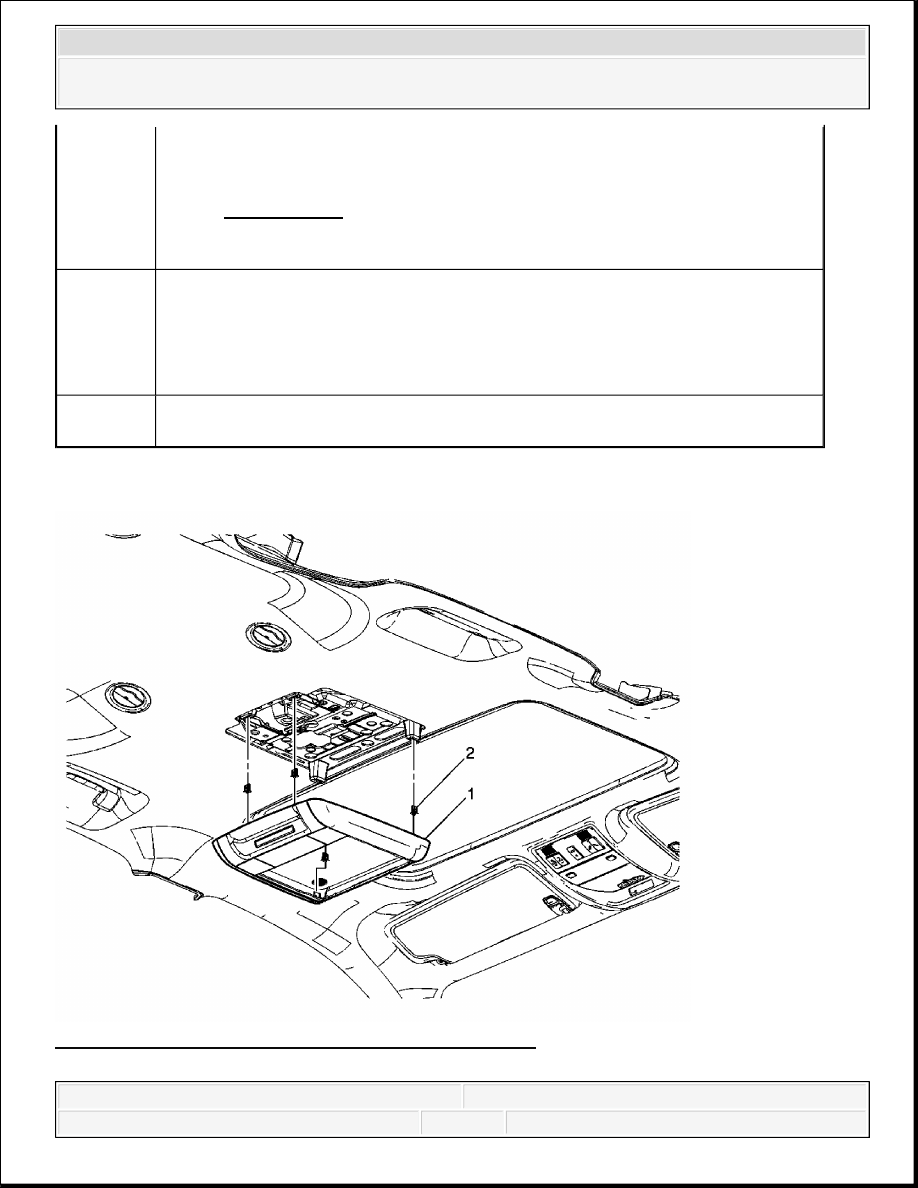

Fig. 82: View Of Roof Console Assembly & Retainers
Courtesy of GENERAL MOTORS CORP.
2
Roof Console Screws (Qty: 2)
Tighten: 2 N.m (18 lb in)
NOTE:
Refer to Fastener Notice .
3
Roof Console Assembly
Tip:
1. Disconnect the electrical connectors.
2. If replacing roof console assembly, transfer all necessary components.
4
Roof Console Retainers (Qty: 2)
Tip: Pull down to disengage clips.
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
SPECIAL TOOLS AND EQUIPMENT
SPECIAL TOOLS
Callout
Component Name
Preliminary Procedure:
Remove the video display assembly. Refer to Video Display Replacement (Second
Row) .
1
Roof Console Assembly
Tip:
1. Pull down to disengage the retainer clips.
2. Disconnect the electrical connectors.
3. If replacing the rear roof console, transfer all necessary components.
2
Roof Console Retainer (Qty: 4)
Illustration
Tool Number/ Description
J 42640
Steering Column Anti-Rotation Pin
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis
Silverado, Sierra & Silverado
2008 ACCESSORIES & EQUIPMENT
Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

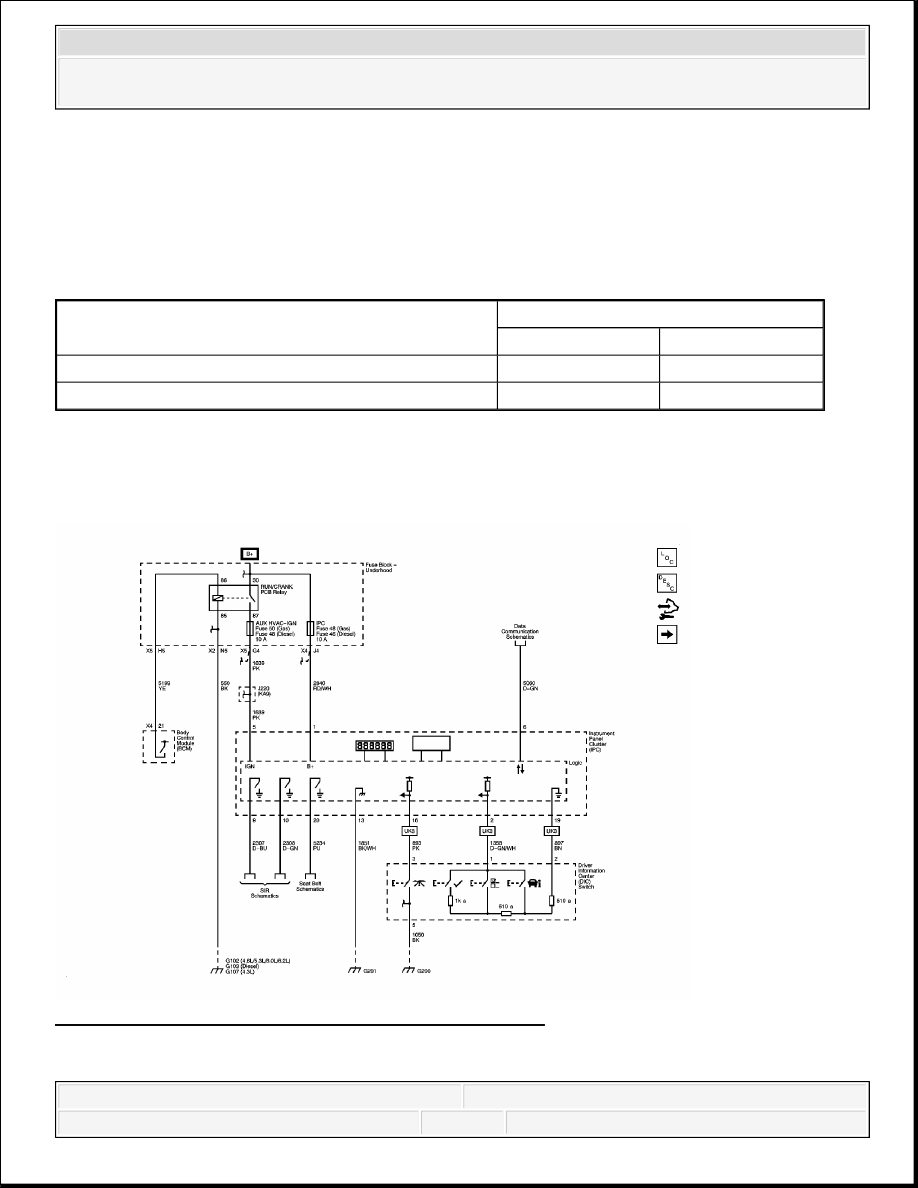

SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
SCHEMATIC AND ROUTING DIAGRAMS

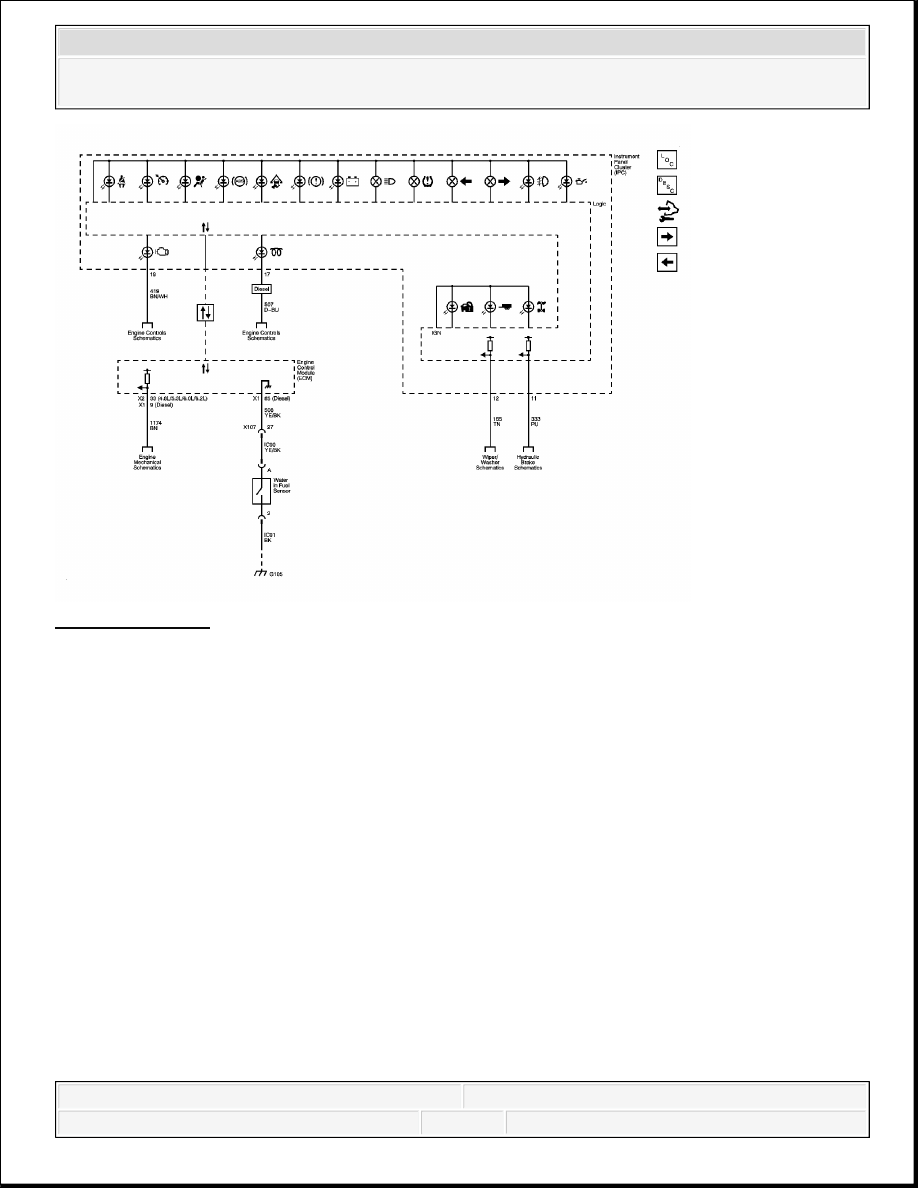

INSTRUMENT CLUSTER SCHEMATICS
Fig. 1: Power, Ground and Driver Information Switch
Courtesy of GENERAL MOTORS CORP.
Application
Specification
Metric
English
Instrument Panel Accessory Switch Screws
2 N.m
18 lb in
Instrument Panel Cluster Assembly Screws
2 N.m
18 lb in
