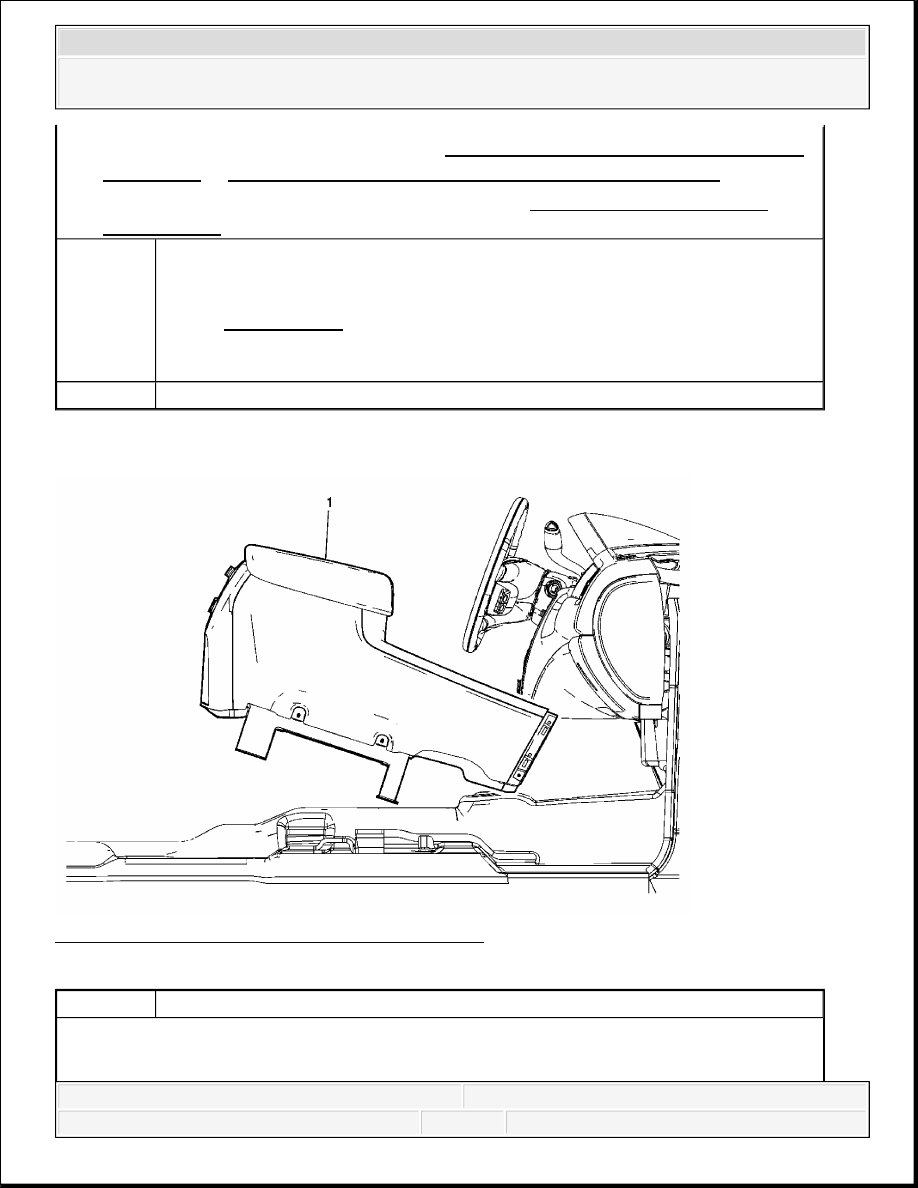

Fig. 74: View Of Console Side Trim Panel & Clips FLOOR CONSOLE BEZEL REPLACEMENT Callout Component Name 1 Console Side Trim Panel 2 Retainer Clips (Qty: 2)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

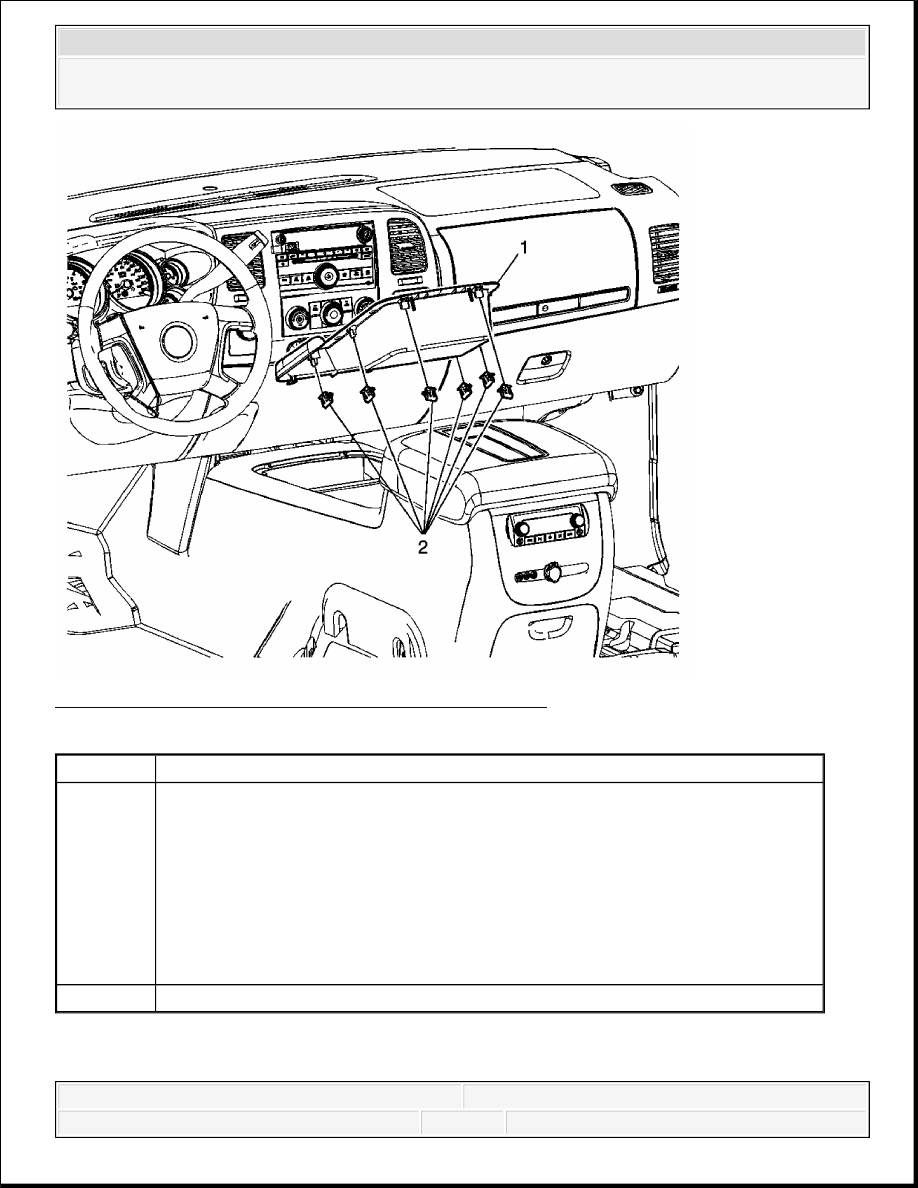

Fig. 75: View Of Floor Console Bezel Assembly & Clip FRONT FLOOR CONSOLE COMPARTMENT REPLACEMENT (EXCEPT CADILLAC) Callout Component Name 1 Front Floor Console Bezel Assembly 1. Use a flat-bladed plastic trim tool to release the retainer clips along the rear edge of the bezel. 2. Lift the bezel out of the console assembly. 3. If replacing the front floor console bezel assembly, transfer all necessary components. 2 Retainer Clip (Qty: 4)
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 76: View Of Front Floor Console Compartment Assembly & Screws Callout Component Name Preliminary Procedures
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

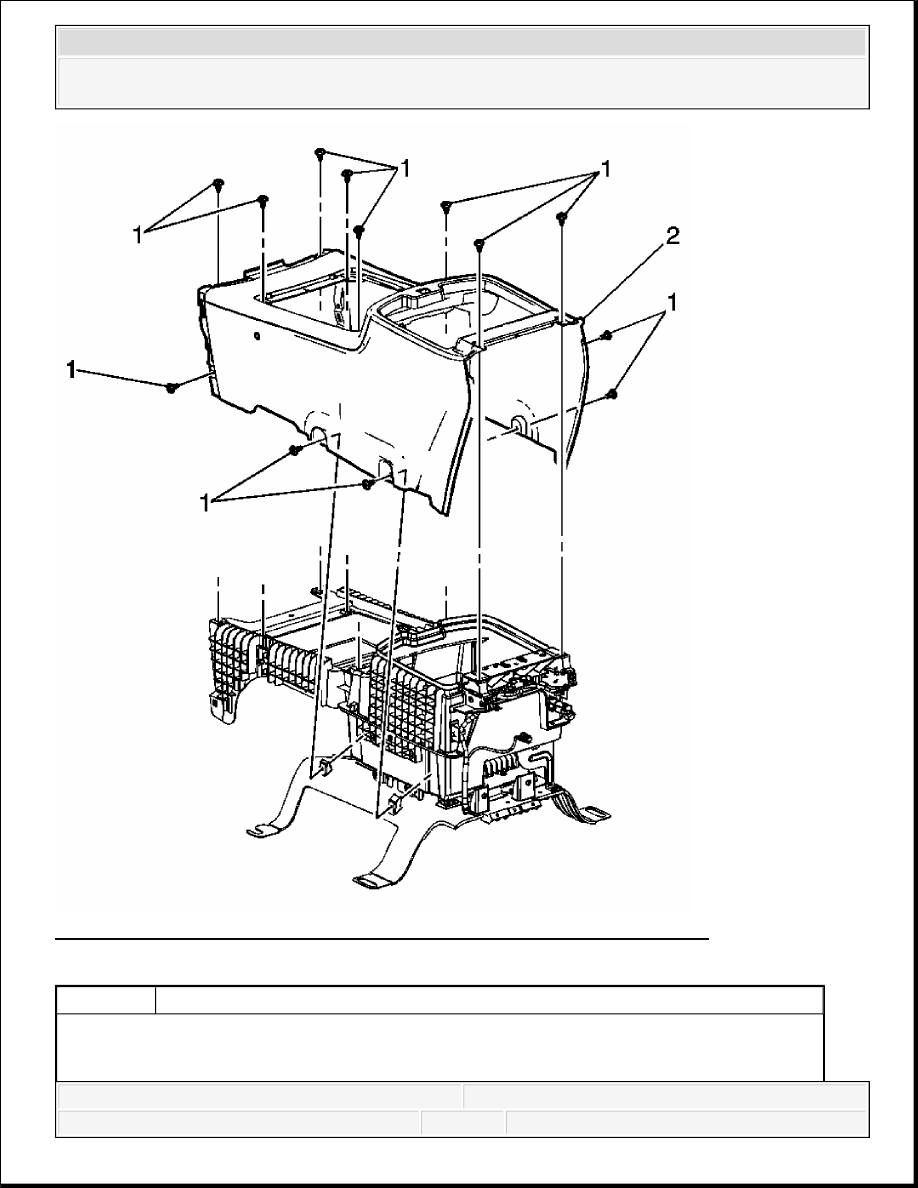

FRONT FLOOR CONSOLE REPLACEMENT (WITH RPO SLT) Fig. 77: View Of Front Floor Console Assembly 1. Remove the front floor console. Refer to Front Floor Console Replacement (with RPO SLT) or Front Floor Console Replacement (without RPO SLT). 2. Remove the front floor console end panel. Refer to Center Console End Panel Replacement. 1 Front Floor Console Compartment Screws (Qty: 14) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 2 Front Floor Console Compartment Assembly Callout Component Name Preliminary Procedures
