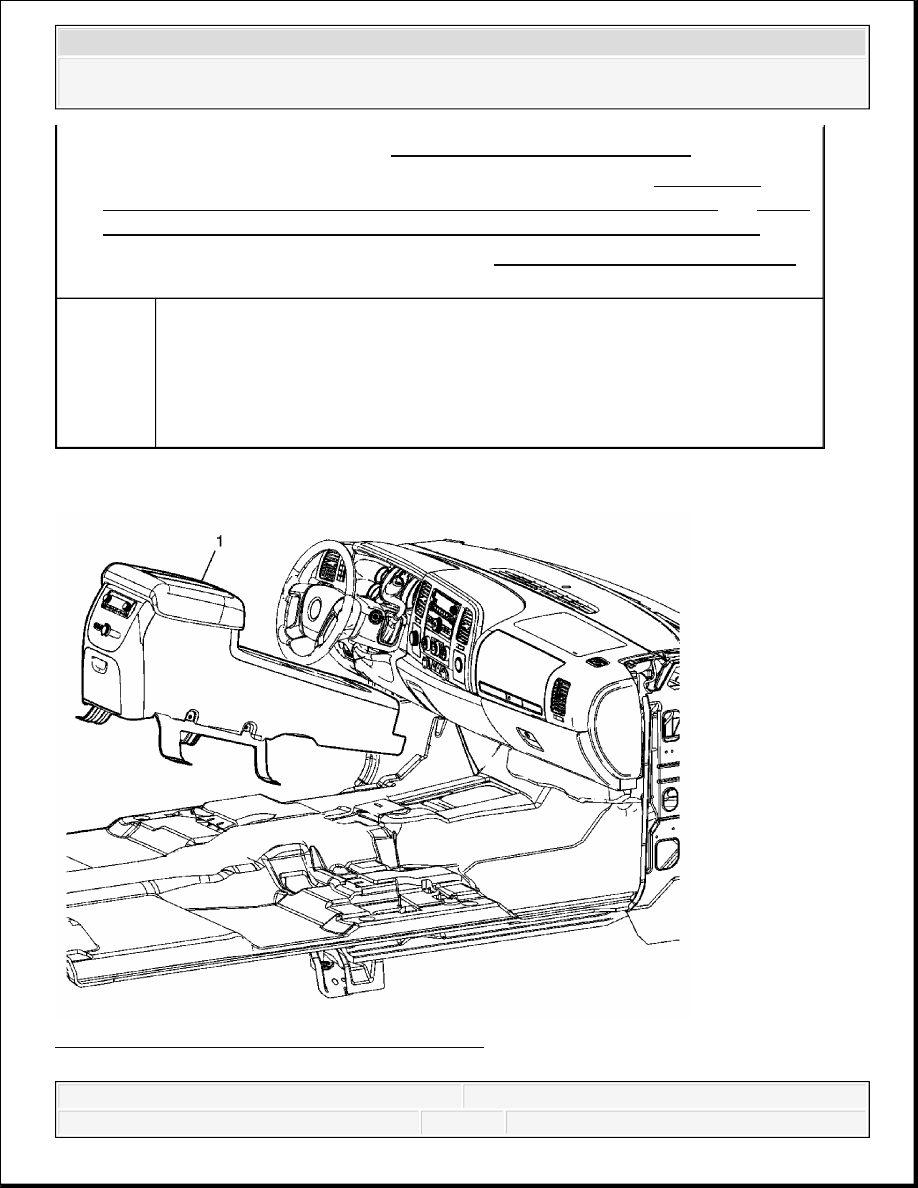

FRONT FLOOR CONSOLE REPLACEMENT (WITHOUT RPO SLT) Fig. 78: View Of Front Floor Console Assembly 1. Remove the 2 front seats. Refer to Front Seat Replacement - Bucket . 2. Remove the right and left front floor console trim panels. Refer to Front Floor Console Side Trim Panel Replacement - Right Side (with RPO SLT) and Front 3. Remove the front floor console bezel. Refer to Floor Console Bezel Replacement. 4. Disconnect the electrical connectors to the console assembly. 1 Front Floor Console Assembly 1. With the aid of an assistant, remove the console from the vehicle. 2. When replacing the console assembly, transfer all the necessary components.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

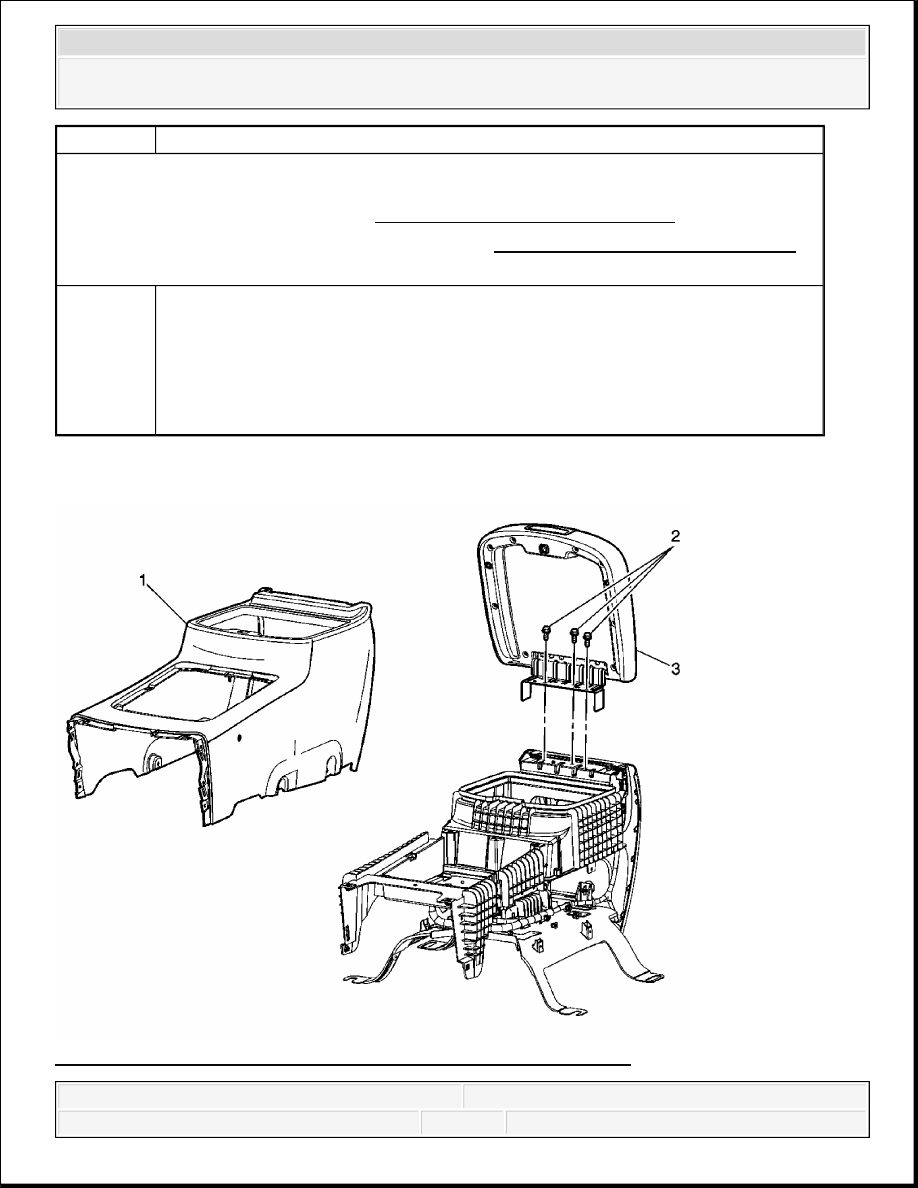

FRONT FLOOR CONSOLE ARMREST REPLACEMENT Fig. 79: View Of Front Floor Armrest Assembly & Components Callout Component Name Preliminary Procedures 1. Remove the front seats. Refer to Front Seat Replacement - Bucket . 2. Remove the front floor console bezel. Refer to Floor Console Bezel Replacement. 3. Disconnect the electrical connectors to the console assembly. 1 Front Floor Console Assembly 1. With the aid of an assistant, remove the console from the vehicle. 2. When replacing the console assembly, transfer all the necessary components.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

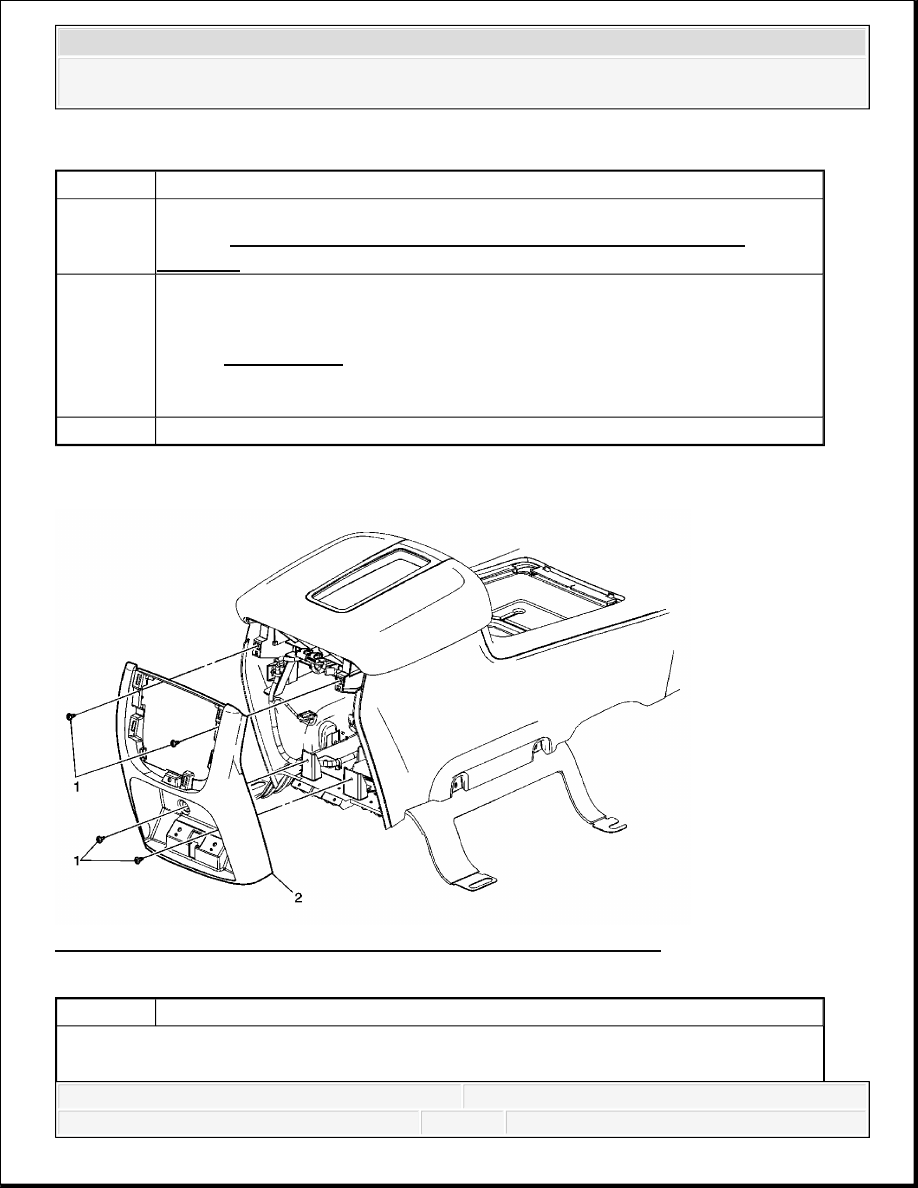

Courtesy of GENERAL MOTORS CORP. CENTER CONSOLE END PANEL REPLACEMENT Fig. 80: View Of Front Floor Console End Cap Assembly & Screws Callout Component Name 1 Front Floor Console Compartment Cover Assembly 2 Front Floor Console Armrest Assembly Screws (Qty: 3) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 3 Front Floor Console Armrest Assembly Callout Component Name Preliminary Procedures
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

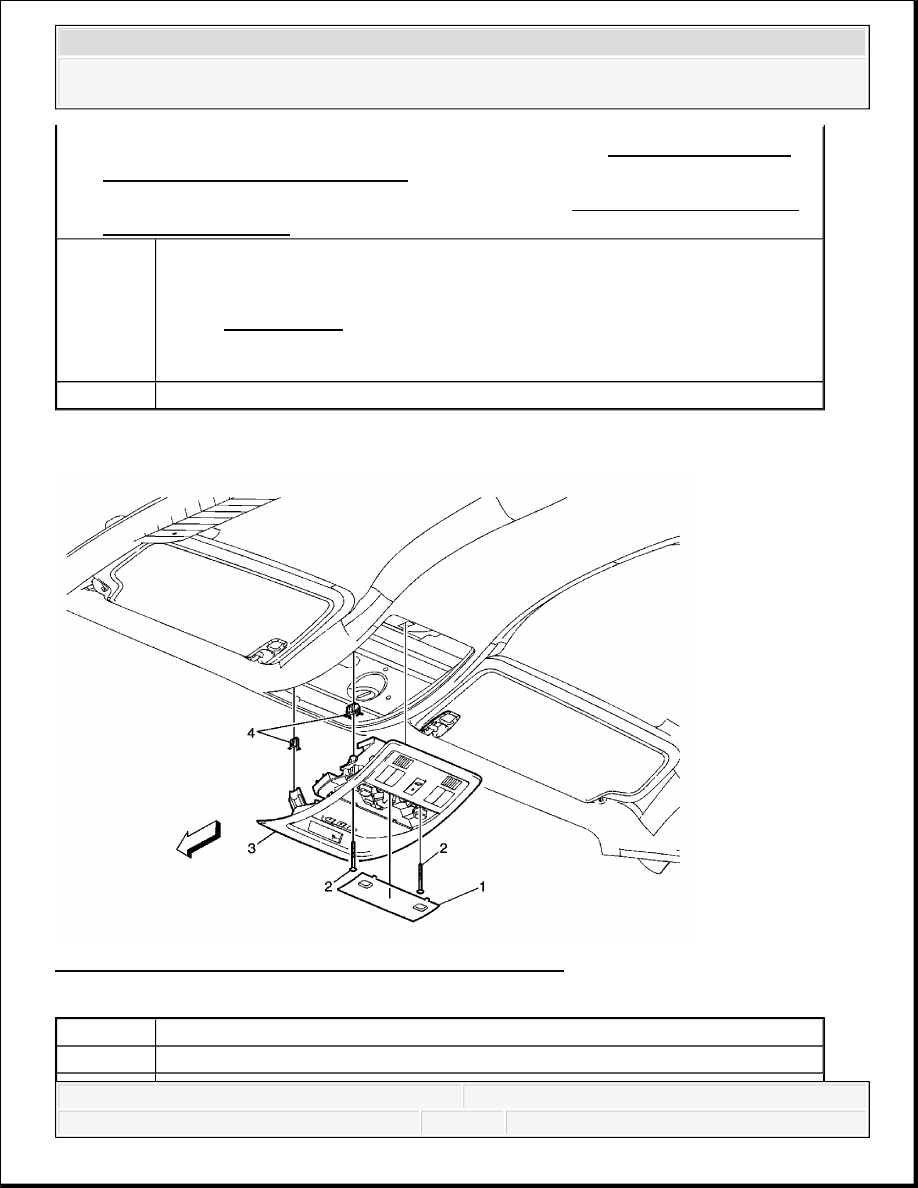

ROOF CONSOLE REPLACEMENT Fig. 81: View Of Roof Console Assembly & Components 1. Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement. 2. Remove the front floor console rear cupholder. Refer to Front Floor Console Cup Holder Replacement. 1 Front Floor Console End Cap Screws (Qty: 4) Tighten: 2 N.m (18 lb in) NOTE: Refer to Fastener Notice . 2 Front Floor Console End Cap Assembly Callout Component Name 1 Front Overhead Console Lens
