Chevrolet Silverado / GMC Sierra. Manual - part 2420

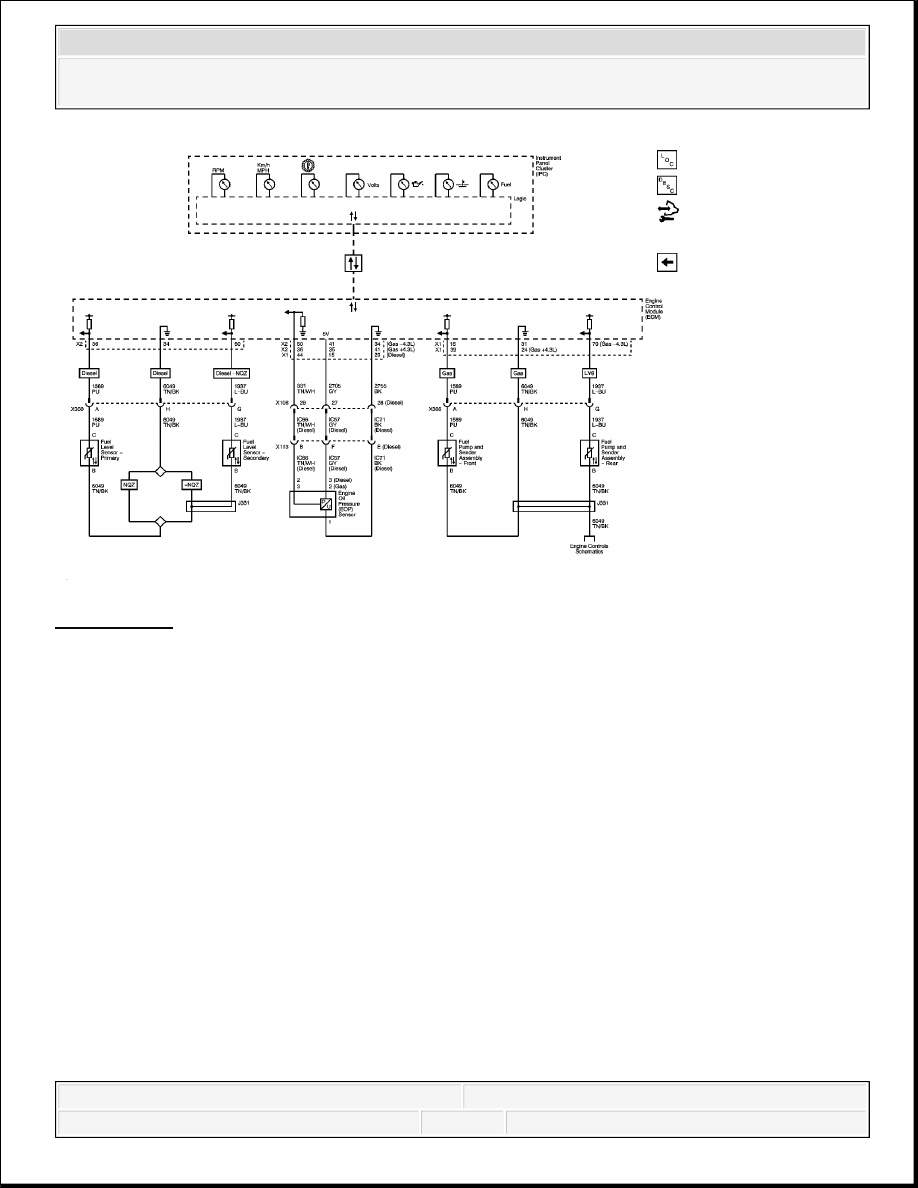

Fig. 3: Gages
Courtesy of GENERAL MOTORS CORP.
DRIVER INFORMATION SYSTEM SCHEMATICS
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado

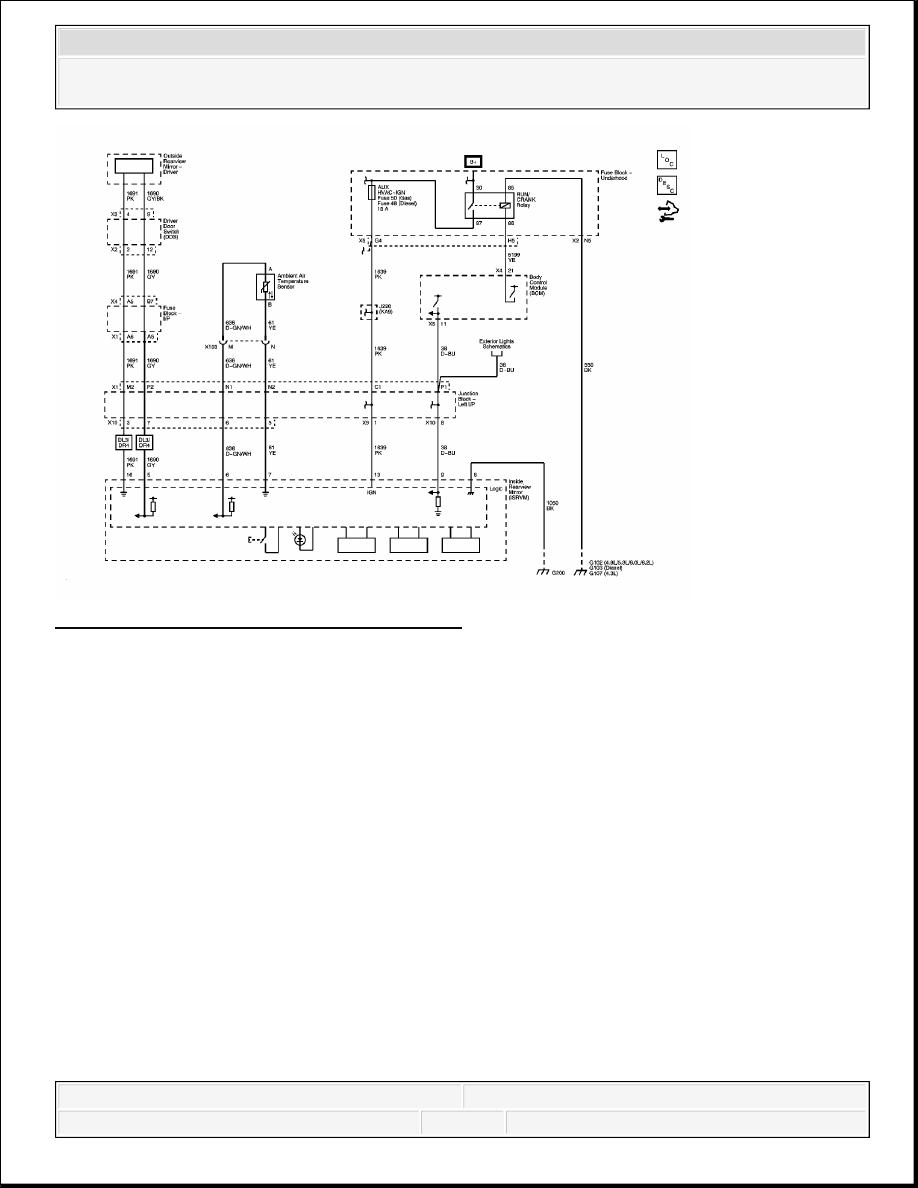

Fig. 4: Driver Information System Schematic
Courtesy of GENERAL MOTORS CORP.
AUDIBLE WARNINGS SCHEMATICS
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
Fig. 5: Audible Warnings Schematic
Courtesy of GENERAL MOTORS CORP.
DIAGNOSTIC INFORMATION AND PROCEDURES
DIAGNOSTIC CODE INDEX
DIAGNOSTIC CODE INDEX
DTC
Description
DTC B3567
B3567 01: Driver Information Center (DIC) Select Switch
Circuit Short To Battery
B3567 59: Driver Information Center (DIC) Select Switch
Circuit/Component Protection Time-Out
DTC P0381
P0381: Wait To Start Lamp Control Circuit
DTC P0461
P0461: Fuel Level Sensor 1 Performance
DTC P0462
P0462: Fuel Level Sensor 1 Low Voltage
DTC P0463
P0463: Fuel Level Sensor 1 High Voltage
DTC P0464
P0464: Fuel Level Sensor 1 Circuit Intermittent
DTC P0521, P0522, or
P0521: Engine Oil Pressure (EOP) Sensor Performance
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
DIAGNOSTIC STARTING POINT - DISPLAYS AND GAGES
Begin the displays and gages system diagnosis with Diagnostic System Check - Vehicle or the
audible warning system diagnosis with Diagnostic System Check - Vehicle . The Diagnostic
System Check will provide the following information:
The identification of the control modules which command the system
The ability of the control modules to communicate through the serial data circuit
The identification of any stored diagnostic trouble codes (DTCs) and their status
The use of the Diagnostic System Check will identify the correct procedure for diagnosing the
system and where the procedure is located.
DTC B3567
Diagnostic Instructions
Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
Review Strategy Based Diagnosis for an overview of the diagnostic approach.
Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC B3567 01
Driver Information Center (DIC) Select Switch Circuit Short To Battery
DTC B3567 59
Driver Information Center (DIC) Select Switch Circuit/Component Protection Time-Out
Diagnostic Fault Information
P0523
P0522: Engine Oil Pressure (EOP) Sensor Circuit Low
Voltage.
P0523: Engine Oil Pressure (EOP) Sensor Circuit High
Voltage
DTC P2066
P2066: Fuel Level Sensor 2 Performance
DTC P2067
P2067: Fuel Level Sensor 2 Low Voltage
DTC P2068
P2068: Fuel Level Sensor 2 High Voltage
2008 Chevrolet Silverado 1500
2008 ACCESSORIES & EQUIPMENT Displays and Gages - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &
Silverado
