FRONT SIDE DOOR MOLDING REPLACEMENT (GMC DENALI)

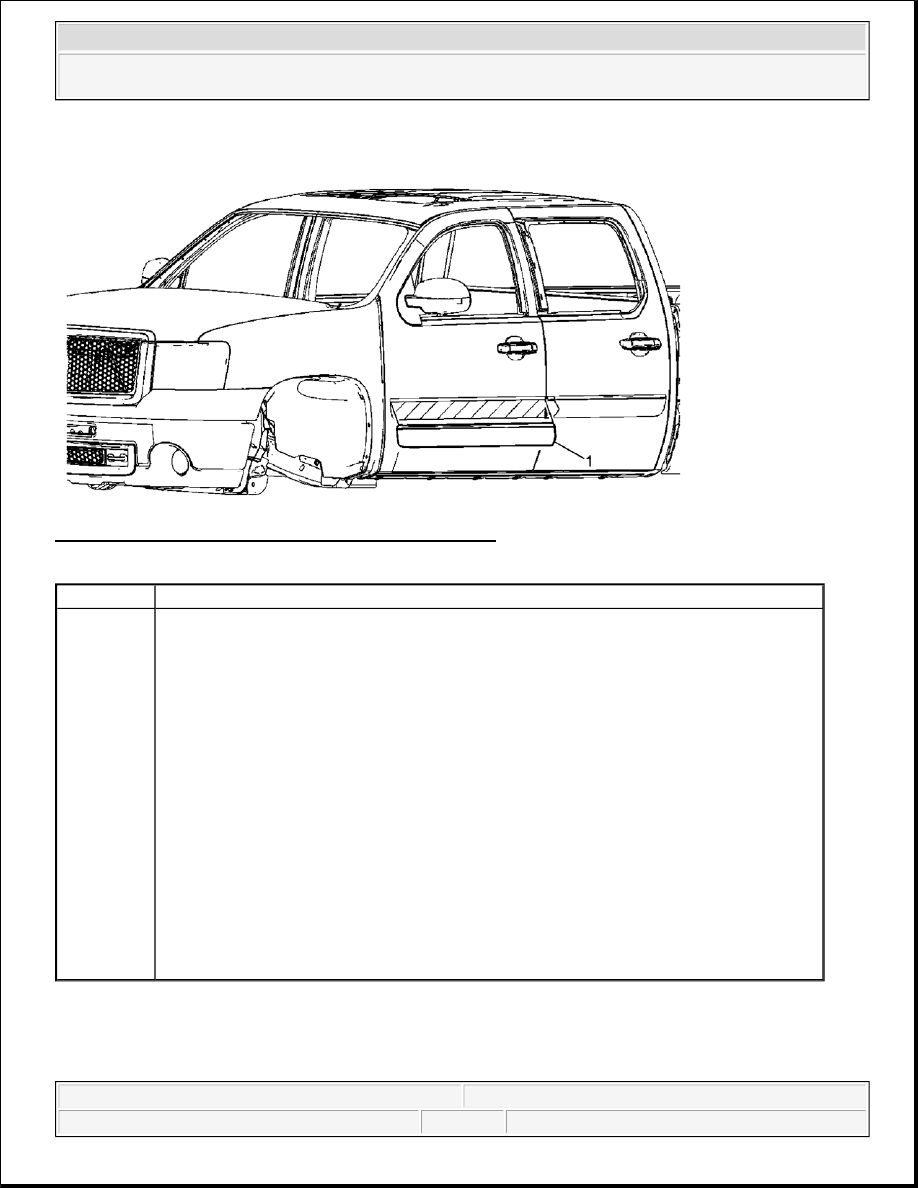

Fig. 23: View Of Front Side Door Molding (GMC Denali)
Courtesy of GENERAL MOTORS CORP.

HOOD FRONT MOLDING REPLACEMENT (CHEVROLET V22)

Callout

Component Name

1

Front Side Door Molding
Tip:

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Using a J 25070 Heat Gun in a circular motion, warm the front side door molding

prior to removal. Carefully clean the body panel thoroughly prior to bonding the new
front body side molding to the door.

3. Ensure the front door is in the closed position prior to installing the new front side

door moldings.

4. Remove the protective liner from the backside of the molding adhesive tape.

5. Position the pin on the backside of the molding to the round hole at the front edge of

the rear door first, then to the oval hole at the rear edge of the door.

6. Ensure full adhesion of the molding to the door using the palm of the hand with a

clean dry towel working from the rear edge of the door to the front, down the entire
molding.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

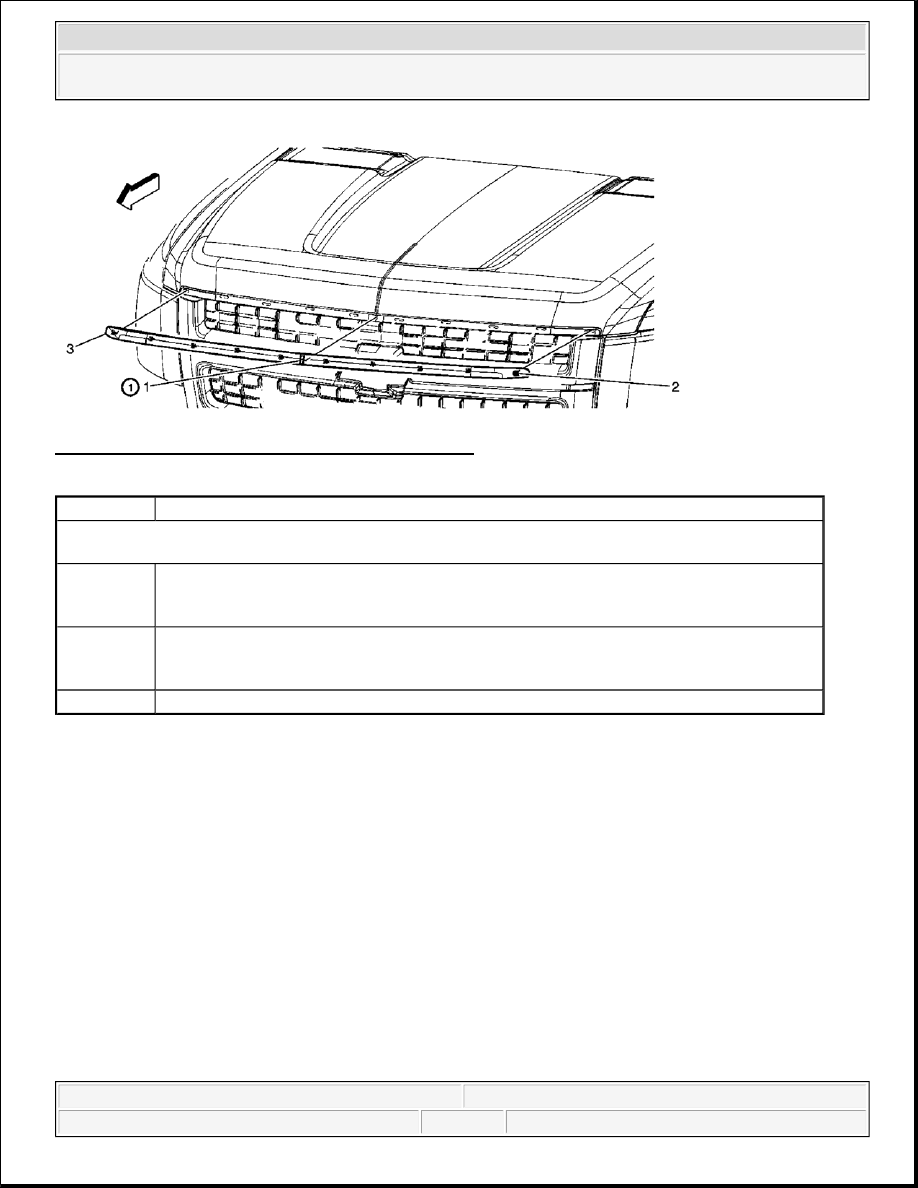

Fig. 24: View Of Hood Front Molding (Chevrolet V22)
Courtesy of GENERAL MOTORS CORP.

HOOD FRONT MOLDING REPLACEMENT (GMC HD)

Callout

Component Name

Preliminary Procedure:
Release the hood in order to access the front hood molding.

1

Hood Front Molding Locator Tab
Tip: Position the locator tab first into the hood panel center hole followed by the remaining
retainers.

2

Hood Front Molding Retainer Clips
Tip: Secure the retainer clips working from the center of the molding, outward until all the
clips are secure to the hood.

3

Hood Front Molding



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

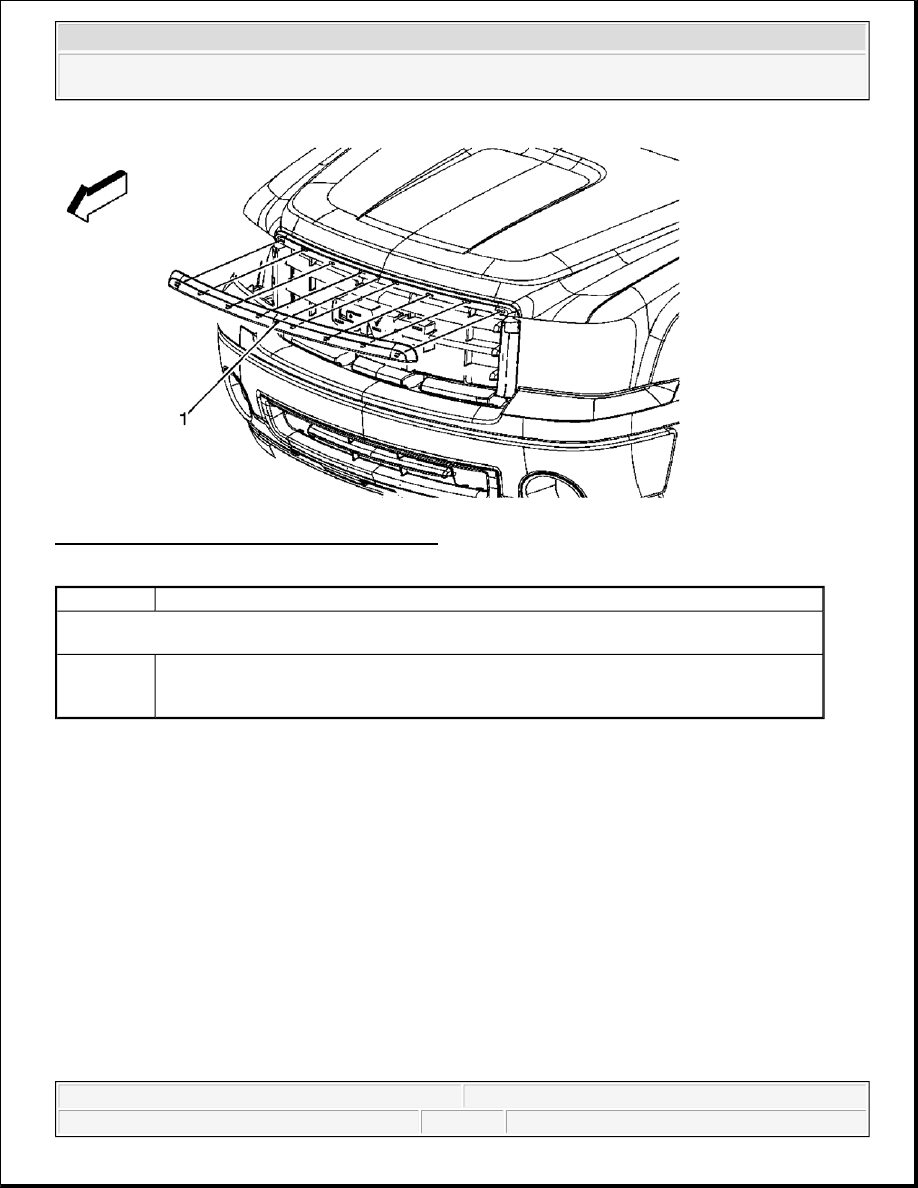

Fig. 25: View Of Hood Front Molding (GMC HD)
Courtesy of GENERAL MOTORS CORP.

HOOD FRONT MOLDING REPLACEMENT (GMC DENALI)

Callout

Component Name

Preliminary Procedure:
Release the hood in order to access the front hood molding.

1

Hood Front Molding Locator Tab
Tip: Position the locator tab first into the hood panel center hole followed by the remaining
retainers.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 30

© 2005 Mitchell Repair Information Company, LLC.

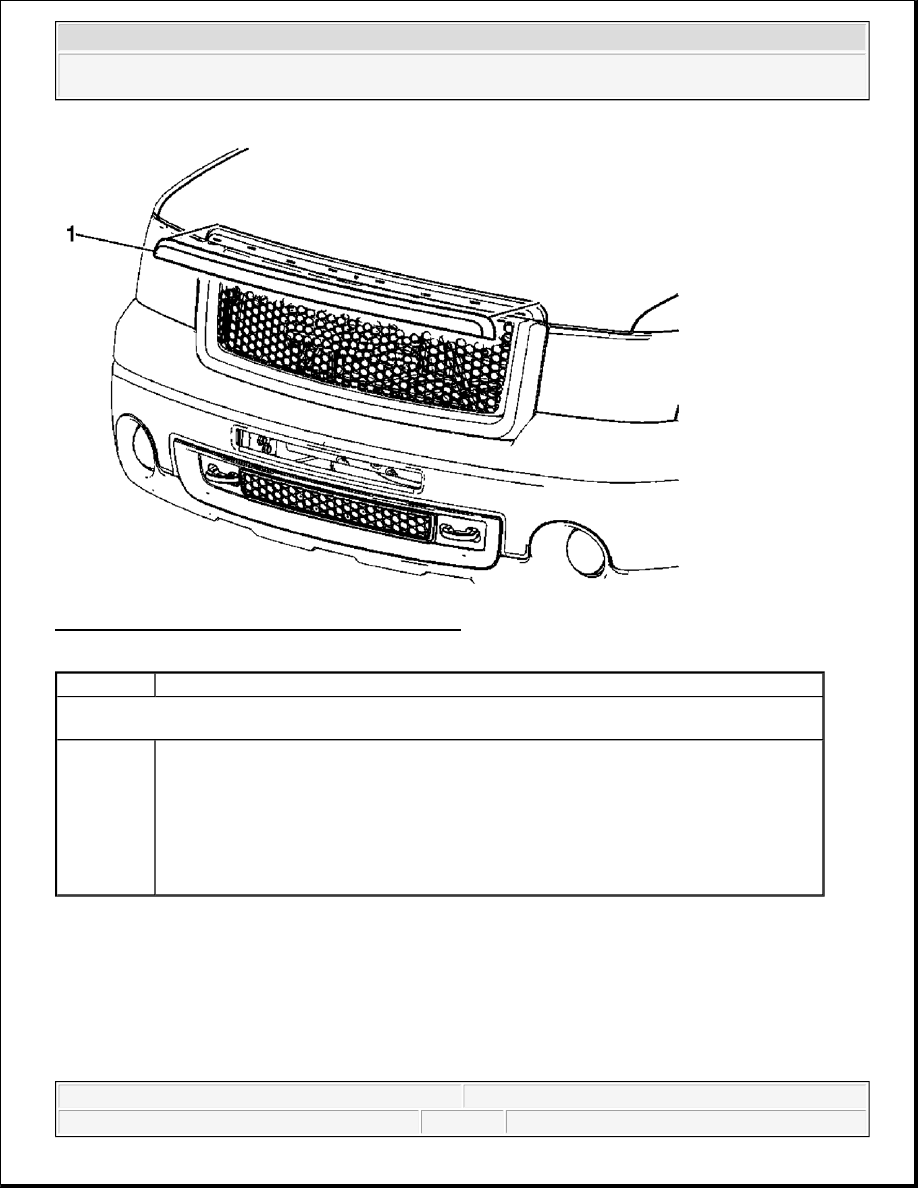

Fig. 26: View Of Hood Front Molding (GMC Denali)
