Chevrolet Silverado / GMC Sierra. Manual - part 2260

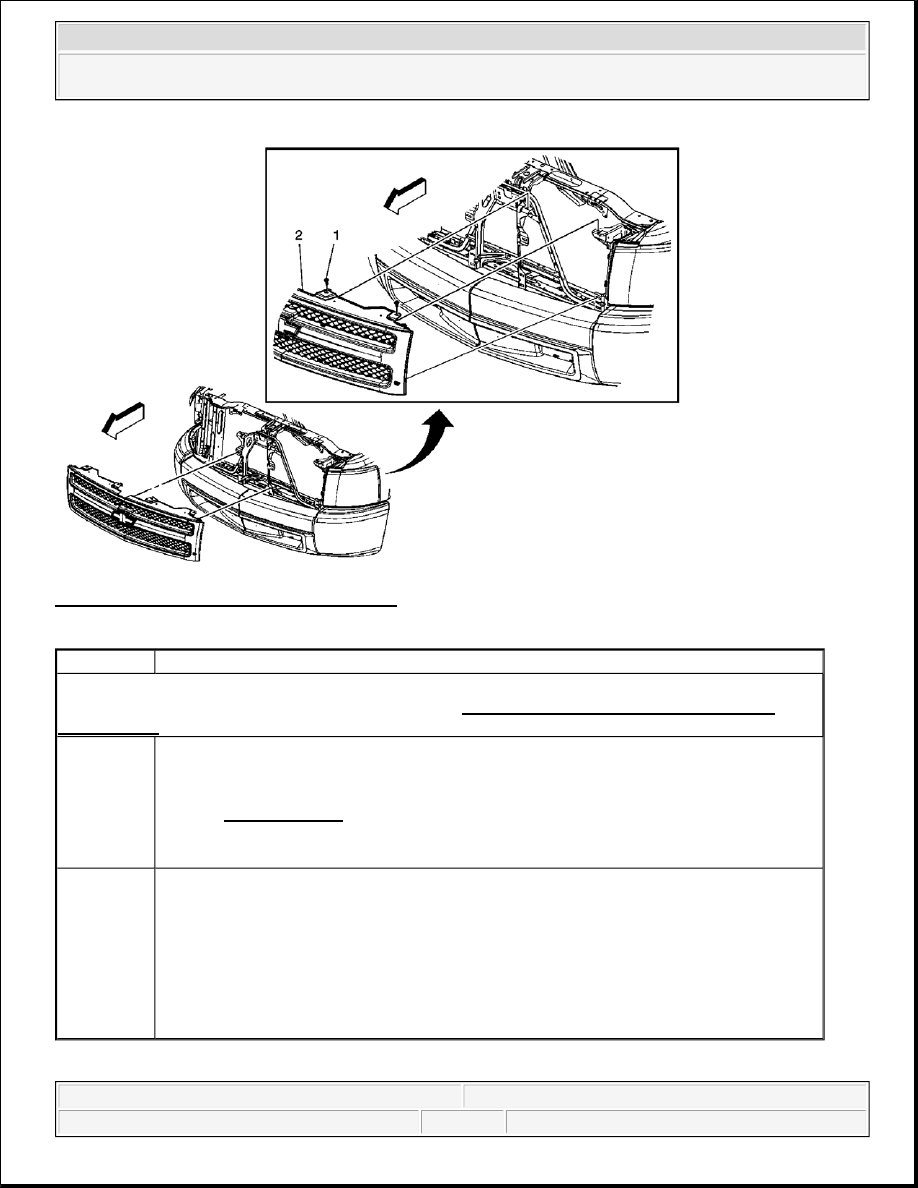

Fig. 19: View Of Radiator Grille (Chevrolet)
Courtesy of GENERAL MOTORS CORP.

RADIATOR GRILLE REPLACEMENT (GMC)

Callout

Component Name

Preliminary Procedure:
Remove the radiator air upper baffle/deflector. Refer to Radiator Air Upper Baffle and Deflector
Replacement .

1

Radiator Grille Bolts (Qty: 4)

Tighten: 7 N.m (62 lb in)

NOTE:

Refer to Fastener Notice .

2

Radiator Grille

Procedure

1. Disengage the six clips by using a pair of flat-bladed pliers pinching the retainer tabs

securing the grille to the hood stop and hood bumper brackets.

2. Separate the radiator grille from the hood stop and hood bumper brackets by pushing

the radiator grille outward away from the vehicle.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 24

© 2005 Mitchell Repair Information Company, LLC.

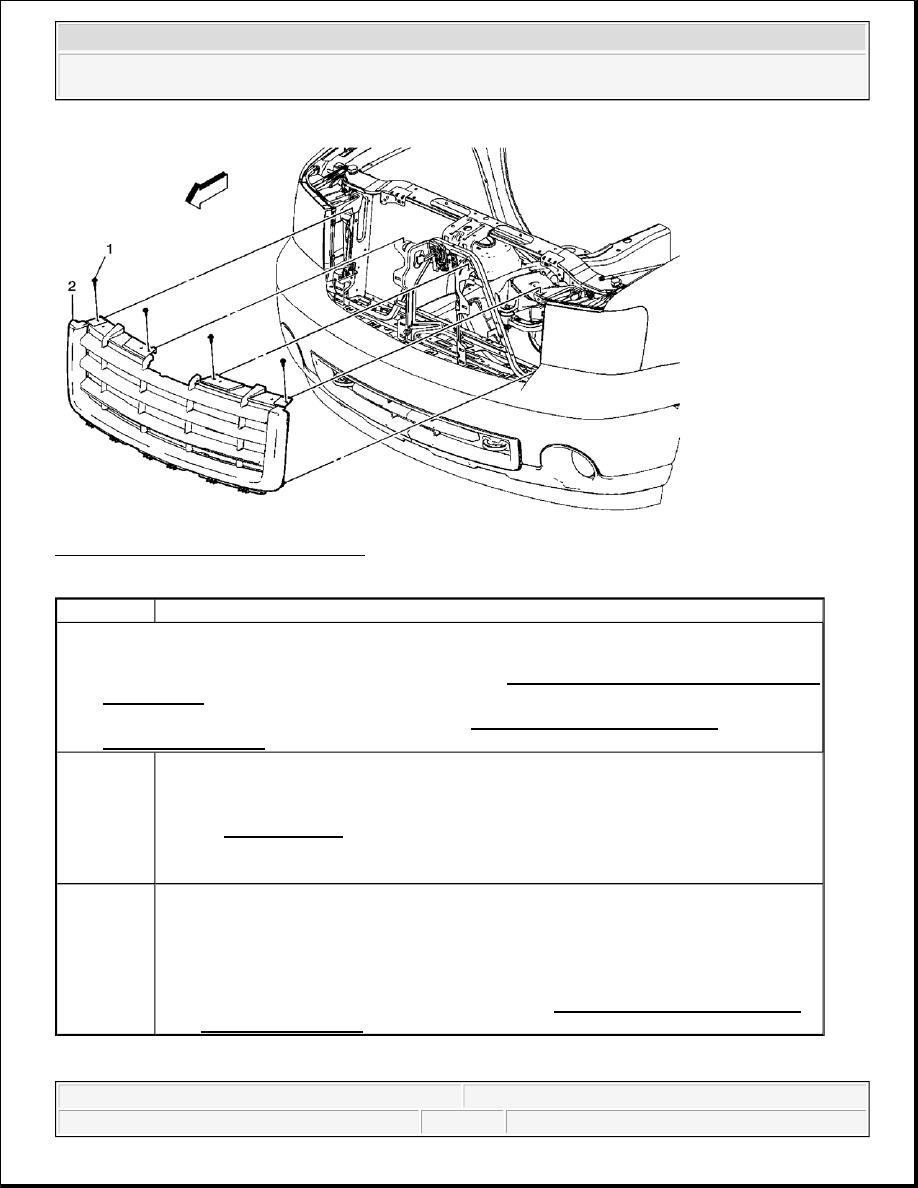

Fig. 20: View Of Radiator Grille (GMC)
Courtesy of GENERAL MOTORS CORP.

DOOR BODY SIDE MOLDING REPLACEMENT (CHEVROLET)

Callout

Component Name

Preliminary Procedure

1. Remove the radiator air upper baffle/deflector. Refer to Radiator Air Upper Baffle and Deflector

Replacement .

2. Remove the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap

Replacement (GMC) .

1

Radiator Grille Bolt (Qty: 4)

Tighten: 7 N.m (62 lb in)

NOTE:

Refer to Fastener Notice .

2

Radiator Grille

Procedure

1. Secure the front grille to the vehicle.

2. Install the front bumper fascia trim cap. Refer to Front Bumper Fascia Trim Cap

Replacement (GMC) .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 25

© 2005 Mitchell Repair Information Company, LLC.

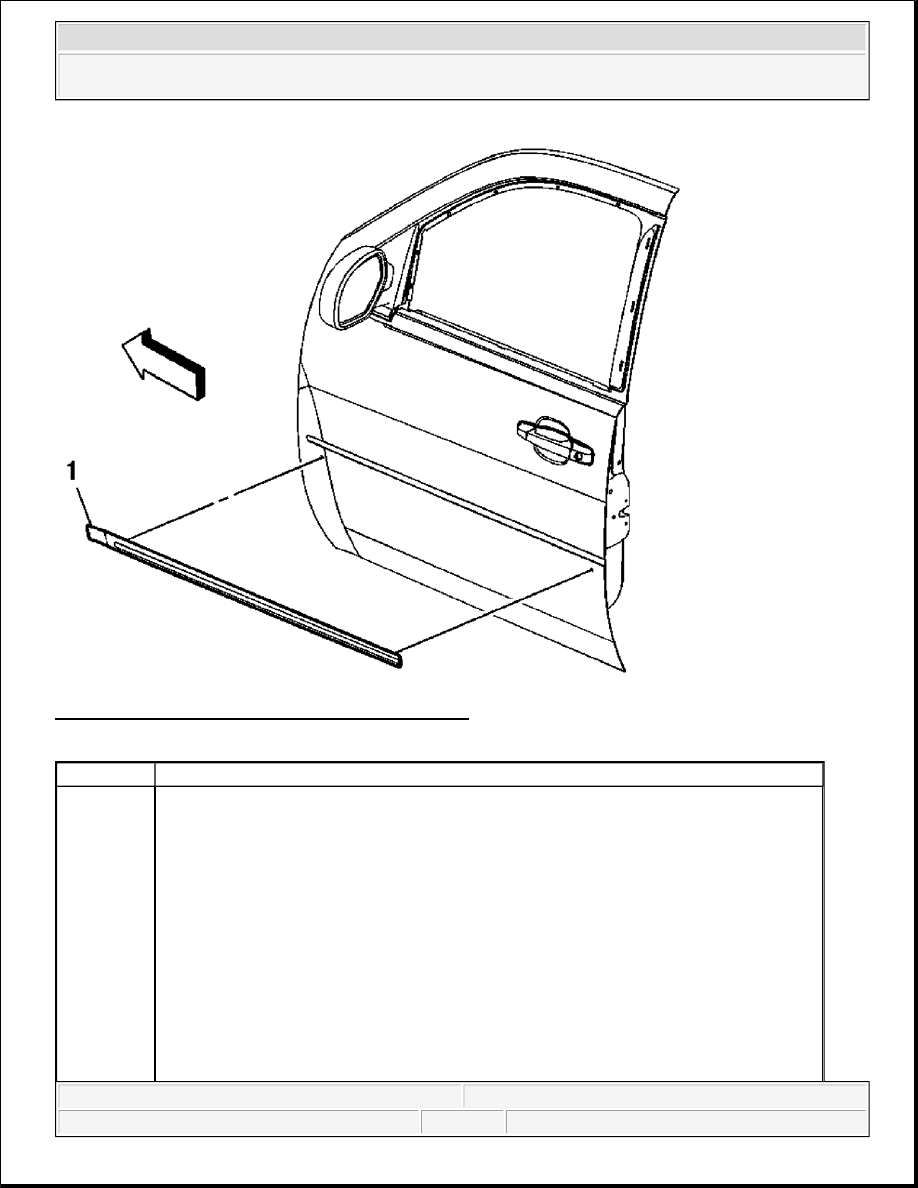

Fig. 21: View Of Door Body Side Molding (Chevrolet)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Front Side Door Molding
Tip:

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Using a J 25070 Heat Gun in a circular motion, warm the front side door molding

prior to removal. Carefully clean the body panel thoroughly prior to bonding the new
front body side molding to the door.

3. Ensure the front door is in the closed position prior to installing the new front side

door molding.

4. Remove the protective liner from the backside of the molding adhesive tape.

5. Position the pin on the backside of the molding to the round hole at the rear edge of



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 26

© 2005 Mitchell Repair Information Company, LLC.

DOOR BODY SIDE MOLDING REPLACEMENT (GMC)

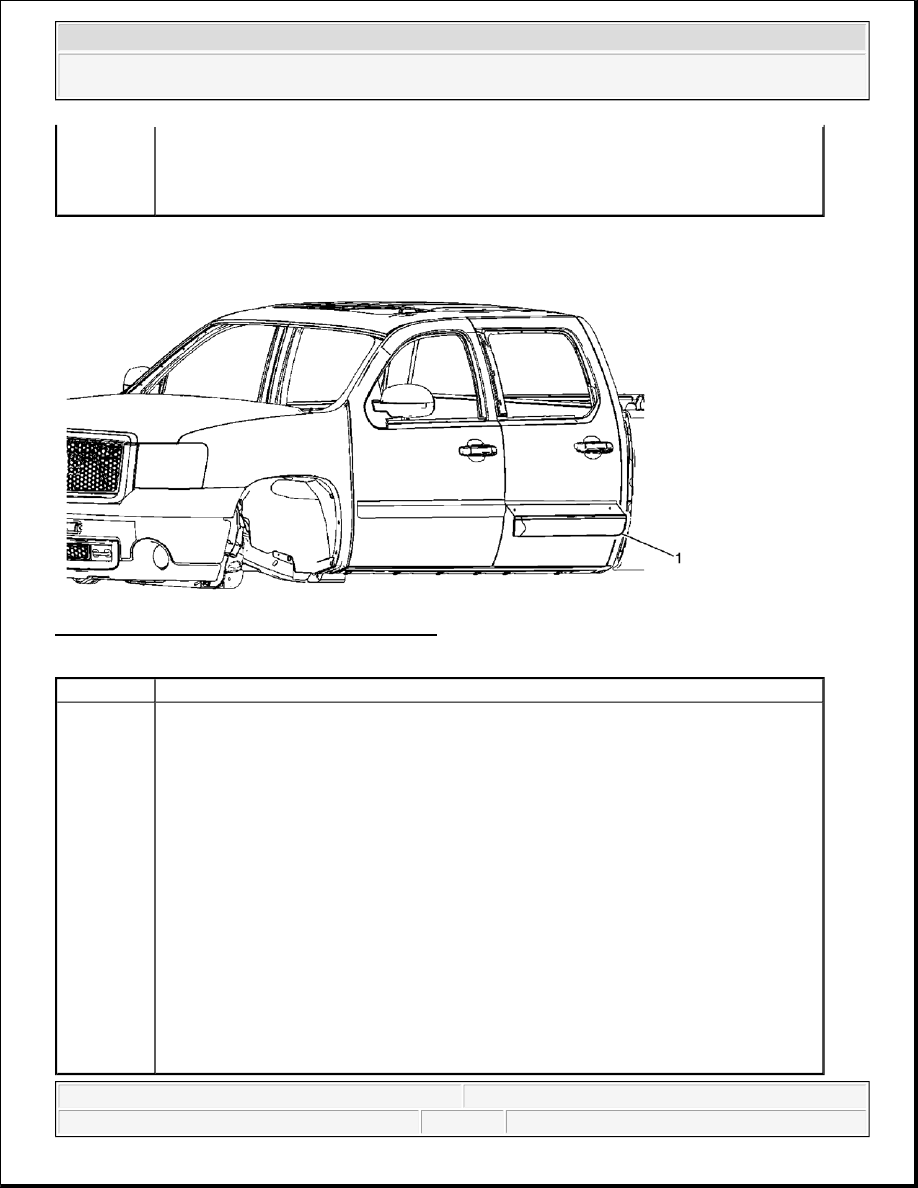

Fig. 22: View Of Door Body Side Molding (GMC)
Courtesy of GENERAL MOTORS CORP.

the front door first, then to the oval hole at the front edge of the door.

6. Ensure full adhesion of the molding to the door using the palm of the hand with a

clean dry towel working from the rear edge of the door to the front, down the entire
molding.

Callout

Component Name

1

Rear Side Door Molding
Tip:

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Using a J 25070 Heat Gun in a circular motion, warm the front side door molding

prior to removal. Carefully clean the body panel thoroughly prior to bonding the new
front body side molding to the door.

3. Ensure the rear door is in the closed position prior to installing the new rear side door

moldings.

4. Remove the protective liner from the backside of the molding adhesive tape.

5. Position the pin on the backside of the molding to the round hole at the front edge of

the rear door first, then to the oval hole at the rear edge of the door.

6. Ensure full adhesion of the molding to the door using the palm of the hand with a

clean dry towel working from the rear edge of the door to the front, down the entire
molding.
