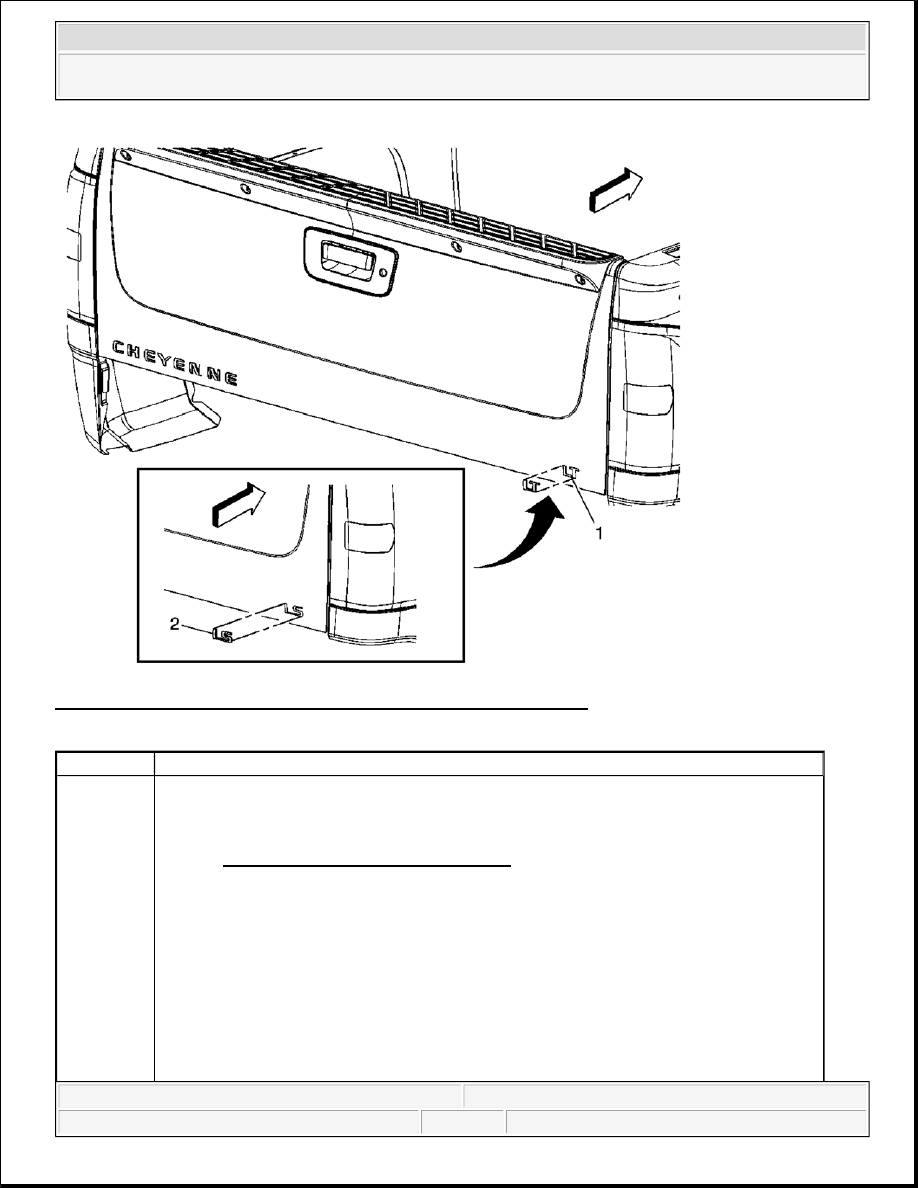

Fig. 16: View Of Endgate Emblem and Nameplate (Cheyenne LT LS)
Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

1

Endgate Nameplate/Emblem (LT)

Procedure

1. Use a J 25070 or equivalent to remove the old nameplate. Clean all the adhesive

residue from the endgate, wipe the surface dry with a clean lint-free towel prior to
installing new nameplate.

2. When removing protective liners from adhesive backed nameplates, be careful not to

touch the tape with hands and do not allow the tape to come in contact with dirt or
any foreign matter prior to adhesion.

3. Close the endgate prior to installing the new nameplate/emblem to the endgate.

NOTE:

Refer to Exterior Trim Emblem Removal Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

ENDGATE EMBLEM/NAMEPLATE REPLACEMENT (CHEVROLET)

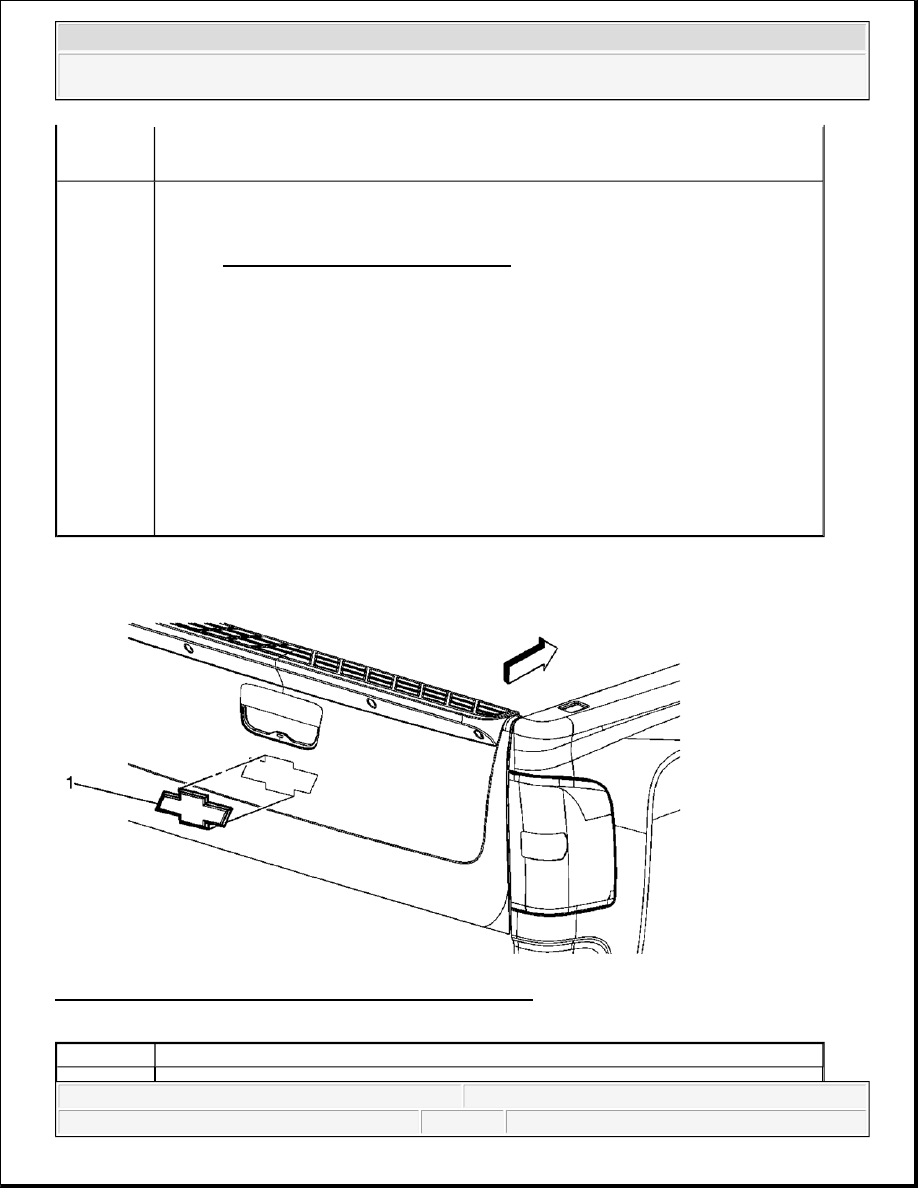

Fig. 17: View Of Endgate Emblem and Nameplate (Chevrolet)
Courtesy of GENERAL MOTORS CORP.

4. Remove the protective liner from the back side of the adhesive tape.

5. Align the nameplate/emblem to the endgate and press to ensure full adhesion is made.

2

Endgate Nameplate/Emblem (LS)

Procedure

1. Use a J 25070 or equivalent to remove the old nameplate/emblem. Clean all the

adhesive residue from the endgate, wipe the surface dry with a clean lint-free towel
prior to installing new nameplate.

2. When removing protective liners from adhesive backed nameplates/emblems, be

careful not to touch the tape with hands and do not allow the tape to come in contact
with dirt or any foreign matter prior to adhesion.

3. Close the endgate prior to installing the new nameplate/emblem to the endgate.

4. Remove the protective liner from the back side of the adhesive tape.

5. Align the nameplate/emblem to the endgate and press to ensure full adhesion is made.

NOTE:

Refer to Exterior Trim Emblem Removal Notice .

Callout

Component Name



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 21

© 2005 Mitchell Repair Information Company, LLC.

ENDGATE EMBLEM/NAMEPLATE REPLACEMENT (TUF)

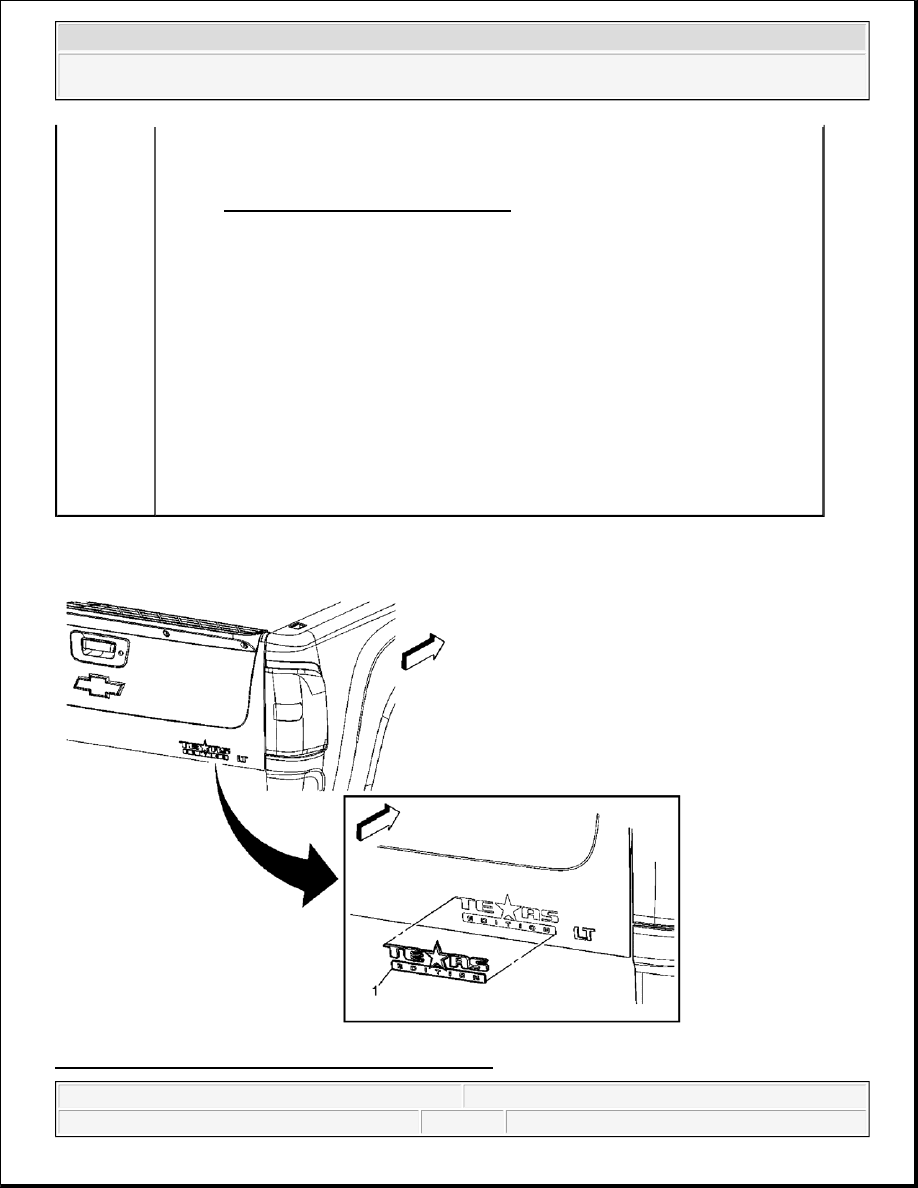

Fig. 18: View Of Endgate Emblem and Nameplate (TUF)

1

Endgate Nameplate

Procedure

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Use a J 25070 Heat Gun or equivalent to remove the old nameplate. Clean all

adhesive from bodyside panel and wipe the surface dry with a clean lint-free towel
prior to installing the new name plate.

3. When removing protective liners from the adhesive tape, be careful not to touch tape

with hands and do not allow tape to come in contact with dirt or any foreign matter
prior to adhesion.

4. Using the palm of the hand, wet out the name plate to the body side and ensure full

adhesion of the nameplate is made.

NOTE:

Refer to Exterior Trim Emblem Removal Notice .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Exterior Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:26:40 PM

Page 22

© 2005 Mitchell Repair Information Company, LLC.

Courtesy of GENERAL MOTORS CORP.

RADIATOR GRILLE REPLACEMENT (CHEVROLET)

Callout

Component Name

1

Endgate Nameplate

Procedure

1. The part and surface should be 21°C (70°F) prior to installation. The vehicle should

remain 21°C (70°F) for one hour after assembly to allow adhesive to develop
sufficient bond strength.

2. Use a J 25070 Heat Gun or equivalent to remove the old nameplate. Clean all

adhesive from the endgate and wipe the surface dry with a clean lint-free towel prior
to installing the new name plate.

3. When removing protective liners from the adhesive tape, be careful not to touch tape

with hands and do not allow tape to come in contact with dirt or any foreign matter
prior to adhesion.

4. Using the palm of the hand, wet out the name plate to the endgate and ensure full

adhesion of the nameplate is made.

NOTE:

Refer to Exterior Trim Emblem Removal Notice .
