Chevrolet Silverado / GMC Sierra. Manual - part 1761
2. Reposition the engine ground strap (1) from the cylinder head.

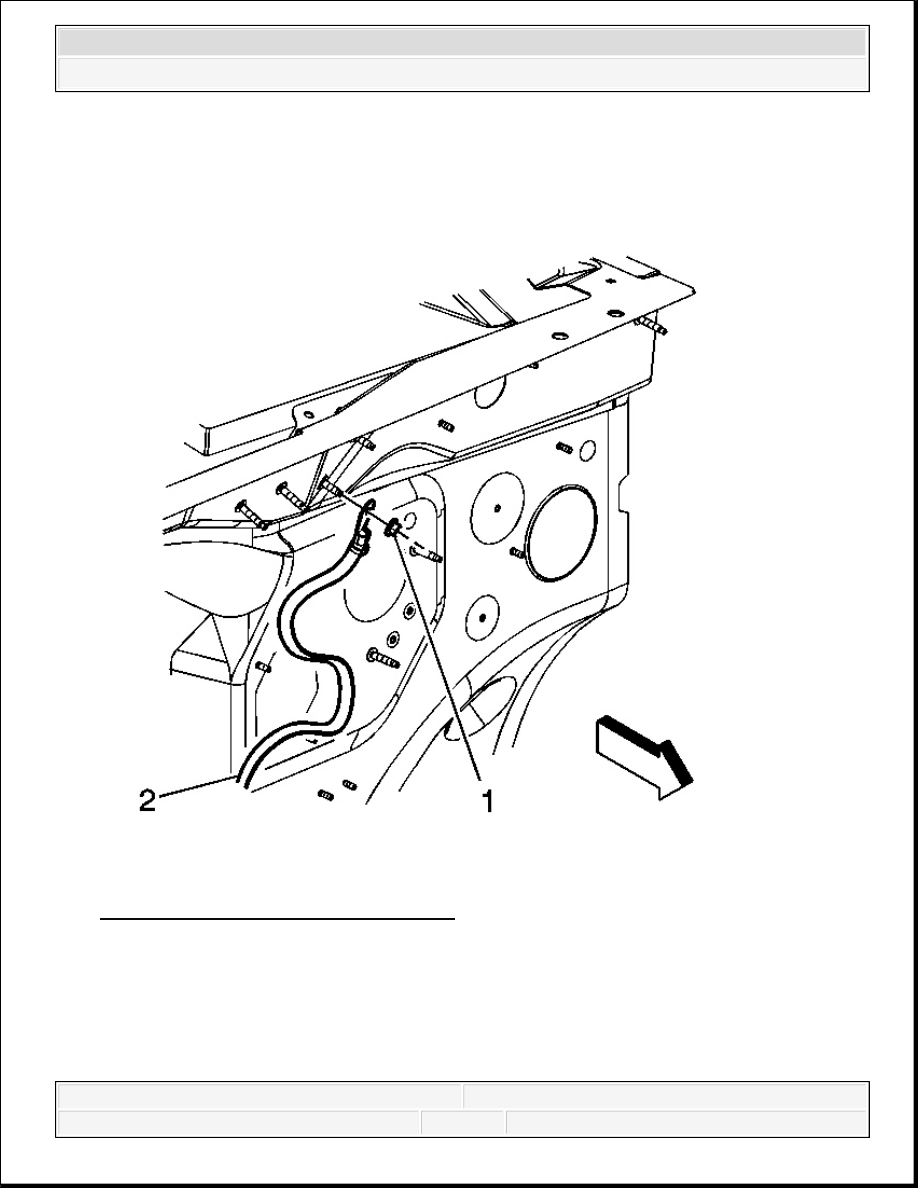

Fig. 218: View Of Ground Strap & Nut
Courtesy of GENERAL MOTORS CORP.
3. Remove the ground strap nut (1) from the stud on the plenum front panel.
4. Remove the ground strap (2) from the stud and the vehicle.
Installation Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

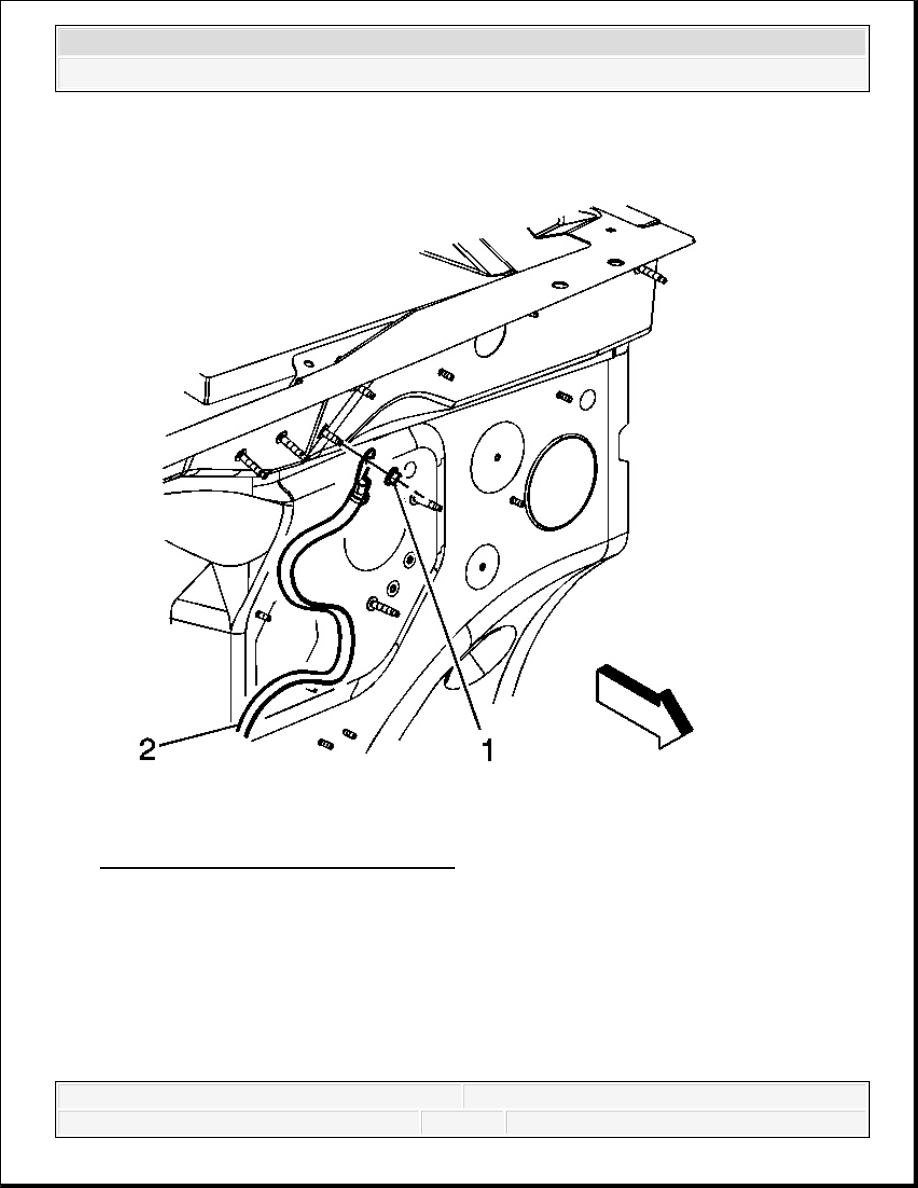

Fig. 219: View Of Ground Strap & Nut
Courtesy of GENERAL MOTORS CORP.
1. Install the ground strap (2) to the vehicle and the stud on the plenum front panel.
2. Install the ground strap nut (1) to the stud on the plenum front panel.
Tighten: Tighten the nut to 9 N.m (80 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

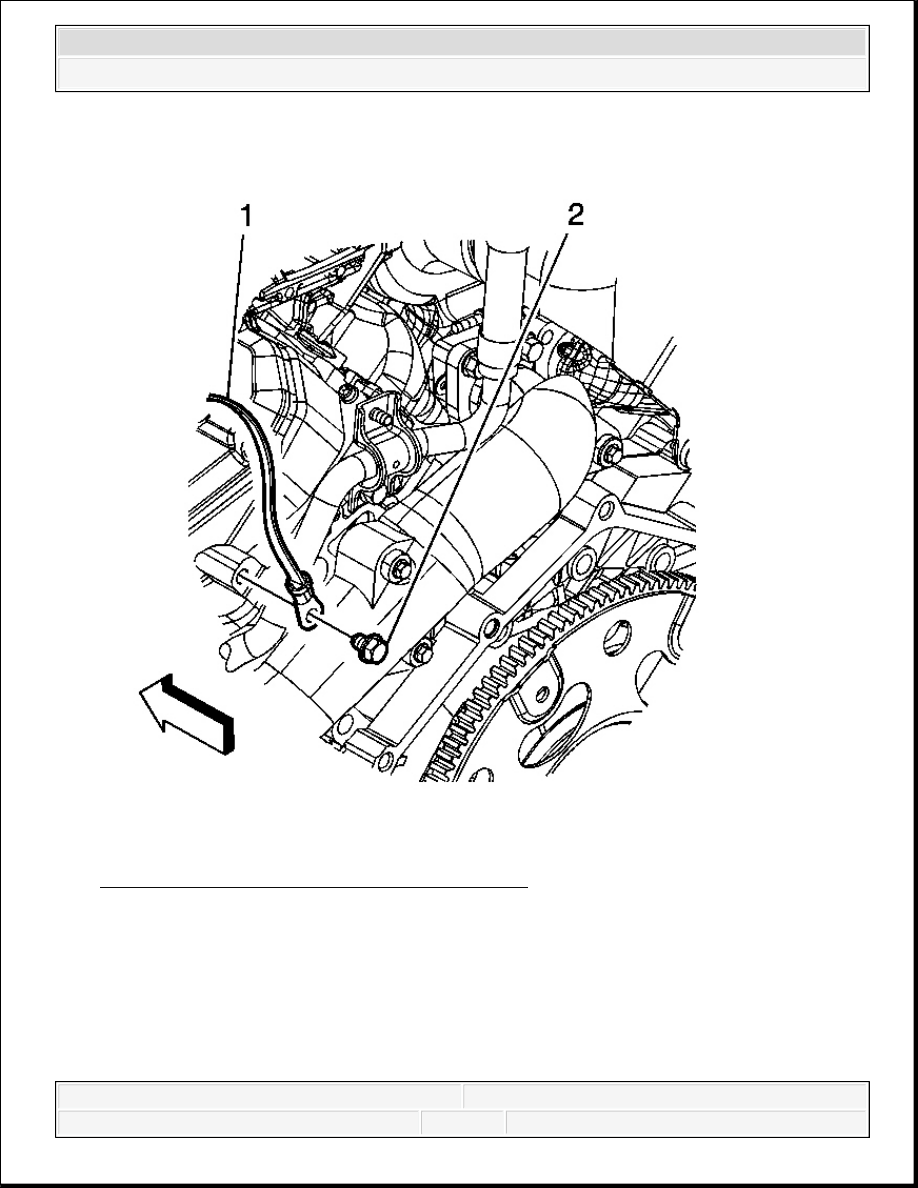

Fig. 220: View Of Engine Ground Strap & Bolt
Courtesy of GENERAL MOTORS CORP.
3. Position the ground strap (1) to the cylinder head.
4. Install the ground strap bolt (2) to the cylinder head.
Tighten: Tighten the bolt to 16 N.m (12 lb ft).
STARTER MOTOR REPLACEMENT (4.3L)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Removal Procedure

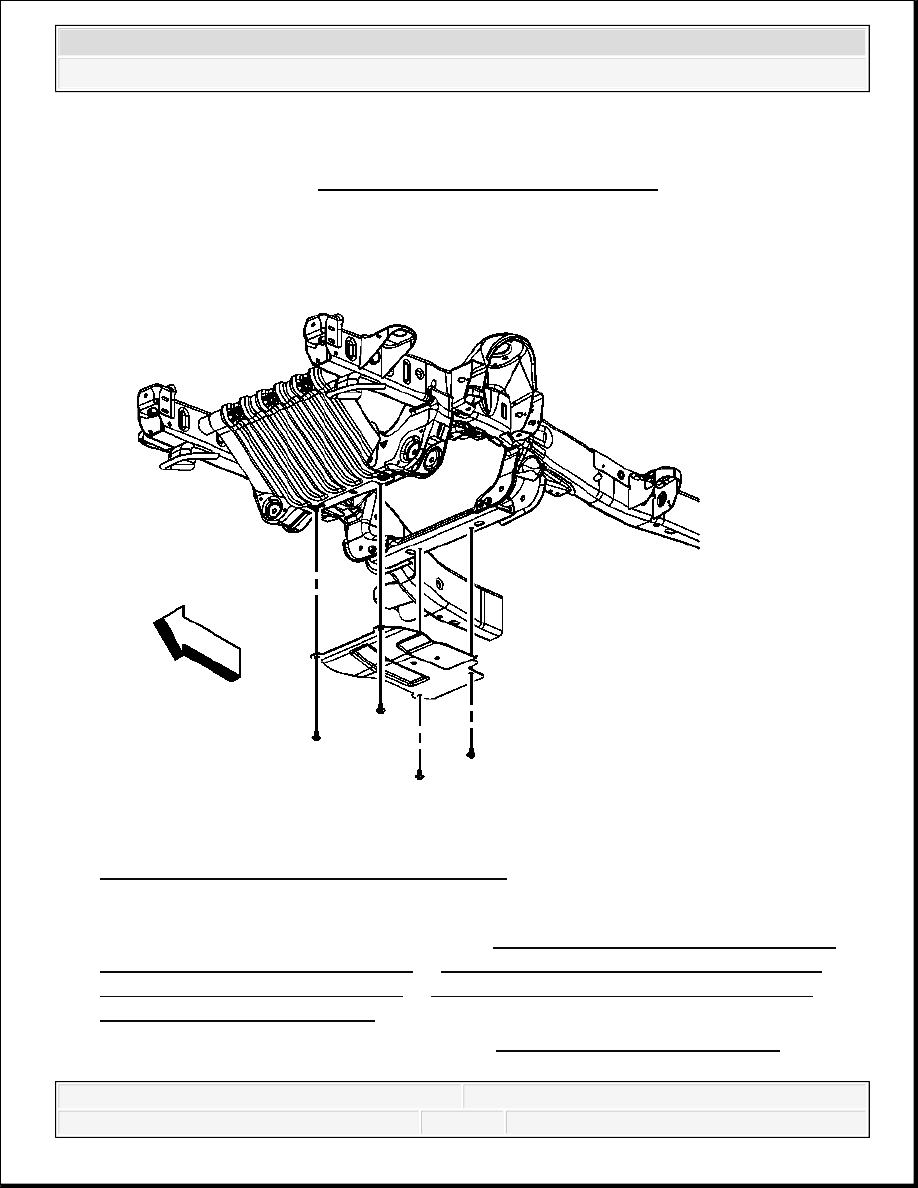

Fig. 221: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection
and Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
3. Remove the oil pan skid plate bolts and plate, if equipped.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
