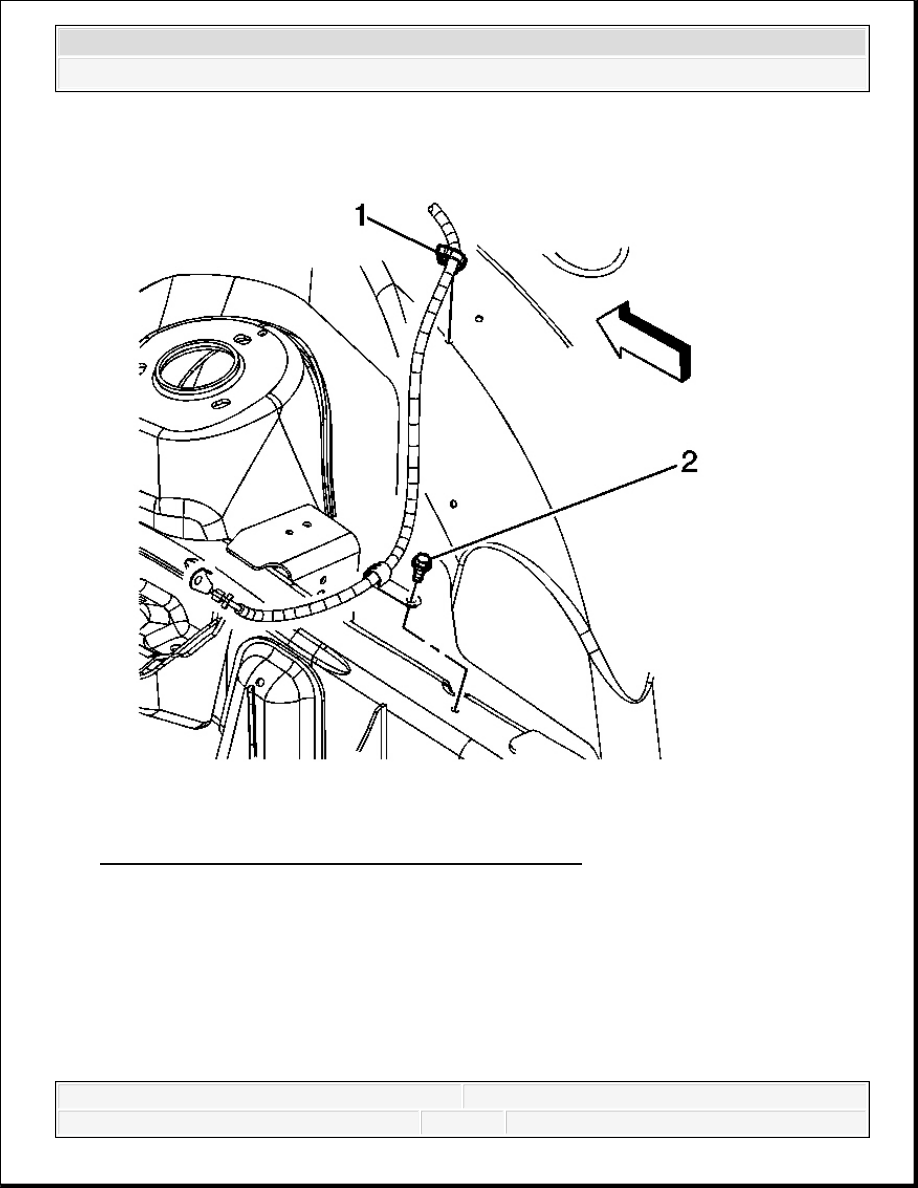

Fig. 222: View Of Starter Solenoid Cable Clip & Bolt
Courtesy of GENERAL MOTORS CORP.
4. Remove the starter solenoid cable clip bolt (2) from the frame.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 223: View of Starter Motor Bolts
Courtesy of GENERAL MOTORS CORP.
5. Remove the starter motor bolts.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

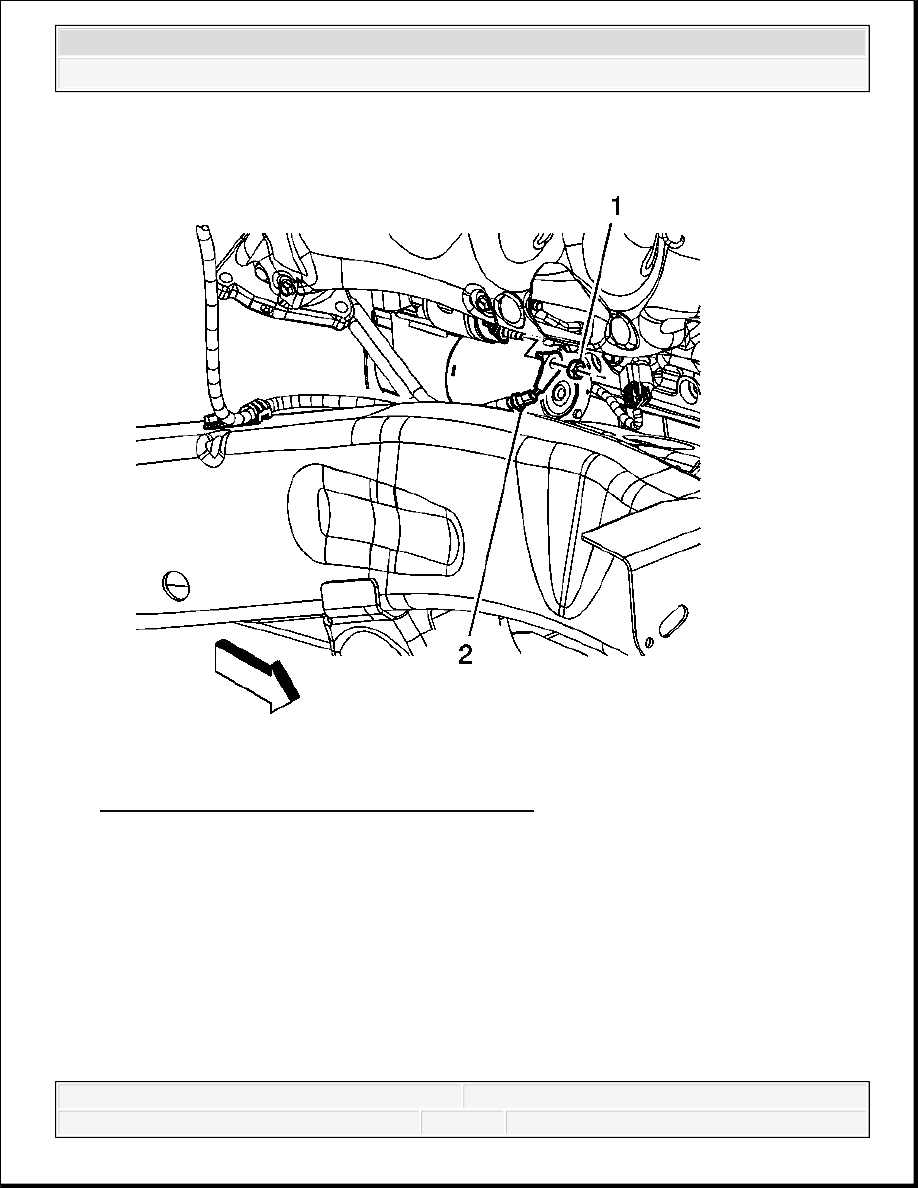

Fig. 224: View Of Starter Solenoid Cable & Nut
Courtesy of GENERAL MOTORS CORP.
6. Remove the starter solenoid cable lead nut (1).
7. Remove the starter solenoid cable lead (2) from the starter.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

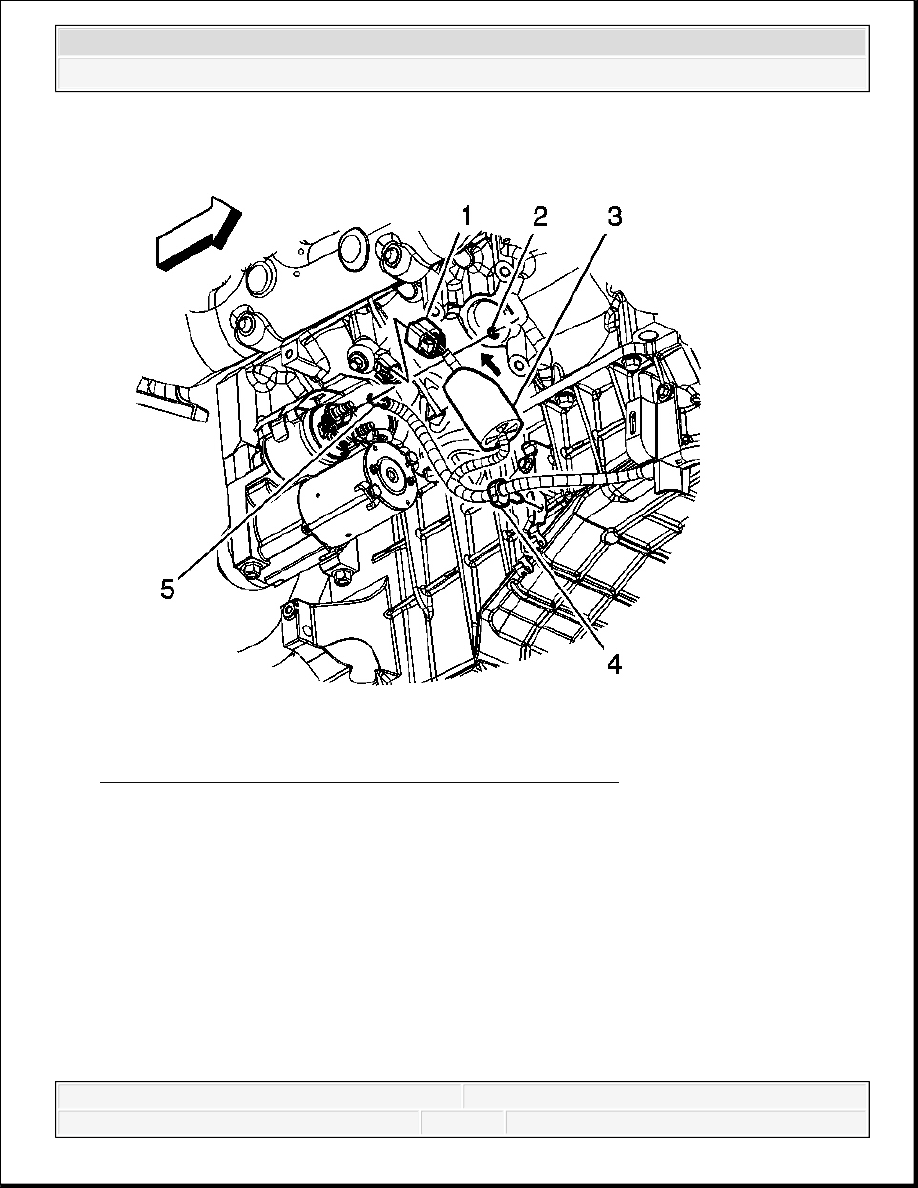

Fig. 225: View Of Engine Wiring Harness & Components
Courtesy of GENERAL MOTORS CORP.
8. Remove the engine wiring harness lead nut (2).
9. Remove the engine wiring harness lead (5) from the starter.
