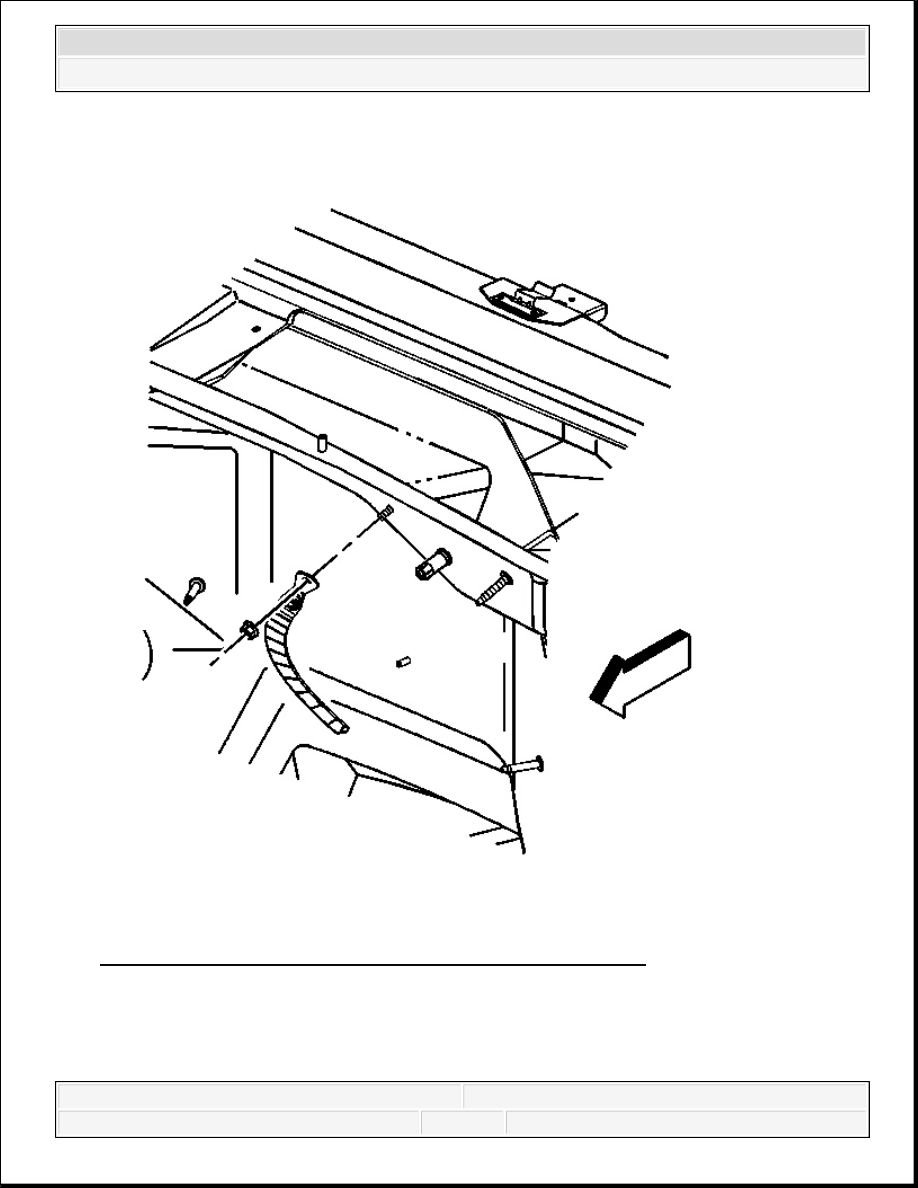

Fig. 214: View Of Ground Strap Nut At Front Of Dash Stud
Courtesy of GENERAL MOTORS CORP.

3. Remove the ground strap nut from the stud at the front of dash.

4. Remove the ground strap from the stud.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Installation Procedure

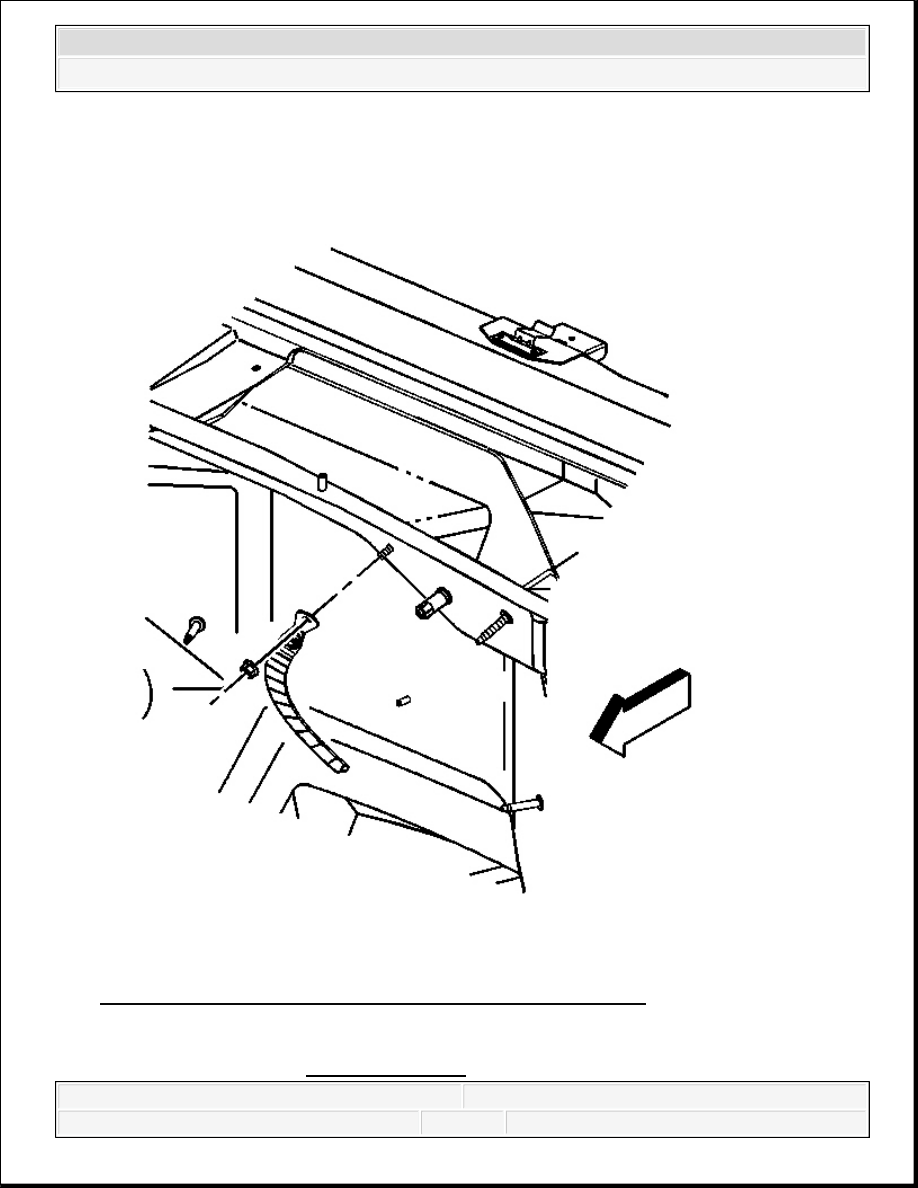

Fig. 215: View Of Ground Strap Nut At Front Of Dash Stud
Courtesy of GENERAL MOTORS CORP.

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

1. Install the ground strap to the stud.

2. Install the ground strap nut to the stud at the front of dash.

Tighten: Tighten the nut to 9 N.m (80 lb in).

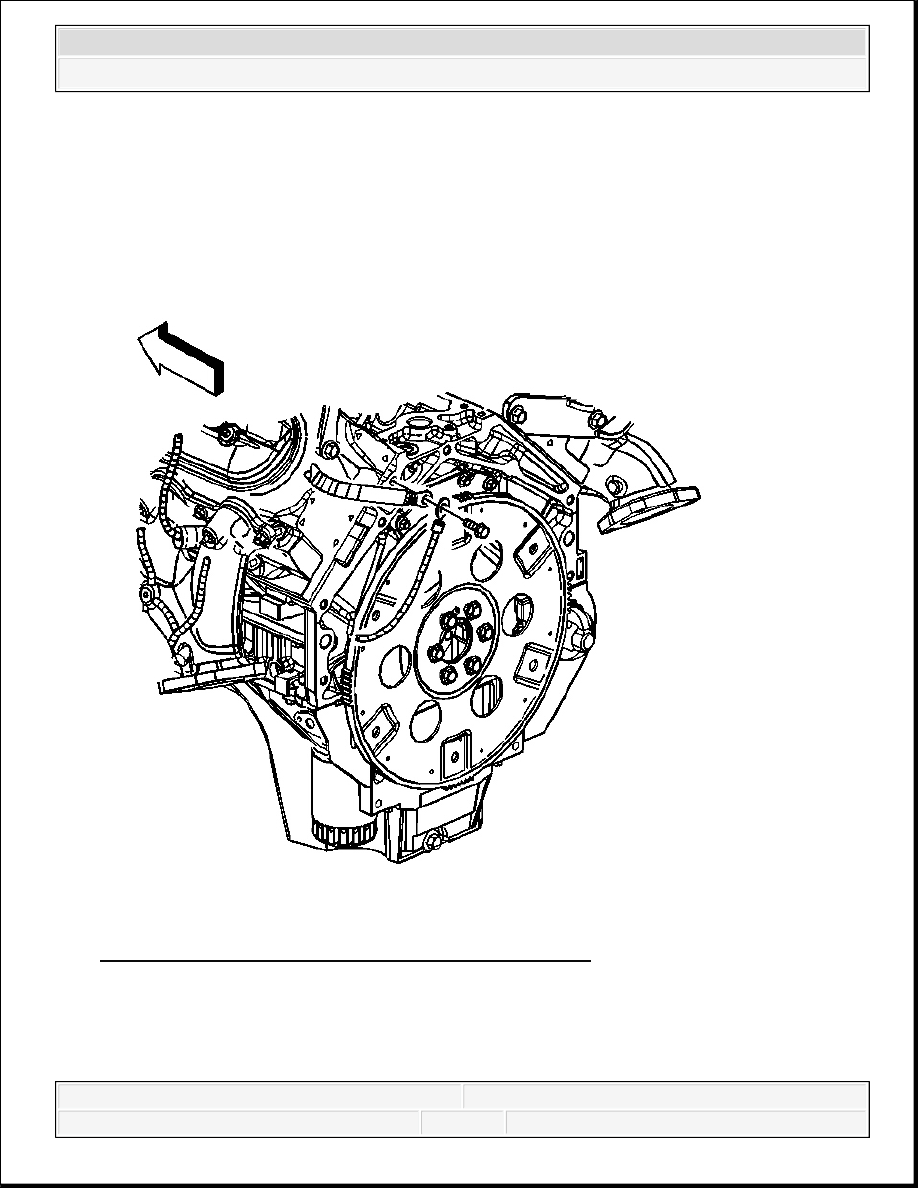

Fig. 216: View Of Ground Cable Bolt At Engine Block
Courtesy of GENERAL MOTORS CORP.

3. Position the ground strap and engine wiring harness ground.

4. Install the engine wiring harness ground bolt.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Tighten: Tighten the bolt to 16 N.m (12 lb ft).

ENGINE GROUND STRAP REPLACEMENT (6.6L)

Removal Procedure

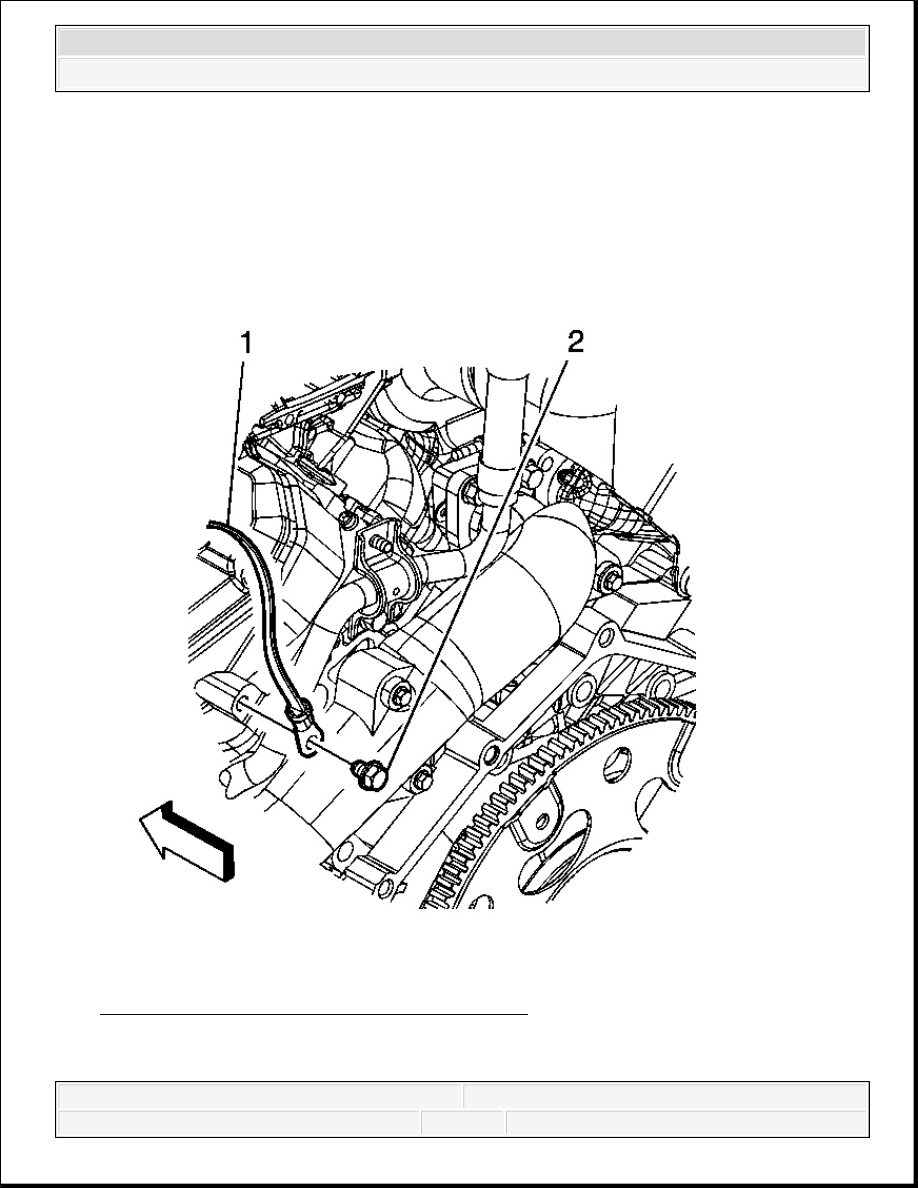

Fig. 217: View Of Engine Ground Strap & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Remove the engine ground strap bolt (2) from the rear of the cylinder head.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
