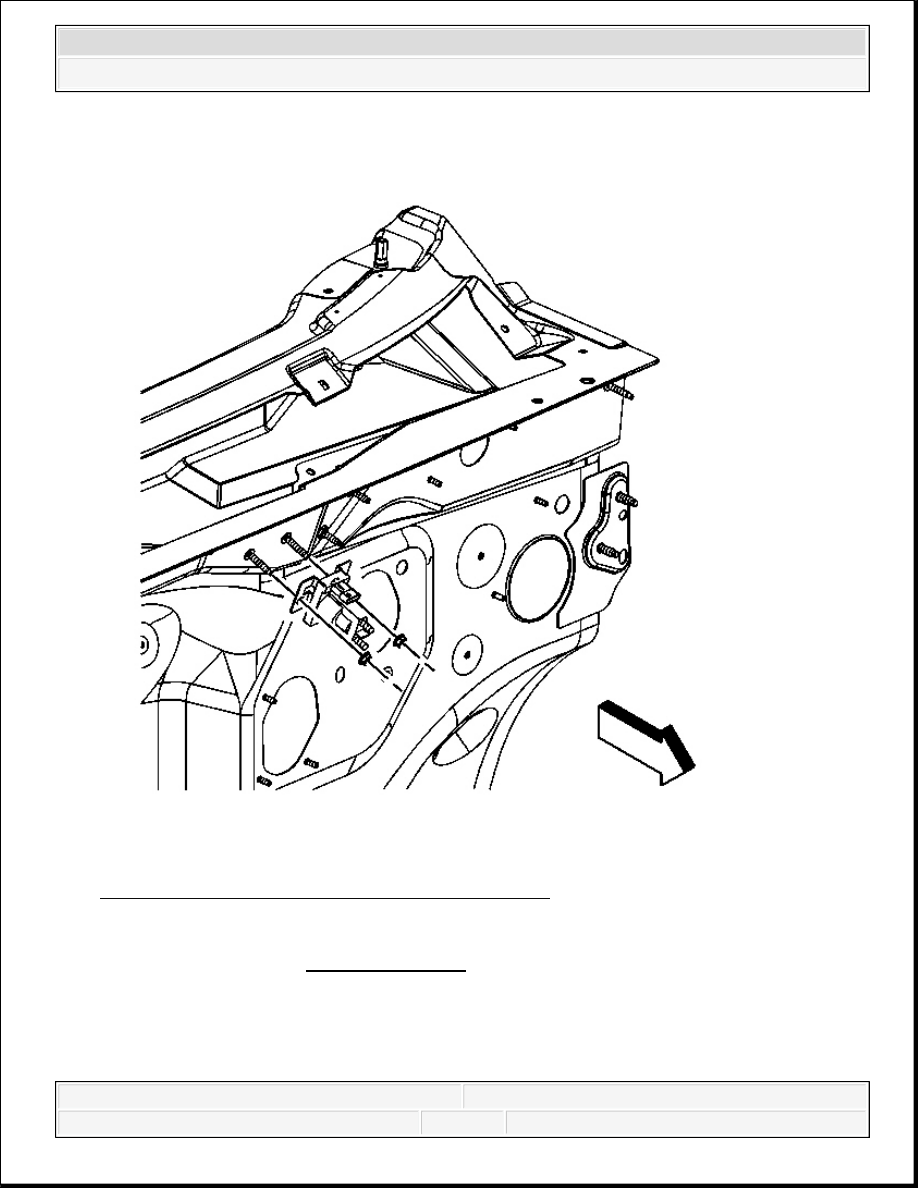

Fig. 206: View Of Auxiliary Battery Relay & Nuts 1. Install the auxiliary battery relay and nuts. Tighten: Tighten the nuts to 9 N.m (80 lb in). NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

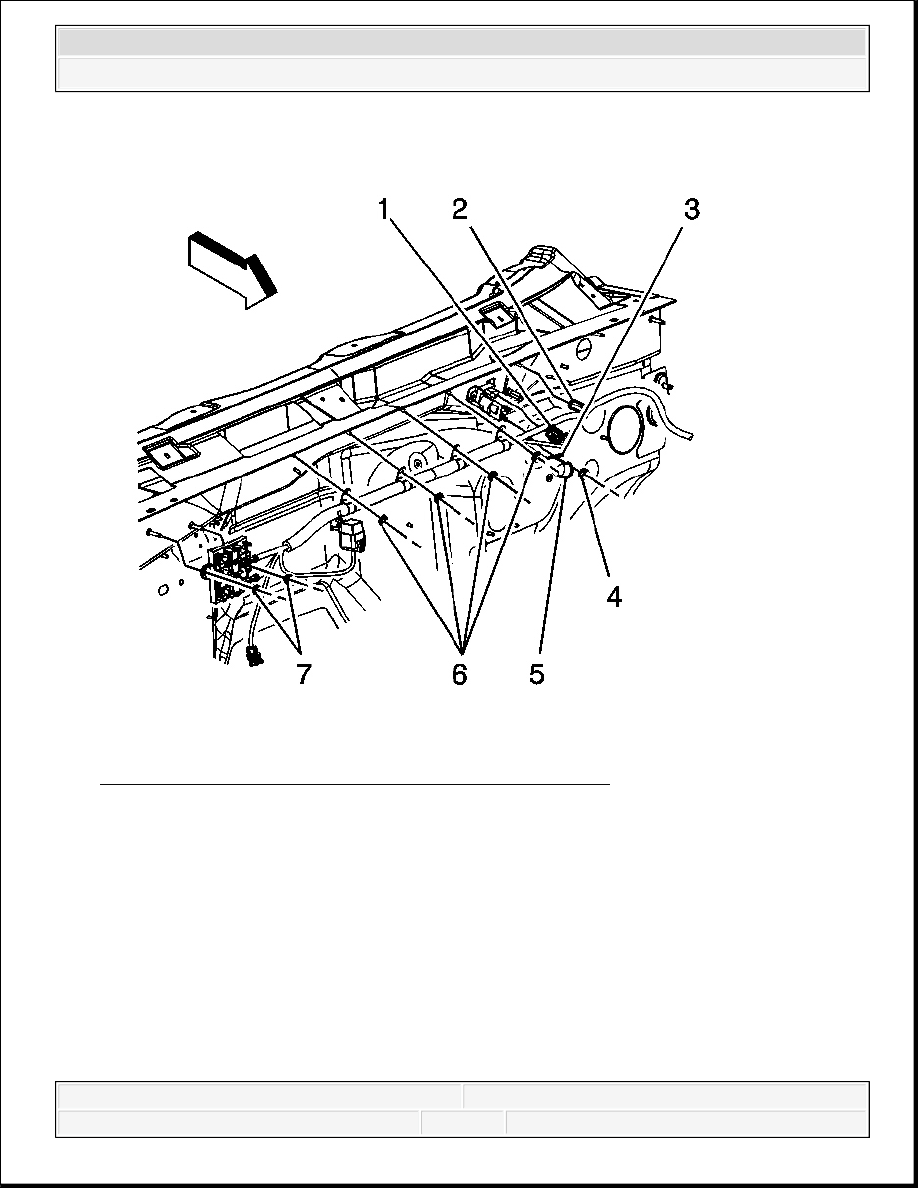

Fig. 207: View Of Battery Cable Nuts, Retainers & Bolts 2. Install the auxiliary battery positive cable to the auxiliary battery relay. 3. Install the auxiliary battery positive cable nut (4) to the battery relay stud. Tighten: Tighten the nut to 9 N.m (80 lb in). 4. Position the auxiliary battery positive cable boot (5) to the auxiliary battery relay stud. 5. Connect the auxiliary battery positive cable electrical connector (1) to the battery relay.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

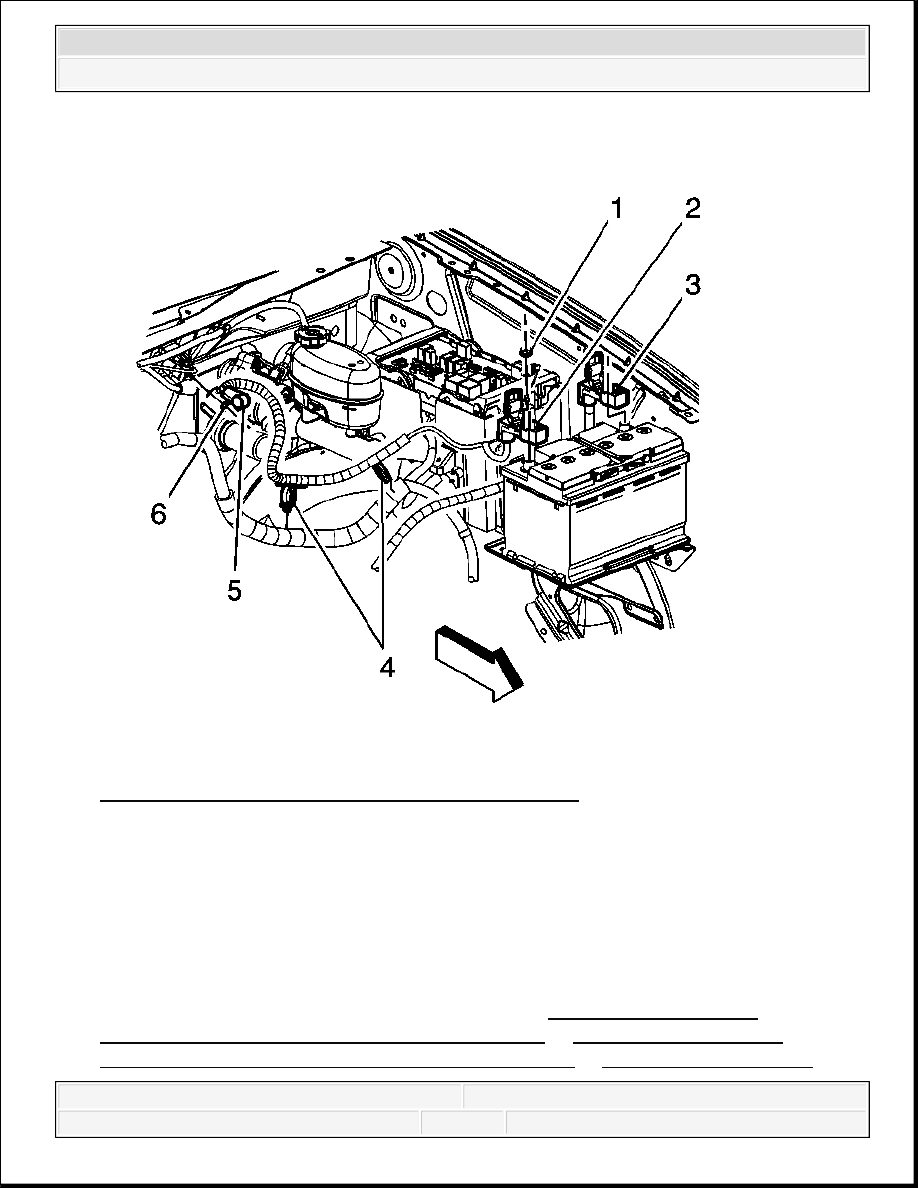

Fig. 208: View Of Battery & Battery Cable Fasteners 6. Install the auxiliary battery positive cable to the auxiliary battery relay. 7. Install the auxiliary battery positive cable nut (6) to the battery relay stud. Tighten: Tighten the nut to 9 N.m (80 lb in). 8. Position the auxiliary battery positive cable boot (5) to the auxiliary battery relay stud. 9. Connect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

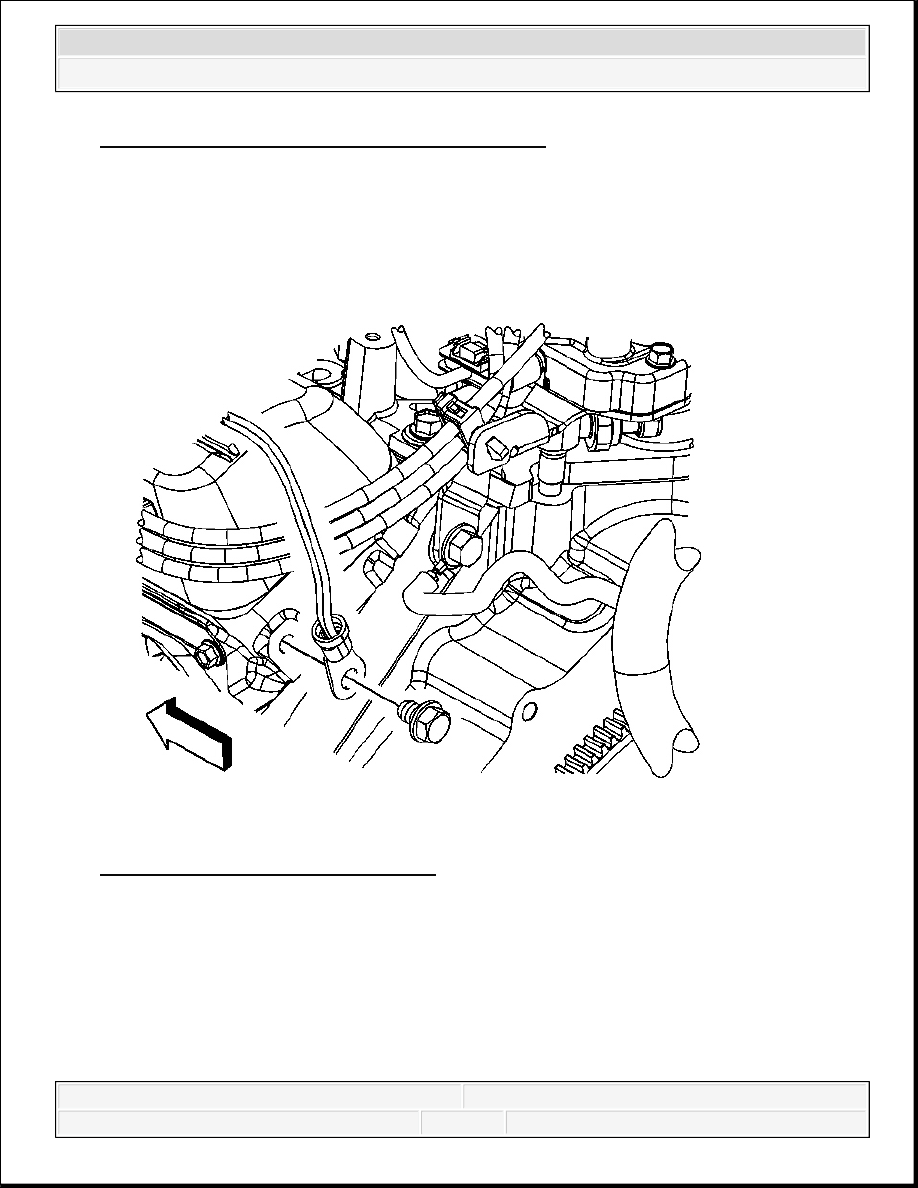

Disconnection and Connection (w/Dual Batteries). ENGINE GROUND STRAP REPLACEMENT (4.3L) Removal Procedure Fig. 209: View Of Ground Strap Bolt 1. Remove the ground strap bolt from the rear of the left cylinder head. 2. Reposition the ground strap from the cylinder head.
