AUXILIARY BATTERY RELAY REPLACEMENT (6.2L) Removal Procedure Remove the auxiliary battery if equipped. Refer to Auxiliary Battery Replacement (6.2L, 1 Auxiliary Battery Tray Bolts (Qty: 6) Tighten: 9 N.m (80 lb in) NOTE: Refer to Fastener Notice . 2 Auxiliary Battery Tray CAUTION: Refer to BATTERY DISCONNECT CAUTION
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

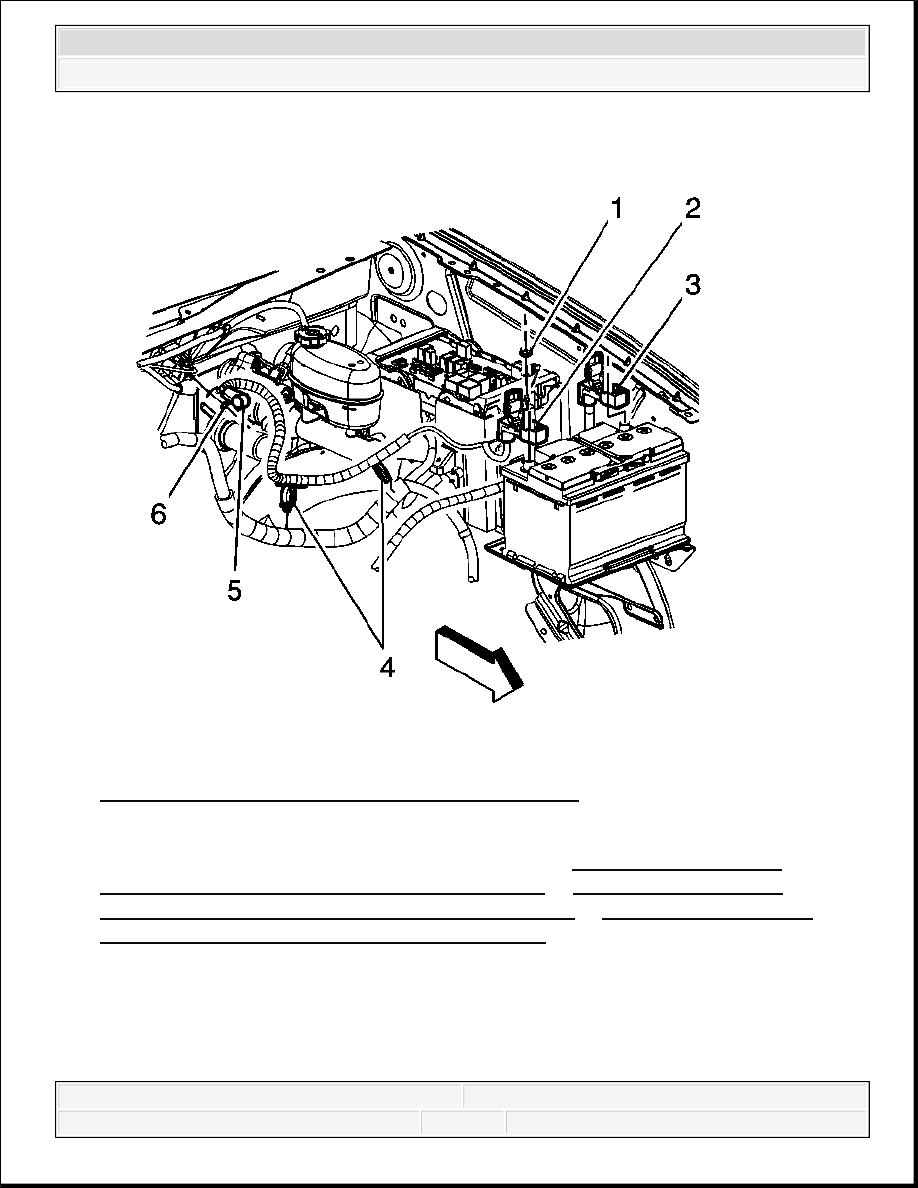

Fig. 203: View Of Battery & Battery Cable Fasteners 1. Disconnect the auxiliary battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable 2. Reposition the auxiliary battery positive cable boot (5) from the auxiliary battery relay stud. 3. Remove the auxiliary battery positive cable nut (6) from the battery relay stud. 4. Remove the auxiliary battery positive cable from the auxiliary battery relay.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

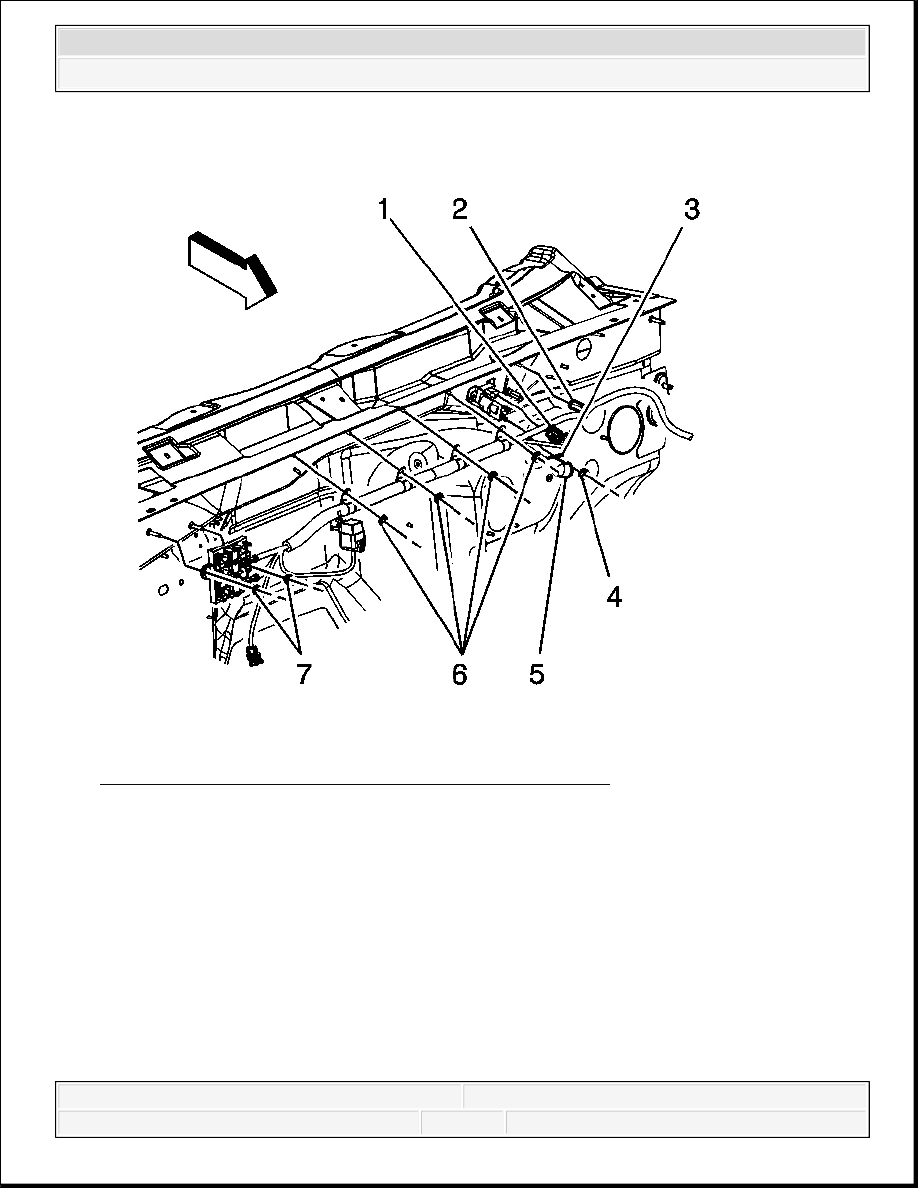

Fig. 204: View Of Battery Cable Nuts, Retainers & Bolts 5. Disconnect the auxiliary battery positive cable electrical connector (1) from the battery relay. 6. Reposition the auxiliary battery positive cable boot (5) from the auxiliary battery relay stud. 7. Remove the auxiliary battery positive cable nut (4) from the battery relay stud. 8. Remove the auxiliary battery positive cable from the auxiliary battery relay.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

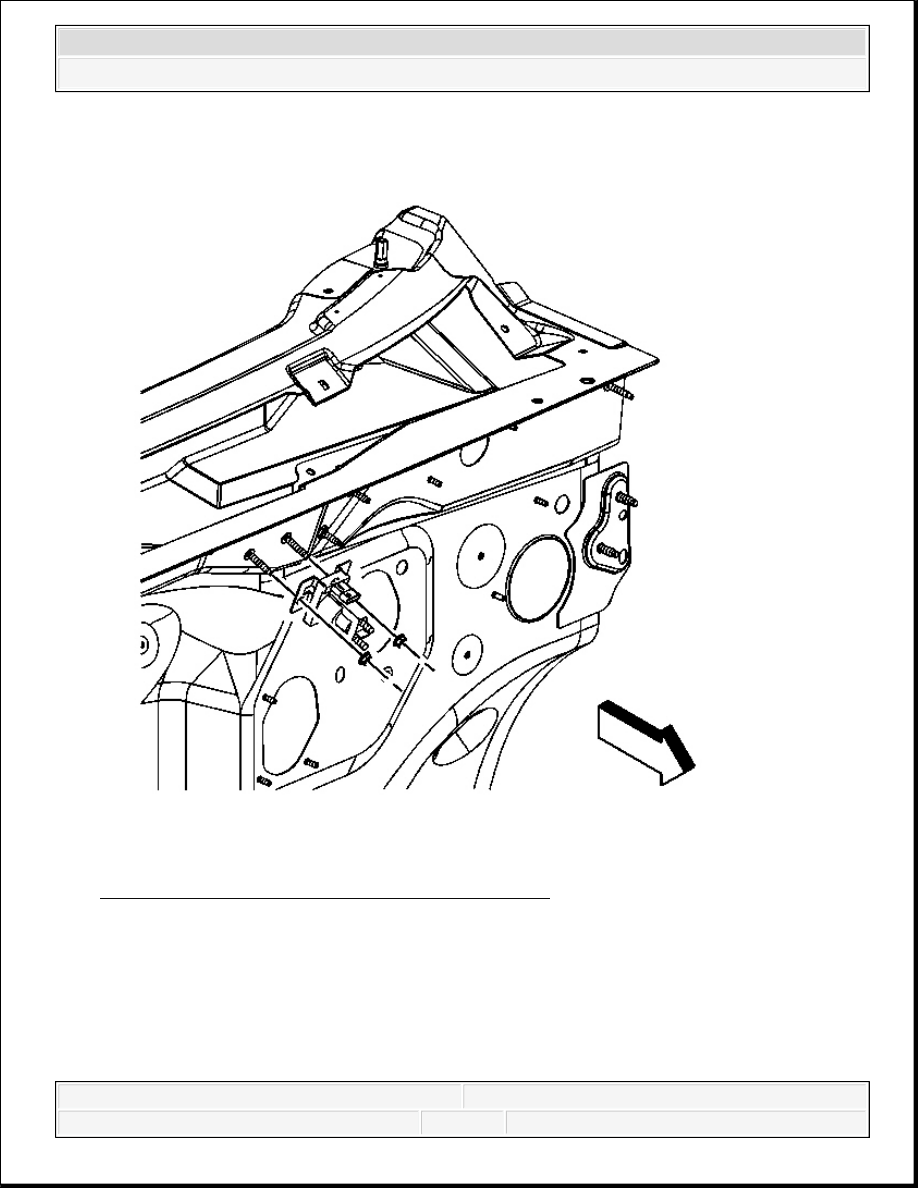

Fig. 205: View Of Auxiliary Battery Relay & Nuts 9. Remove the auxiliary battery relay nuts and relay. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
