8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
AUXILIARY BATTERY REPLACEMENT (6.2L, AND 6.6L)
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

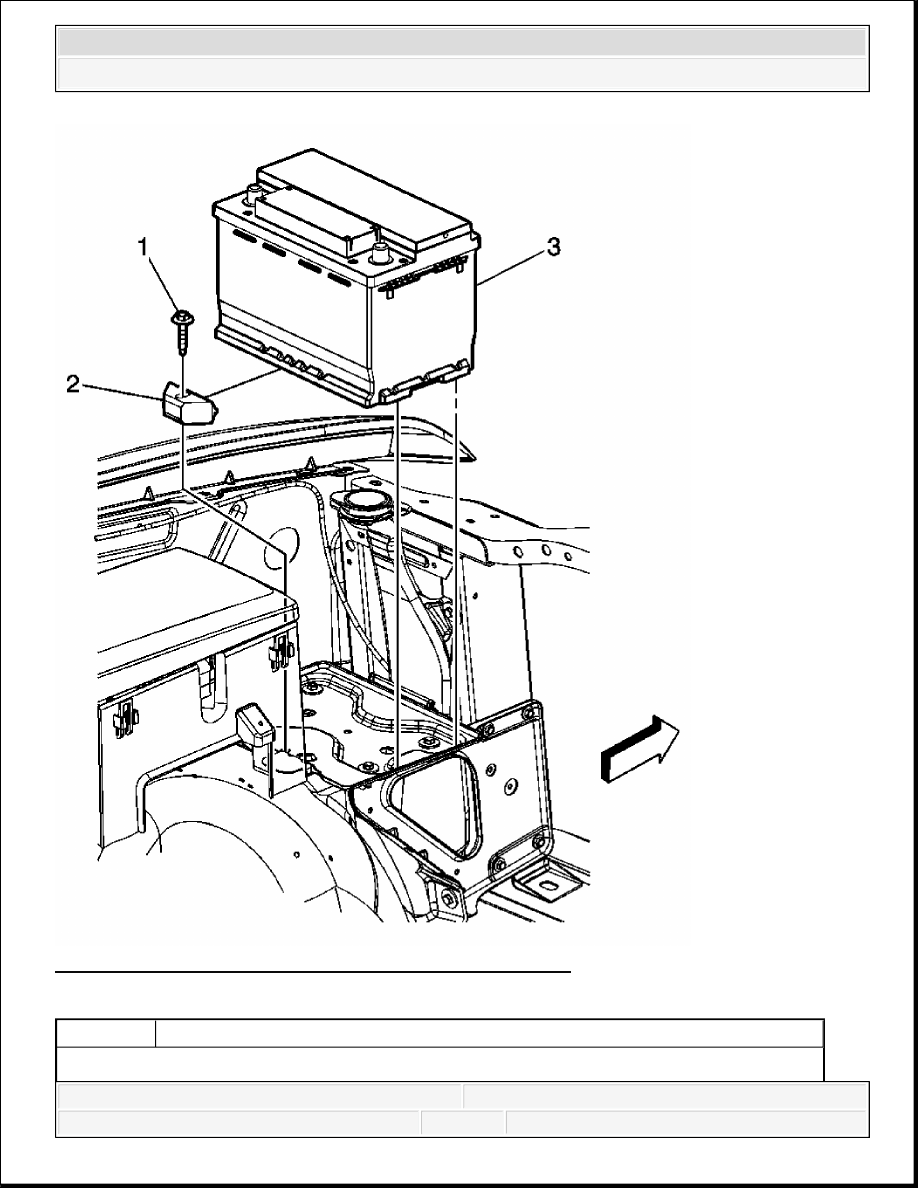

Fig. 197: Auxiliary Battery Replacement (6.2L, and 6.6L)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
Preliminary Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
BATTERY TRAY REPLACEMENT
Removal Procedure
1. Disconnect the battery cables. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
2. Remove the front end sheet metal diagonal brace. Refer to Front End Sheet Metal
Diagonal Brace Replacement .
1
Auxiliary Battery Hold Down Bolt
Tighten: 25 N.m (18 lb ft)
NOTE:
Refer to Fastener Notice .
2
Auxiliary Battery Hold Down
3
Auxiliary Battery
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

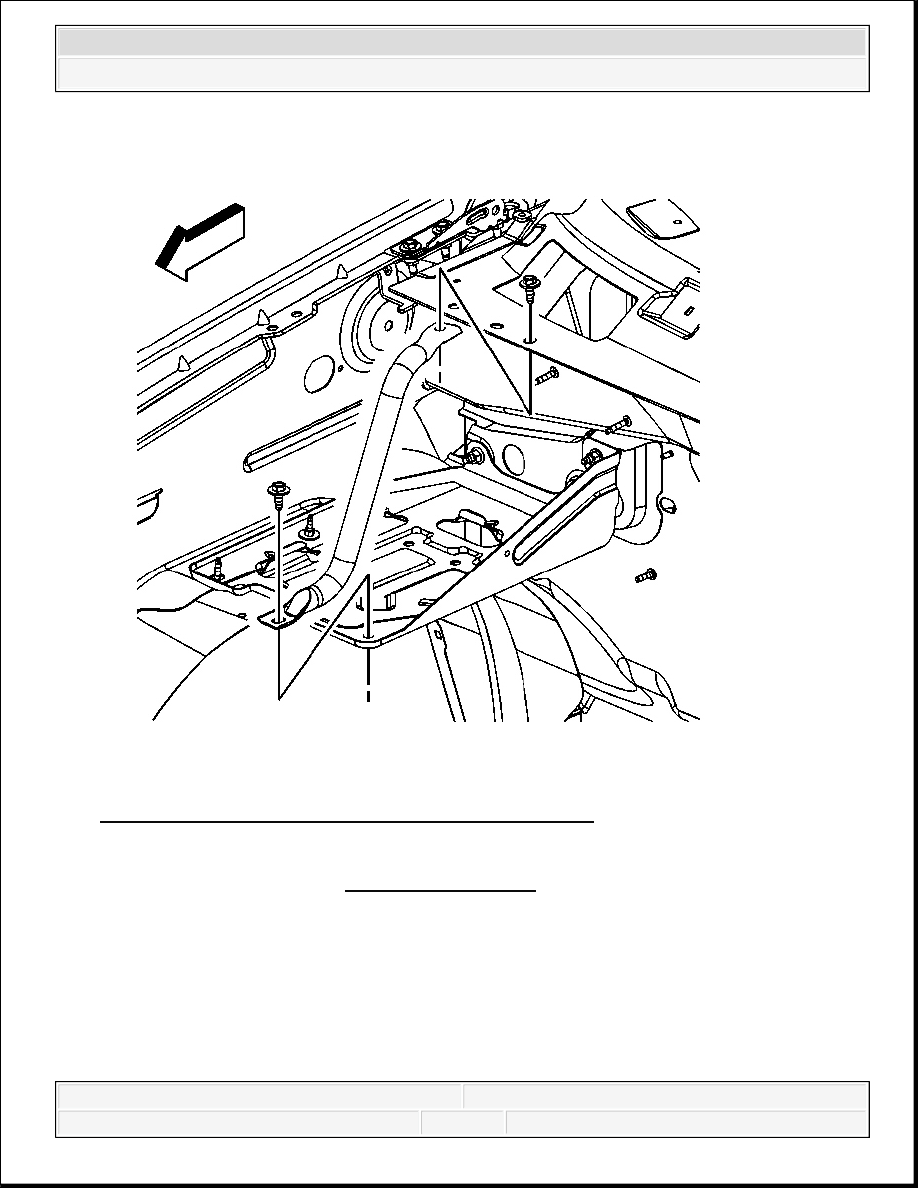

Fig. 198: View Of Battery Tray Front Support & Bolts
Courtesy of GENERAL MOTORS CORP.
1. Remove the battery. Refer to Battery Replacement.
2. Remove the battery tray front support bolts.
3. Remove the battery tray front support.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
