Fig. 193: View Of Battery Hold Down Retainer & Bolt
Courtesy of GENERAL MOTORS CORP.

7. Remove the battery hold down retainer bolt and retainer.

8. Remove the battery.

Installation Procedure

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Fig. 194: View Of Battery Hold Down Retainer & Bolt
Courtesy of GENERAL MOTORS CORP.

1. Install the battery.

2. Install the battery hold down retainer and bolt.

NOTE:

Refer to Fastener Notice .

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

Tighten: Tighten the bolt to 25 N.m (18 lb ft).

Fig. 195: View Of Front Fender Rear Upper Brace & Bolts
Courtesy of GENERAL MOTORS CORP.

3. Install the front fender rear upper brace and bolts.

Tighten: Tighten the bolts to 9 N.m (80 lb in).

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

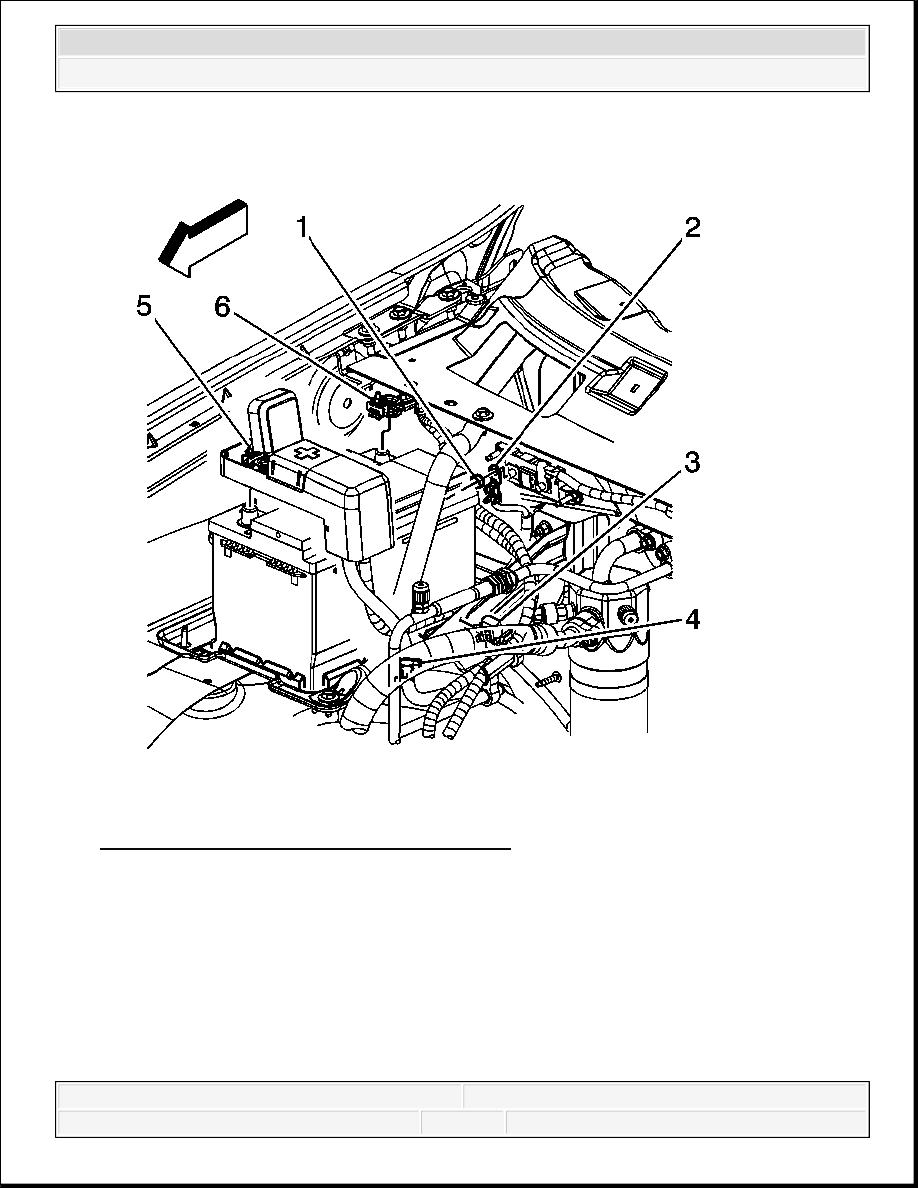

Fig. 196: View Of Battery Cable Components
Courtesy of GENERAL MOTORS CORP.

4. Position the starter solenoid cable to the battery.

5. Install the starter solenoid cable to the positive battery terminal.

6. Tighten the starter solenoid cable nut (5).

Tighten: Tighten the nut to 5 N.m (44 lb in).

7. Close the starter solenoid cable cover at the positive battery terminal.

2008 Chevrolet Silverado 1500

2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
