Chevrolet Silverado / GMC Sierra. Manual - part 1752

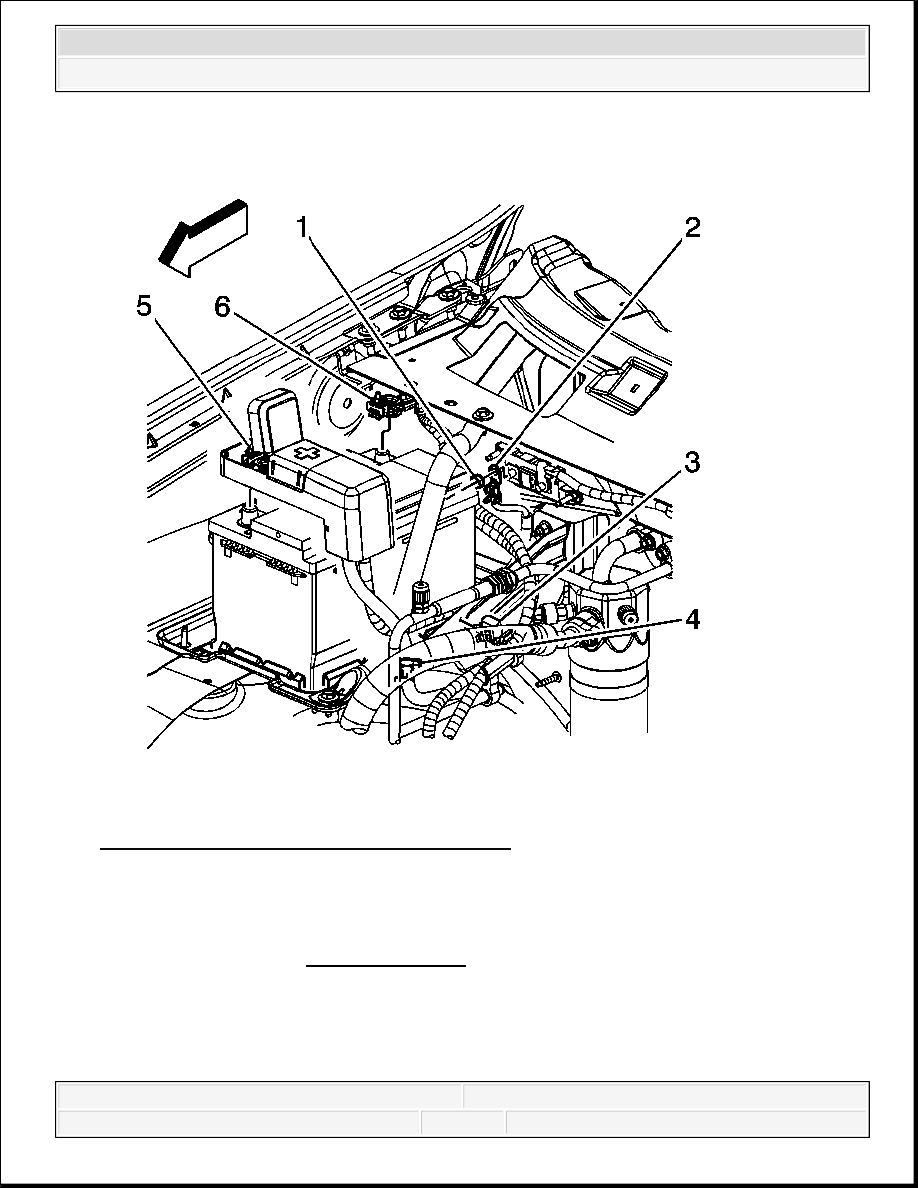

Fig. 185: View Of Battery Cable Components
Courtesy of GENERAL MOTORS CORP.
2. Install the starter solenoid cable to the positive battery terminal.
3. Tighten the starter solenoid cable nut (5).
Tighten: Tighten the nut to 5 N.m (44 lb in).
NOTE:
Refer to Fastener Notice .
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
4. Close the starter solenoid cable cover at the positive battery terminal.
5. Install the starter solenoid cable clip (4) to the A/C evaporator tube.

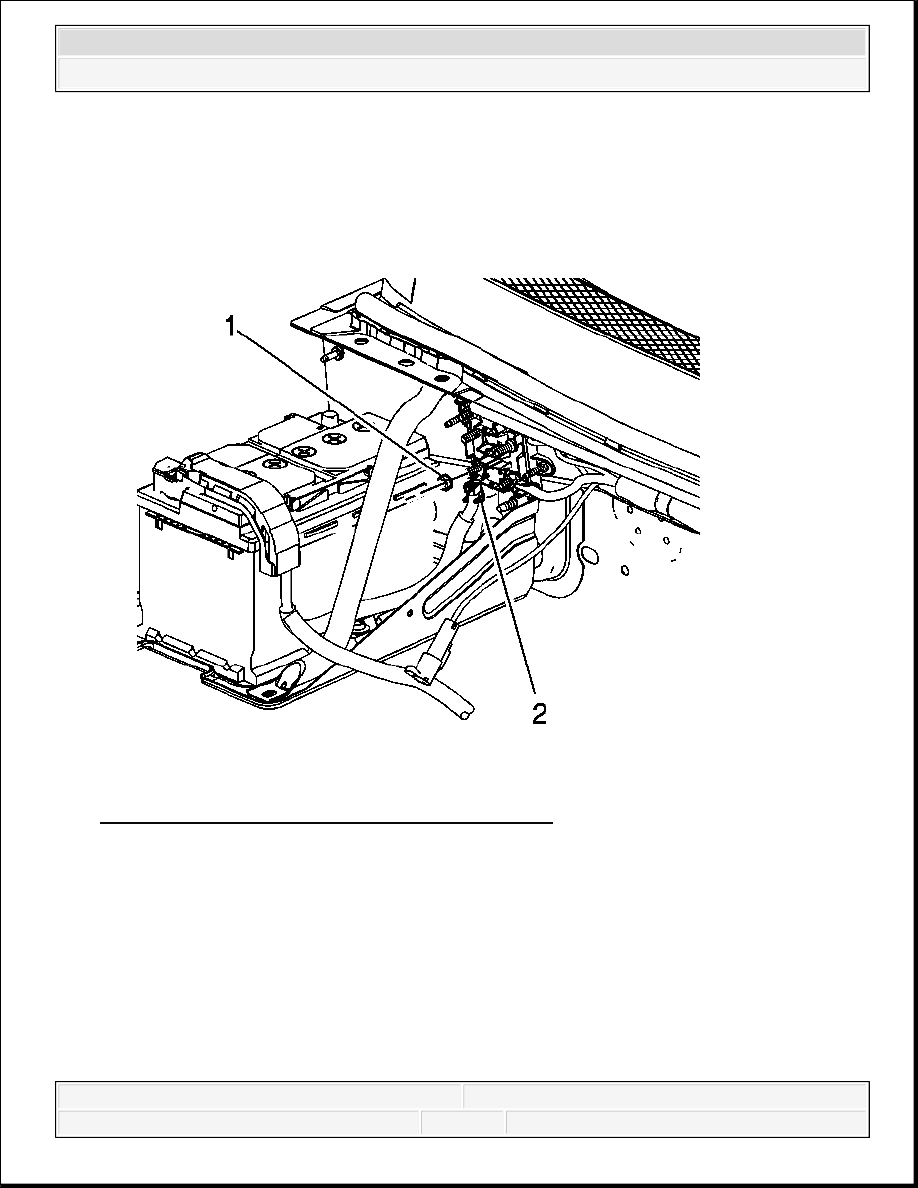

Fig. 186: View Of Solenoid Cable Terminal & Nut
Courtesy of GENERAL MOTORS CORP.
6. Install the starter solenoid cable terminal (2) to the mega fuse stud.
7. Install the starter solenoid cable nut (1) to the mega fuse stud.
Tighten: Tighten the nut to 9 N.m (80 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

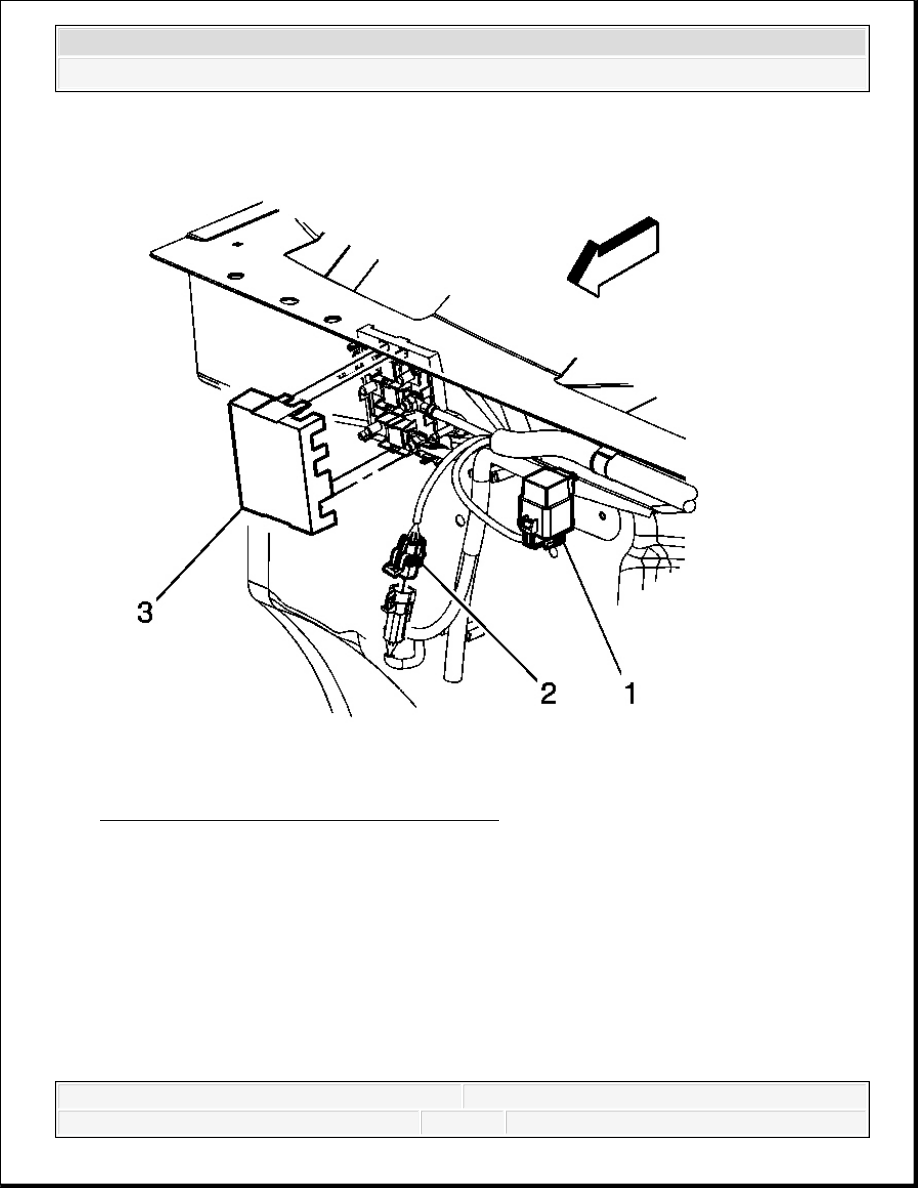

Fig. 187: View Of Fuse Cover & Connectors
Courtesy of GENERAL MOTORS CORP.
8. Install the mega fuse cover (3).
9. Raise the vehicle.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

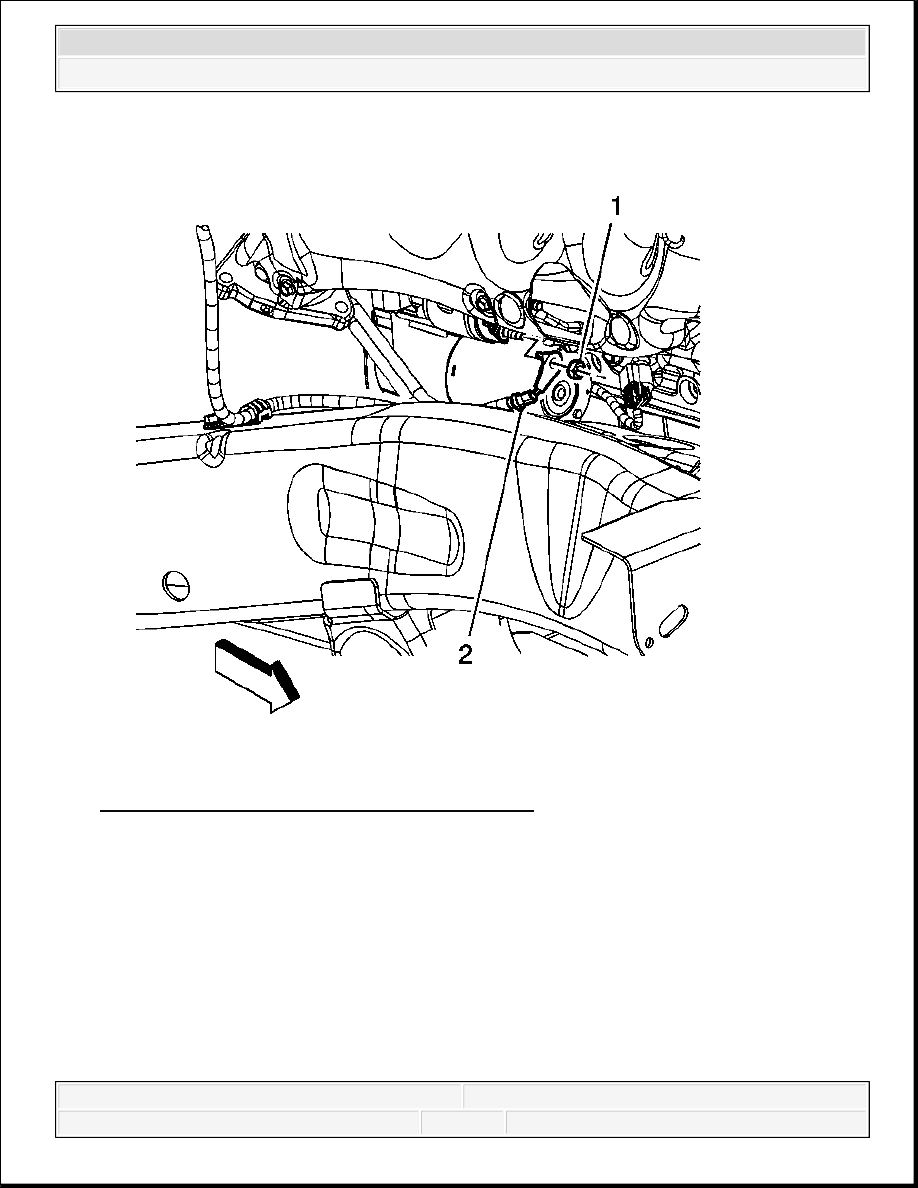

Fig. 188: View Of Starter Solenoid Cable & Nut
Courtesy of GENERAL MOTORS CORP.
10. Install the starter solenoid cable (2) to the starter.
11. Install the starter solenoid cable nut (1) to the starter.
Tighten: Tighten the nut to 9 N.m (80 lb in).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
