STARTER SOLENOID CABLE REPLACEMENT (6.2L W/AUXILIARY BATTERY)
Removal Procedure

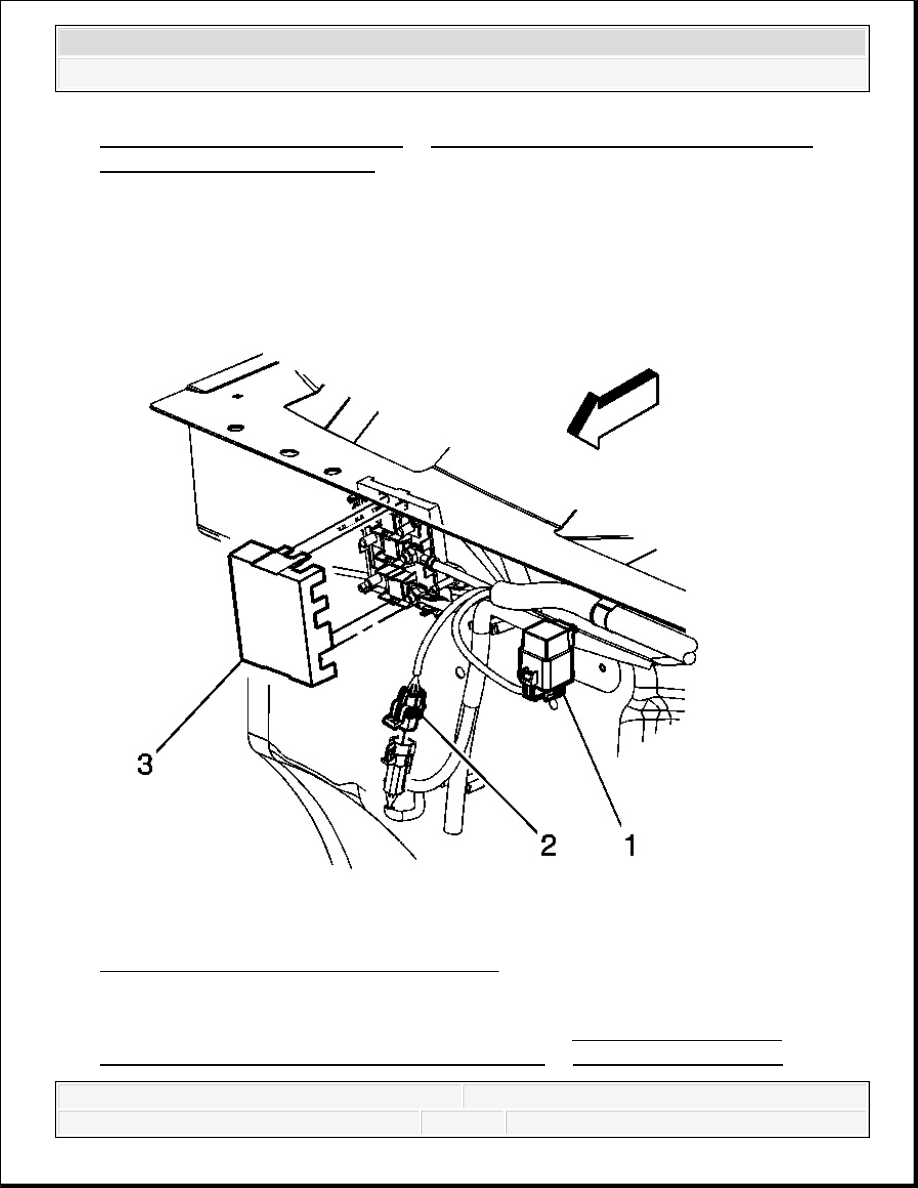

Fig. 177: View Of Fuse Cover & Connectors
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the auxiliary battery negative cable. Refer to Battery Negative Cable
Disconnection and Connection (w/Single Battery) or Battery Negative Cable
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Disconnection and Connection (w/Auxiliary Battery) or Battery Negative Cable
Disconnection and Connection (w/Dual Batteries).
2. Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct
Replacement .
3. Remove the mega fuse cover (3).

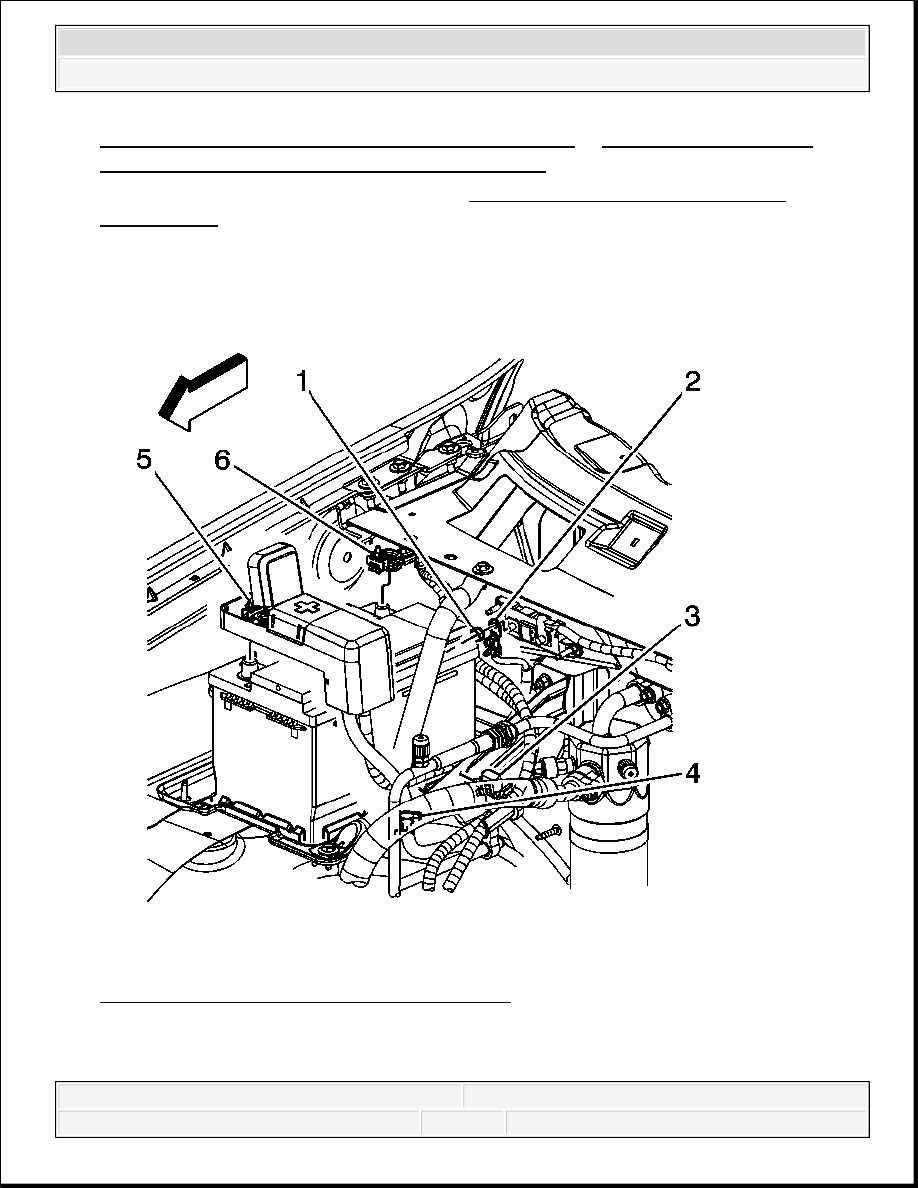

Fig. 178: View Of Battery Cable Components
Courtesy of GENERAL MOTORS CORP.
4. Open the starter solenoid cable cover at the positive battery terminal.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
5. Loosen the starter solenoid cable nut (5).
6. Remove the starter solenoid cable from the positive battery terminal.
7. Remove the starter solenoid cable clip (4) from the air conditioning (A/C) evaporator tube.

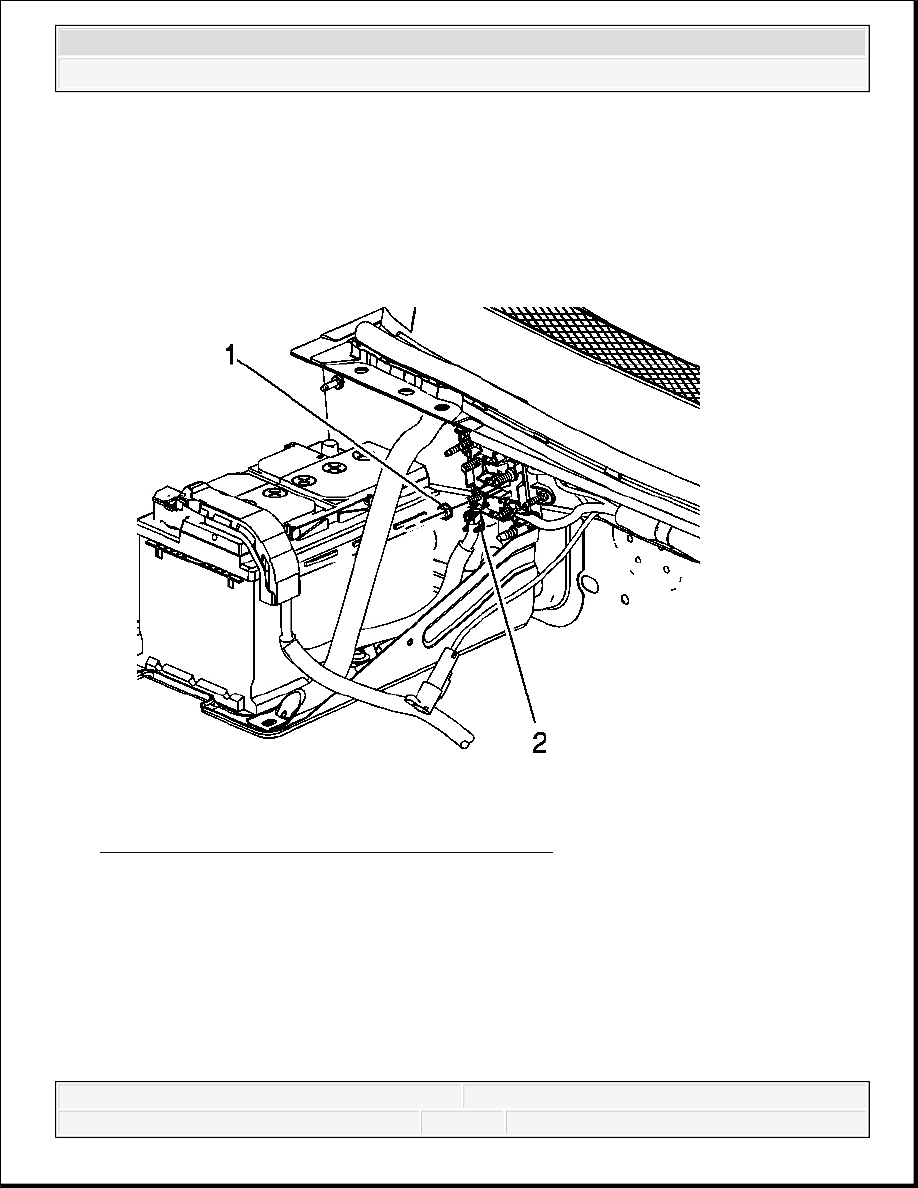

Fig. 179: View Of Solenoid Cable Terminal & Nut
Courtesy of GENERAL MOTORS CORP.
8. Remove the starter solenoid cable nut (1) from the mega fuse stud.
9. Remove the starter solenoid cable terminal (2) from the mega fuse stud.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

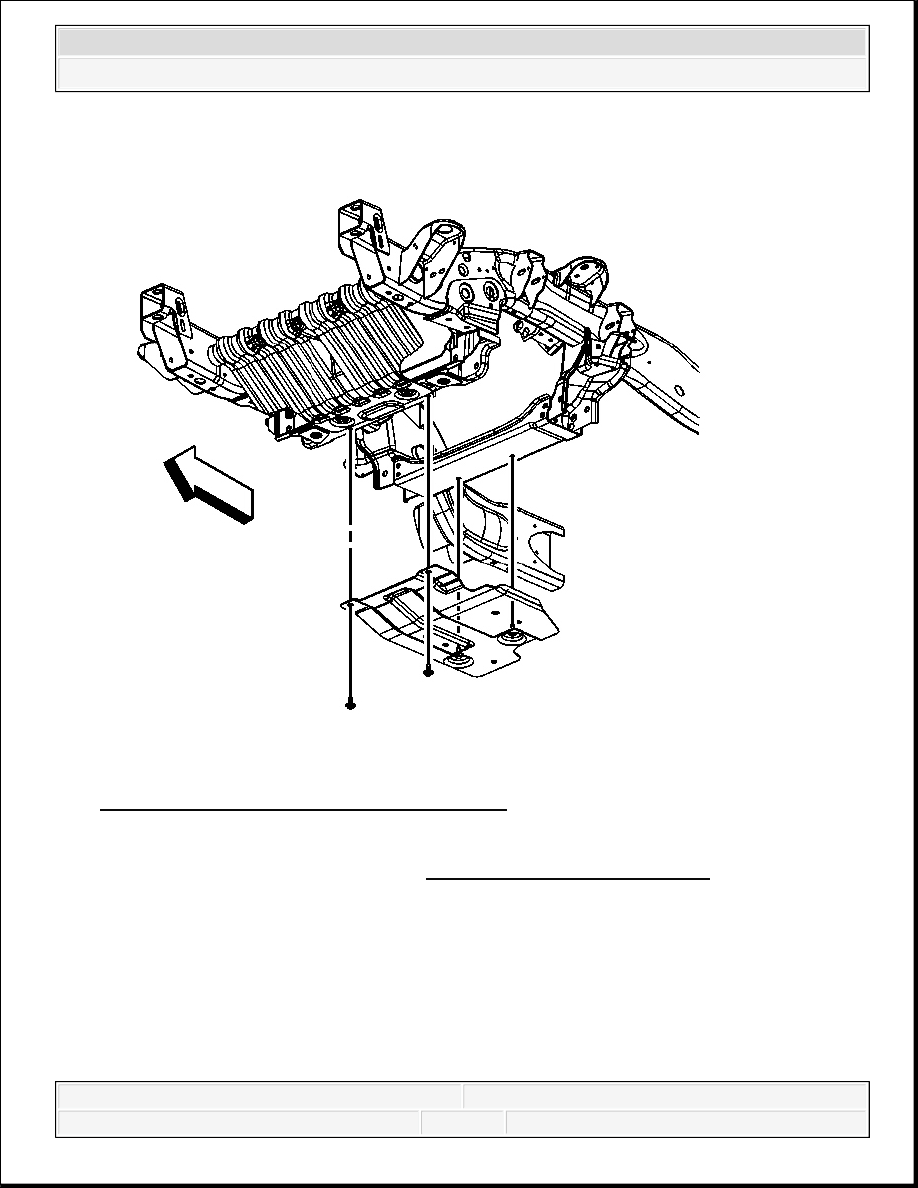

Fig. 180: View Of Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
10. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
11. Remove the front 2 oil pan skid plate bolts, loosen the rear 2 bolts and remove the skid
plate.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
