Fig. 62: View Of Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.
1. Install the positive battery cable to the vehicle.
2. Install the positive battery cable terminal to the mega fuse stud.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 63: View Of Positive Battery Cable Channel, Clips & Studs
Courtesy of GENERAL MOTORS CORP.
3. Install the positive battery cable channel at the plenum front panel.
4. Install the positive battery cable clips to the studs on the plenum front panel.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

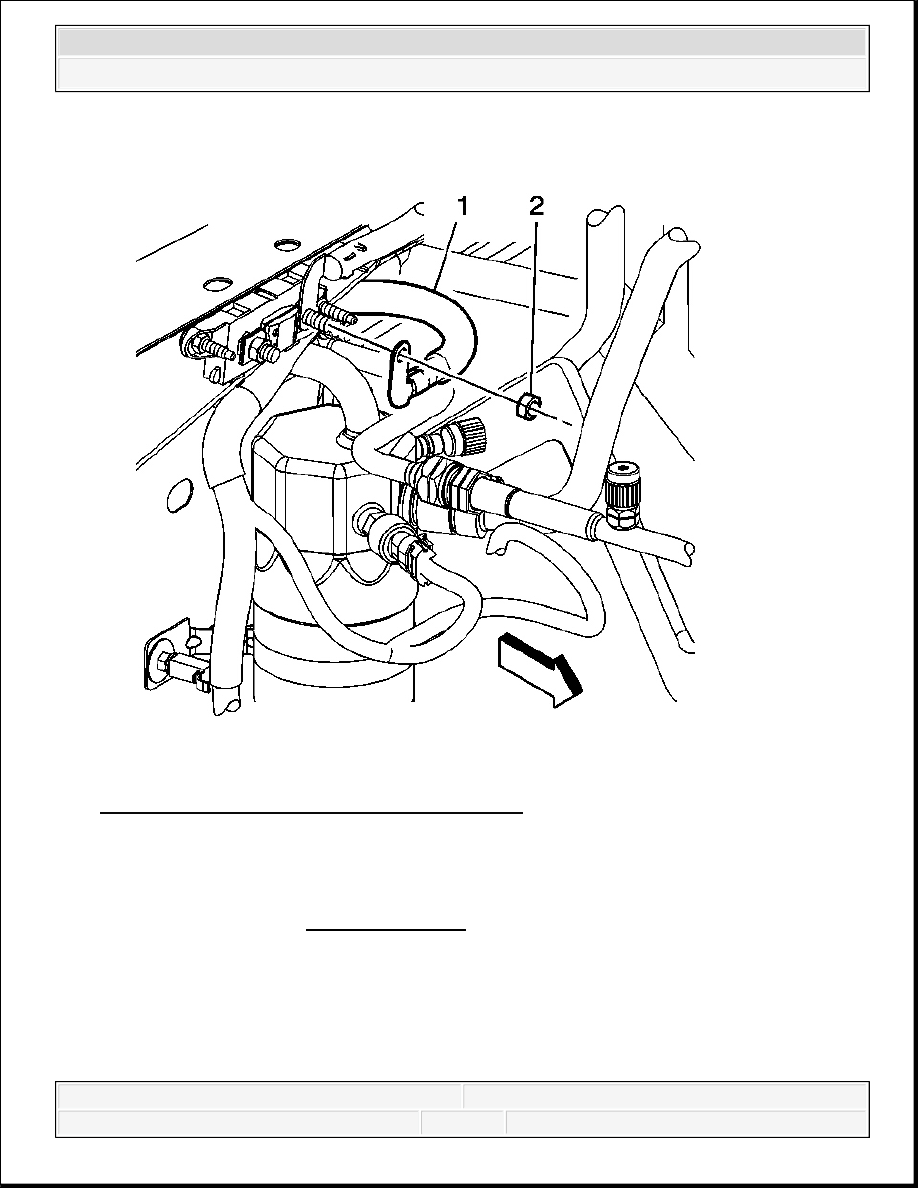

Fig. 64: View Of Starter Solenoid Cable & Nut
Courtesy of GENERAL MOTORS CORP.
5. Install the starter solenoid cable (1) terminal to the mega fuse stud.
6. Install the starter solenoid cable nut (2) to the mega fuse.
Tighten: Tighten the nut to 9 N.m (80 lb in).
NOTE:
Refer to Fastener Notice .
