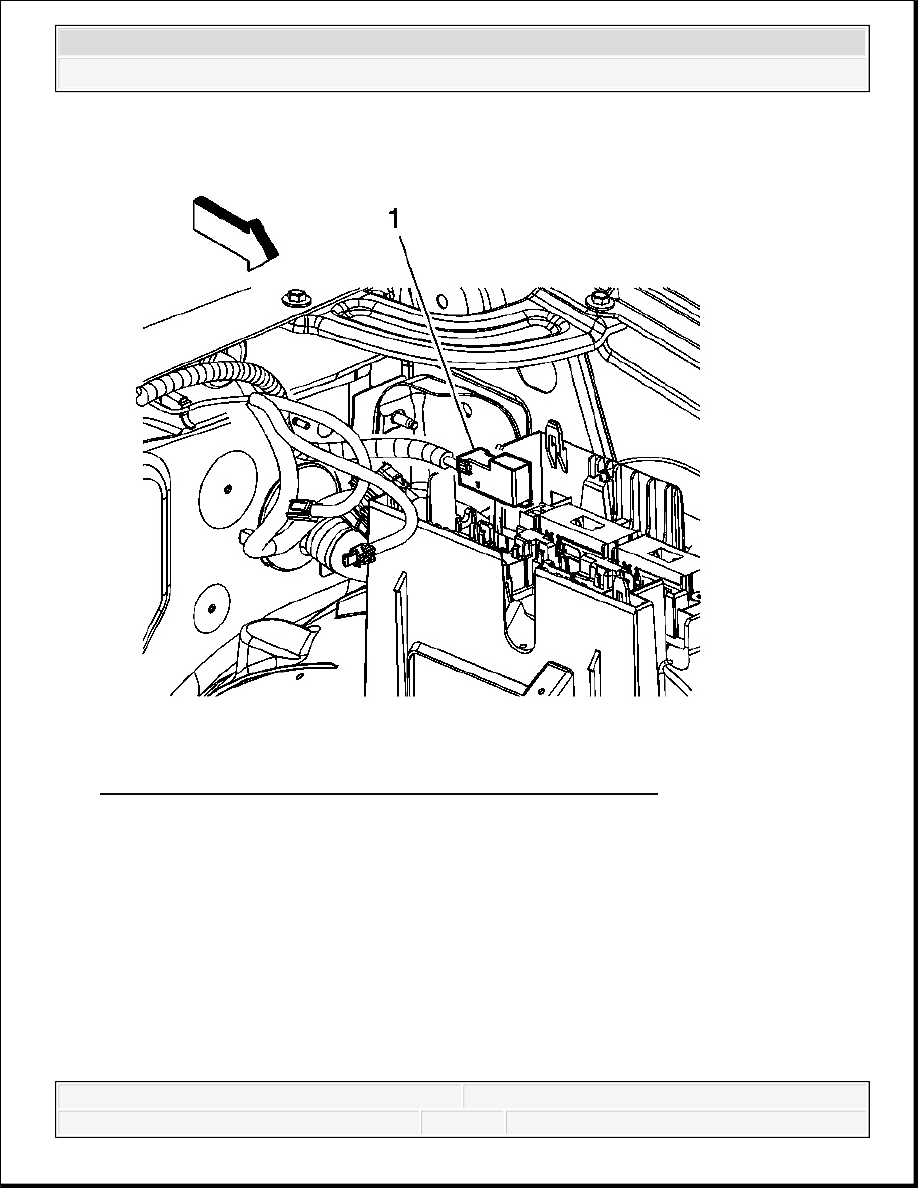

Fig. 66: View Of Positive Battery Cable Connector & (UBEC)
Courtesy of GENERAL MOTORS CORP.
8. Install the positive battery cable connector (1) to the UBEC.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

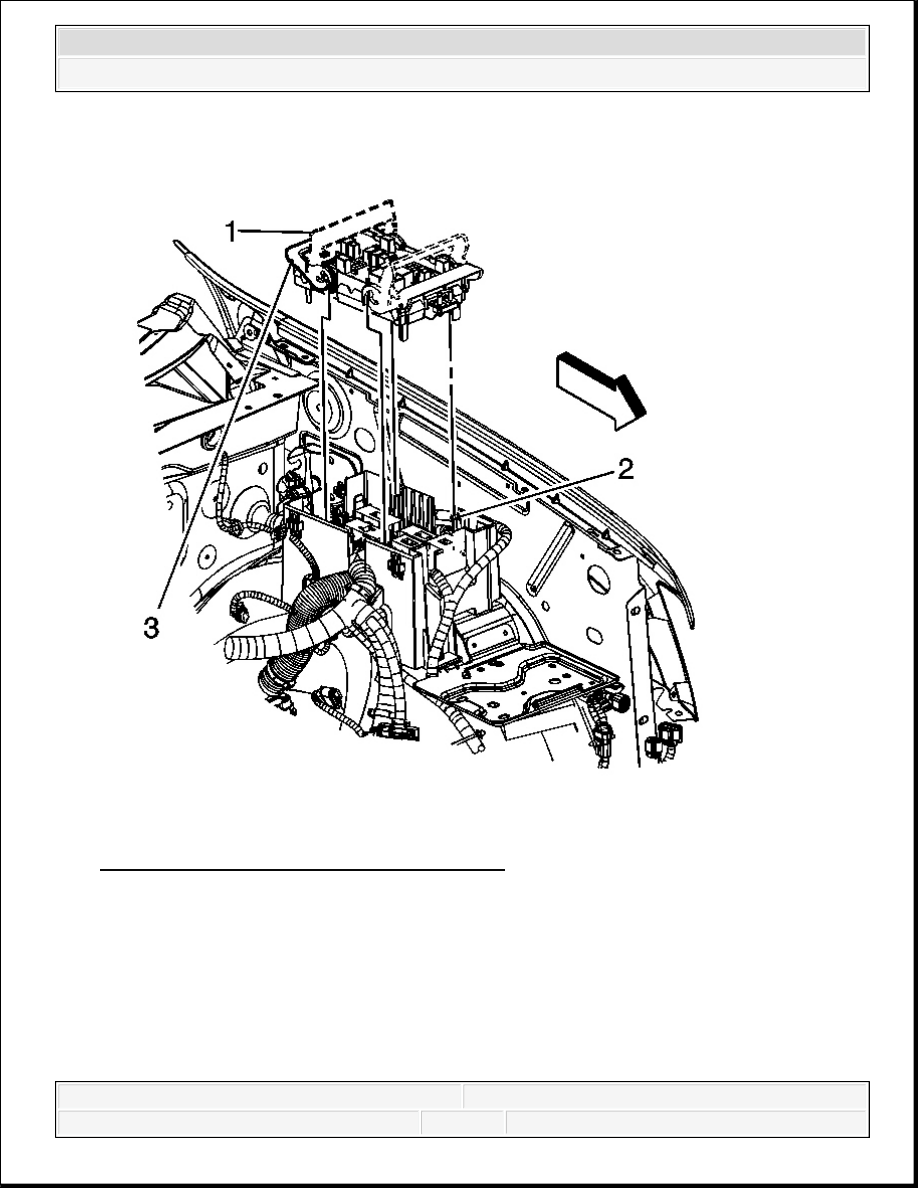

Fig. 67: View Of Junction Block & Retainers
Courtesy of GENERAL MOTORS CORP.
9. Ensure the junction block retainers are in the open position (1).
10. Position and align the junction block to the 4 bracket pivots (2), once the pivots are
engaged, push the retainer down into the locked position (3).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

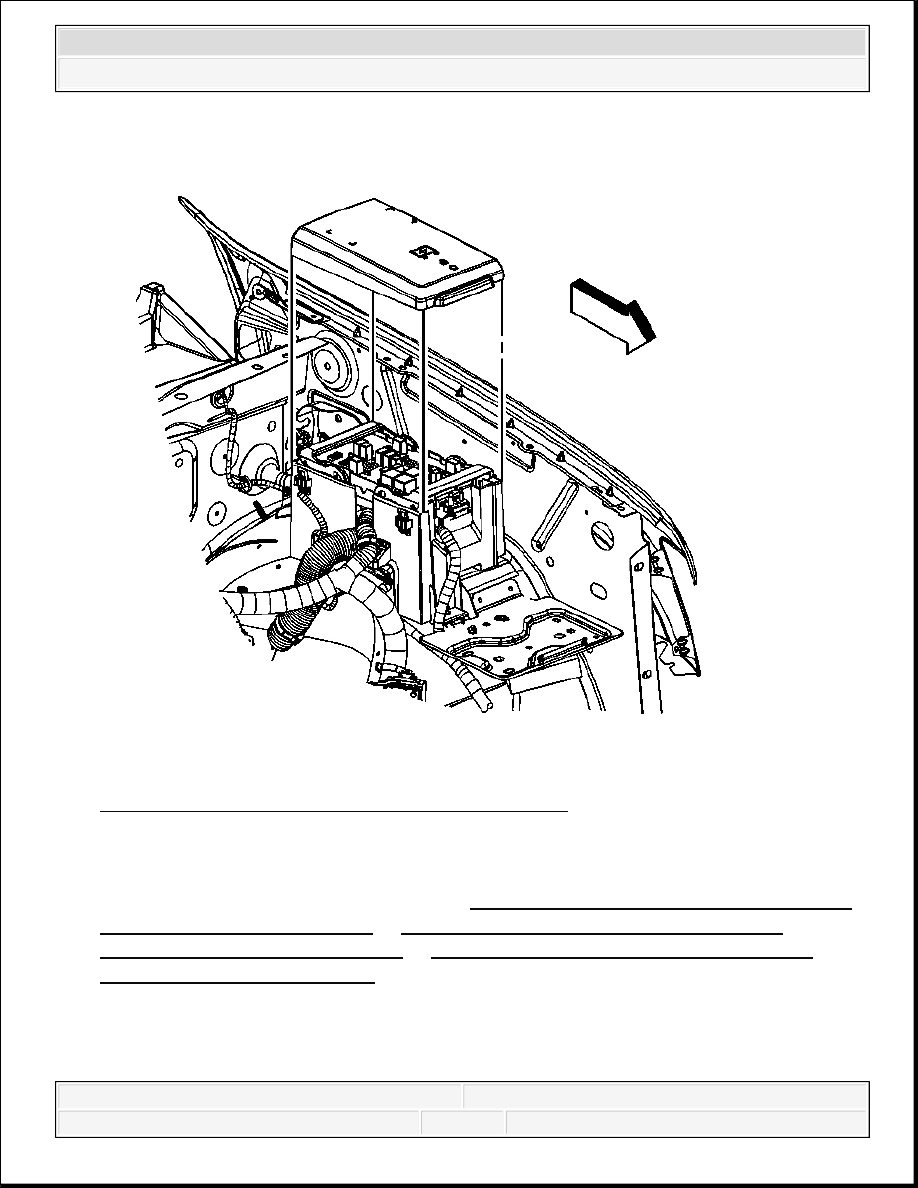

Fig. 68: View Of Under Hood Junction Block Cover
Courtesy of GENERAL MOTORS CORP.
11. Install the under hood junction block cover.
12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and
Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
BATTERY POSITIVE CABLE REPLACEMENT (4.8L, 5.3L, 6.0L, AND 6.2L)
Removal Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

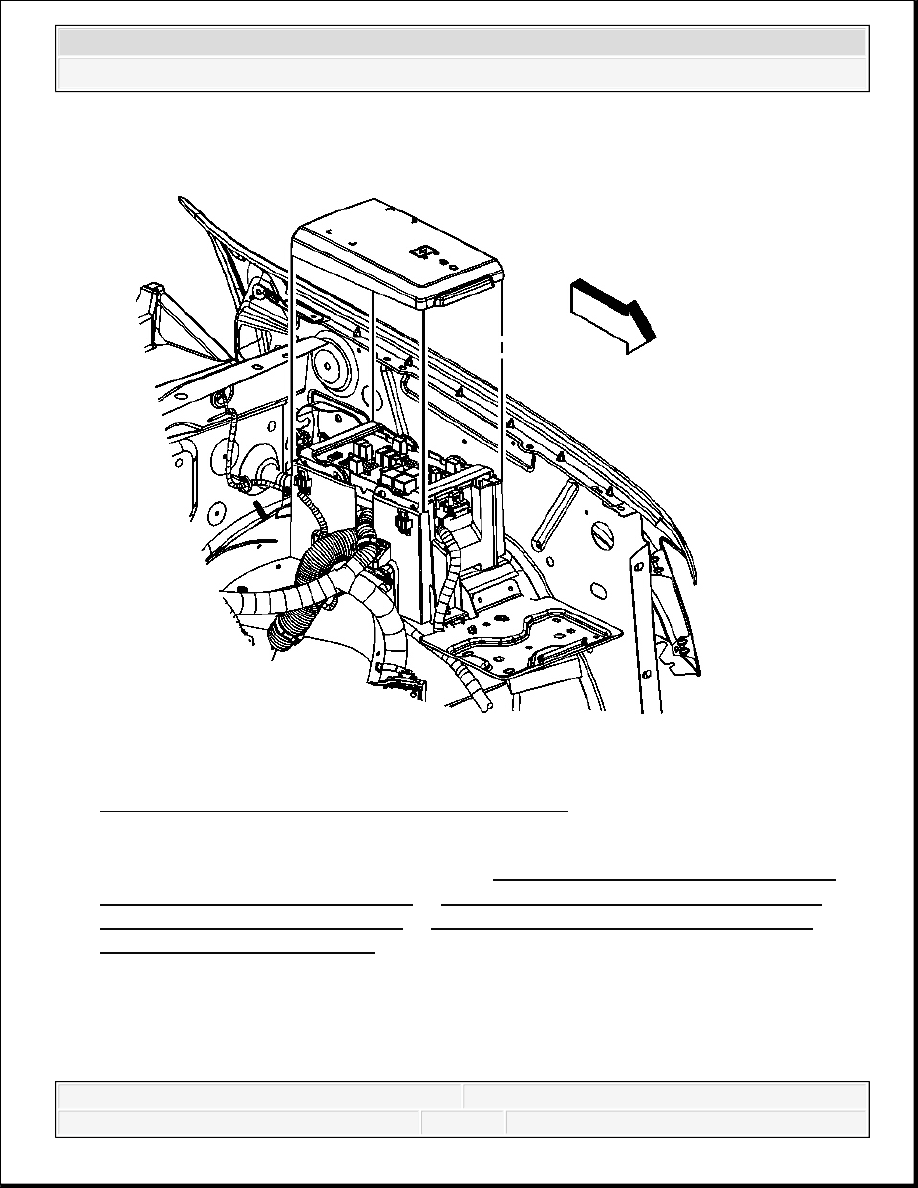

Fig. 69: View Of Under Hood Junction Block Cover
Courtesy of GENERAL MOTORS CORP.
1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection
and Connection (w/Single Battery) or Battery Negative Cable Disconnection and
Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and
Connection (w/Dual Batteries).
2. Remove the under hood junction block cover.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
