Fig. 58: View Of Mega Fuse Cover 6. Remove the mega fuse cover.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

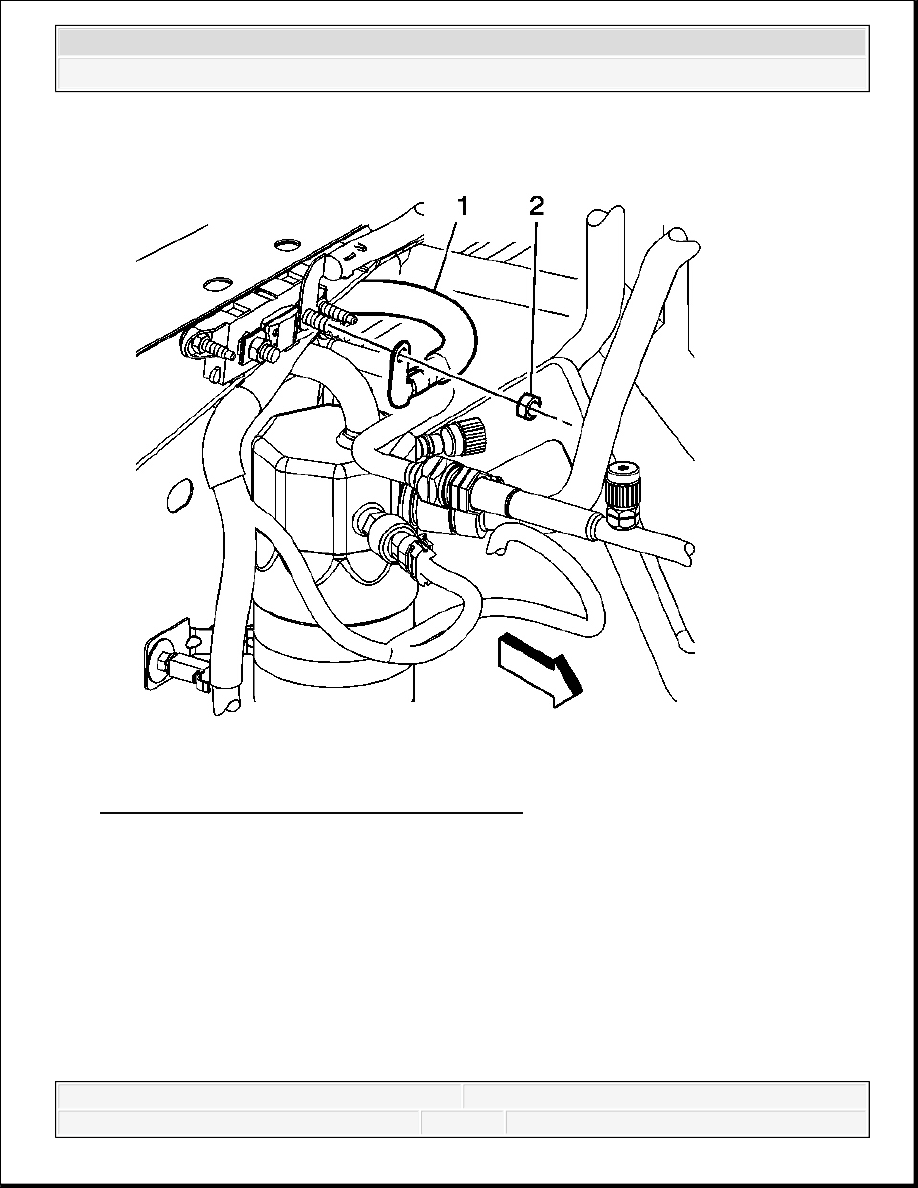

Fig. 59: View Of Starter Solenoid Cable & Nut 7. Remove the starter solenoid cable nut (2) from the mega fuse. 8. Remove the starter solenoid cable (1) terminal from the mega fuse stud.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

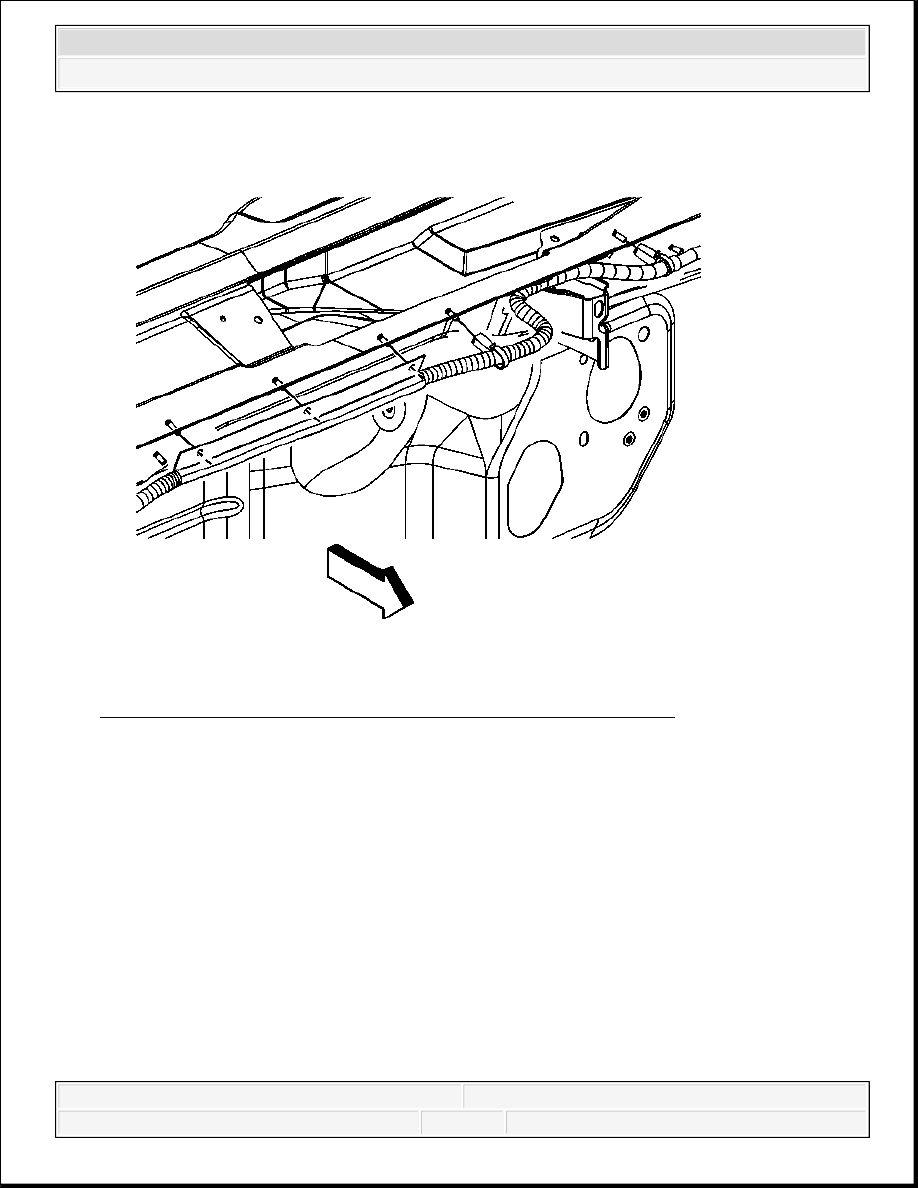

Fig. 60: View Of Positive Battery Cable Channel, Clips & Studs 9. Remove the positive battery cable channel from the studs on the plenum front panel. 10. Remove the positive battery cable clips from the studs on the plenum front panel.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

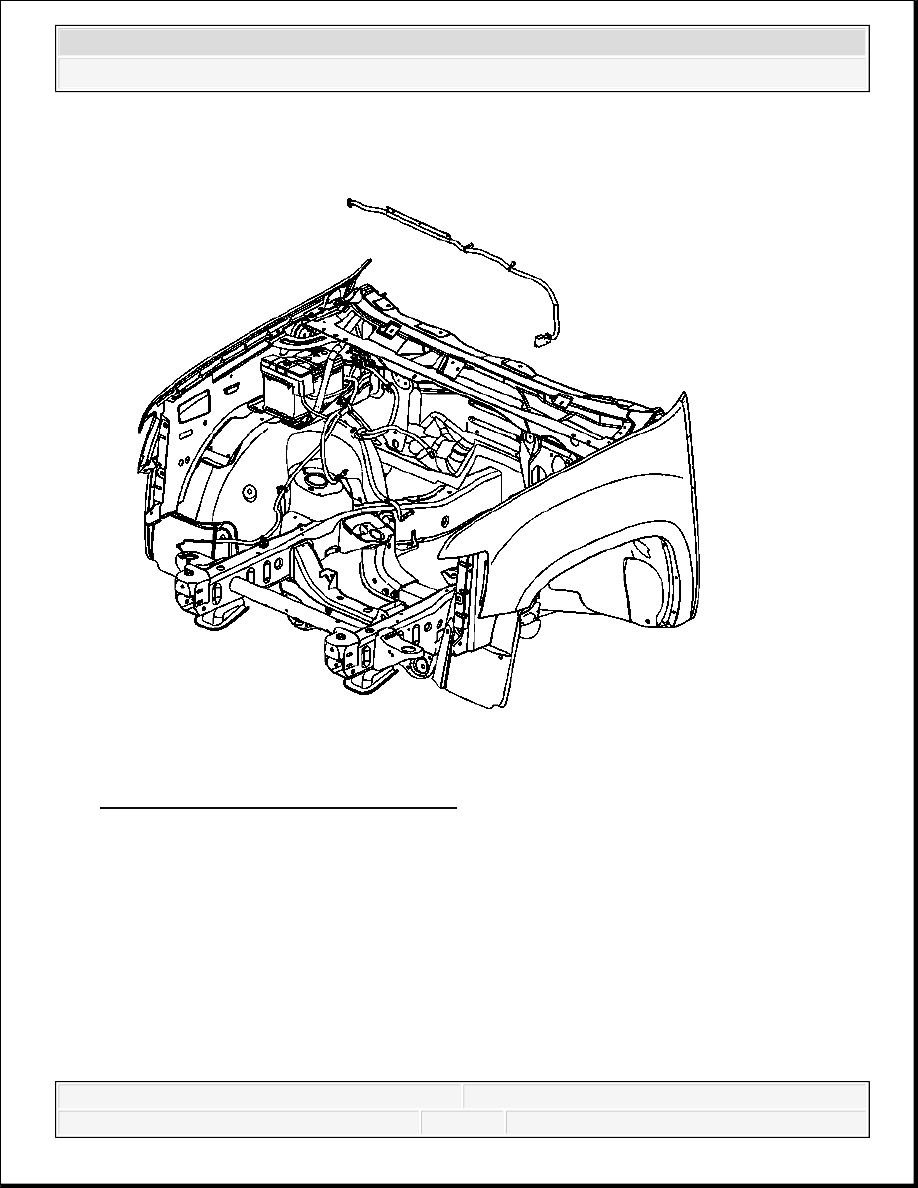

Fig. 61: View Of Positive Battery Cable 11. Remove the positive battery cable terminal from the mega fuse stud. 12. Remove the positive battery cable channel from the studs. 13. Remove the positive battery cable from the vehicle. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Electrical - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
