8. Install the thrust bearing and the washer (2), the J 45858-6 (1), and the J 45858-2 (3) as shown. 9. Slowly turn the J 45858-6 until the outer pinion bearing cup is evenly seated over the outer pinion bearing cup bore and the J 45858-2 is evenly seated within the inner pinion bearing 10. Turn the J 45858-6 clockwise slowly in order to draw the outer pinion bearing cup into the outer pinion bearing cup bore. Inspect the position of the outer pinion bearing cup as it is being drawn into the outer pinion 11. Tighten the forcing screw until the outer pinion bearing cup is seated in the outer pinion bearing cup bore. 12. Remove the J-45858 . See Special Tools. 13. Measure the pinion depth and determine the selectable pinion shim thickness. Refer to Pinion Depth Adjustment. FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING CUP INSTALLATION (8.25/9.25 INCH Tools Required J 36598 Holding Fixture. See Special Tools. Installation 1. Before assembly, apply axle lubricant to the pinion bearing cups. Refer to Sealers, Adhesives, and Lubricants. 2. Install the J 36598 into a vise. See Special Tools.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

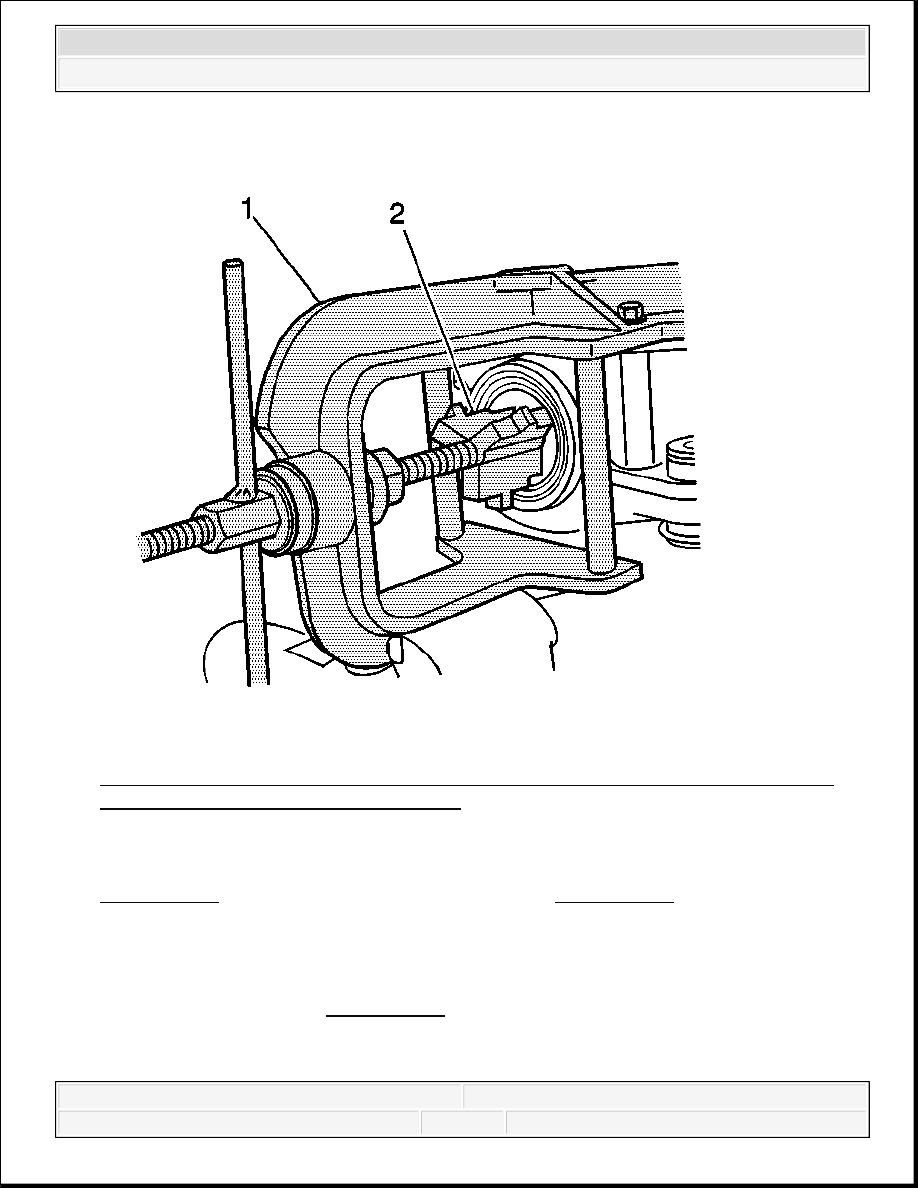

Fig. 195: Seating Outer Pinion Bearing Cup Evenly Within Outer Pinion Bearing 3. Install the left differential carrier case half into the J 36598 and the J 36598-6, 8. See Special Tools.25 inch axle, or the J 36598 (1), 9. See Special Tools.25 inch axle. Tighten the attaching bolts securely. 4. Install the J 36598-3, 8.25 inch axle, or the J 36598-4, 9.25 inch axle (2), onto the forcing screw of the J 36598 . See Special Tools. 5. Install the outer pinion bearing cup into the differential carrier case. 6. Install the J 36598-3, 8.25 inch axle, or the J 36598-4, 9.25 inch axle (2) onto the outer
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
pinion bearing cup. Rotate the J 36598-3 or the J 36598-4 and the outer pinion bearing cup several time in 7. Install the outer pinion bearing cup into the differential carrier case half by holding the forcing screw of the J 36598 and turning the handle counterclockwise. See Special Tools. Inspect the position of the outer pinion bearing cup as it is being installed into the outer 8. Remove the J 36598-3 or the J 36598-4 from the forcing screw of the J 36598 . See Special Tools.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

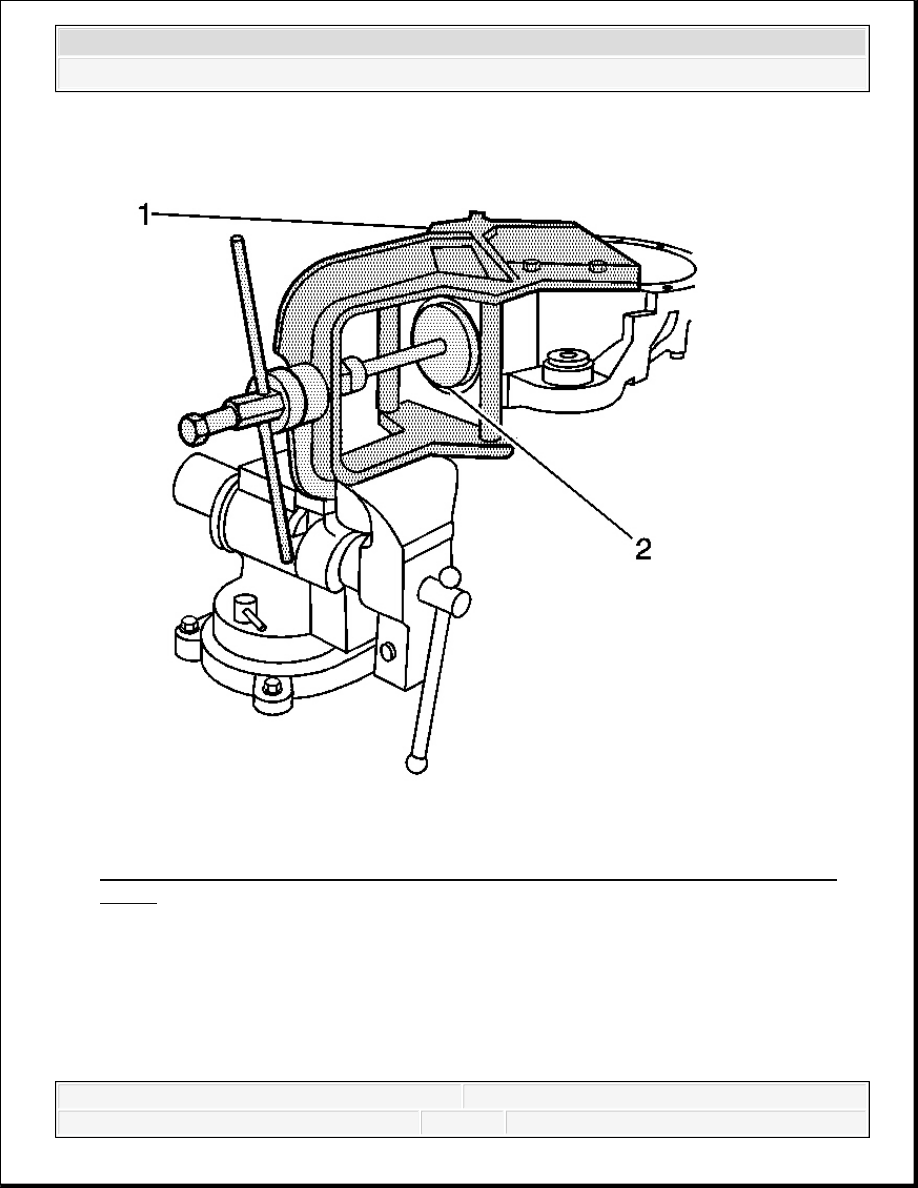

Fig. 196: Installing Inner Pinion Bearing Cup J 36598 & J 36598-4 (8.25/9.25 Inch 9. Install the J 36598-15 (2) into the outer pinion bearing cup. 10. Install the inner pinion bearing cup into the inner pinion bearing cup bore.
