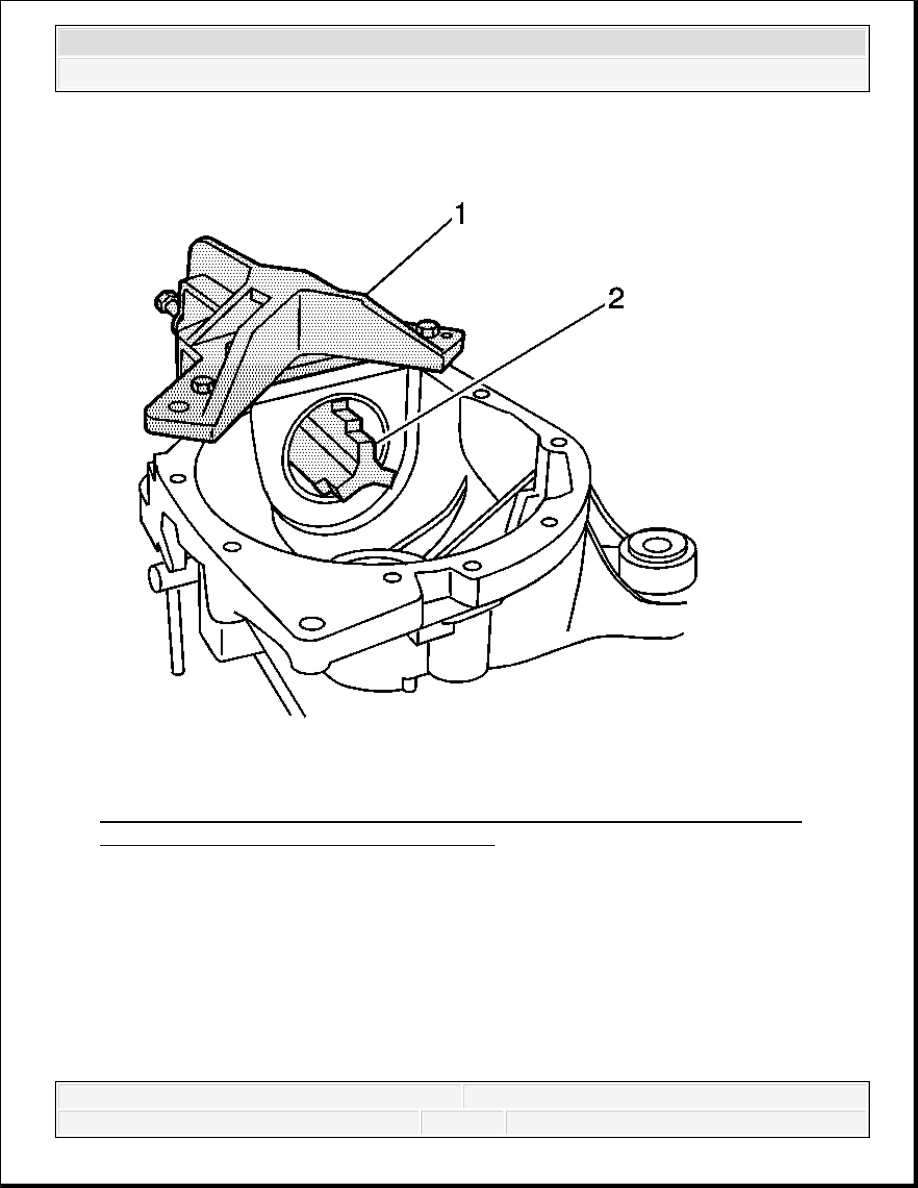

Fig. 197: Installing Inner Pinion Bearing Cup Into Differential Carrier Case J 11. Place the J 36598-3, 8.25 inch axle, or the J 36598-4, 9.25 inch axle (2), over the inner pinion bearing cup. 12. Extend the forcing screw of the J 36598 (1) through the J 36598-15 and thread it into the J 36598-3 or the J 36598-4 (2) until fully seated. 13. Rotate the J 36598-3 or the J 36598-4 several times in order to ensure the inner pinion bearing cup is evenly seated and not mis-aligned in the bore. 14. Install the inner pinion bearing cup into the differential carrier case half by holding the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
forcing screw of the J 36598 and turning the handle clockwise. Inspect the position of the inner pinion bearing cup as it is being drawn into the inner pinion 15. Remove the J 36598-3 or the J 36598-4 and the J 36598-15. 16. Remove the differential carrier case. 17. Remove the J 36598 from the vise. 18. Determine the selective shim thickness for the pinion. Refer to Pinion Depth Adjustment. PINION DEPTH ADJUSTMENT Tools Required J 36601 Pinion Shim Selector. See Special Tools. J 29763 Static Timing Gage. See Special Tools. Adjustment 1. Install the pinion bearing cups into the differential carrier assembly. Refer to Front Differential Drive Pinion Gear Bearing Cup Installation (9.25 Inch Axle w/J 45754) 2. Before assembly, lubricate the pinion bearings with axle lubricant. Use the correct fluid. Refer to Sealers, Adhesives, and Lubricants. IMPORTANT: Make sure all of the tools, the pinion bearings, and the pinion bearing cups are clean before proceeding.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

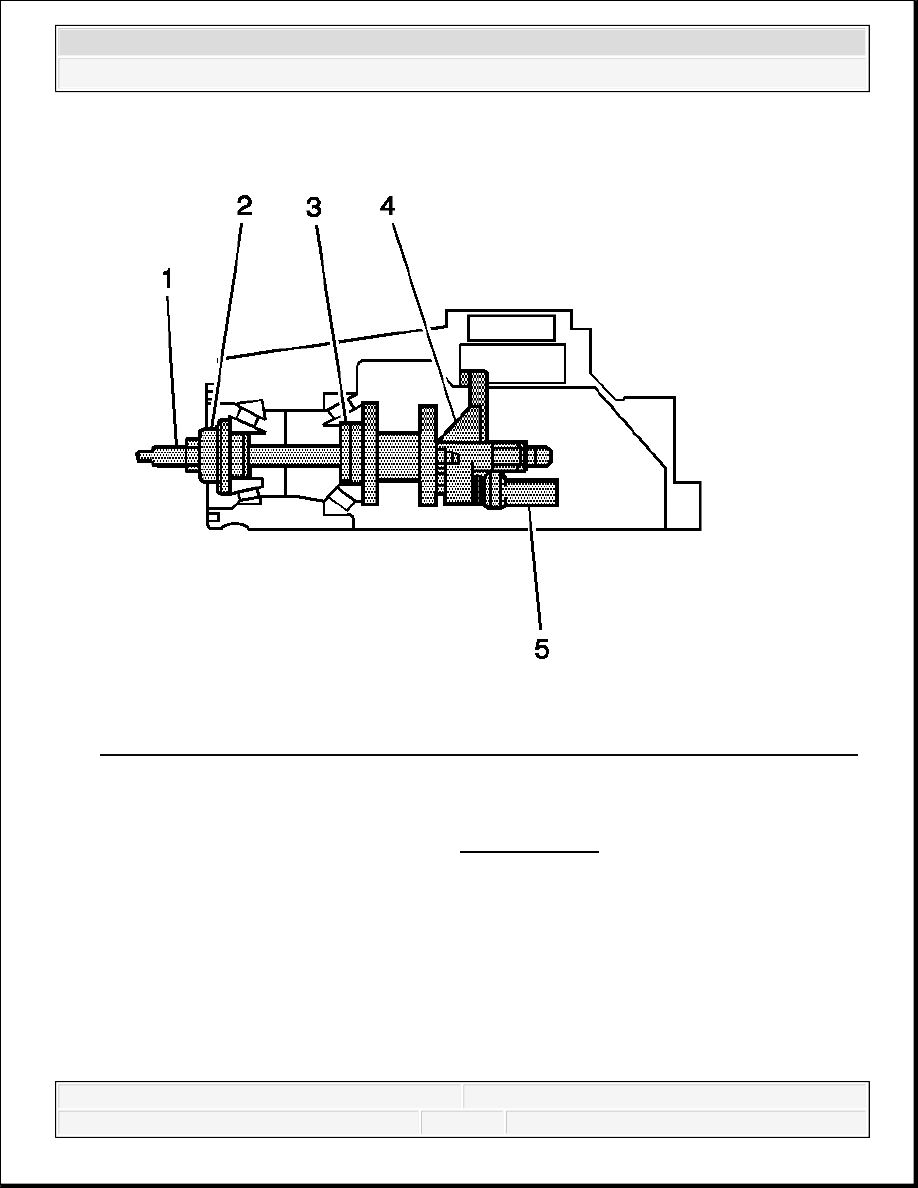

Fig. 198: Using J 36601-7, J 36601-5, J 21777-8 & J 36601-3 To Adjust Pinion Depth 3. Install the J 36601-4 or the J 36601-3 (4) to the J 36601-7 (1). 4. Install the J 21777-35 for the 8.25 inch axle or the J 21777-8 for the 9.25 inch axle (3) to the J 36601-7 (1). 5. Install the inner pinion bearing into the differential carrier case half. IMPORTANT: The J 36601 uses two different measuring arms to measure the pinion depth. See Special Tools. The J 36601-4 is used to
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
6. Insert the J 36601-7 (1) with the J 21777-35 or the J 21777-8 (3) through the inner pinion bearing and the differential carrier case half. 7. Install the outer pinion bearing. 8. While holding the outer pinion bearing in position, install the J 36601-5 (2), the washer, and the nut to the J 36601-7 (1). 9. While holding the J 36601-7 (1) stationary with a wrench, tighten the nut on the J 36601-7 (1). Tighten: Tighten the nut until all of the end play is removed from the J 36601 . See 10. Rotate the assembly several times in both directions in order to seat the pinion bearings. 11. While holding the J 36601-4 or the J 36601-3 (4) stationary, measure the rotating torque of the J 36601 using an inch-pound torque wrench. See Special Tools. Specification: The rotating torque of the J 36601 should be between 1. See Special 12. If the torque is less than 1.0 N.m (10 lb in), continue to tighten the nut on the J 36601-7 until a rotating torque of 1.1-2.3 N.m (10-20 lb in) is obtained. IMPORTANT: Each end of the J 36601-5 is sized specifically for the 8.25 inch or the 9.25 inch outer pinion bearing. Ensure the correct NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
