Slowly turn the forcing screw until the J 45754-1 is evenly seated over the outer pinion 6. Turn the forcing screw clockwise slowly in order to draw the outer pinion bearing cup into the outer pinion bearing cup bore. Inspect the position of the outer pinion bearing cup as it is being drawn into the outer pinion 7. Tighten the forcing screw until the outer pinion bearing cup is seated in the outer pinion bearing cup bore. 8. Remove the J 45754 . See Special Tools.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

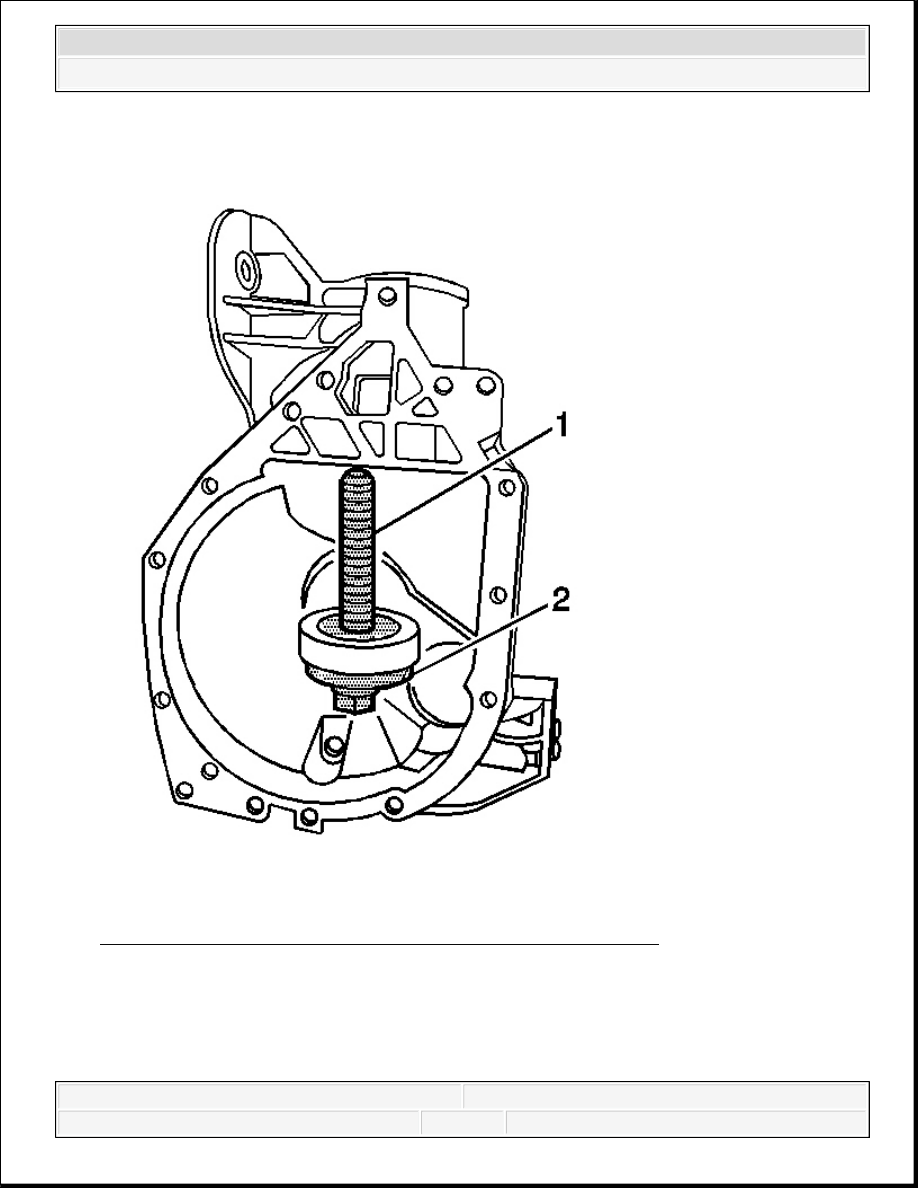

Fig. 189: Installing Inner Pinion Bearing Cup (9.25 Inch Axle) 9. Install the inner pinion bearing cup onto the J 45754-2 (2) and the forcing screw (1). 10. Install the J 45754-2 (2), the forcing screw (1), and the inner pinion bearing cup into the pinion bearing cup bore.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

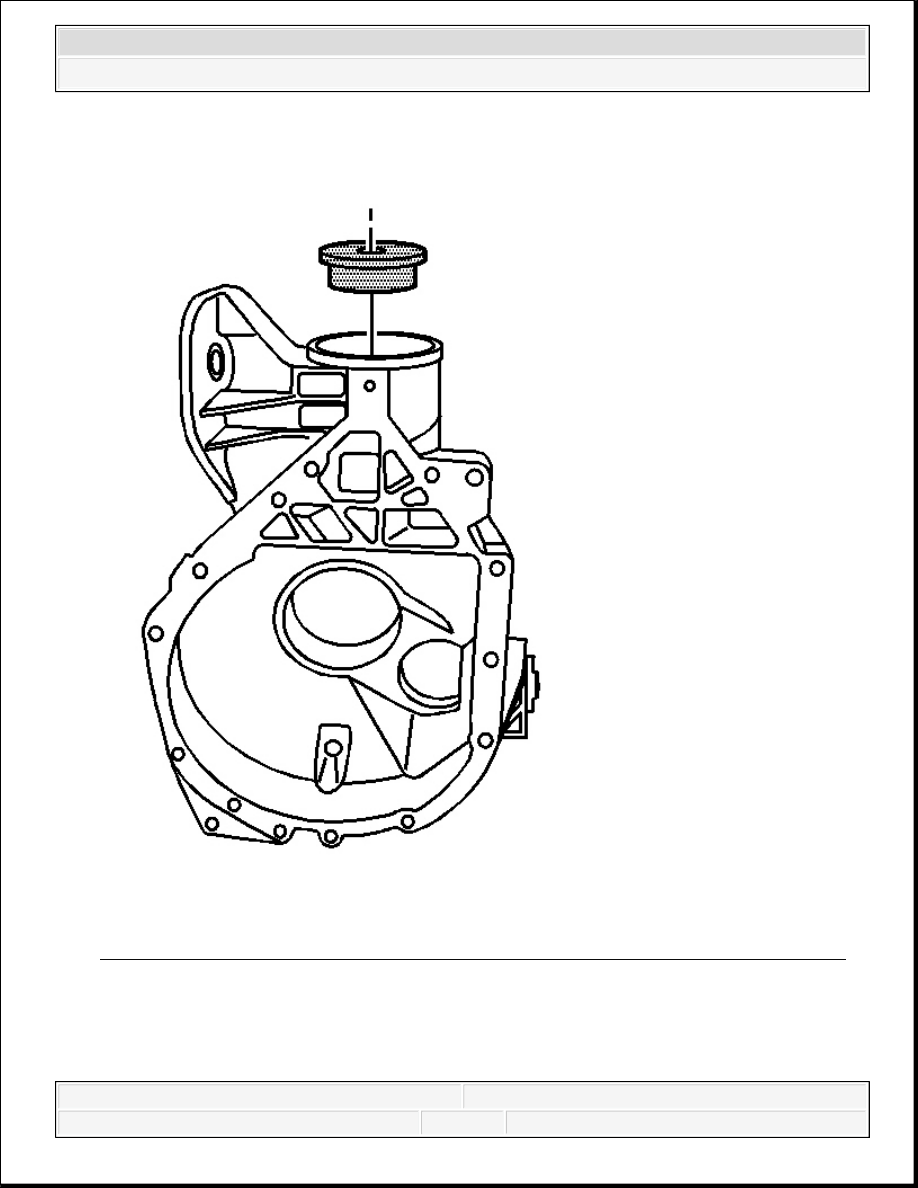

Fig. 190: Installing J 45754-1 Over The Outer Pinion Bearing Cup (9.25 Inch Axle) 11. Install the J 45754-1 over the outer pinion bearing cup. 12. Attach the forcing screw to the J 45754-1.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Slowly turn the forcing screw until the J 45754-1 is evenly seated over the outer pinion 13. Turn the forcing screw clockwise slowly in order to draw the inner pinion bearing cup into the inner pinion bearing cup bore. Inspect the position of the inner pinion bearing cup as it is being drawn into the inner pinion 14. Tighten the forcing screw clockwise until the inner pinion bearing cup is seated in the inner pinion bearing cup bore. 15. Remove the J 45754 . See Special Tools. 16. Measure the pinion depth and determine the selectable pinion shim thickness. Refer to Pinion Depth Adjustment. FRONT DIFFERENTIAL DRIVE PINION GEAR BEARING CUP INSTALLATION (8.25 INCH Tools Required J-45858 Pinion Bearing Race Remover/Installer - 8. See Special Tools.25 in Axle Installation 1. Before assembly, lubricate the following parts with axle lubricant. Use the proper fluid. Refer to Sealers, Adhesives, and Lubricants. The pinion bearings The pinion and the differential gears The thrust washers The pinion bearing cups
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
