Chevrolet Silverado / GMC Sierra. Manual - part 1349

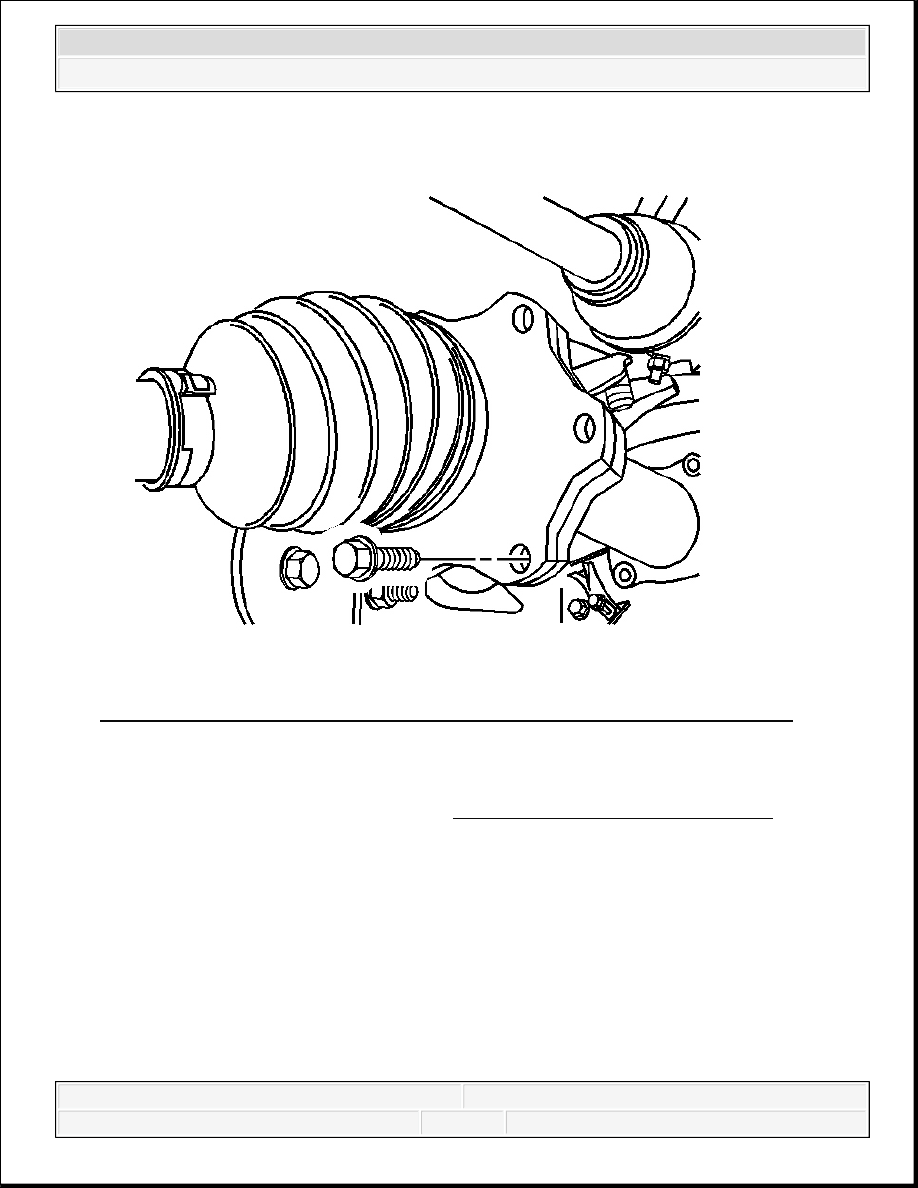

Fig. 103: View Of Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle
Courtesy of GENERAL MOTORS CORP.
7. Remove the wheel drive shaft mounting bolts.
8. Remove the front propeller shaft. Refer to Front Propeller Shaft Replacement .
9. Support the differential carrier with a transmission jack.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

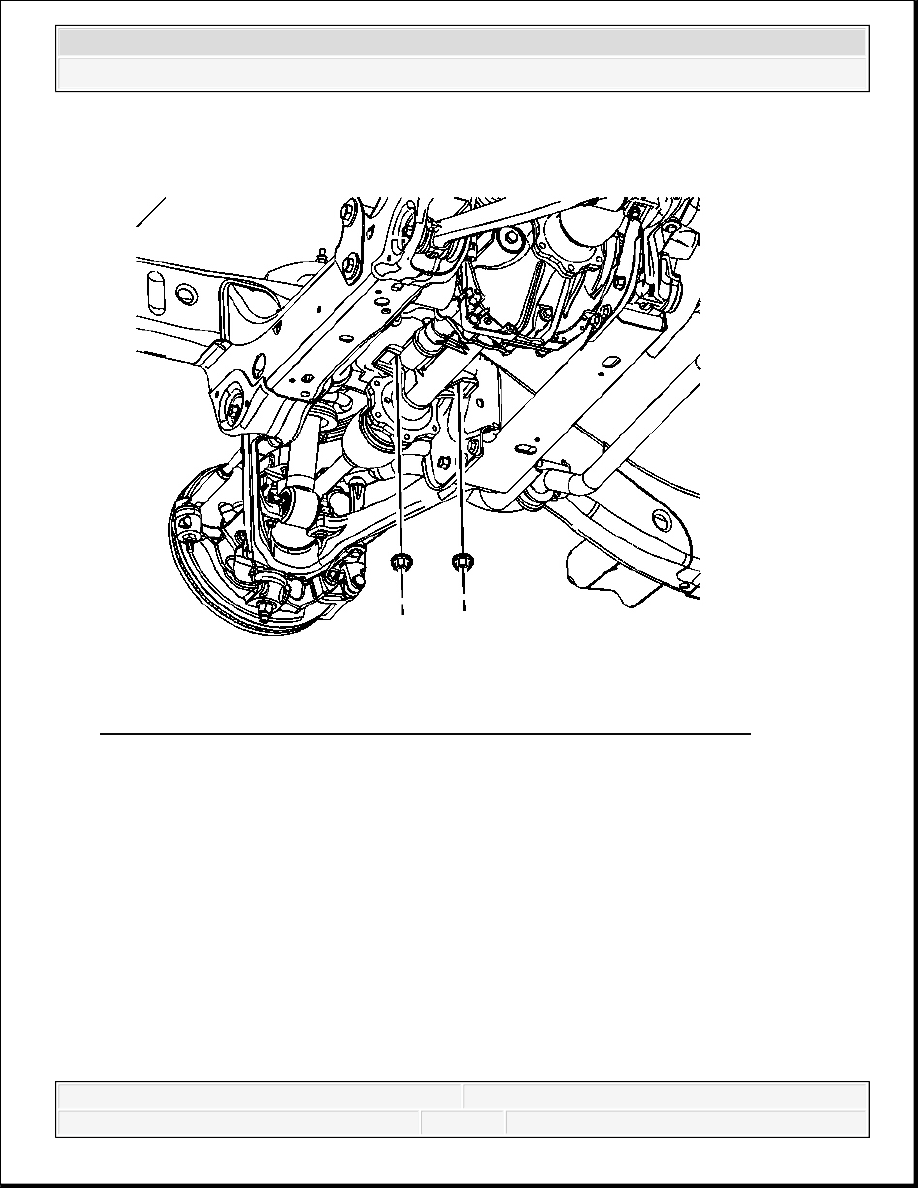

Fig. 104: View Of Right Differential Carrier Mounting Nuts & Washers
Courtesy of GENERAL MOTORS CORP.
10. Remove the right differential carrier mounting nuts and washers.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

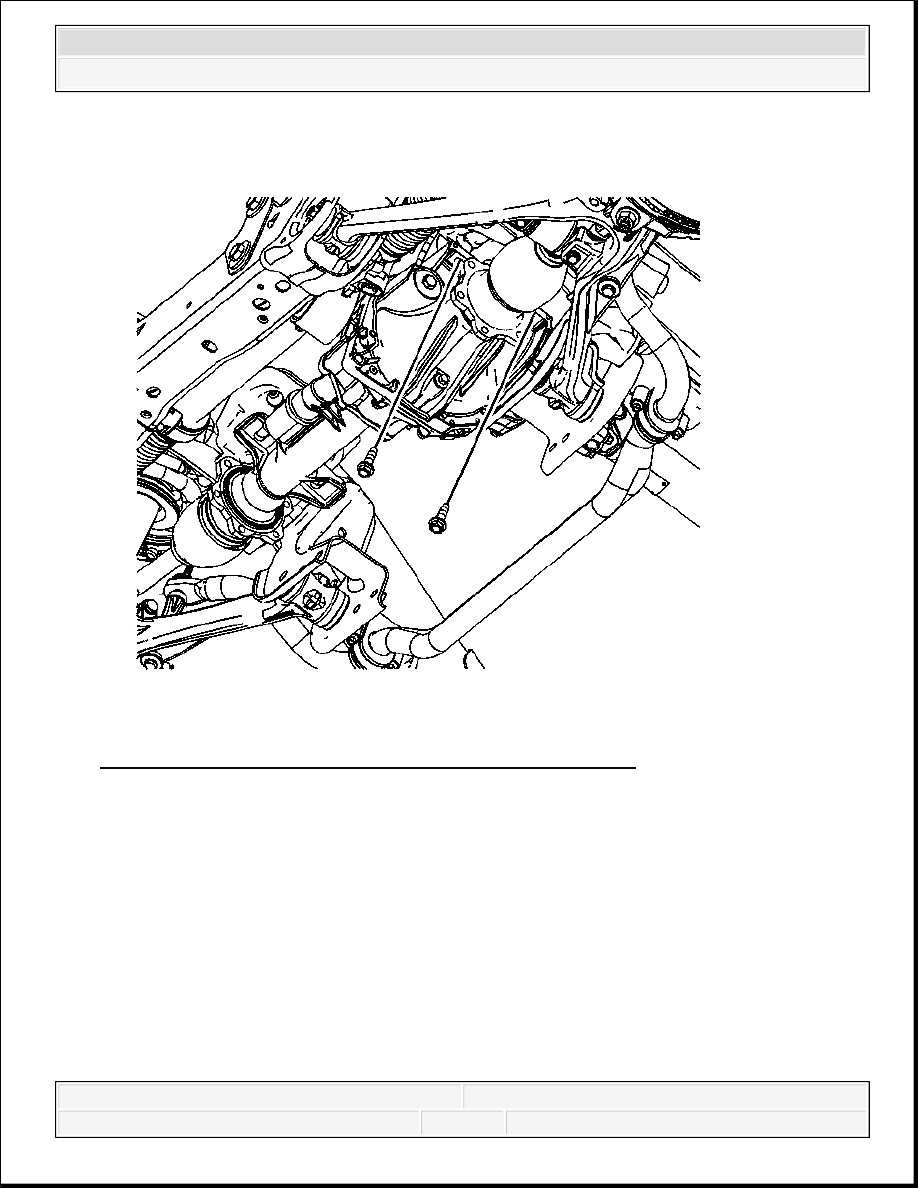

Fig. 105: View Of Left Differential Carrier Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
11. Remove the left differential carrier mounting bolts.
2008 Chevrolet Silverado 1500
2008 Driveline/Axle Front Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

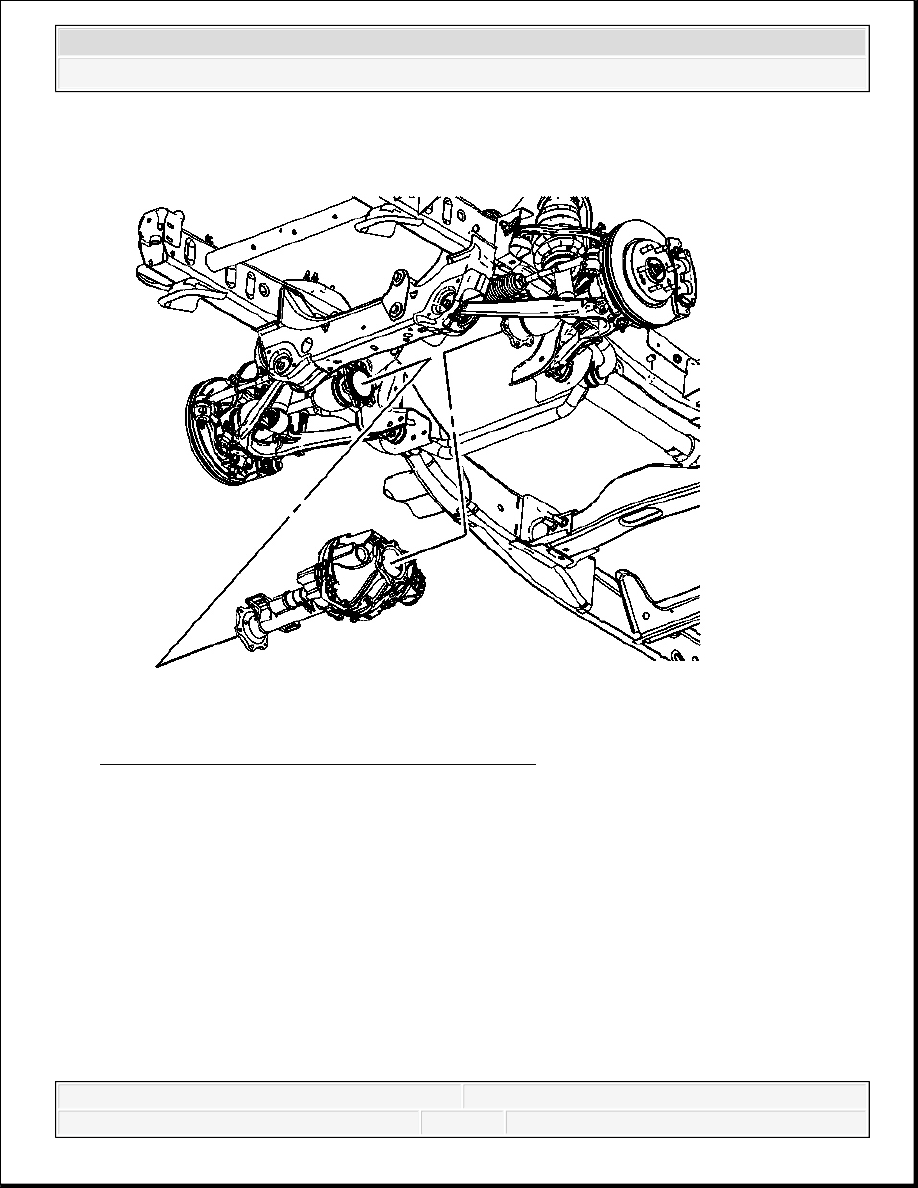

Fig. 106: View Of Differential Carrier Assembly
Courtesy of GENERAL MOTORS CORP.
12. With the aid of an assistant, pivot the differential carrier forward and down to remove the it
from the vehicle.
13. Remove the differential carrier assembly from the vehicle.
Installation Procedure
1. With the aid of an assistant, maneuver the differential carrier so that the wheel drive shafts
can be installed.
2008 Chevrolet Silverado 1500
