Chevrolet Silverado / GMC Sierra. Manual - part 1307

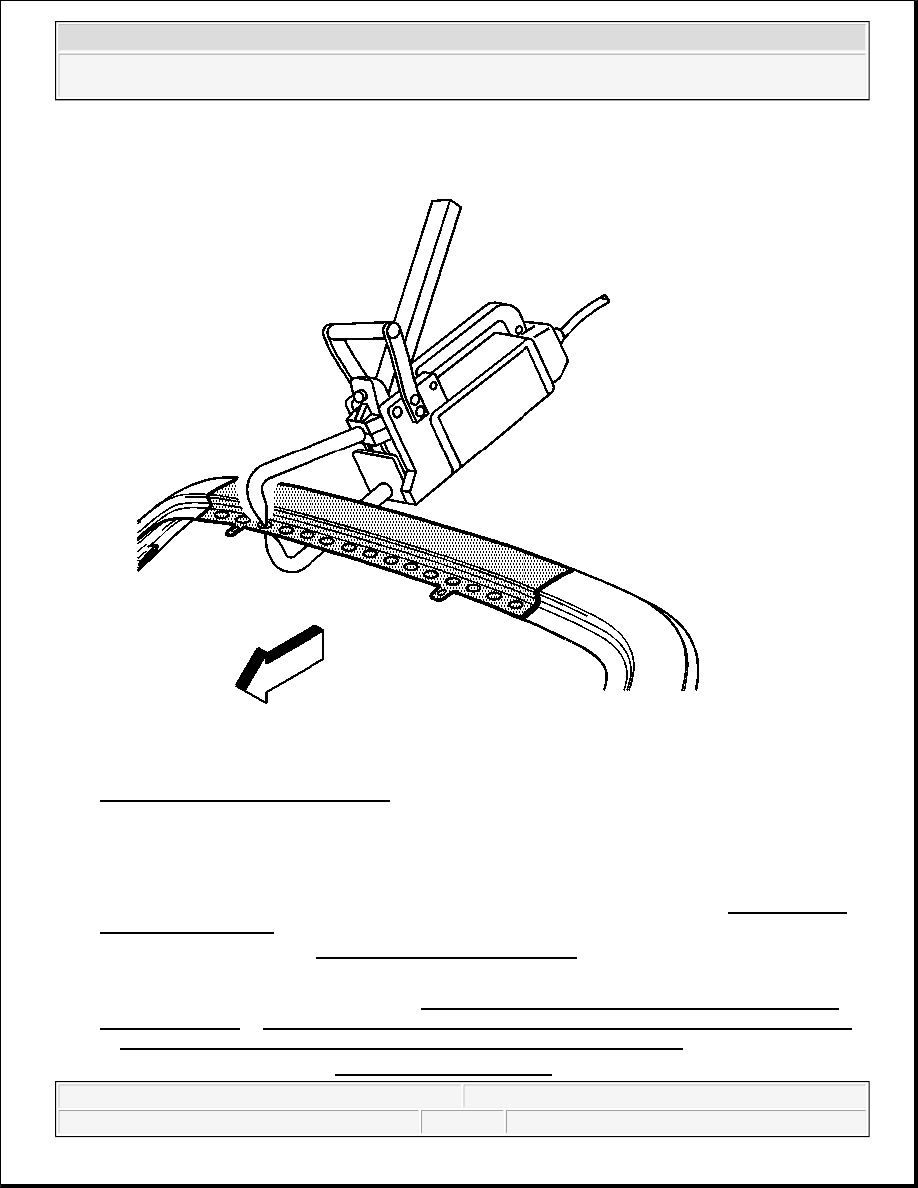

Fig. 141: View Of Welding Procedure
Courtesy of GENERAL MOTORS CORP.

4. Apply welds accordingly.

5. Clean and prepare all welded surfaces.

6. Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion

Treatment and Repair .

7. Paint the repair area. Refer to Basecoat/Clearcoat Paint Systems .

8. Install all related panels and components.

9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

(w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery)
or Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .

10. Enable the SIR system. Refer to SIR Disabling and Enabling .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 154

© 2005 Mitchell Repair Information Company, LLC.

MIG WELDED FULL PANEL REPLACEMENT

Removal Procedure

1. Disable the SIR system. Refer to SIR Disabling and Enabling .

2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection

(w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery)
or Battery Negative Cable Disconnection and Connection (w/Dual Batteries) .

3. Remove all related panels and components.

4. Repair as much of the damage as possible to factory specifications.

5. Note the location and remove the sealers and anti-corrosion materials from the repair area, as necessary.

Refer to Anti-Corrosion Treatment and Repair .

IMPORTANT: Use this procedure for all panels that are replaced at the factory seams, unless

a specific procedure exists in the Collision Repair section of this vehicle's
service information.

CAUTION: Refer to Approved Equipment for Collision Repair Caution .

CAUTION: Refer to Foam Sound Deadeners Caution .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 155

© 2005 Mitchell Repair Information Company, LLC.

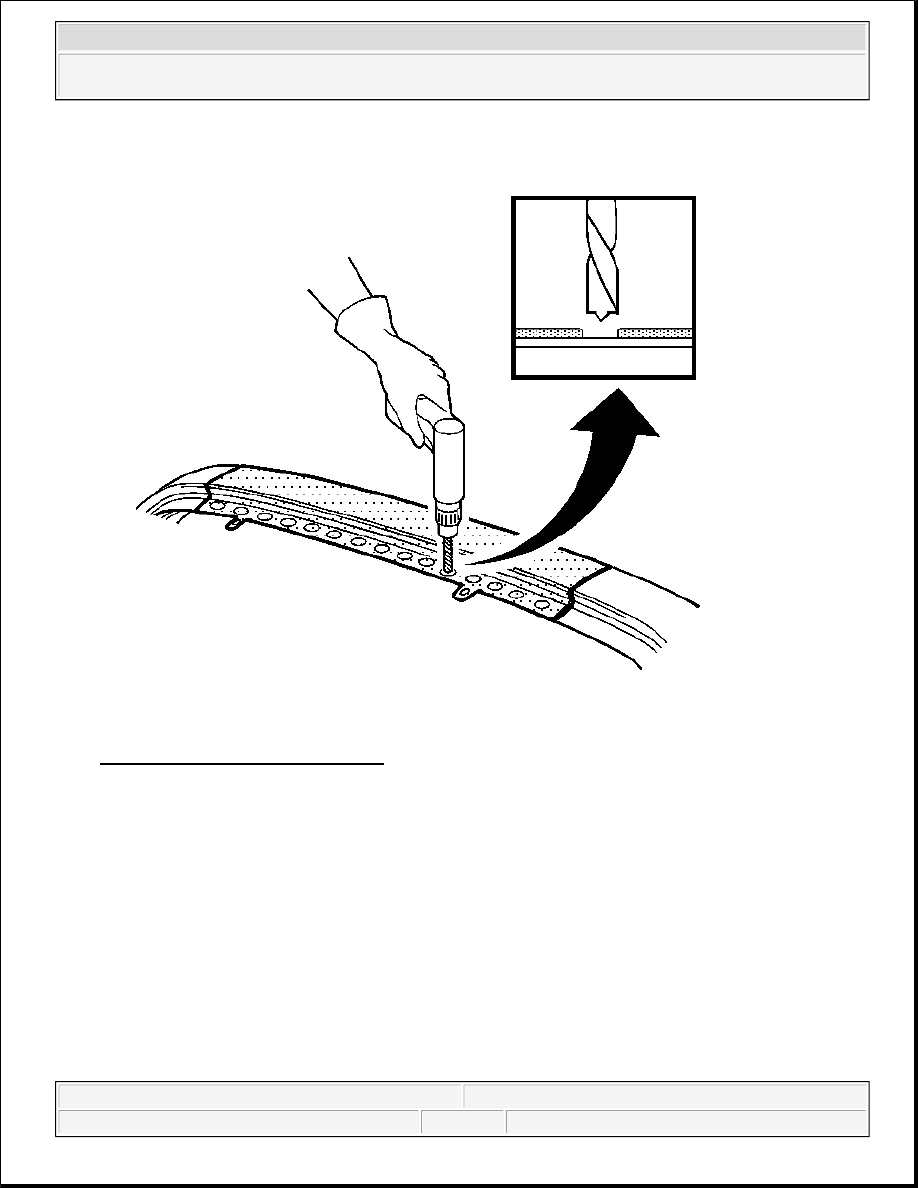

Fig. 142: Drilling Out Factory Welds
Courtesy of GENERAL MOTORS CORP.

6. Locate and drill out all factory welds. Note the number and location of the welds for installation of the

service part.

IMPORTANT: Do not damage any inner panels or reinforcements.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 156

© 2005 Mitchell Repair Information Company, LLC.

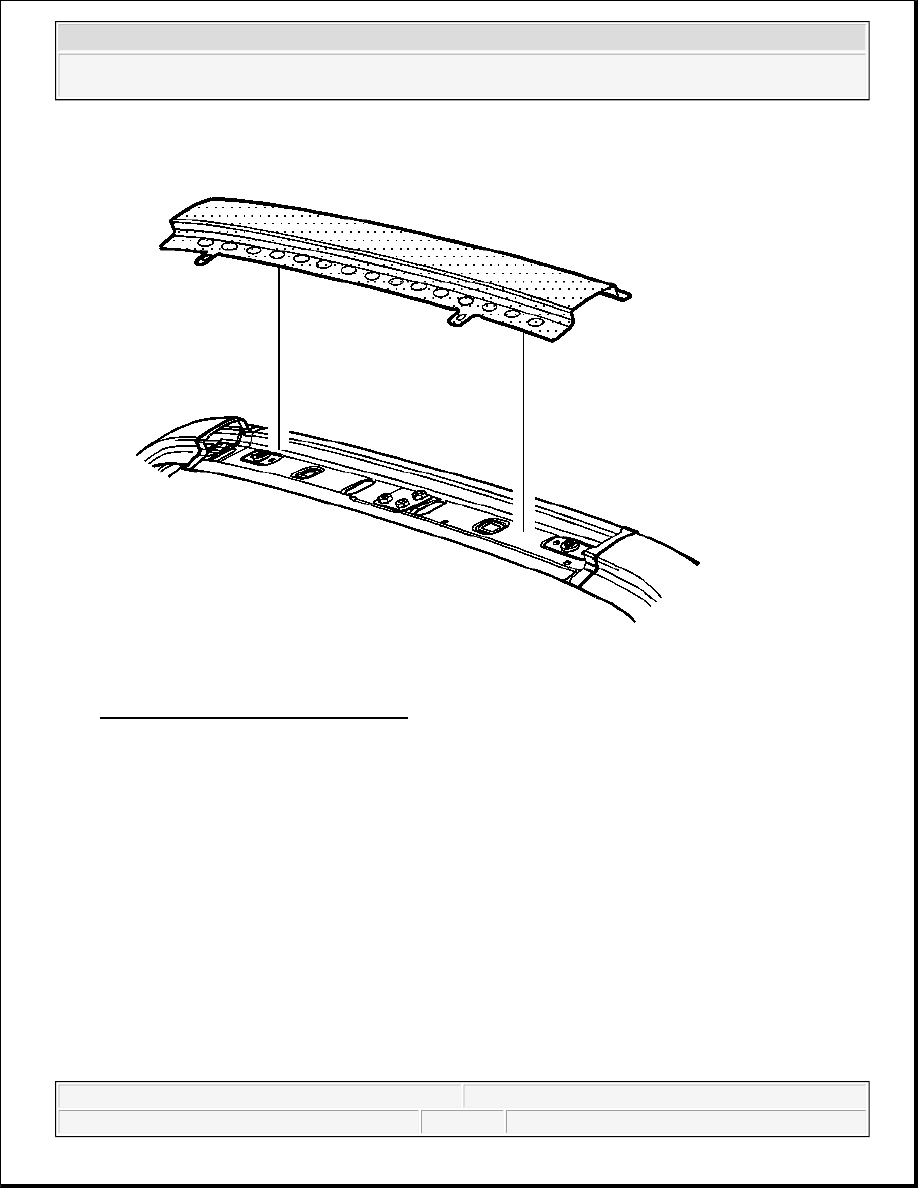

Fig. 143: View Of Inner & Outer Panels
Courtesy of GENERAL MOTORS CORP.

7. Remove the damaged part.

Installation Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 157

© 2005 Mitchell Repair Information Company, LLC.
