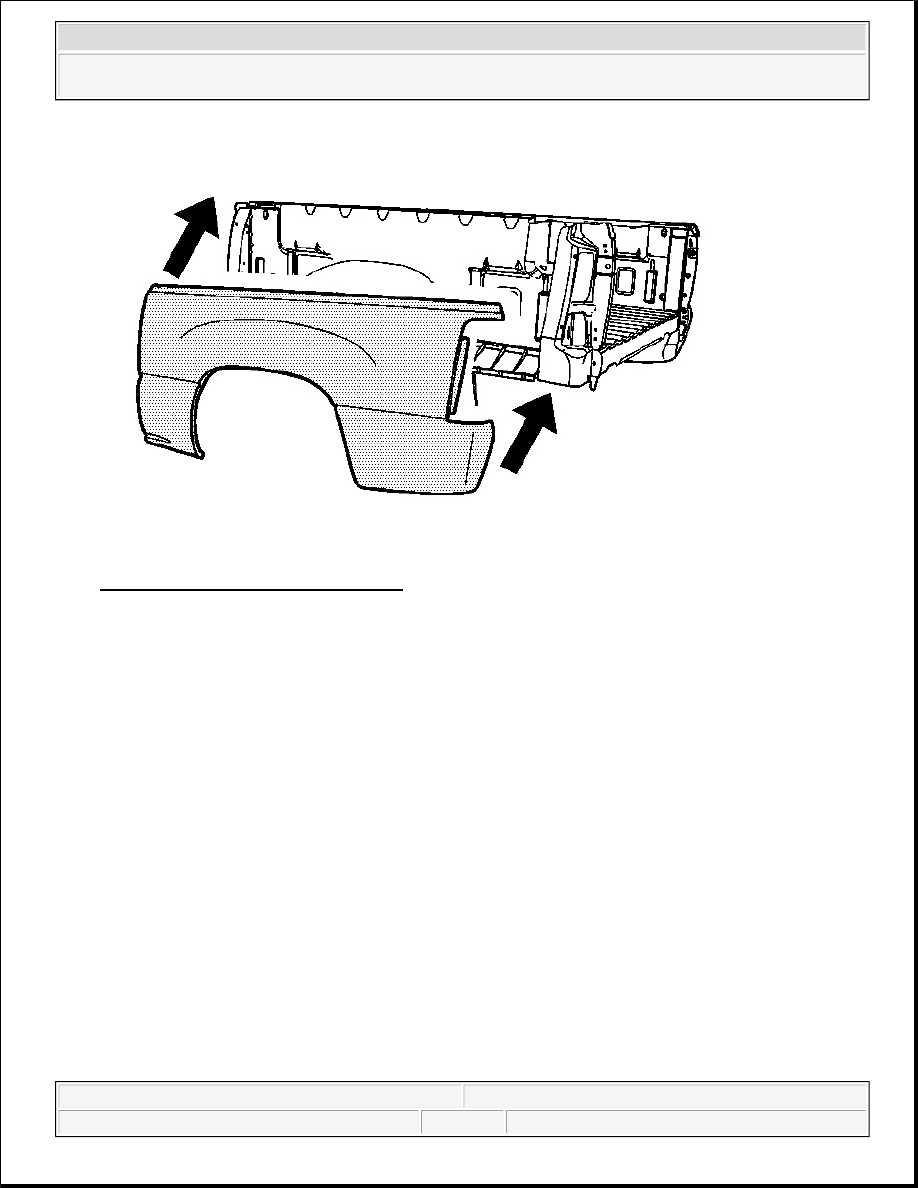

Fig. 135: Identifying Service Side Panel
Courtesy of GENERAL MOTORS CORP.

5. Position the service part onto the bed assembly.

IMPORTANT: Do not pull the panels apart after the panels have been joined together.

Slide the panels against each other to align the panels.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 146

© 2005 Mitchell Repair Information Company, LLC.

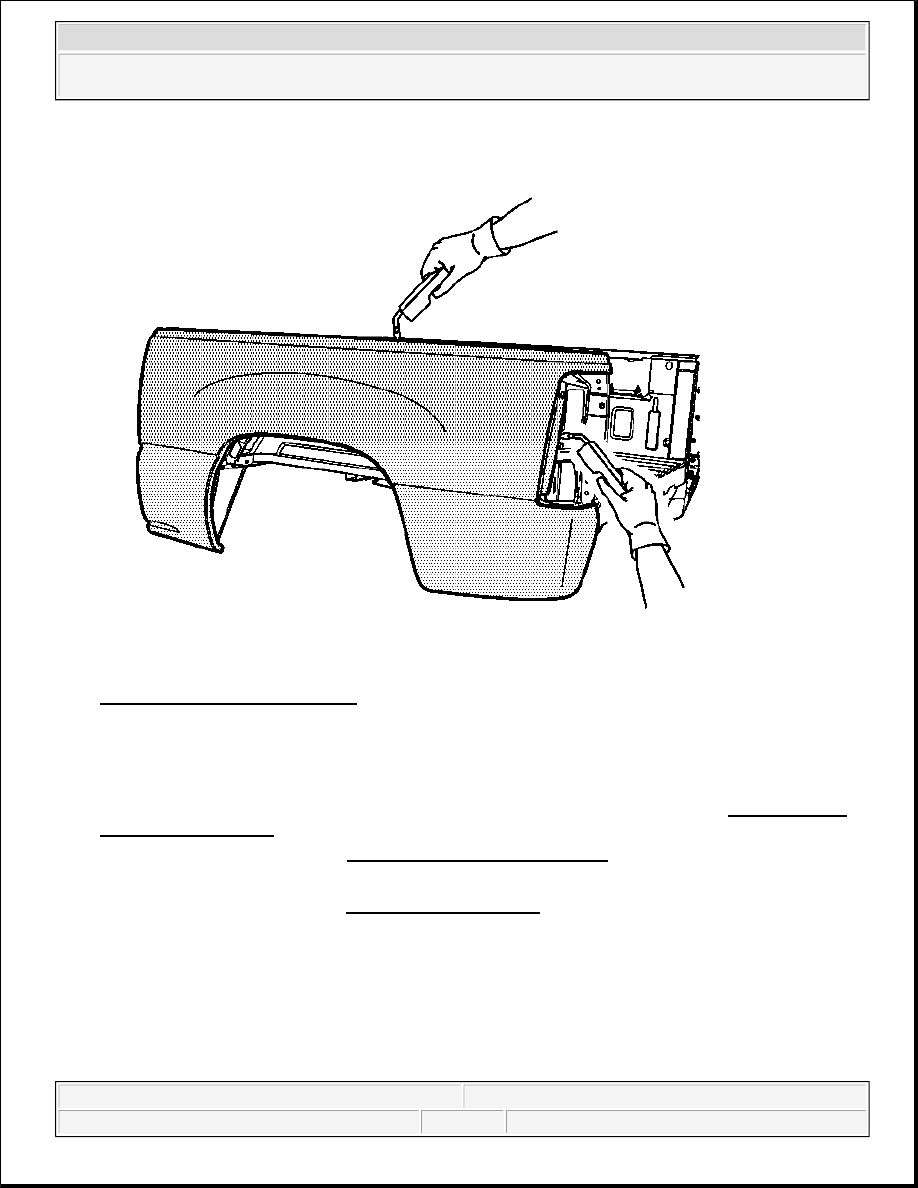

Fig. 136: Identifying Repair Area
Courtesy of GENERAL MOTORS CORP.

6. Plug weld as necessary

7. Clean and prepare all welded surfaces.

8. Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion

Treatment and Repair .

9. Paint and repair the area. Refer to Basecoat/Clearcoat Paint Systems .

10. Install all related panels and components.

11. Install the box assembly. Refer to Pickup Box Replacement .

PICKUP BOX TIE DOWN LOOP REPLACEMENT

Removal Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 147

© 2005 Mitchell Repair Information Company, LLC.

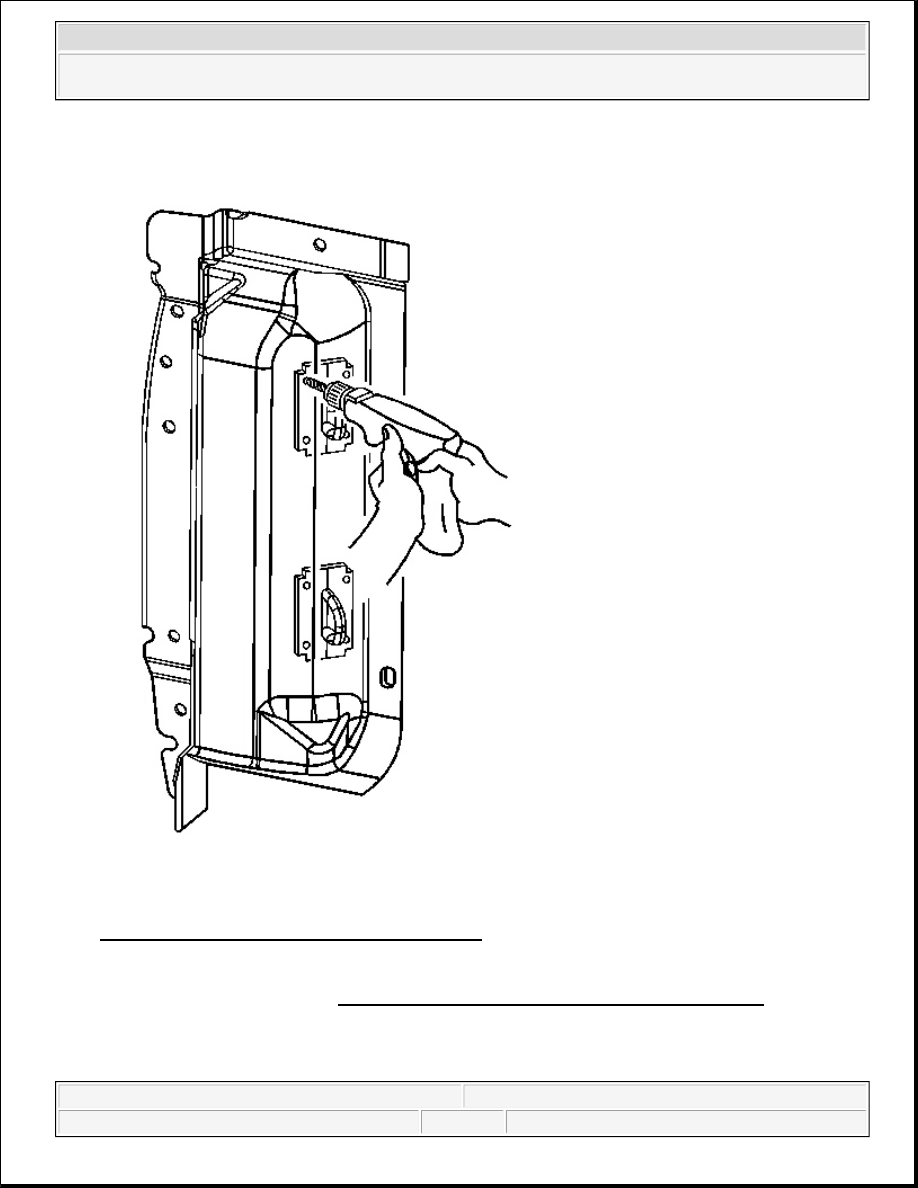

Fig. 137: Drilling Out Tie Down Loop Spot Welds
Courtesy of GENERAL MOTORS CORP.

1. Locate and drill out the spot welds.

CAUTION: Refer to Approved Equipment for Collision Repair Caution .



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 148

© 2005 Mitchell Repair Information Company, LLC.

2. Remove the tie down loop.

Installation Procedure

1. Prepare all mating surfaces as necessary.

2. Apply GM-approved Weld-Thru coating or equivalent to all mating surfaces. Refer to Anti-Corrosion

Treatment and Repair .
