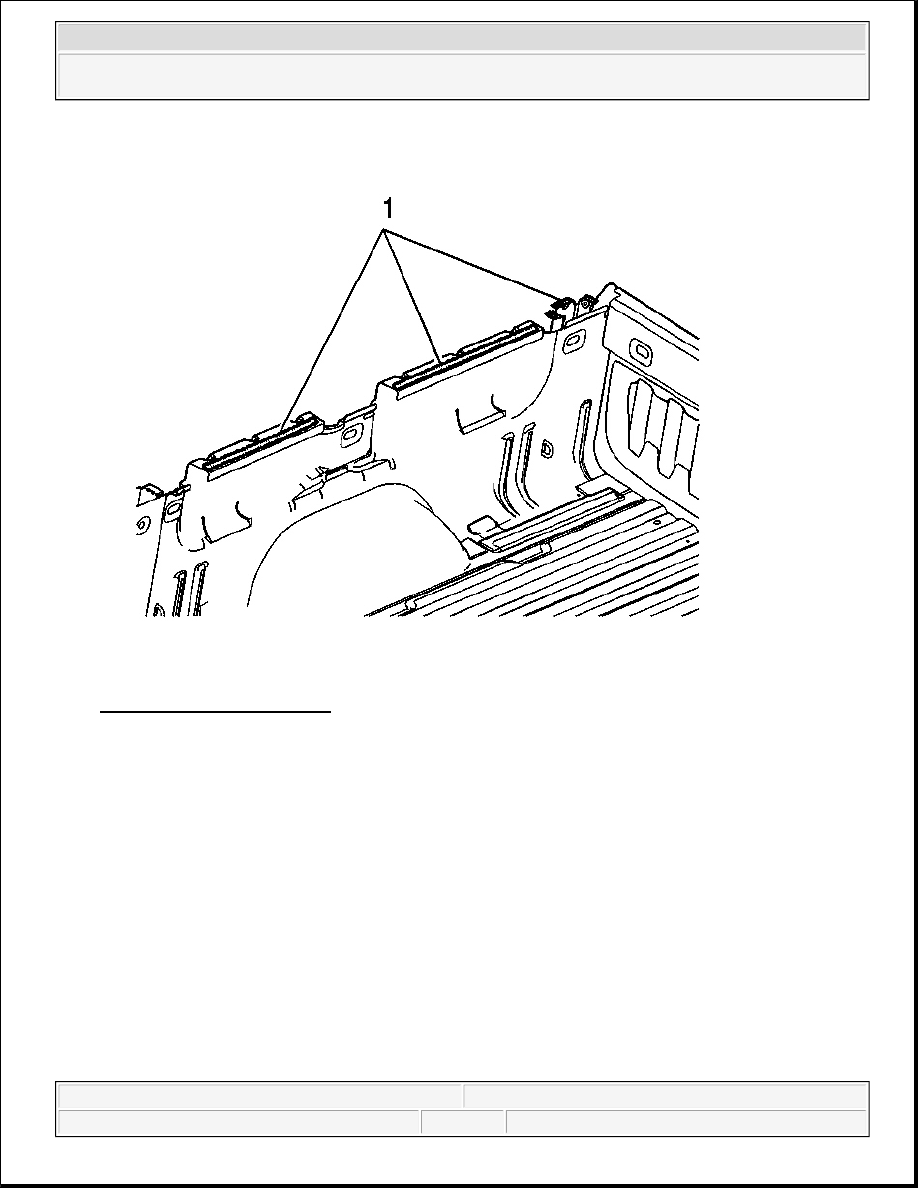

Fig. 131: View Of Upper Rail Spot Welds
Courtesy of GENERAL MOTORS CORP.

8. Locate and drill out the spot welds along the upper rail and the rear sill area.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 142

© 2005 Mitchell Repair Information Company, LLC.

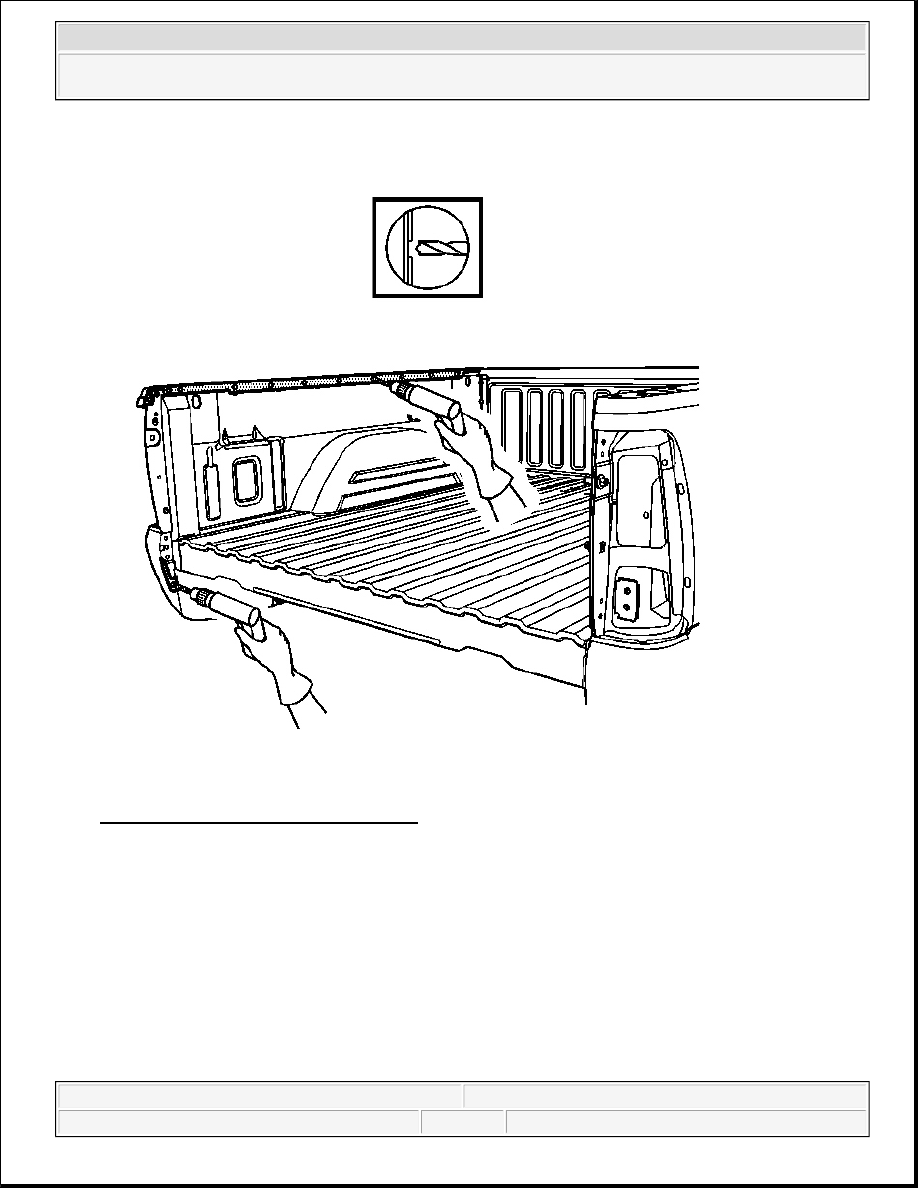

Fig. 132: View Of Inner Panel
Courtesy of GENERAL MOTORS CORP.

9. Structural adhesive is present between the upper inner panel (1) and the outer panel. If necessary, use a

chisel to separate the outer panel from the inner panel.



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 143

© 2005 Mitchell Repair Information Company, LLC.

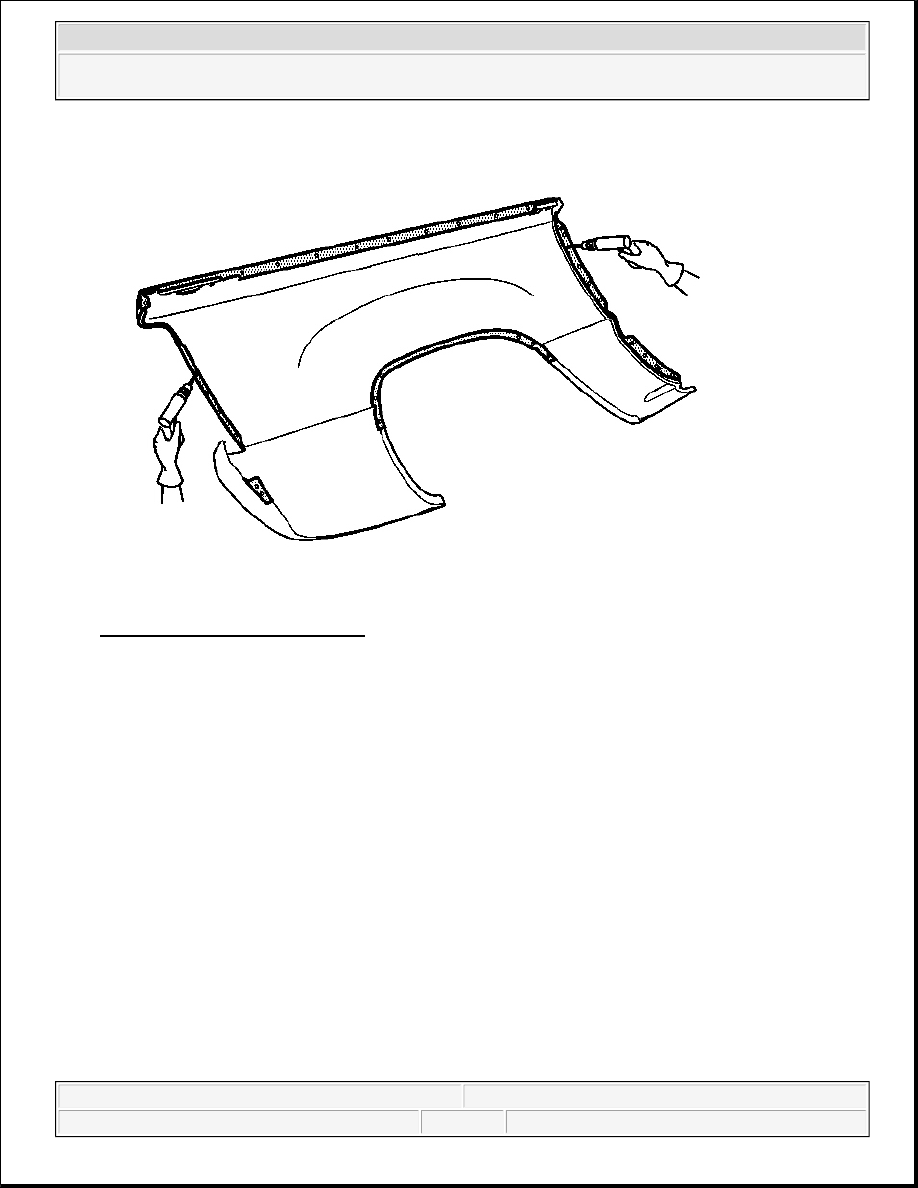

Fig. 133: View Of Side Panel
Courtesy of GENERAL MOTORS CORP.

10. Remove the side panel.

Installation Procedure



2008 Chevrolet Silverado 1500

2008 ACCESSORIES & EQUIPMENT Collision Repair - - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra &

Silverado



Microsoft



Friday, August 21, 2009 2:21:01 PM

Page 144

© 2005 Mitchell Repair Information Company, LLC.

Fig. 134: Drilling Plug Weld Holes
Courtesy of GENERAL MOTORS CORP.

1. Drill 8-mm (5/16-in) plug weld holes in the service part as noted.

2. Prepare all mating surfaces as necessary.

3. Apply Weld-Thru Coating to all mating surfaces.

4. Apply a 9 to 13-mm (3/8 to 1/2-in) bead of metal panel bonding adhesive to the mating surface of the box

inner panel.
